Overview Centralized power supply and management, same function as PoE switch.This product is a   coaxial based encoding/decoding product which can help you to build your fast Ethernet network over coaxial or UTP easily. It can convert the RJ45 based data to be transmittable over coaxial or UTP and transmit the power simultaneously. This product has a single port transmitter and a 16-Ports receiver.

Features

►    PoC solution has the advantages as below:

►    Long transmitting distance. Power/IP transmission distance can be up to 1100mtrs.

►    A wide variety of transmission media. New HD IP surveillance system could be built over existing coaxial, UTP or telephone line. The only thing to do is to have the old analog device replaced by the new IP one.

►    Transmitting power&IP data simultaneously over coaxial, UTP or telephone line. Save your wiring cost and centralized power supply will also save your maintenance cost.

►    With these advantages, it's widely used in the project of upgrading from analog to HD IP surveillance or new long distance IP surveillance project with centralized power supply  to save the time and labor cost.

►    Upgrade from analog surveillance system to HD IP Surveillance with existing coaxial cable, no new wiring required.

►    Super transmission capacity. Up to 1100mtrs Power/IP transmission distance.

►    The 16-Ports receiver has built-in SFP port which can work with either SFP Module or SFP/RJ45 Module with a bandwidth up to 1Gbps.

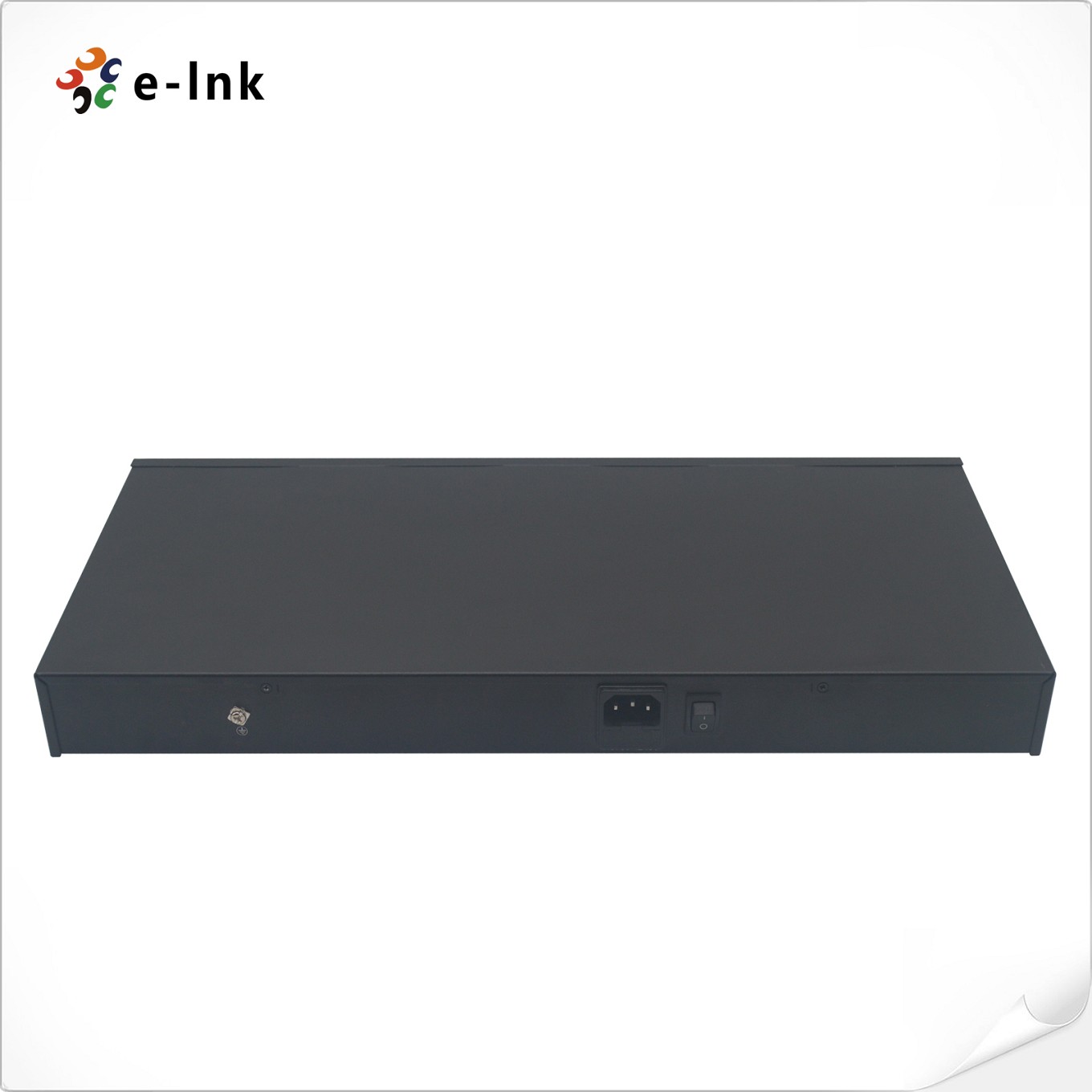

►    The power input of the receiver can be either AC110V or AC220V, no need extra power adapter. Plug&Play, no request for any configuration. Receiver must work with transmitter, neither of them can work alone.

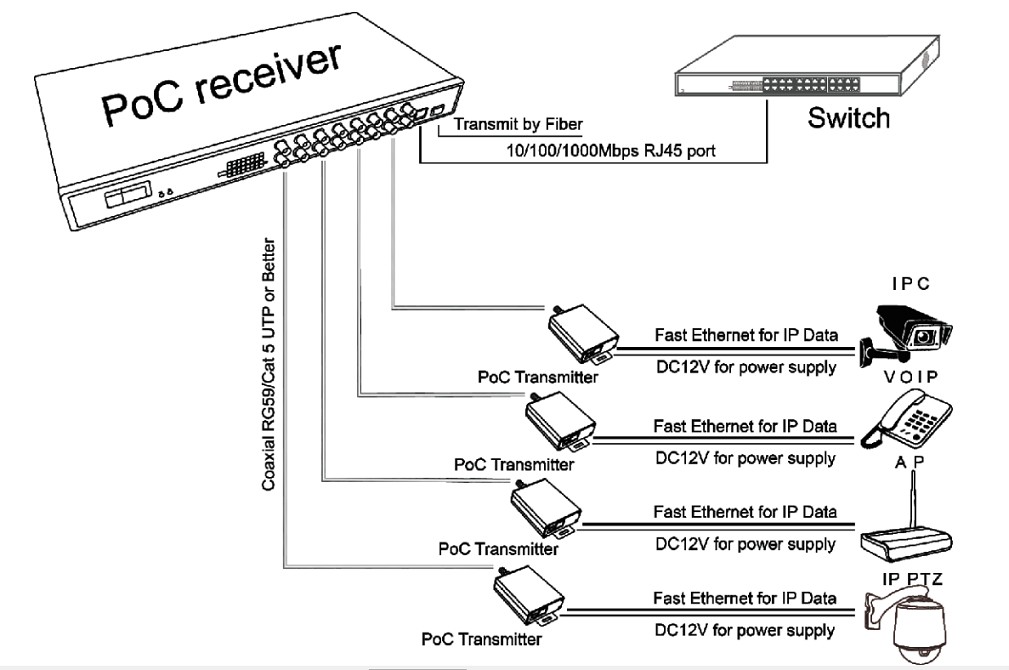

Application

• Download FileName：1Ch EOC and POC MANUAL-1.pdf Size： 7.64MB
• Download FileName：LNK-16POC Switch Manual.pdf Size： 13.55MB

Ordering Information

LNK-EOC01	1Ch Ethernet over Coaxial Extender, 1200m transmission distance
LNK-1POC	1-Port 10/100Base-TX + 1-Port BNC Ethernet over Coaxial Extender, 300m transmission distance(with POE Power), Power Output to IPC: DC12V/2A, powered by LNK-16POC

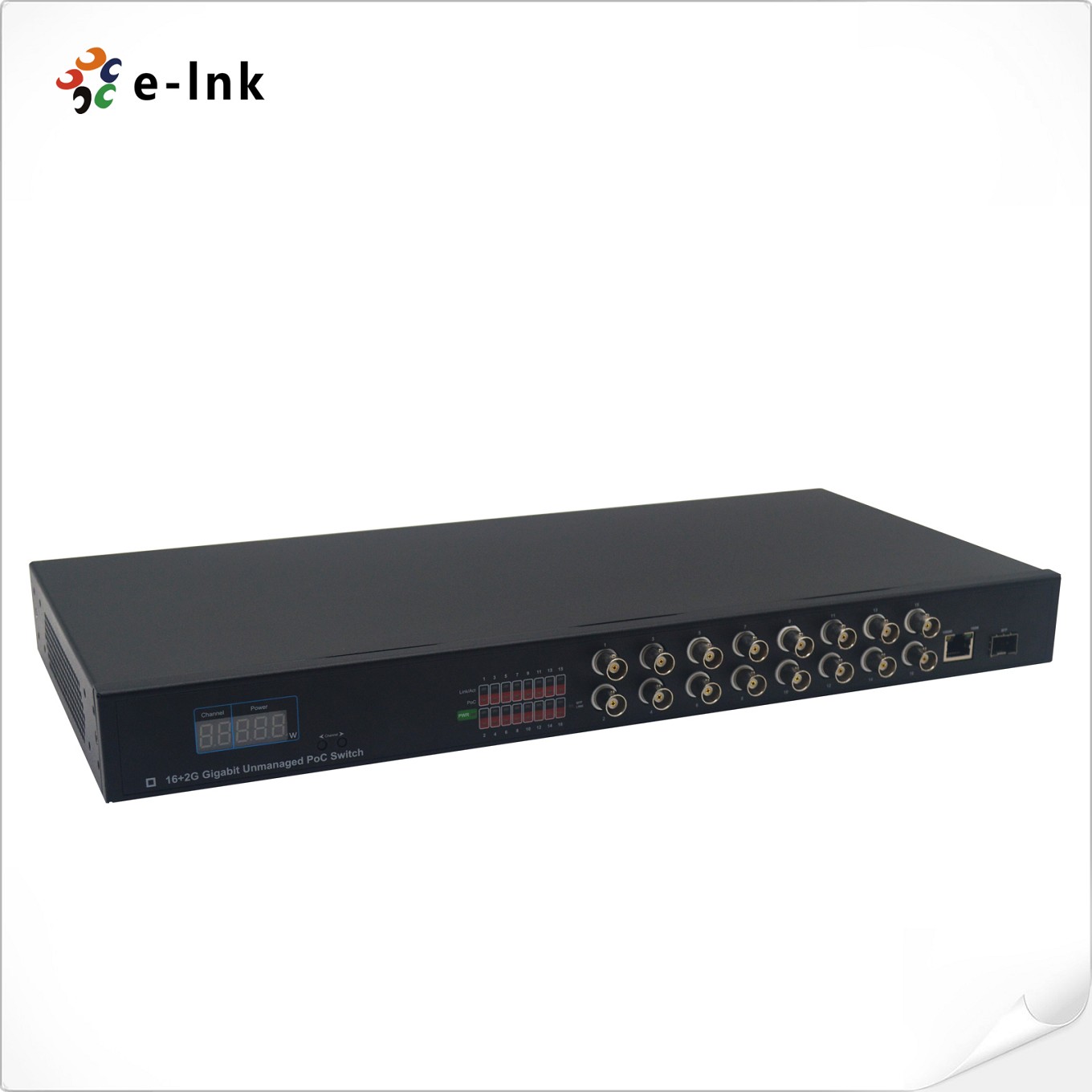

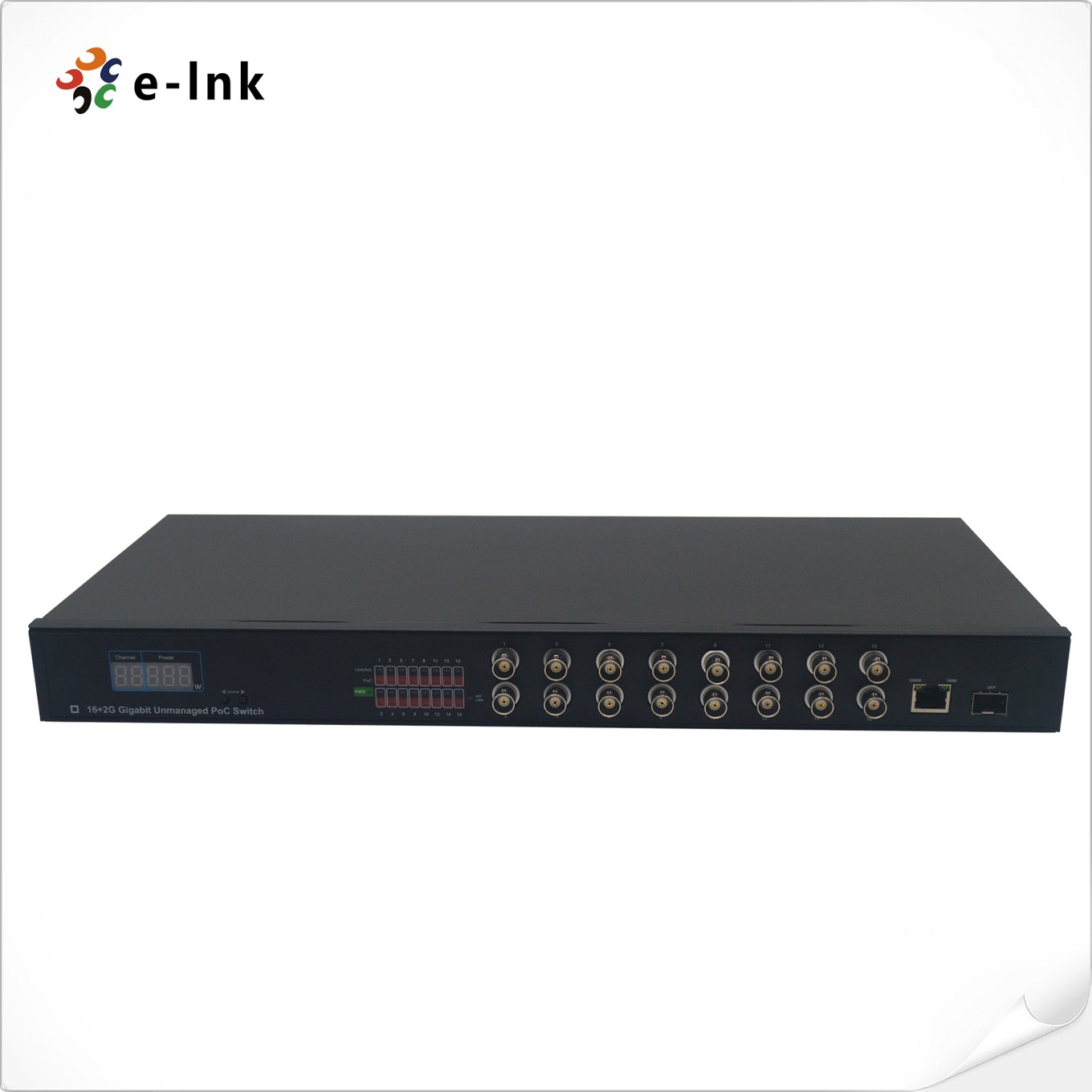

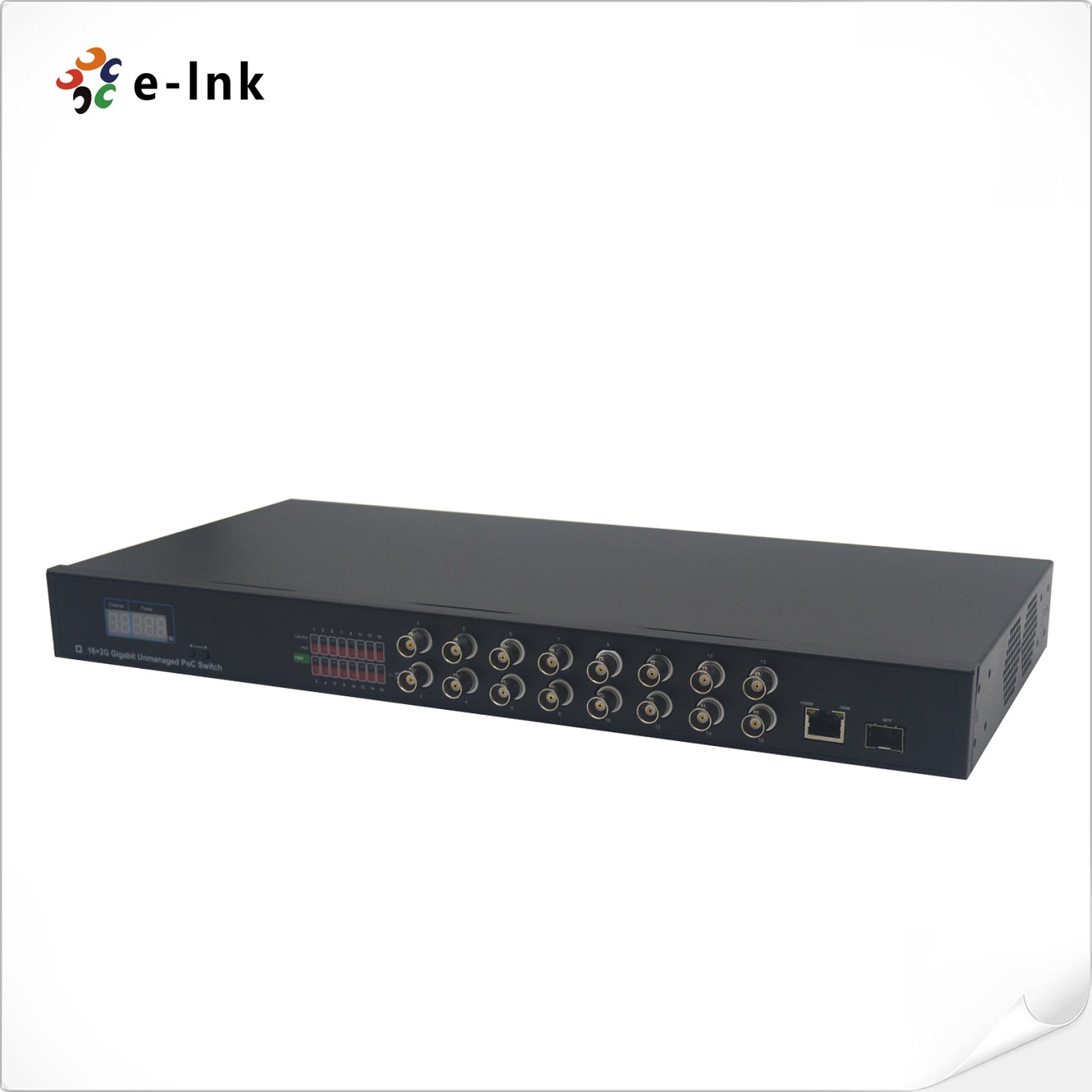

LNK-16POC	16 + 2G Unmanaged PoC Switch: 16-Port BNC + 1-Port 10/100/1000Base-TX + 1-Port 1000M SFP Fiber, connect 16pcs LNK-1POC EOC Transmitters, PoE compliant to IEEE 802.3af/at (25W), PoE Power Budget 240W, Built-in Power Supply
