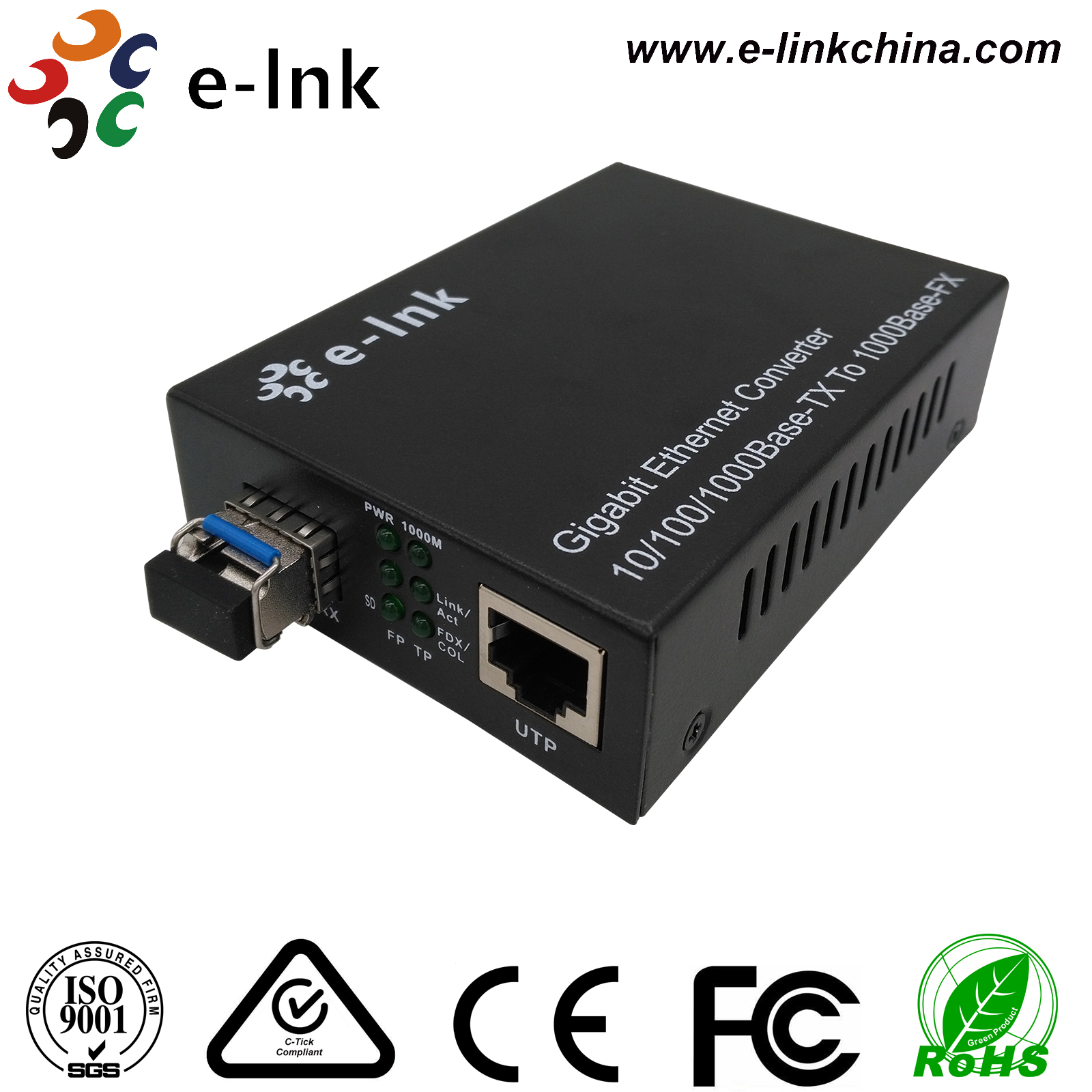

10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch

Model:LNK-3011SFP Series


►   1-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function

►   1 SFP interface,  1000BASE-SX/LX

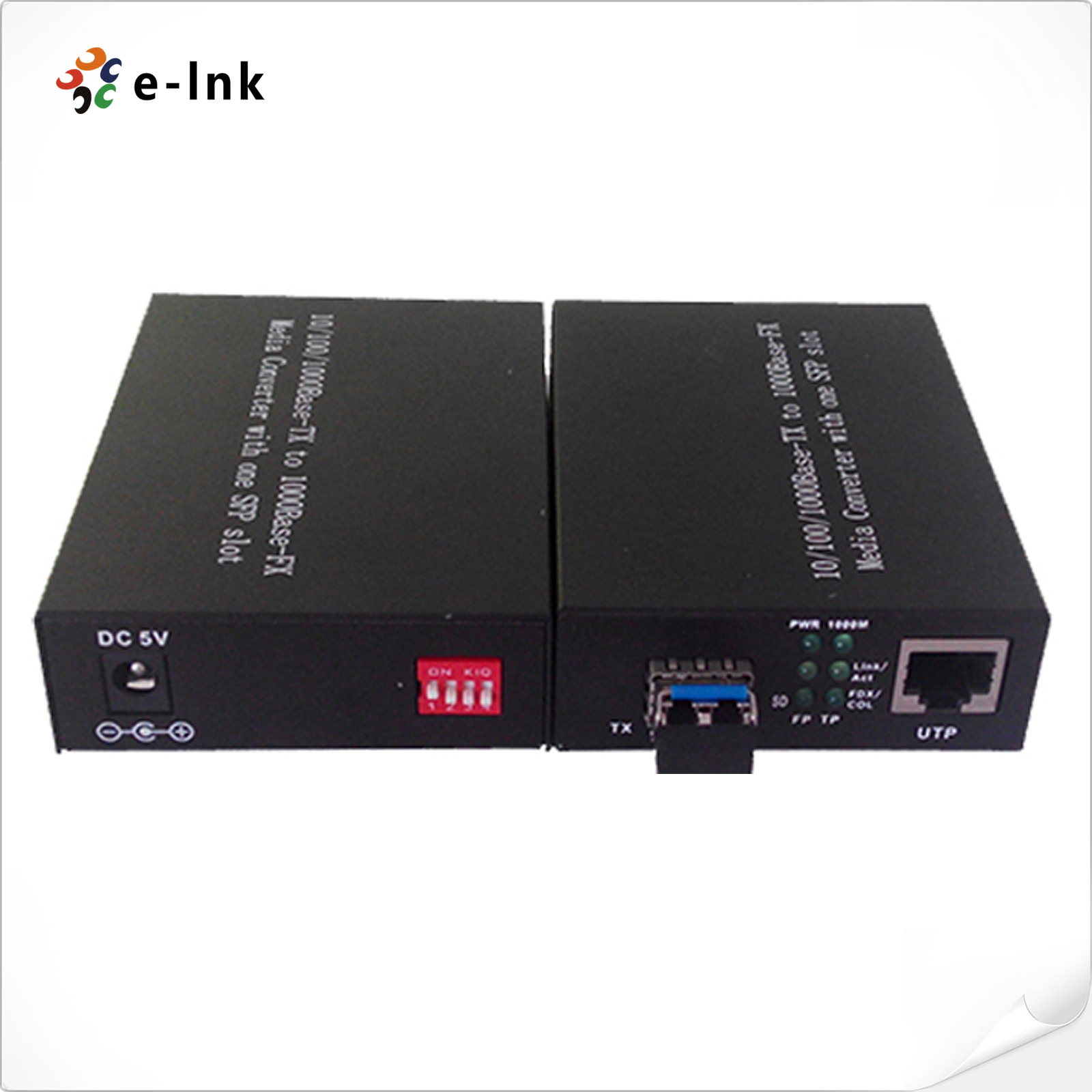

►   Support DIP switch function

►   IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standard compliant



Overview

The LNK-3011SFP is equipped with one 10/100/1000Base-T port and one Gigabit SFP slots to support conversion between 10/100/1000Base-T and 1000Base-X network. The dual SFP slots make the Ethernet signals connect easily and efficiently by adding single-mode or multi-mode media modules or the combination of both types. The LNK-3011SFP provides high reliability and flexibility to extend the media transmission distance up to550m,10kmor longer, depending on the optional 1000Base-SX / LX SFP transceiver modules.

Features

►   1-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function

►   1 SFP interface,  1000BASE-SX/LX

►   Support DIP switch function

►   IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standard compliant

►   Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode

►   Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

►   9K jumbo frame size support

►   LFP function support

►   Supporting low-time lag transmission

►   Built-in Power Supply

►   Extremely low power consumption (less than 3W), reliable and stable performance

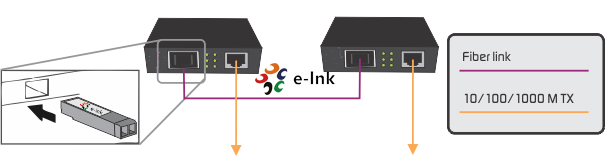

Application

Technical Indexes

Parameter

Specifications

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Wavelength

850nm/1310nm/1550nm

Transmission distance

50/125μm or 62.5/125μm multi-mode fiber cable provides up to 220 & 550 meters

9/125μm single-mode cable provides long distance of10/ 15/ 20/ 30/ 40/ 50/ 60/ 70/120km(vary on SFP module)

Port

Copper: 1 x 10/100/1000Base-T port

Fiber: 1 x 1000Base-X SFP slots

Conversion means

Store and Forward mode or Cut-Through mode

Buffer space

Built in 128Kb RAM for data buffer

Flow control

Full duplex: flow control;

Half duplex: back pressure

BER

<19-9

MTBF

100,000 hours

LED indicator

PWR (power supply), 1000M (UTP Port Speed), LNK/ACT FX (Fiber Port Link/Action Status), LNK/ACT TX (UTP Port Link/Action Status), SD (Fiber Signal Status), FDX/COL (UTP Port Full Duplex)

Power supply

External: AC90~264V/DC100~380V input, 5V1Aoutput

Power consumption

<40W (the chassis at full load), <2W

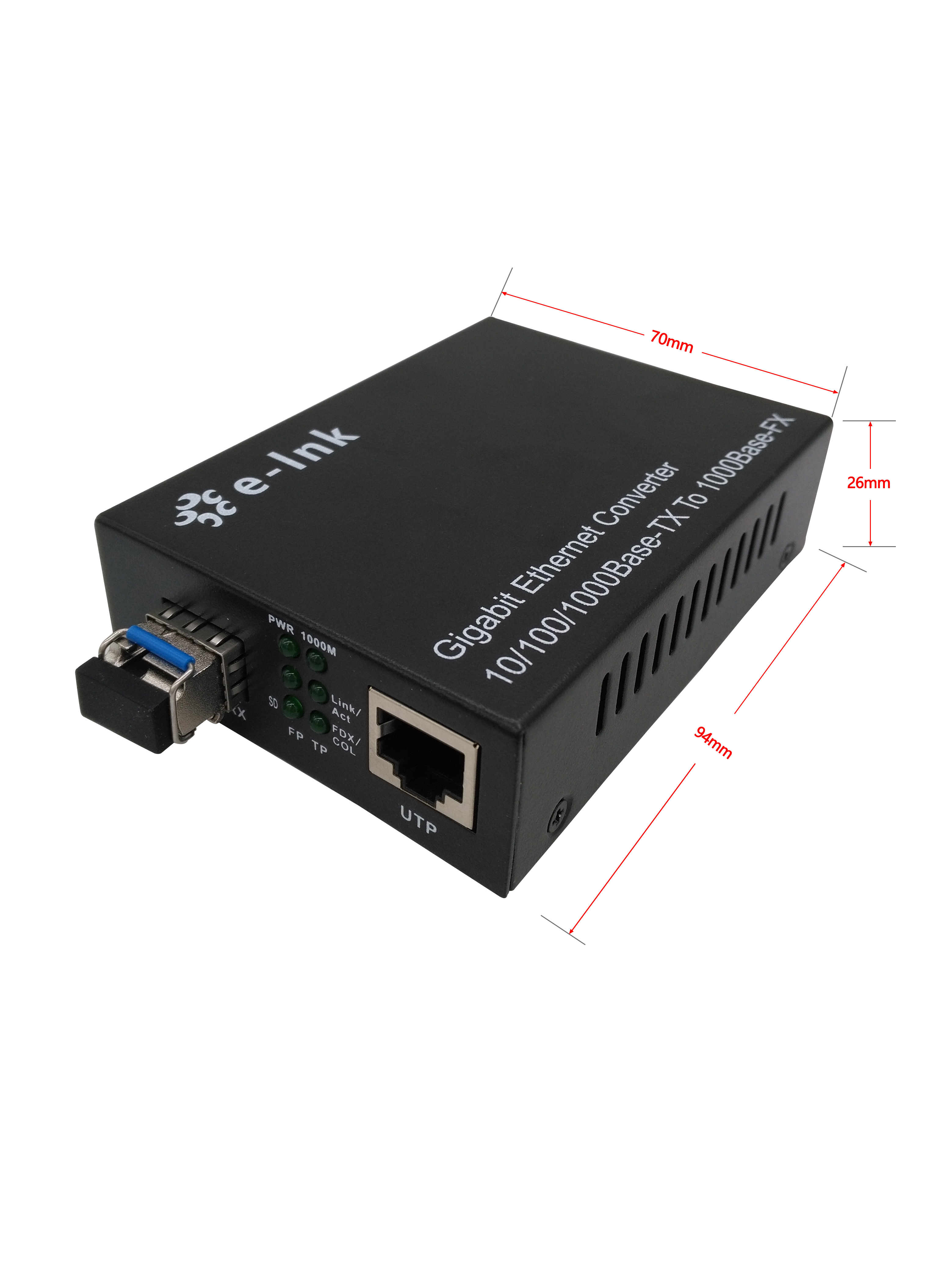

Dimension (LxWxH)

94x70x26mm

Operating temperature

0~70ºC

Operating humidity

5%~90%

Maintaining temperature

-45~80ºC

Maintaining humidity

5% ~ 90% non-condensing

  • Download FileName:E-link LNK-3011SFP SFP Media Converter Datasheet V2.0.pdf Size: 666KB

Ordering Information

LNK-3011SFP

10/100/1000Base-T to 1000Base-X SFP Media Converter, DIP switch, SFP Slot, LC, not including SFP transceiver, standalone, external power adaptor

LNK-3011SFP-M

10/100/1000Base-T to 1000Base-X SFP Media Converter, DIP switch, SFP Slot, LC, with SFP transceiver installed inside, MM,550M, standalone, external power adaptor

LNK-3011SFP-10

10/100/1000Base-T to 1000Base-X SFP Media Converter, DIP switch, SFP Slot, LC, with SFP transceiver installed inside, SM,10KM, standalone, external power adaptor

LNK-3011SFP-20

10/100/1000Base-T to 1000Base-X SFP Media Converter, DIP switch, SFP Slot, LC, with SFP transceiver installed inside, SM,20KM, standalone, external power adaptor

LNK-3011SFP-40

10/100/1000Base-T to 1000Base-X SFP Media Converter, DIP switch, SFP Slot, LC, with SFP transceiver installed inside, SM,40KM, standalone, external power adaptor

LNK-3011SFP-60

10/100/1000Base-T to 1000Base-X SFP Media Converter, DIP switch, SFP Slot, LC, with SFP transceiver installed inside, SM,60KM, standalone, external power adaptor

LNK-3011SFP-80

10/100/1000Base-T to 1000Base-X SFP Media Converter, DIP switch, SFP Slot, LC, with SFP transceiver installed inside, SM,80KM, standalone, external power adaptor
