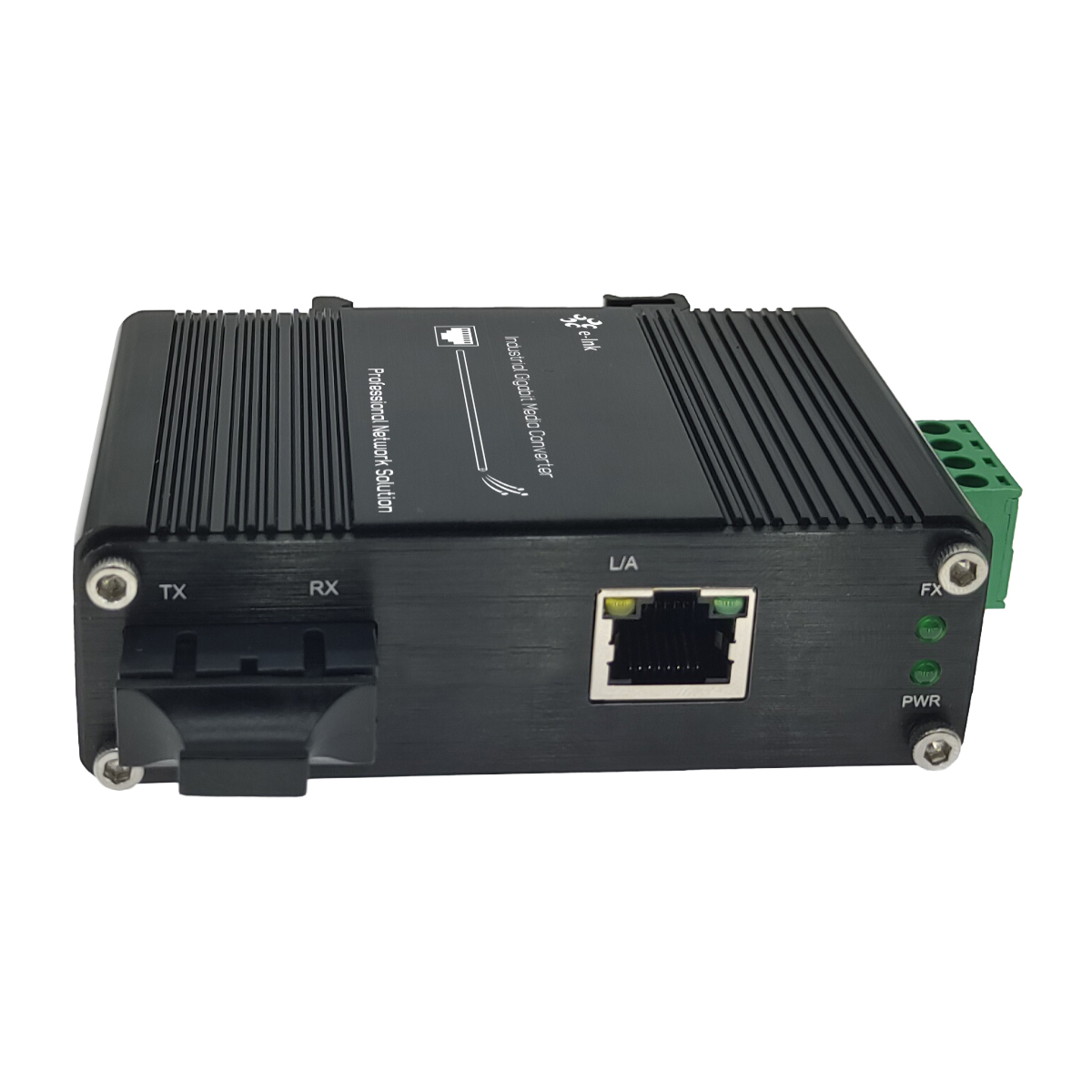

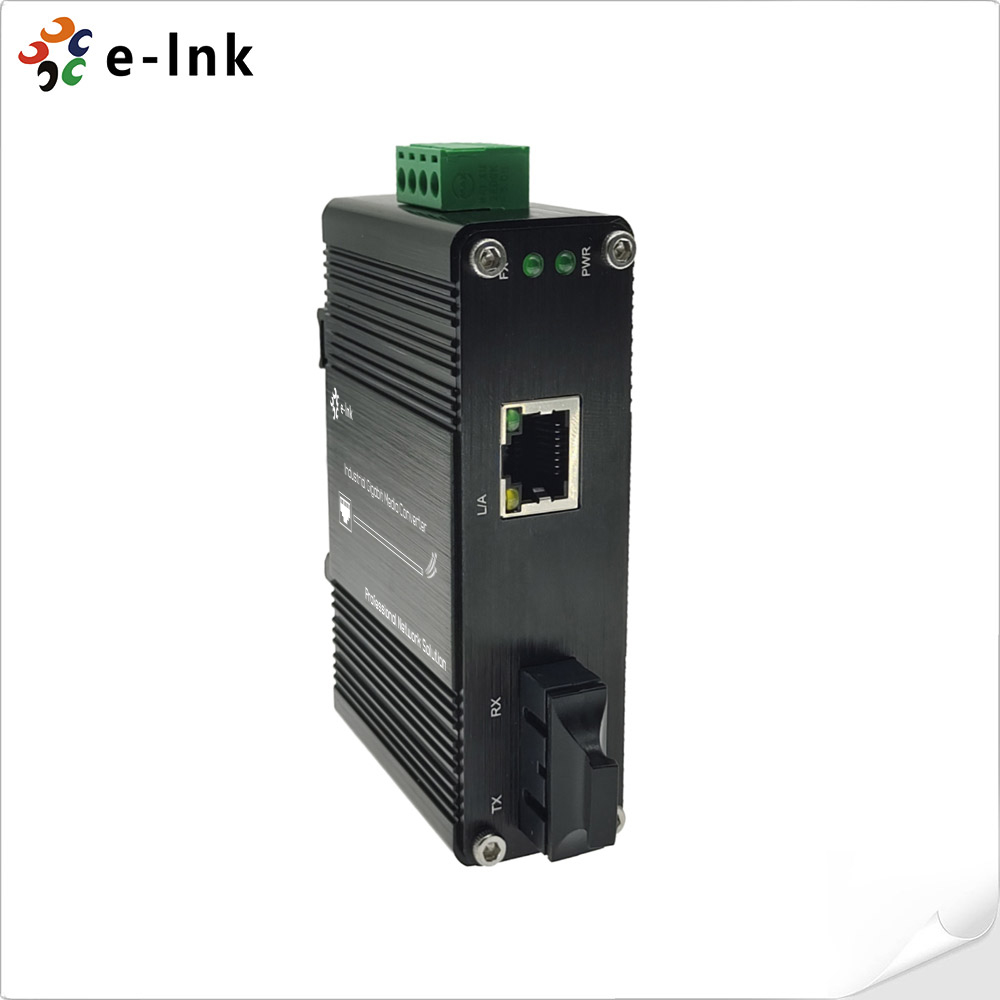

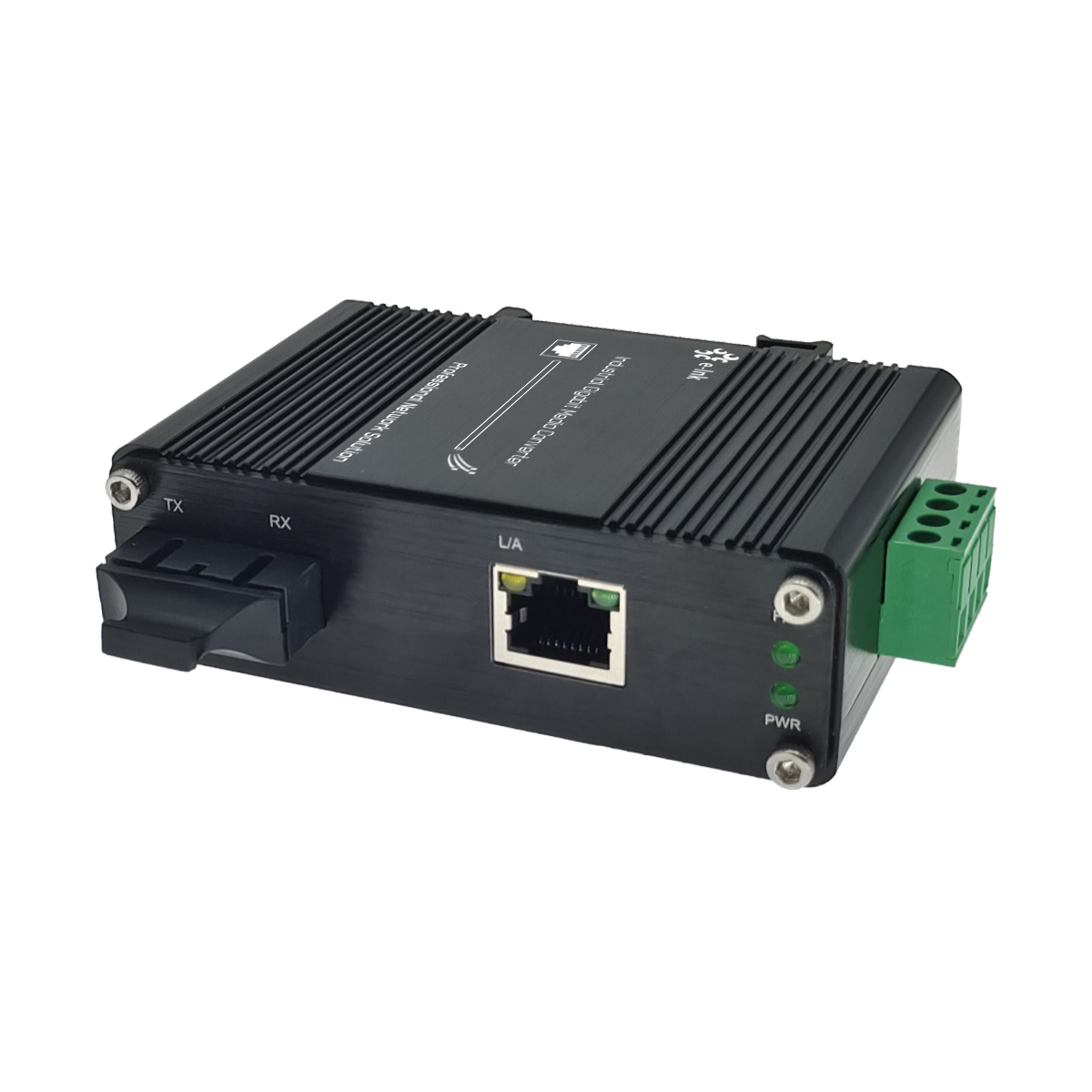

Mini Industrial 10/100/1000Base-T to 1000Base-X Gigabit Media Converter
Model:LNK-IMC3012 Series
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
Overview
The LNK-IMC3012 Series provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3011 Series are easy to mount on a DIN rail or in distribution boxes. This media converter supports both 100M and 1000M on fiber port, that makes it compatible with more devices.
Features
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Extensive LED indicators for network diagnostics

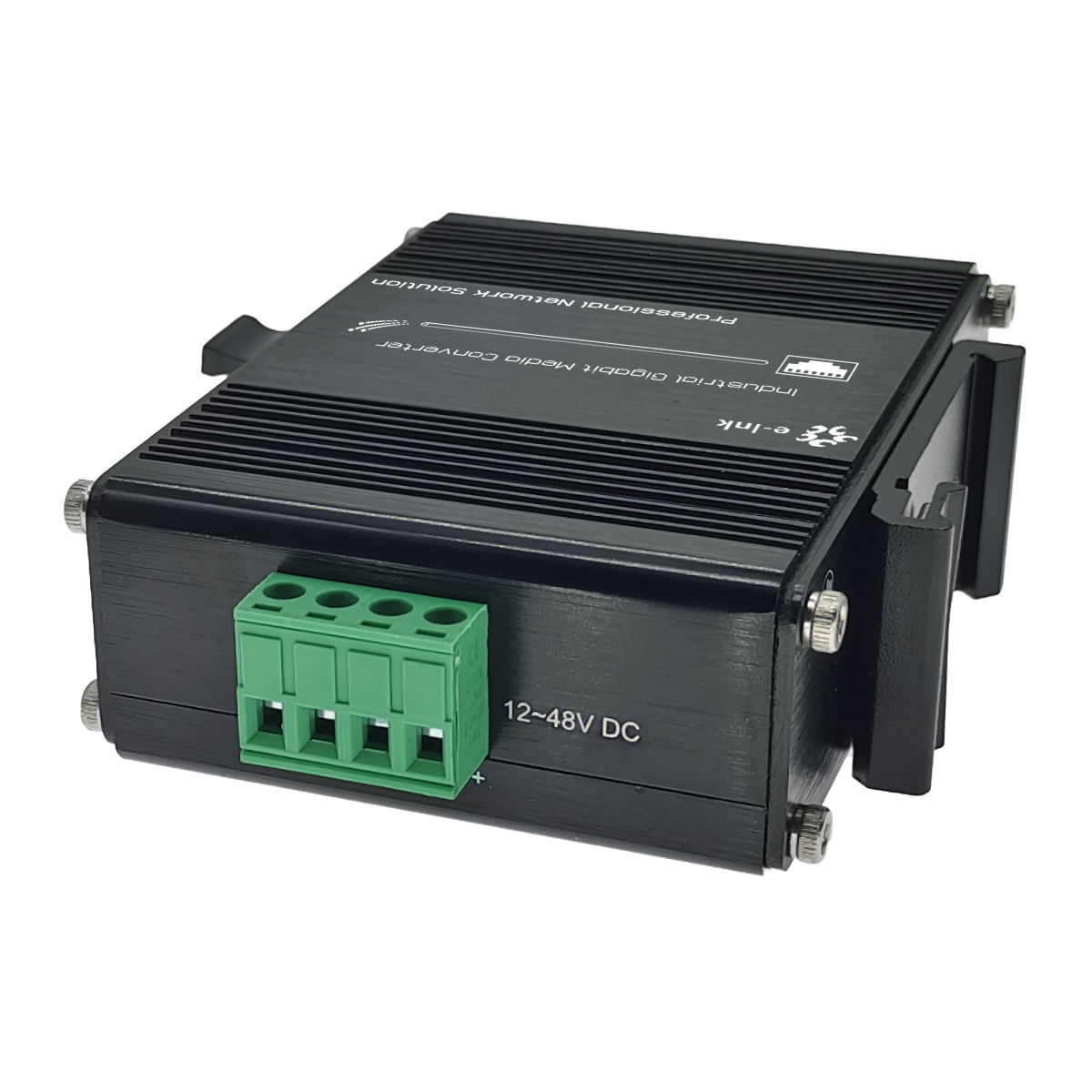

► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Applications
Technical Indexes
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
1x RJ45 |
|
Optical Port: |
1 x SC100Base-FX or 1000Base-X dual mode (auto detection) |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 2-pin terminal block |
|
Power Consumption: |
3W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Data LINK Status |
|
SPD: |
Ethernet Status |
|
100M/1000M: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
|
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
- Download FileName：E-link LNK-IMC3012 Series Industrial Media Converter Datasheet V3.0.pdf Size： 545KB
Ordering Information
|
Model |
Description |
|
LNK-IMC3012 |
Mini Industrial Media Converter, 10/100/1000Base-T to 100/1000Base-SX,Multi-mode,550m, 850nm,SC |
|
LNK-IMC3012-20 |
Mini Industrial Media Converter, 10/100/1000Base-T to 100/1000Base-LX,Single-mode,20km, 1310nm,SC |
|
LNK-IMC3012-S20 |
Mini Industrial Media Converter, 10/100/1000Base-T to 100/1000Base-BX,Single-mode, Single Fiber,20km, 1310/1550nm,SC |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
