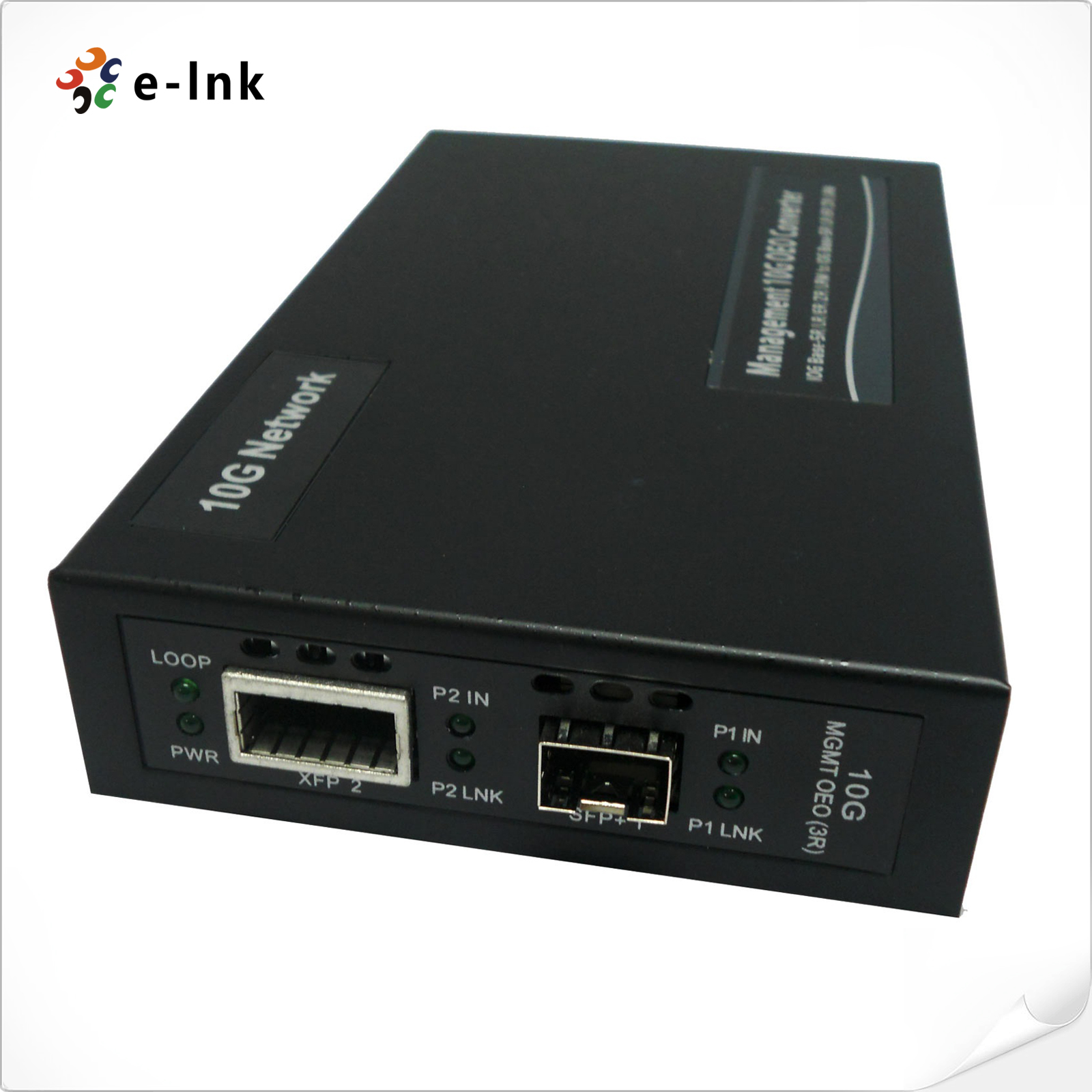

Standalone Web-Smart 10G OEO Converter (3R Repeater)
Model:LNK-OEO-SS Series
►Support Web management
►Transparent
Transport and very low delay
►Support ITUT
prescribed DWDM/CWDM wavelength
Overview
E-link Standalone 10G OEO Converter (3R Repeater) with SFP+ to SFP+ Slot, XFP to XFP Slot, SFP+ to XFP Slot optional, which uses optical -electricity – optical conversion principle to realize optical signal regeneration, enabling of the optical signal amplification and regeneration, re-timing, and wavelength conversion, with coarse/dense wavelength division multiplexing together to realized WDM transmission. It is now possible to quickly improve communication capacity, expand the bandwidth on present network, while using low-cost, high cost-effective solutions to manage and run the system, easy operation.
Features
►3R Repeater,►Support Jumbo Frame
►Transparent Transport and very low delay
►Support ITUT prescribed DWDM/CWDM wavelength
►Support DMI function for SFP+/XFP fiber module
►Support Loopback test function
►Support Web management
►Full State Led display
►Easy installation

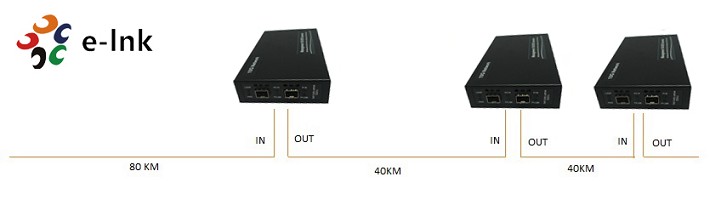

Application
Technical Indexes
|
Transmission Speed |
10Gb/s（9.95Gb/s-11.35Gb/s） |
|
Protocols |
IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM) |
|
Access Type |
10G LAN/ 10G WAN |
|
Interface Type |
A Type: SFP+ To SFP+ B Type: SFP+ To XFP C Type: XFP To XFP |
|
Transmission Distance |
SFP+ module: Up to 80Km XFP module: Up to 80Km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Network management information: |
SFP+ or XFP fiber module detection SFP+ or XFP fiber module DMI function（Temperature、Voltage、Optical power） Link status detector Enable/Disabled Loopback test function Rate select（10Gbase-Lan or Wan） |
|
power requirement |
Standalone: AC 220V OR DC -48V Power consumption: ≤6W |
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90%（non-condensing） |
|
Dimension |
Standalone: 173mmx 106mmx 33mm |
- Download FileName：E-link LNK-OEO-SS Series Smart 10G OEO Converter Datasheet V1.0.pdf Size： 1.64MB
|
Model |
Description |
|
LNK-OEO-SS |
Standalone Web-Smart 10G OEO Converter (3R Repeater) (SFP+ to SFP+) |
|
LNK-OEO-SX |
Standalone Web-Smart 10G OEO Converter (3R Repeater) (SFP+ to XFP) |
|
LNK-OEO-XX |
Standalone Web-Smart 10G OEO Converter (3R Repeater) (XFP to XFP) |
