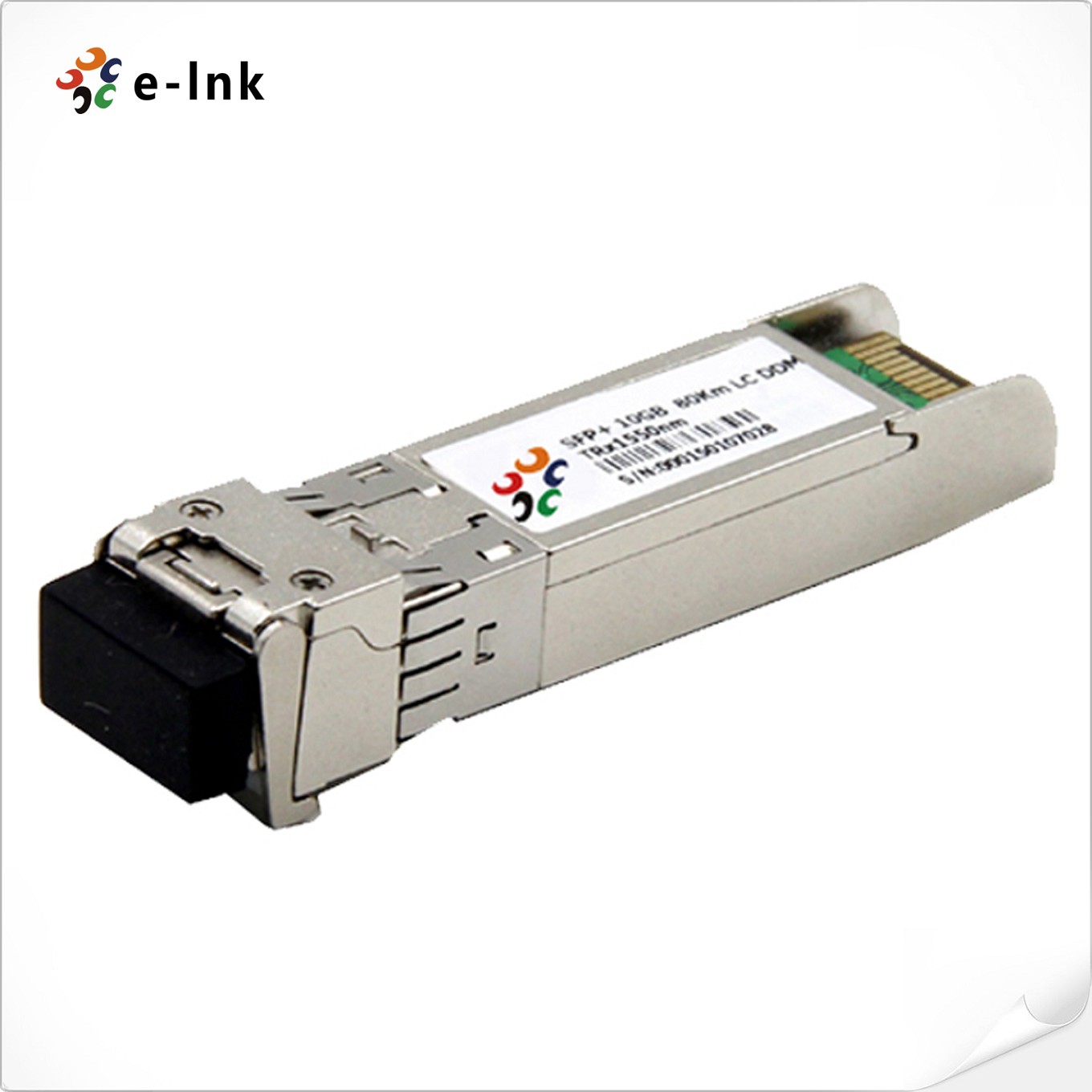

10G SFP+ Fiber Transceiver up to 80km

Model:LNK-SFP-10G Series

►Supports rate from 1.25 Gb/ to 10.3 Gb/s bit rates

►Optical interface compliant to IEEE 802.3ae

►Electrical interface compliant to SFF-8431

Overview

E-link SFP+ Transceiver Modules are certified 100% compliant in all OEM applications. They are pre-configured with an application specific code to meet the requirement set forth by the router and switch OEMs. E-link SFP+ Transceiver  perform, fit and function is perfectly designed to match any vendors switch, be it Cisco, Huawei or others. Our transceivers fully comply with the multi-sourcing agreement (MSA) which enables them to work in all MSA compliant platforms. E-link brand transceivers also function with other brands within the same network.


Features

►Supports rate from 1.25 Gb/ to 10.3 Gb/s bit rates

►Optical interface compliant to IEEE 802.3ae

►Electrical interface compliant to SFF-8431

►Hot Pluggable

►Operating case temperature:
►Commercial: 0 to 70 °C
    Industrial: -40 to +85°C

►Low power consumption

►Applicable for 300m MMF connection

►All-metal housing for superior EMI performance

►Advanced firmware allow customer system encryption information to be stored in transceiver

►Cost effective SFP+ solution, enables higher port densities and greater bandwidth

►RoHS6 compliant(lead free)

Applications


10GBASE-SR at 10.3125Gbps

10GBASE-SW at 9.953Gbps

Other optical links


Technical Indexes

Part No.

Rate

Distance

Wavelength

Fiber

Voltage

DDM

Temp.

Connector

LNK-SFP-10G-SR

10.3G

300m

850

MMF

3.3V

YES

0~70℃

Duplex LC

LNK-SFP-10G-LR

10.3G

10km

1310

SMF

3.3V

YES

0~70℃

Duplex LC

LNK-10G-ER

10.3G

40km

1550

SMF

3.3V

YES

0~70℃

Duplex LC

LNK-10G-ZR

10.3G

80km

1550

SMF

3.3V

YES

0~70℃

Duplex LC



  • Download FileName:E-link 10G SFP+ MMF 300M Datasheet V1.0.pdf Size: 486KB
  • Download FileName:E-link 10G SFP+ SMF 10KM Datasheet V1.1.pdf Size: 333KB
  • Download FileName:E-link 10G SFP+ SMF 40KM Datasheet V1.0.pdf Size: 401KB
  • Download FileName:E-link 10G SFP+ SMF 80KM Datasheet V1.0.pdf Size: 580KB

Order Information

LNK-SFP-10G-SR SFP+, 10GBASE-SR, LC, 850nm, multimode fiber (MMF OM3), Up to 300m, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-SFP-10G-LR SFP+, 10GBASE-LR, LC, 1310nm, supports a link length of 10km on standard single-mode fiber, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-SFP-10G-LR20 SFP+, 10GBASE-LR, LC, 1310nm, supports a link length of 20km on standard single-mode fiber, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-SFP-10G-ER SFP+, 10GBASE-ER, LC, 1550nm, supports a link length of 40km on standard single-mode fiber, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-SFP-10G-ZR SFP+, 10GBASE-ZR, LC, 1550nm, supports a link length of 80km on standard single-mode fiber, With Digital Diagnostic Monitoring, 0°C~+70°C
