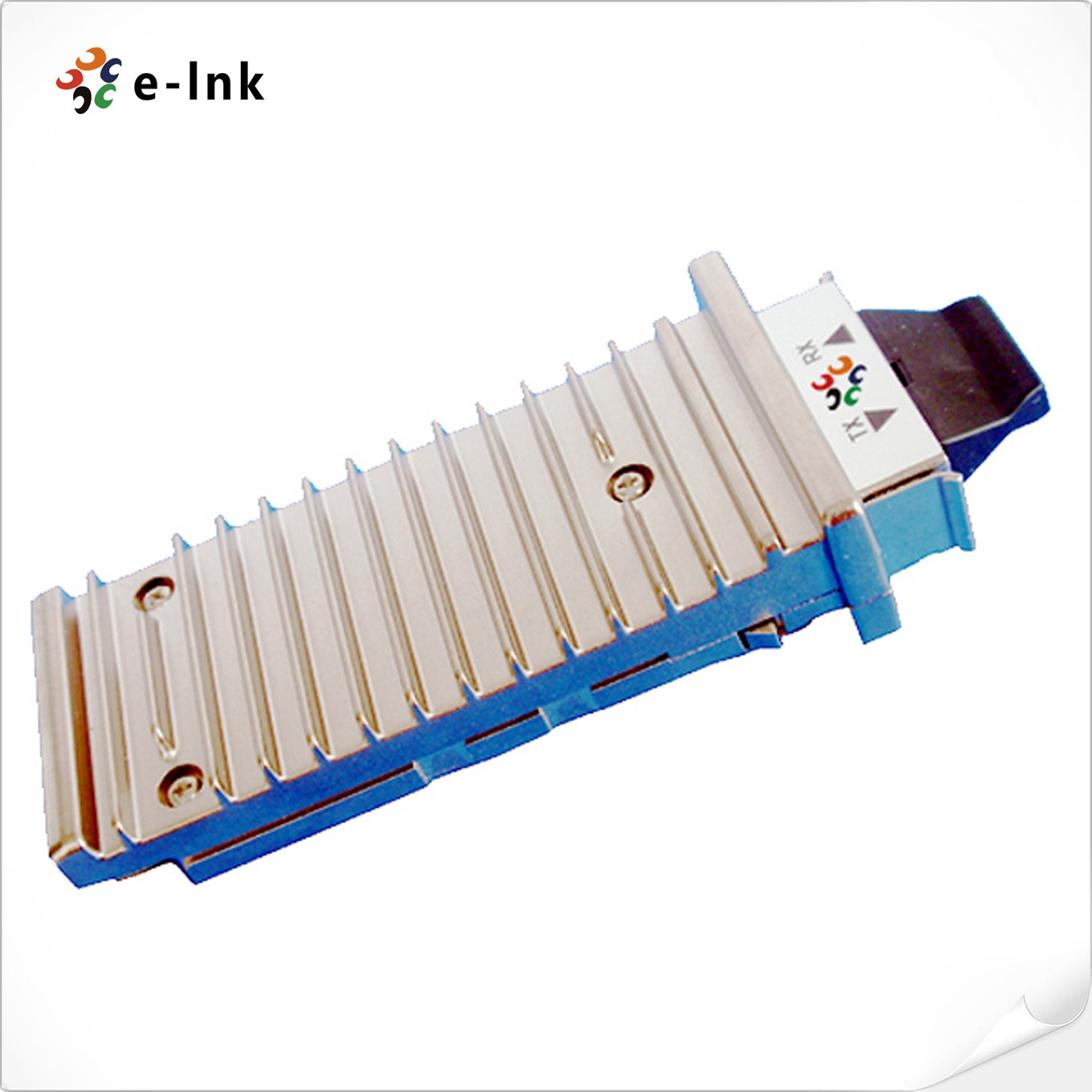

10G X2 Fiber Transceiver

Model:LNK-X2-10G

►Compatible with X2 MSA Rev2.0b

►Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps

Overview

10G X2 transceiver is a highly integrated, serial optical transceiver module for high-speed, 10Gbit/s data transmission applications. 10G X2 module is protocol-specific: Either 10G Ethernet or 10G Fibre Channel versions are available. X2 transponders are used in datacom optical links only (not telecom), and they are smaller than old generation XENPAK transponders. Its electrical interface to the host board is also standardized and is called XAUI (4 x 3.125 Gb/s). E-link manufactures X2 220m, X2 300m, X2 10km, X2 20km, X2 40km, X2 80km optical modules. All modules support Digital Optical Monitoring (DOM) function. Compatible 10G X2 we also supply, such as Cisco 10G Base X2 module, X2-10GB-SR, X2-10GB-LR, X2-10Gb-ER, X2-10GB-ZR etc.

Features

►Compatible with X2 MSA Rev2.0b

►Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps

►SC Duplex Optical Connector

►Hot Pluggable 70-PIN Connector with XAUI Electrical Interface

►Management and control via MDIO 2-wire interface

►Power Supply :+3.3V, APS(+1.2V)

►Diagnostic Optics Monitoring

►Temperature Range: 0~ 70°C

►ROHS Compatible

Applications

10GE Ethernet switches and routers

10GE Core-routers

10GE Storage

Other 10Gbps Ethernet Transmission System


Technical Indexes

Part No.

Rate

Distance

Wavelength

Fiber

Voltage

DDM

Temp.

Connector

LNK-X2-10G-SR

10.3G

300m

850

MMF

3.3V

YES

0~70℃

Duplex SC

LNK-X2-10G-LR

10.3G

10km

1310

SMF

3.3V

YES

0~70℃

Duplex SC

LNK-X2-10G-ER

10.3G

40km

1550

SMF

3.3V

YES

0~70℃

Duplex SC

LNK-X2-10G-ZR

10.3G

80km

1550

SMF

3.3V

YES

0~70℃

Duplex SC



  • Download FileName:E-link 10G X2 MMF 300M Datasheet V1.0.pdf Size: 278KB
  • Download FileName:E-link 10G X2 SMF 10KM Datasheet V1.0.pdf Size: 277KB

Order Information

LNK-X2-10G-SR X2, 10GBASE-SR, SC, 850nm, multimode fiber (MMF OM3), Up to 300m, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-X2-10G-LR X2, 10GBASE-LR, SC, 1310nm, supports a link length of 10 kilometers on standard single-mode fiber, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-X2-10G-ER X2, 10GBASE-ER, SC, 1550nm, supports a link length of 40 kilometers on standard single-mode fiber, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-X2-10G-ZR X2, 10GBASE-ZR, SC, 1550nm, supports a link length of 80 kilometers on standard single-mode fiber, With Digital Diagnostic Monitoring, 0°C~+70°C
