►Compliant with major switch vendors
►Excellent ESD protection
►XFP MSA compliant
Overview

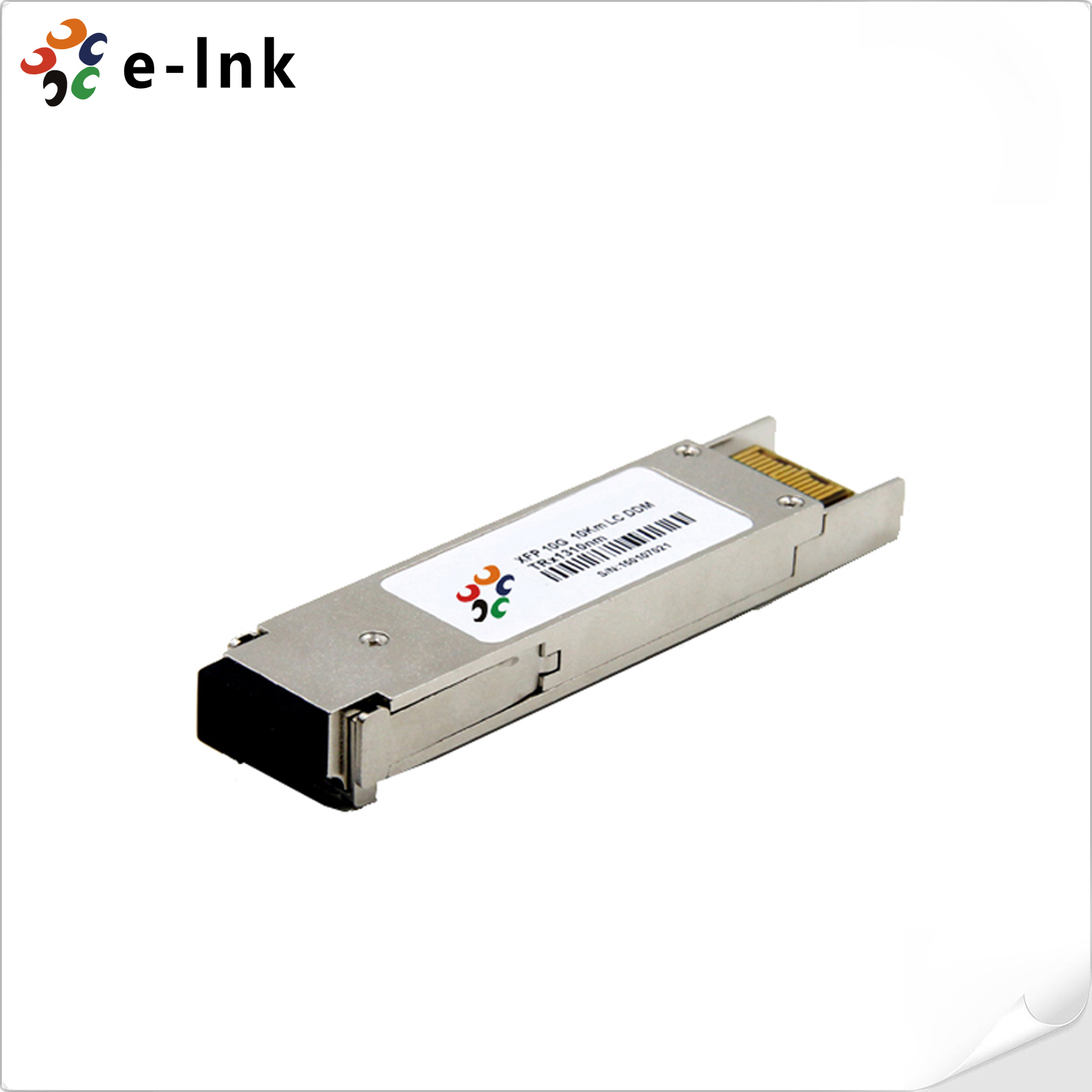

XFP transceiver offers customers a variety of 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.
XFP transceiver is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 10km on SMF.
The transceiver module comprises a transmitter with 1310nm uncooled EML laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Features
►Supports 9.95Gbps to11.1Gbps bit rates
►XFP MSARev 4.5 Compliant
►No reference clock required
►+1.8V,+3.3V Supply Voltage
►Low Power Dissipation 1.5W Maximum
►XFI and lineside loopback Mode Supported
►0ºC to 70ºC Operating Case Temperature
►Diagnostic Performance Monitoring of module temperature,
►Supply Voltages, laser bias current, transmit optical power, and receive optical power
►RoHS compliant(lead free)
Applications
►10GBASE-SR/SW 10G Ethernet
►1200-Mx-SN-I 10G Fiber Channel
►Other optical links
Technical Indexes
Part No. |
Rate |
Distance |
Wavelength |
Fiber |
Voltage |
DDM |
Temp. |
Connector |
LNK-XFP-10G-SR |
10.3G |
300m |
850 |
MMF |
3.3V |
YES |
0~70℃ |
Duplex LC |
LNK-XFP-10G-LR |
10.3G |
10km |
1310 |
SMF |
3.3V |
YES |
0~70℃ |
Duplex LC |
LNK-XFP-10G-ER |
10.3G |
40km |
1550 |
SMF |
3.3V |
YES |
0~70℃ |
Duplex LC |
LNK-XFP-10G-ZR |
10.3G |
80km |
1550 |
SMF |
3.3V |
YES |
0~70℃ |
Duplex LC |
Order Information
LNK-XFP-10G-SR | 10GBASE-SR XFP transceiver module for MMF, 850nm wavelength, 300m dual LC connector, With Digital Diagnostic Monitoring, 0°C~+70°C |
LNK-XFP-10G-LR | 10GBASE-LR XFP transceiver module for SMF, 1310nm wavelength, 10km dual LC connector, With Digital Diagnostic Monitoring, 0°C~+70°C |
LNK-XFP-10G-ER | 10GBASE-ER XFP transceiver module for SMF, 1550nm wavelength, 40km dual LC connector, With Digital Diagnostic Monitoring, 0°C~+70°C |
LNK-XFP-10G-ZR | 10GBASE-LR XFP transceiver module for SMF, 1550nm wavelength, 80km dual LC connector, With Digital Diagnostic Monitoring, 0°C~+70°C |
