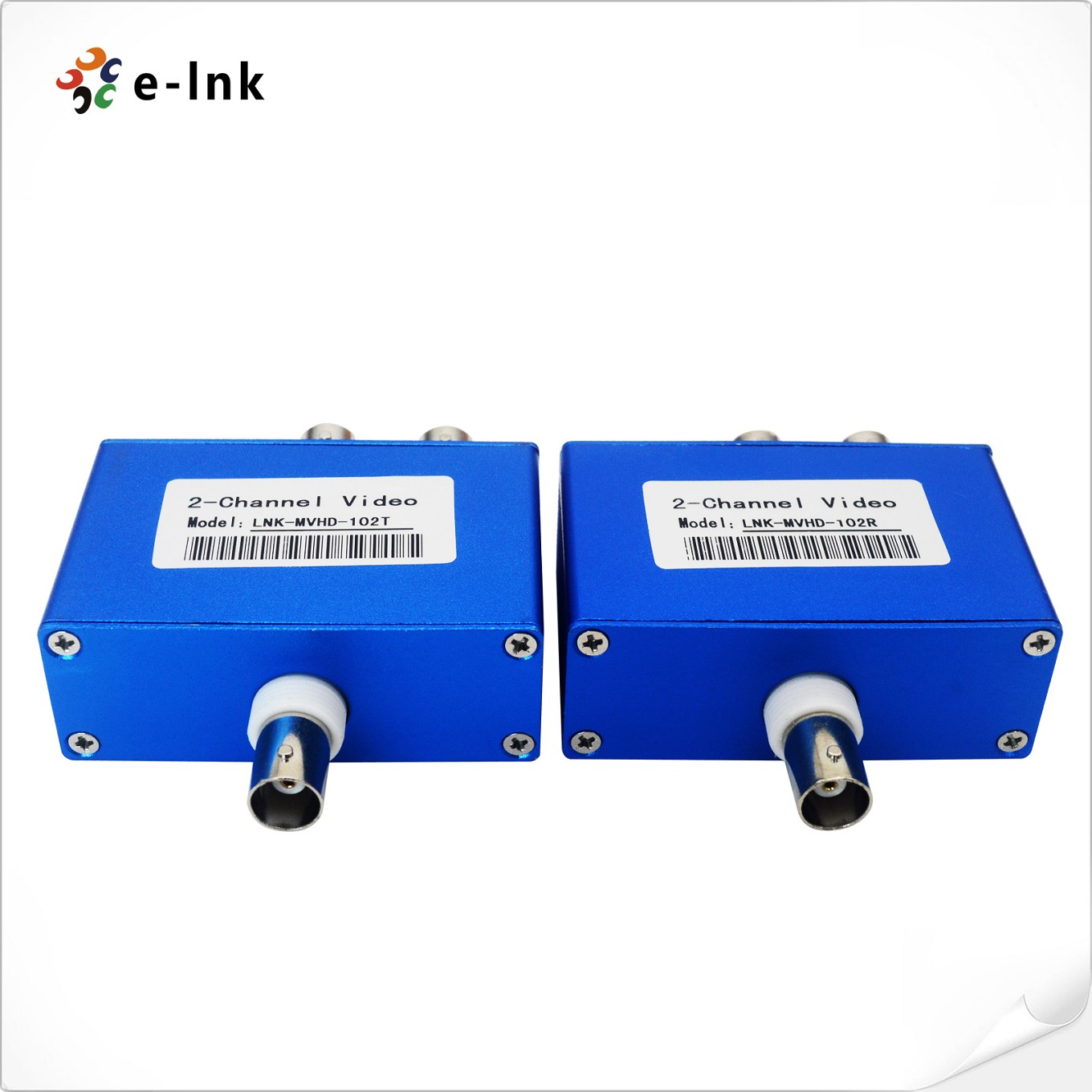

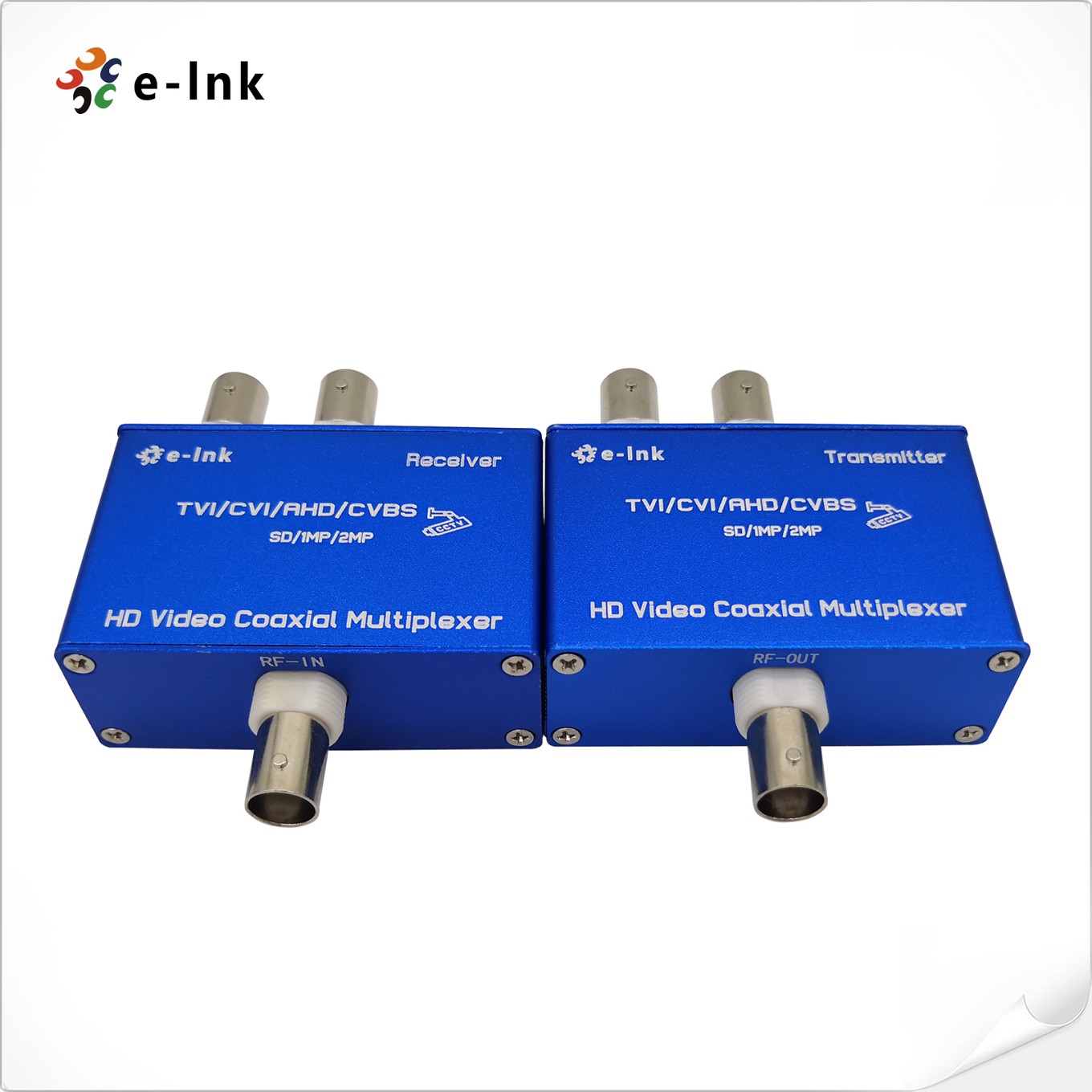

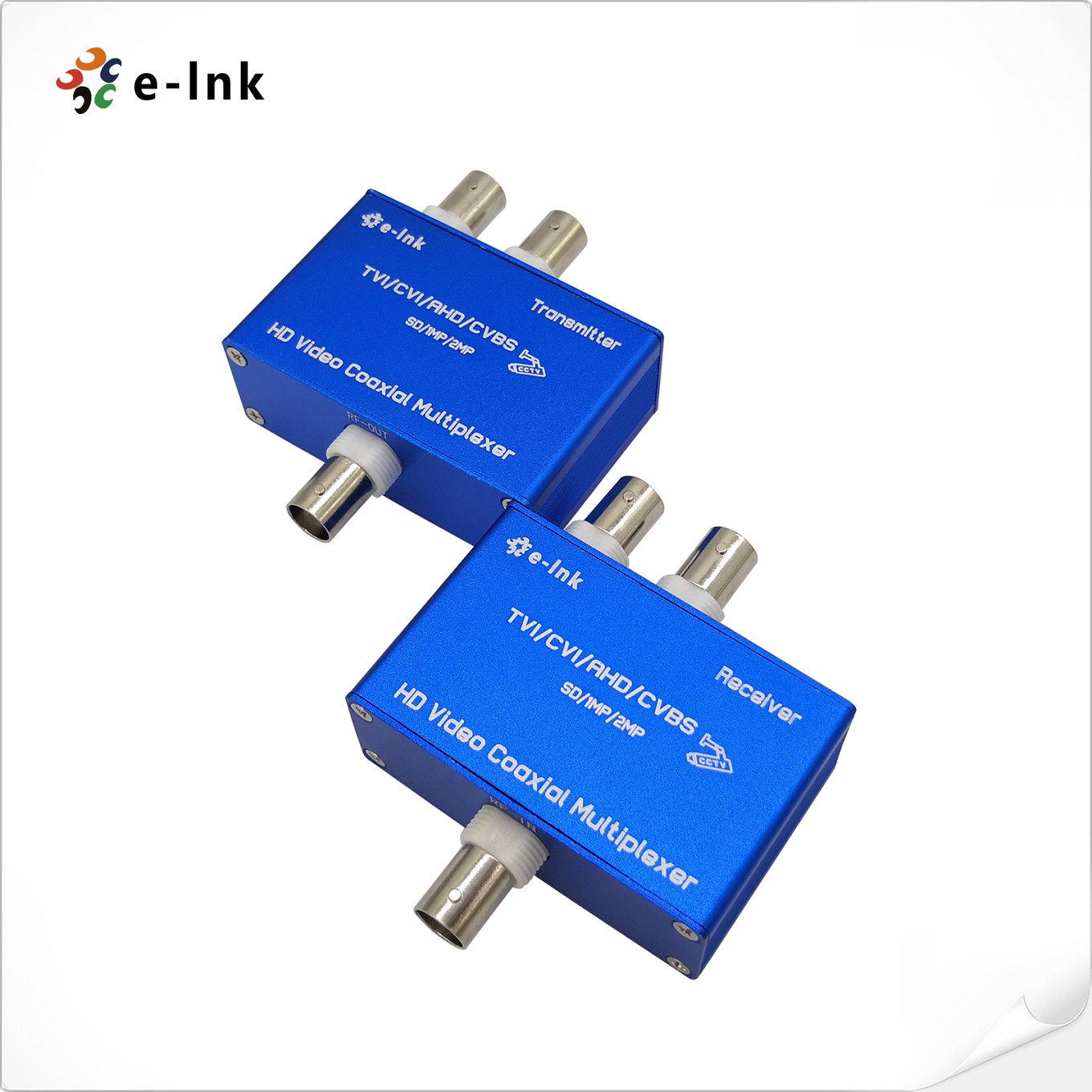

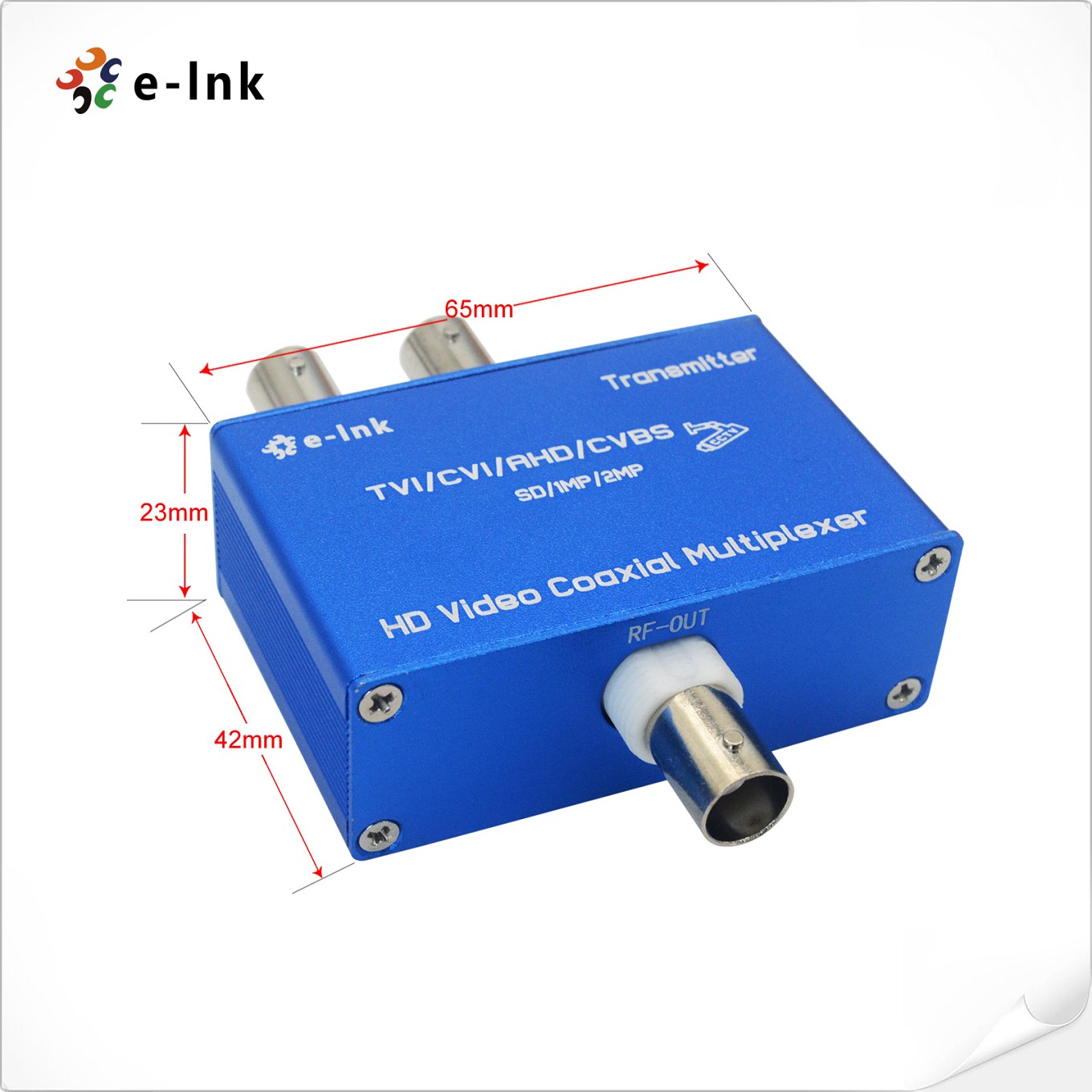

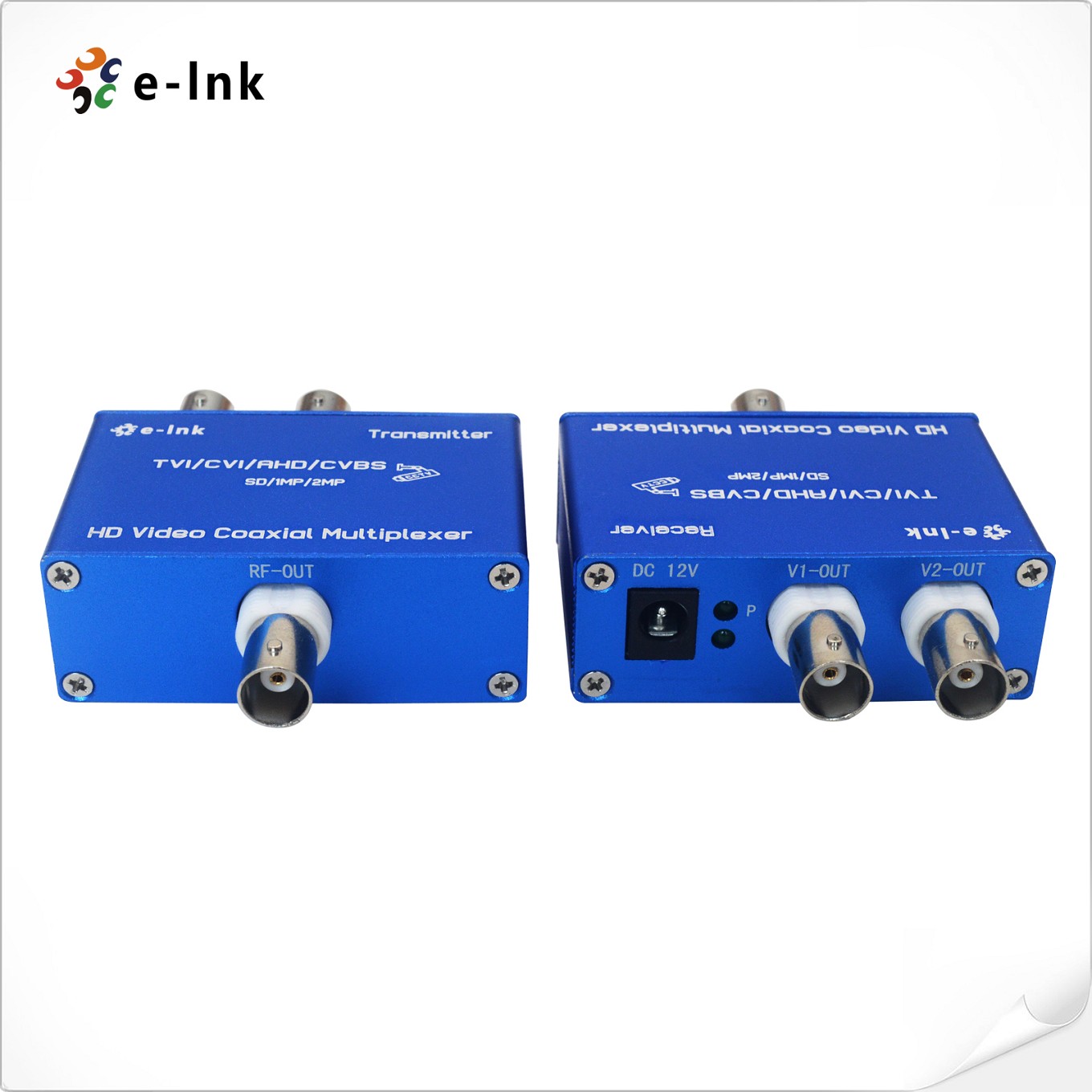

2 CH CVI/AHD/TVI HD/Coaxial Multiplexer

Model:LNK-MVHD-102

► 2 Channel CVI/AHD/TVI video signal for camera over 1 coaxial cable

► Long distance transmission up to 400m

► One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)

► Maintaining high quality CVI/AHD/TVI video & anti-interference immunity

Overview

E-link LNK-MVHD-102 series Coaxial HD video standard on the market at present is divided into three kinds of HD CVI (they are Dahua company standards, Xiongmai technology AHD and Hikvision TVI standard). Its resolution is divided into 1 million pixels (720P), 1.3 million pixels (960P), and 2 million pixels (1080P), and other three kinds of the resolution of the video image.

This product uses special compression modulation technology, on the front end (transmitter) will 2-Ch CVI/AHD/TVI HD video camera is compressed, made into digital signal in coaxial cable transmission, the back-end (receiver) through demodulation, reductive into 2 HD signals after decompression, for HD DVR (TVI/CVI/AHD) or matrix is used. This series of products can be divided into the 100 meters, 200 meters, 400 meters, such as the transmission distance and different models.

Features

► 2 Channel CVI/AHD/TVI video signal for camera over 1 coaxial cable

► Designed according to projects with minimum installation volume requirement

► Long distance transmission up to 400m

► Frequency Division Multiplexing, with allCVI/AHD/TVI video and data transmission real-time and all images high-definition and non-delay.

► Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets,

► One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)

► Maintaining high quality CVI/AHD/TVI video & anti-interference immunity

► Easy installation with BNC harness

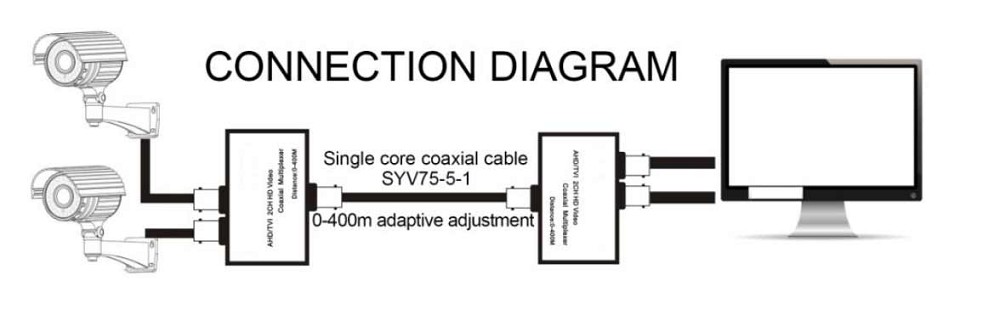

Application

Specifications

(Please use SYV75-3Single core coaxial cable)


Model

Signal Mode

Camera Mode

SYV75-3

LNK-MVHD 102ACT

2  CH

CVI/AHD/TVI: 720P/960P/1080P

≦400M


  • Download FileName:E-link LNK-MVHD-102ACT HD Video Multiplexer Datasheet V1.0.pdf Size: 396KB

Ordering Information

Item

Description



LNK-MVHD-102ACT

2-Ch AHD/CVI/TVI video converter transmitter and receiver for 2MP camera by one coaxial cable Transmissiondistance≦400M,support: AHD/CVI/TVI (720P.960P.1080P)
