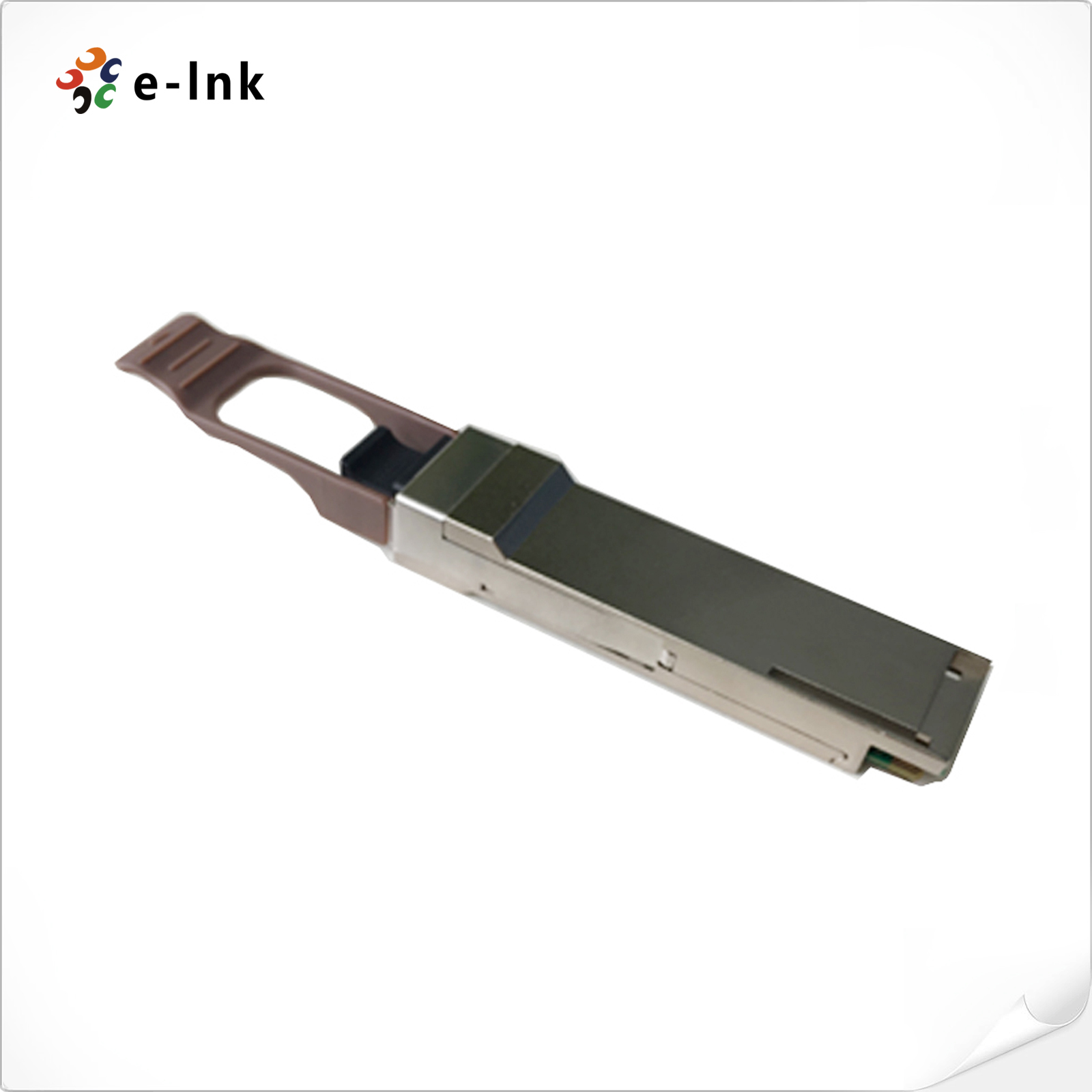

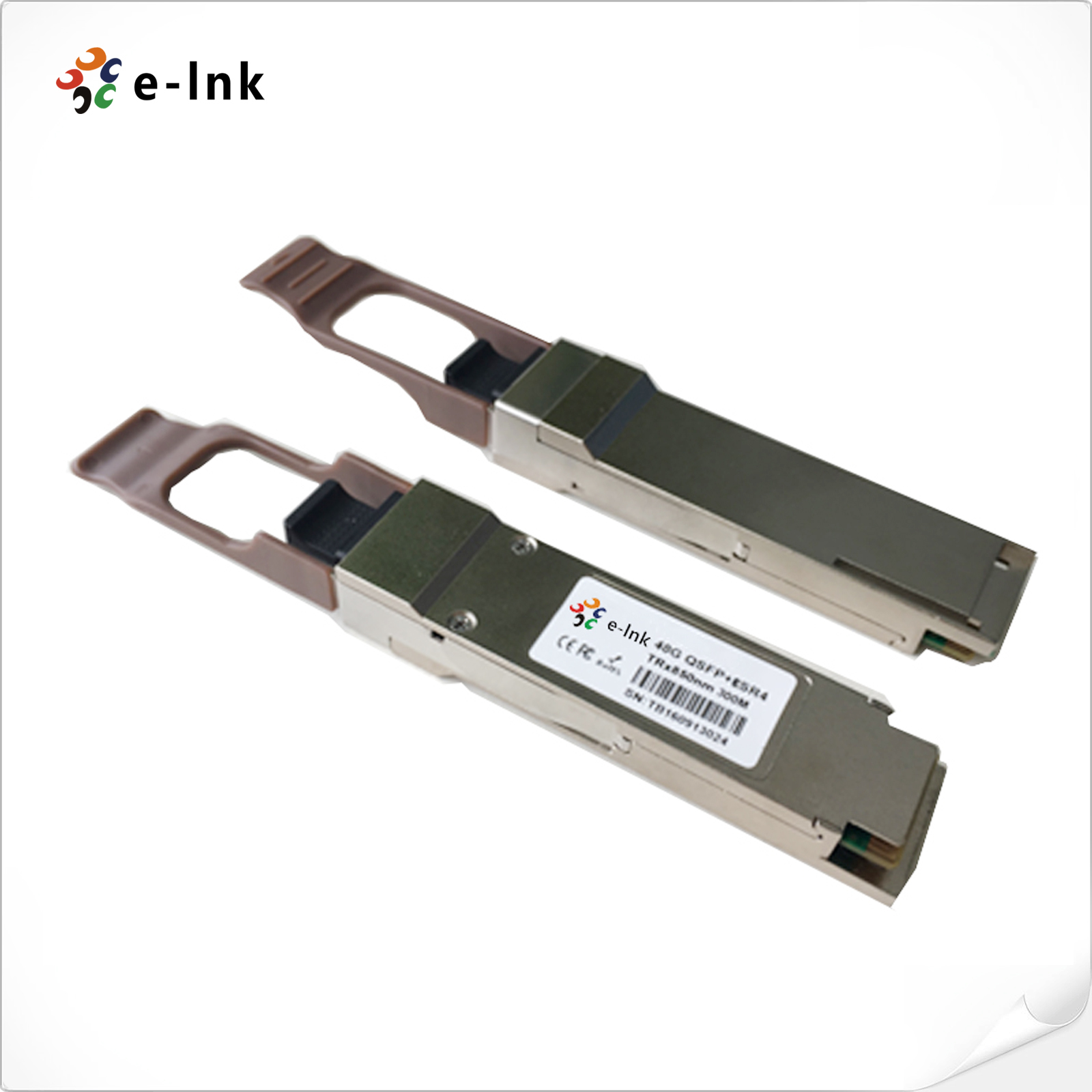

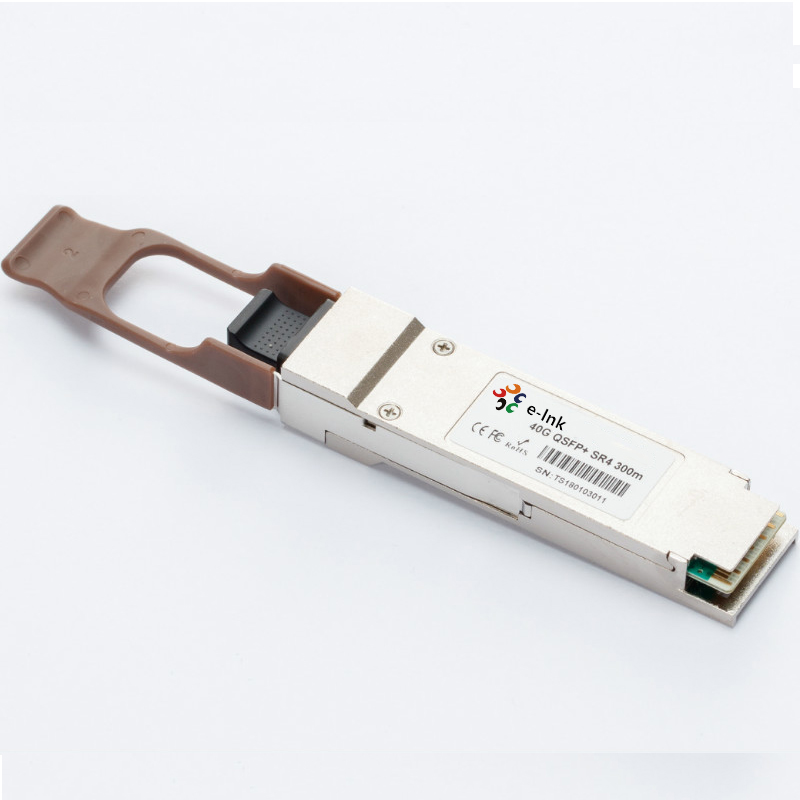

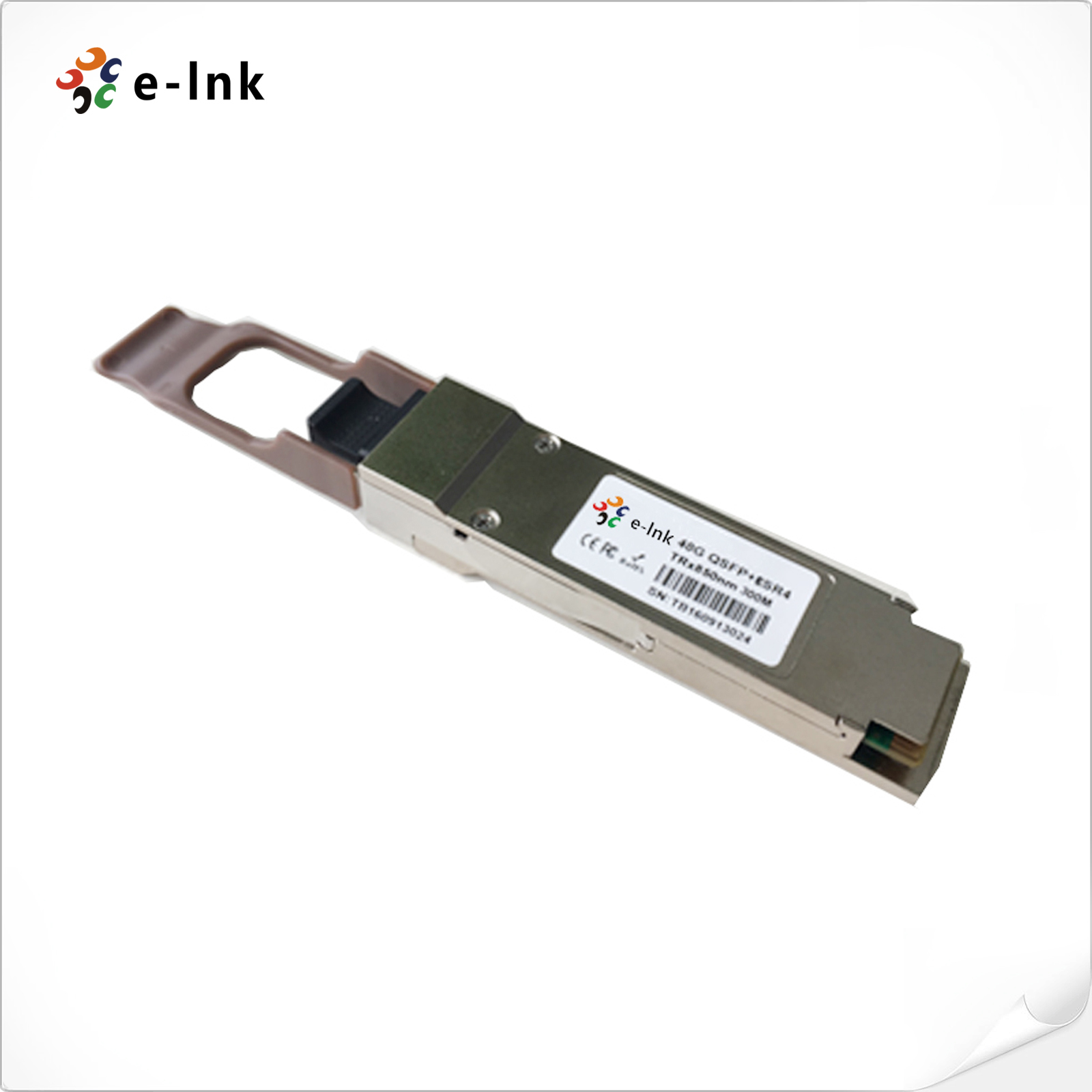

LNK-QSFP-CSR4 is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF.

An optical fiber ribbon cable with an MPO/MTP connector at each end plugs into the QSFP module receptacle. The orientation of the ribbon cable is “keyed” and guide pins are present inside the module’s receptacle to ensure proper alignment.

 The cable usually has no twist (key up to key up) to ensure proper channel to channel alignment. Electrical connection is achieved though a z-pluggable 38-pin IPASS® connector.

The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information.

Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

 LNK-QSFP-CSR4 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Features:

4 independent full-duplex channels

Up to 11.2Gbps per channel bandwidth

Aggregate bandwidth of > 40Gbps

MTP/MPO optical connector

QSFP MSA compliant

Digital diagnostic capabilities

Capable of over 300m transmission on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF

CML compatible electrical I/O

Single +3.3V power supply operating

TX input and RX output CDR retiming

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Applications:

Rack to rack

Data centers

Metro networks

Switches and Routers

Infiniband 4x SDR, DDR, QDR

• Download FileName：E-link 40GBASE-CSR4 QSFP+ 850nm 300m MPO DDM Transceiver Datasheet V1.0.pdf Size： 2.19MB
