Overview

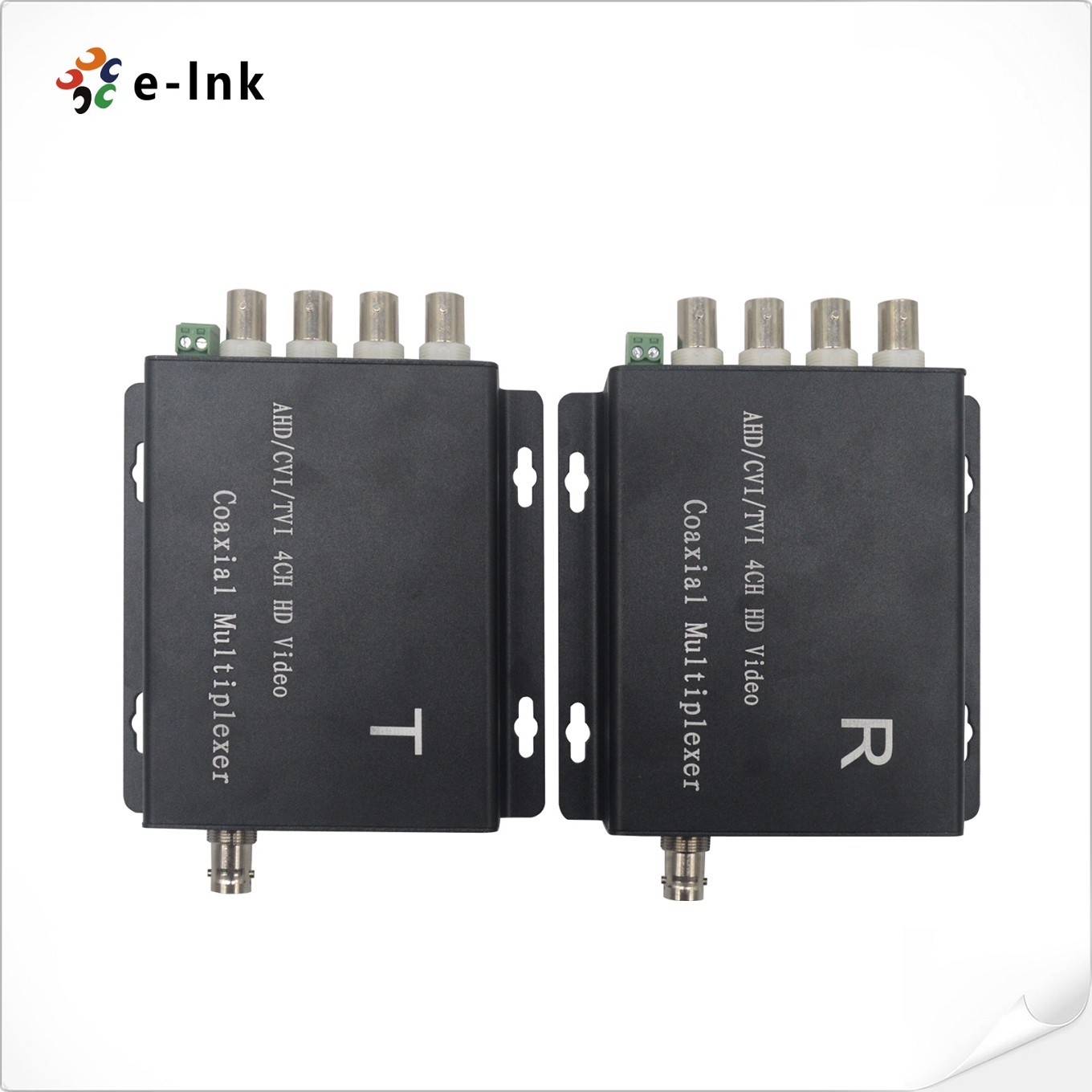

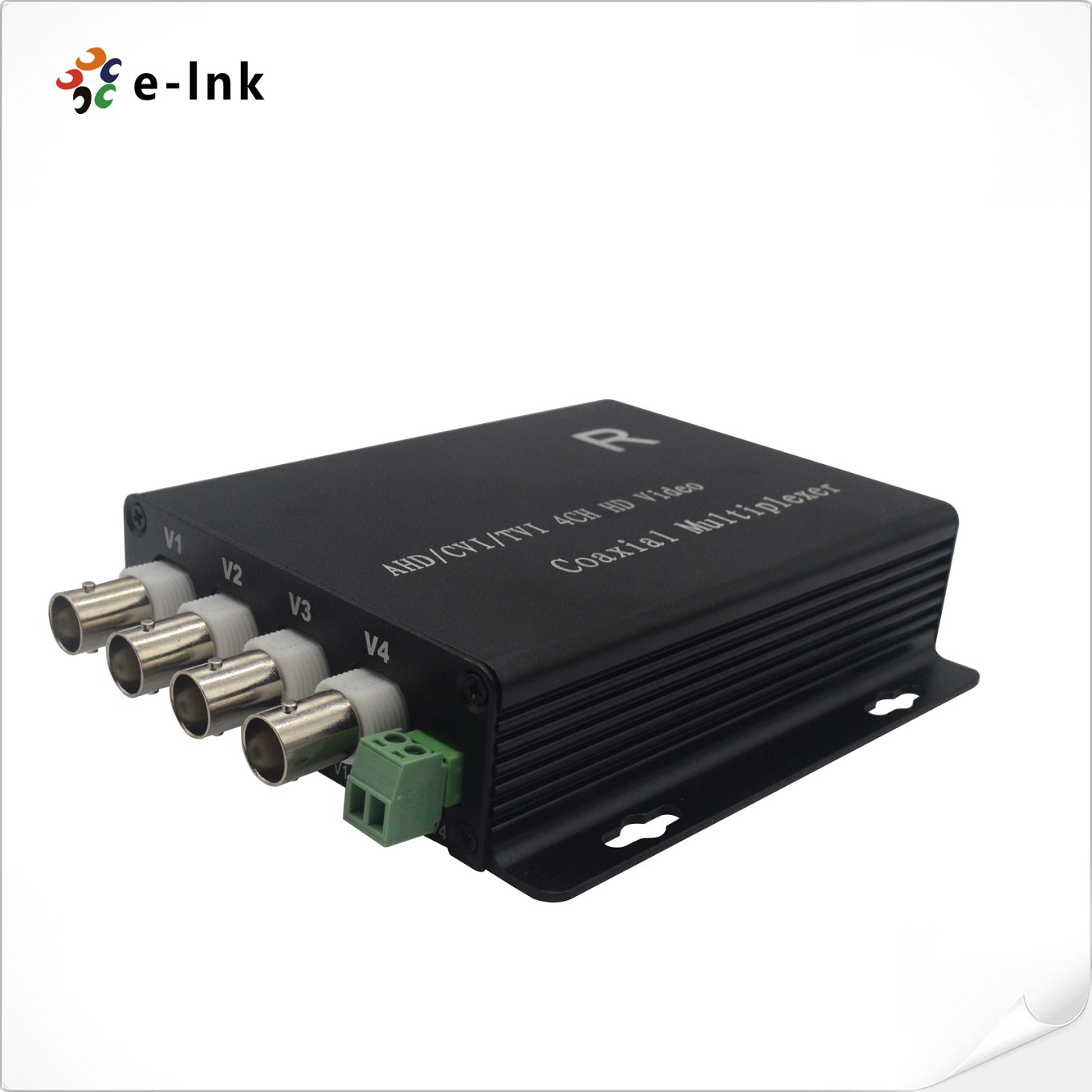

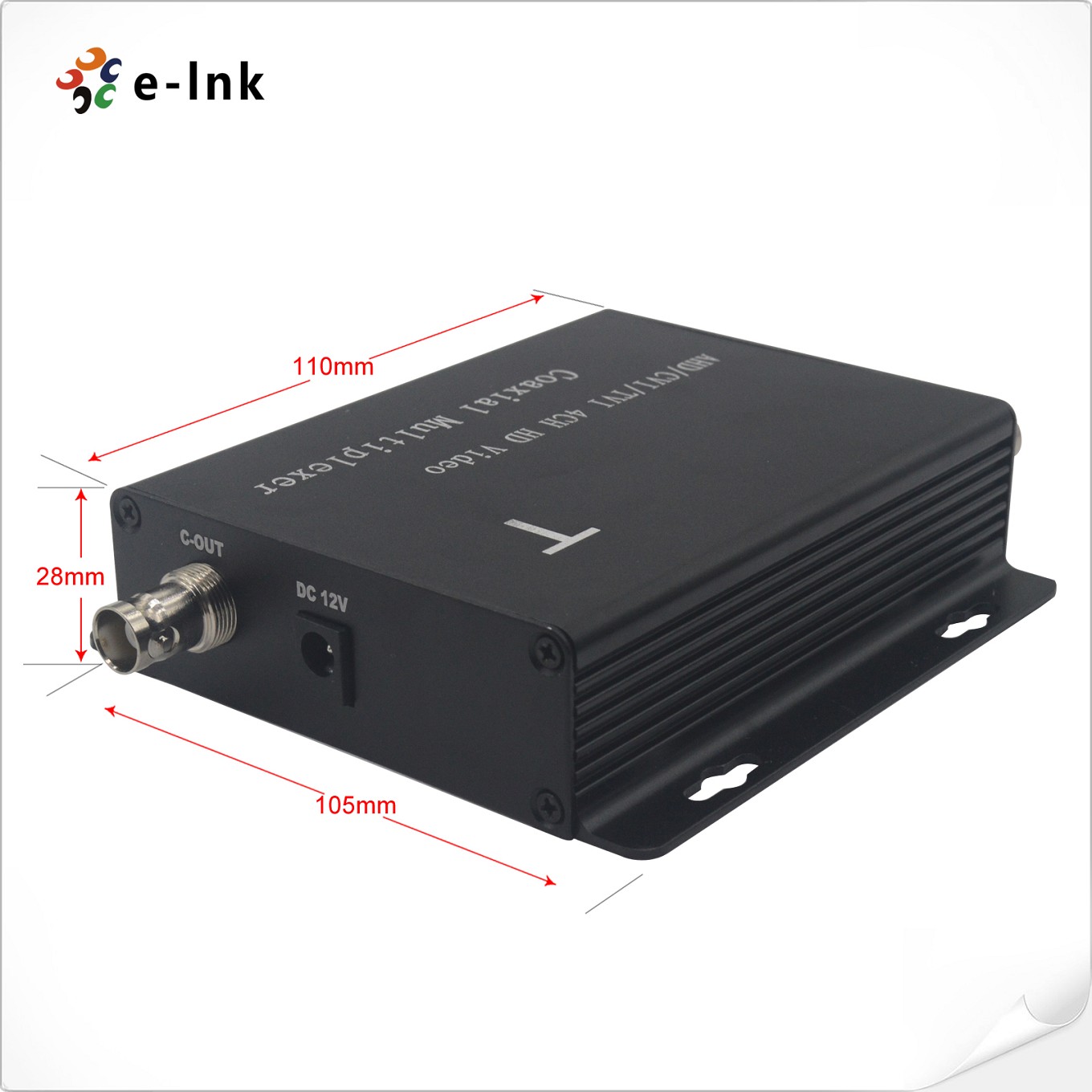

E-link LNK-MVHD-104 seriesCoaxial HD video standard on the market at present is divided into three kinds of HD CVI Dahua company standards, Xiongmai Technology AHD and Hikvision TVI standards. Its resolution is divided into 1 million pixels (720P), 1.3 million pixels (960P), and 2 million pixels (1080P), and other three kinds of the resolution of the video image.

This product uses special compression modulation technology, on the front end (transmitter) will 4-Ch CVI/AHD/TVI HD video camera is compressed, made into digital signal in coaxial cable transmission, the back-end (receiver) through demodulation, reductive into 4 HD signals after decompression, for HD DVR (TVI/CVI/AHD) or matrix is used. This series of products can be divided into the 100 meters, such as the transmission distance and different models.

Features

► 4 Channel CVI/AHD/TVI video signal for camera over 1 coaxial cable

► Designed according to projects with minimum installation volume requirement

► Long distance transmission up to 100m

► Frequency Division Multiplexing, with all CVI/AHD/TVIvideo and data transmission real-time and all images high-definition and non-delay.

► Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets,

► One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)

► Maintaining high quality CVI/AHD/TVI video & anti-interference immunity

► Easy installation with BNC harness

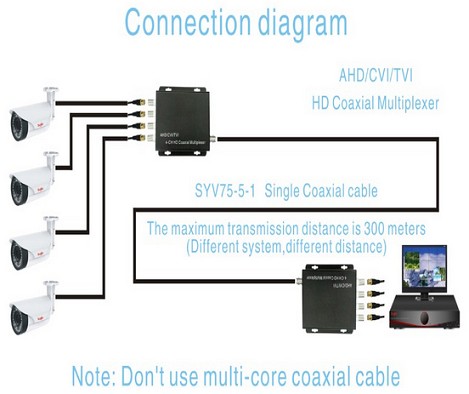

Application

Technical Indexes

Specifications ( Please use SYV75-3 & SYV75-3 Single core coaxial cable )

• Download FileName：E-link LNK-MVHD-104ACT HD Video Multiplexer Datasheet V1.0.pdf Size： 330KB

Ordering Information
