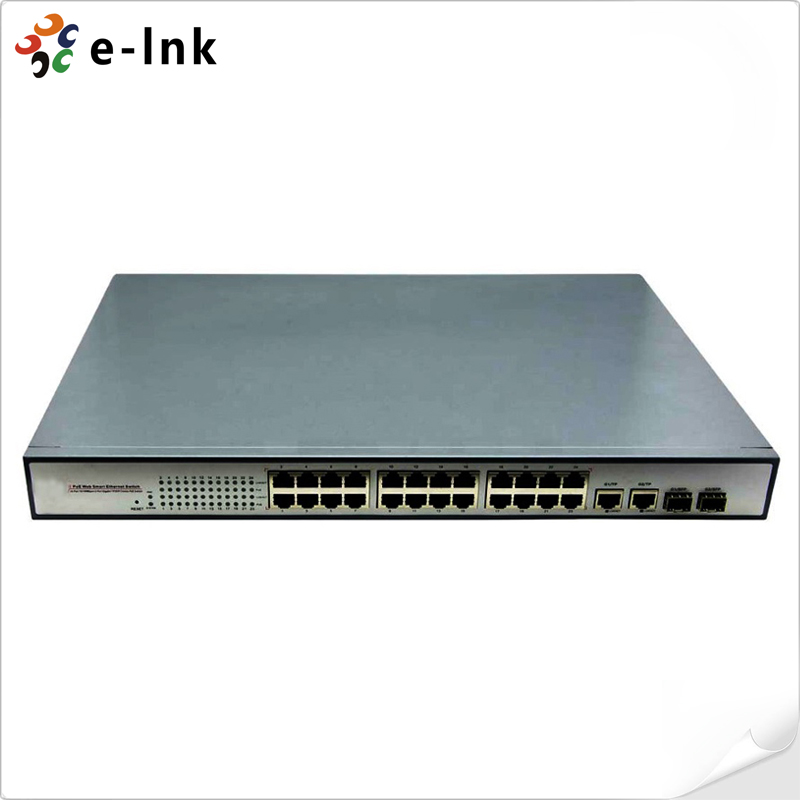

Industrial 24-port 10/100/1000T 802.3at PoE + 2-port 1000BASE-SFP Ethernet Switch
Model:LNK-2024GP-SFP Series
► Support 24 pcs RJ45 fast Ethernet ports and 2 pcs fiber SFP
► Support IEEE802.3/802.3u/802.3x/IEEE802.3af/IEEE802.3at
► DC110～220V or AC100～240V3 bits terminal block power input
Overview
LNK-2024GP-SFP is a type ofplug-and-play unmanaged POE Ethernet switch, which supports 24x10/100/1000Base-T(x) + 2x1000Base-FX interfaces.With PoE, installation of network devices such as IP surveillance cameras, wireless access points, IP phones, and other PoE enabled devices in hard-to-reach, outdoor, and remote areas is simplified.No fan, low consumption and industrial grade design. More steadily work capability. To satisfy applications in different industrial environments, it can also provide wide temperature type in accommodation with limit temperature( up to -40 ~ 75°C) .Features
► Support 24 pcs RJ45 fast Ethernet ports and 2 pcs fiber SFP
► Support IEEE802.3/802.3u/802.3x/IEEE802.3af/IEEE802.3at
► Support broadcast storm shield
► DC110～220V or AC100～240V3 bits terminal block power input
► No fan, low consumption,EMC-4 grade design
► IP30 protection, metal shell
► Over voltage protection
► All port anti-lighting (6KV)
► Supports IEEE 802.3af/IEEE802.3atcompliant PoE enabled device

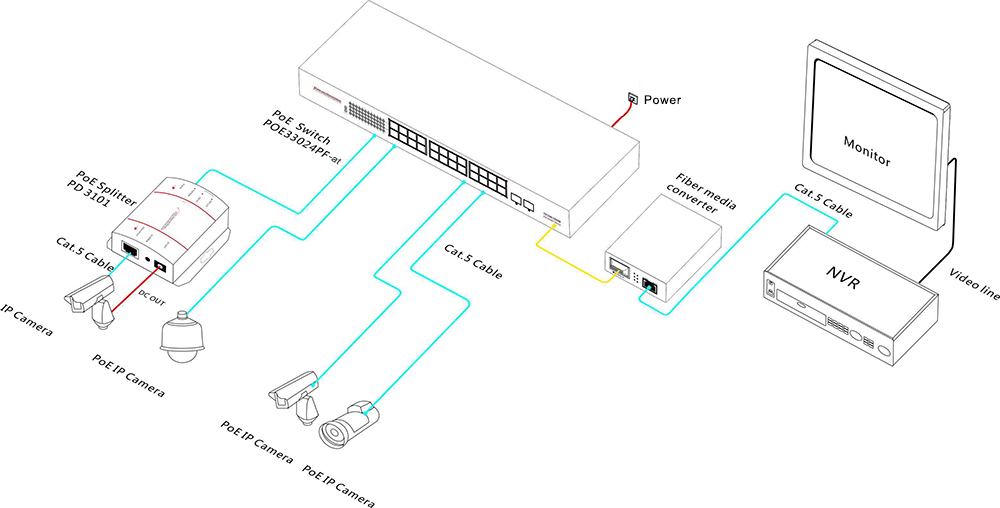

Application
Technical Indexes
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Flow control |
IEEE802.3x |
|
MAC address |
8K |
|
Interface |
|
|
RJ45 Ports |
10/100/1000M auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection |
|
Fiber Ports |
1000Base-FX ports(SC/ST optional) |
|
Console port |
RS232, RJ45 |
|
LED indicator |
PWR, SYS, Link/ACT |
|
PoE |
|
|
PoE Ports |
Port1-24 support POE |
|
PoE Standard |
IEEE802.3at (25.5W for each POE port) |
|
PoE Max power |
600W |
|
Power |
|
|
Input power |
110~220VDC（100~300VDC）Or100~240VAC（85~264VAC） |
|
Input current |
0.25A（@110VAC/VDC） |
|
Connector |
3 bits terminal block |
|
Environmental |
|
|
Operating Temperature |
-20~60℃(wide temperature optional) |
|
Storage Temperature |
-40~85℃ |
|
Relative Humidity |
5%~95%（non-condensing） |
|
Mechanical |
|
|
Shell |
IP30protection, metal case |
|
Installation |
19”1U rack |
|
W×H×D |
440 x 275 x 44.5mm |
|
Approvals |
|
|
EMI |
FCC Part 15，CISPR(EN55022)class |
|
EMS |
EN61000-4-2(ESD), Level 3 EN61000-4-3(RS), Level 3 EN61000-4-4(EFT), Level 3 EN61000-4-5(Surge), Level 3 EN61000-4-6(CS), Level 3 EN61000-4-8, 100A/m EN61000-4-12 |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
|
Warranty |
3 years |
|
Dimensions and Weight |
7.8 kg (Gross Weight) |
- Download FileName：E-Link LNK-2024GP-SFP 2xSFP+24xPoE Industrial PoE Switch Datasheet V1.0.pdf Size： 270KB
Ordering Information
|
Model |
Description |
|
LNK-2024GPF-SFP |
Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 2x Gigabit TP/SFP combo ports, and 1-24 ports supports IEEE802.3af POE international standard, each port power is 15.4W, whole power is 400W |
|
LNK-2024GPT-SFP |
Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 2x Gigabit TP/SFP combo ports, and 1-24 ports supports IEEE802.3at POE international standard, each port power is 25.5W, whole power is 650W |
