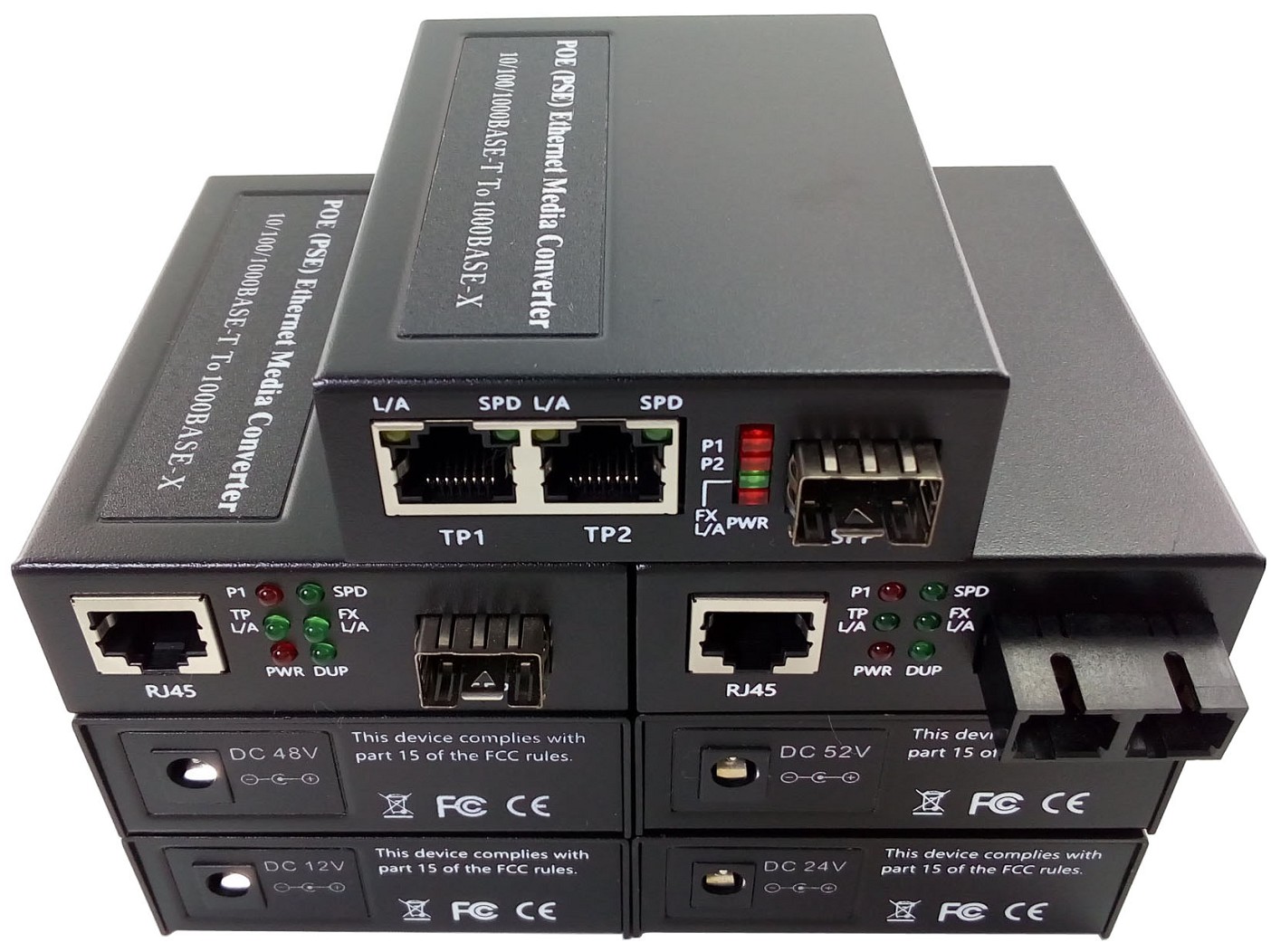

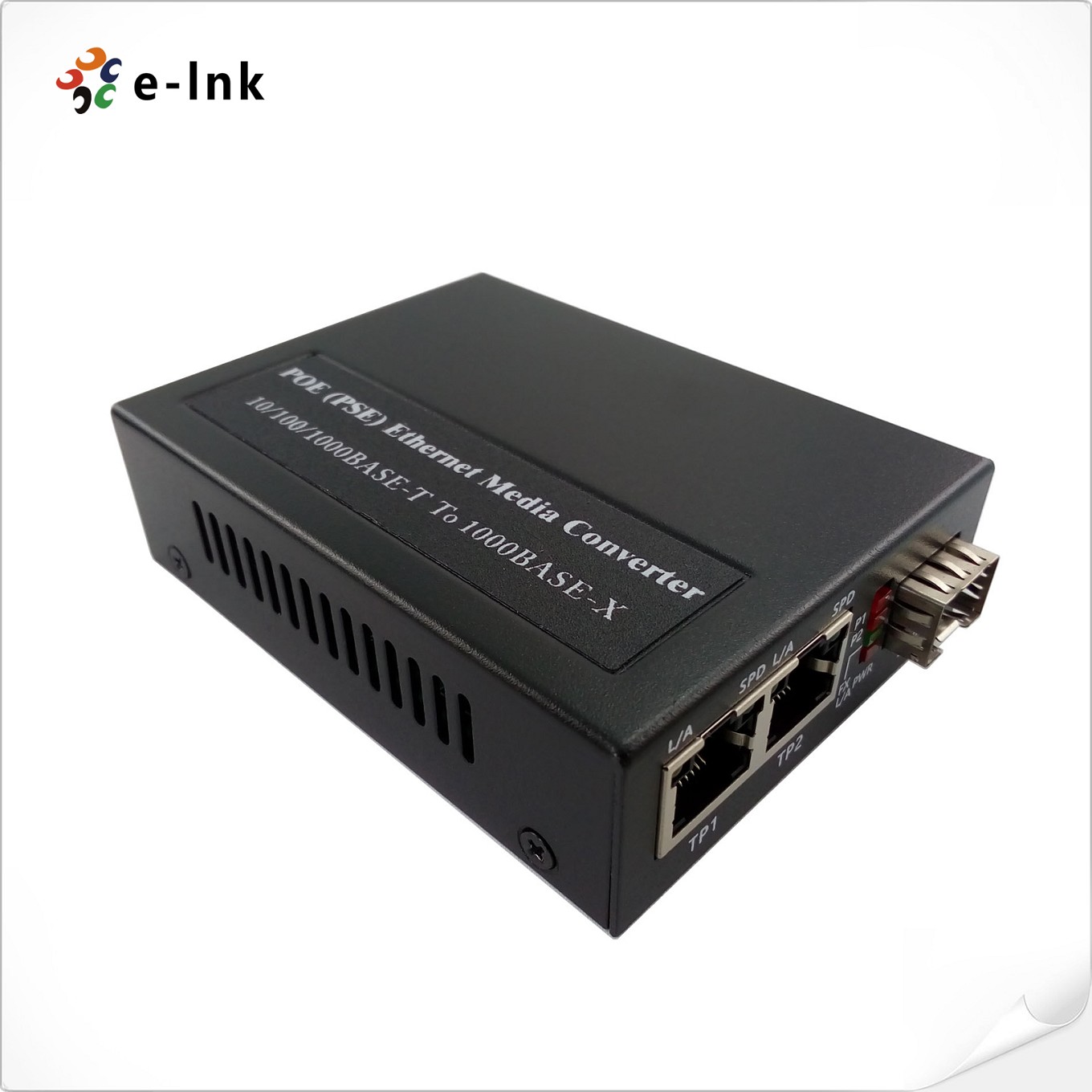

1-Port 1000BASE-SFP to 2-Port 10/100/1000BASE-T 802.3at PoE Media Converter
Model:LNK-1200GP-SFP
►Supply PSE power to PoE and PoE+ compliant devices
►IEEE 802.3af and IEEE802.3at compliant
Overview
E-link's feature rich PoE Media Converters transparently connect copper to fiber while providing Power over Ethernet (PoE ) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points.
E-link LNK-1200GP-SFP series media converters are 2-Port 10/100/1000BaseT/TX to 1-Port 1000Base-SFP Power over Ethernet (PoE) devices that serve as Power Sourcing Equipment (PSE),which allows the converter to provide power to IEEE802.3af /at PoE standard-compliant Powered Devices (PDs) using the twisted pair connection. Power transmitted along with data in one single cable (RJ45) allows you to expand your network where there are no power lines or outlets, where you wish to fix devices such as Wifi -Aps, IP Cameras or IP Phones, etc.
Features
►2-Port 10/100/1000Base-TX to 1-Port 1000Base-SFP Fiber►Fiber to copper Ethernet converter and PoE injector all in one device
►Extend network distances up to 120km
►Supply PSE power to PoE and PoE+ compliant devices
►IEEE 802.3af and IEEE802.3at compliant
►Provide 15.4 to 30 Watts of PoE power
►IEEE802.3af with max. Power 15.4 W, IEEE802.3at with max. Power 30W.

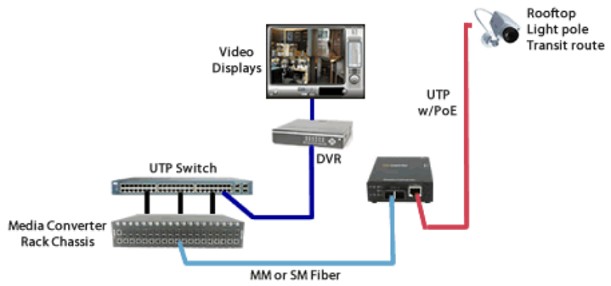

Application
Technical Indexes
|
Parameter |
Specifications |
|
Standard |
IEEE802.3i 10Base-T; |
|
IEEE802.3u 100Base-TX; |
|
|
IEEE 802.3ab 1000BASE-T |
|
|
IEEE 802.3z 1000BASE-SX |
|
|
IEEE802.3x Flow Control; |
|
|
IEEE802.3af/at Power over Ethernet |
|
|
Fiber Type |
Gigabit SFP Port |
|
Power over Ethernet |
IEEE 802.3af/at Power over Ethernet |
|
IEEE 802.3af: PoE 48V DC, max. 15.4 watts, 350mA IEEE 802.3at: PoE 48~56V DC, max. 30 watts, 650mA |
|
|
Power Pin Assignment: 4/5(+), 7/8(-) |
|
|
Distance |
Multi-mode: 220m (62.5/125μm)/550m (50/125μm) |
|
Single mode: 20/40/60/80/120 Km |
|
|
Single fiber single mode: 20/40/60/80/100 km |
|
|
Category-5 twisted pairs: 100m |
|
|
Date Rate |
10/100/1000Mpbs |
|
Connector |
2xRJ45, 1xSFP |
|
Wavelength |
1310nm, 1550nm |
|
Diagnostic LED |
Power, Link/Activity |
|
Power Input |
DC48V~57V |
|
Power Consumption |
<3W |
|
Temperature |
0~50ºC (Operating); -20~70ºC (Storage) |
|
Humidity |
5% ~ 90% non-condensing |
|
Dimension |
94x71x26mm (WxDxH) |
- Download FileName：E-link LNK-1200GP-SFP PoE Media Converter Datasheet V2.0.pdf Size： 1.74MB
|
Model |
Description |
|
LNK-1200GP-SFP |
1-Port 1000BASE-SFP to 2-Port 10/100/1000BASE-T 802.3at PoE Media Converter |
