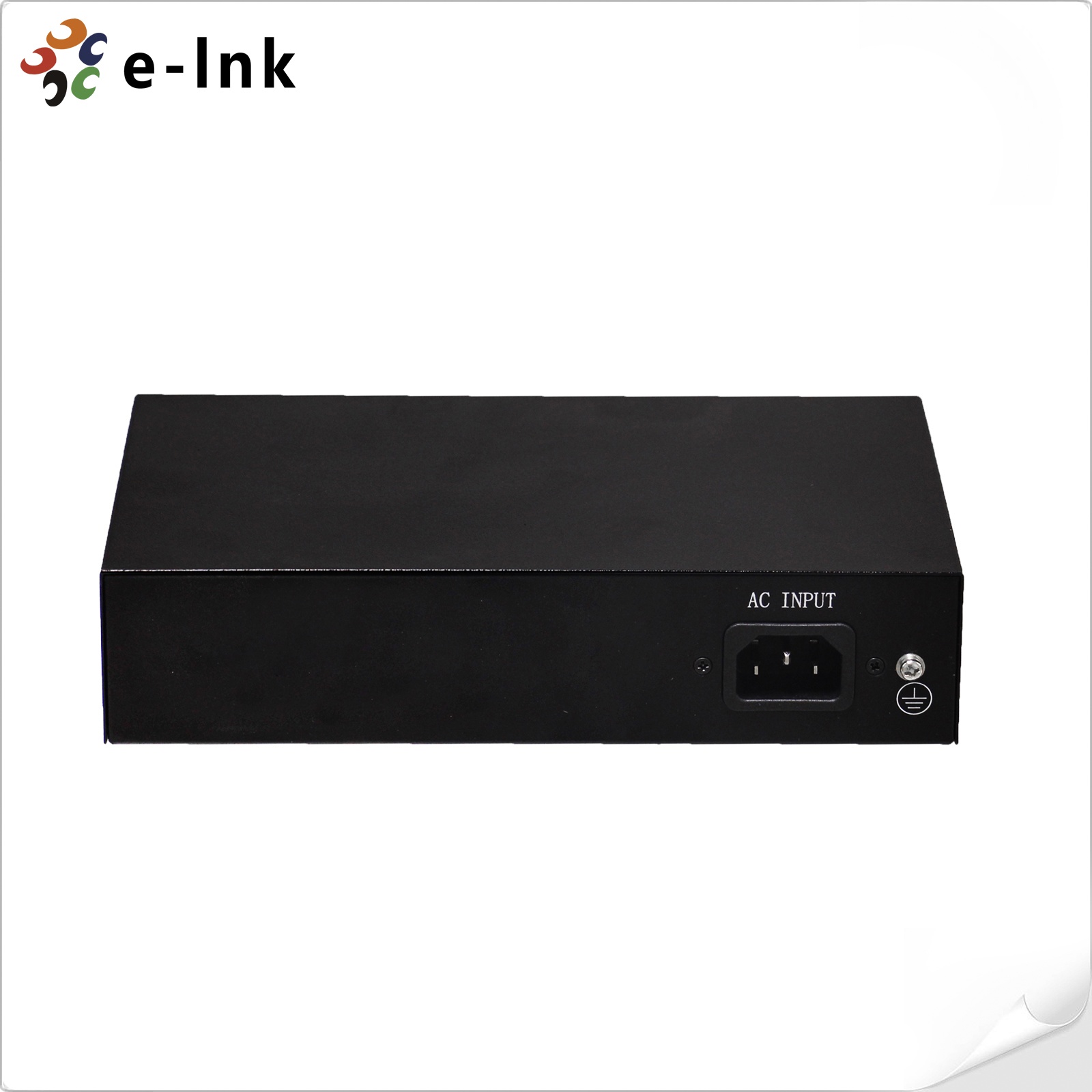

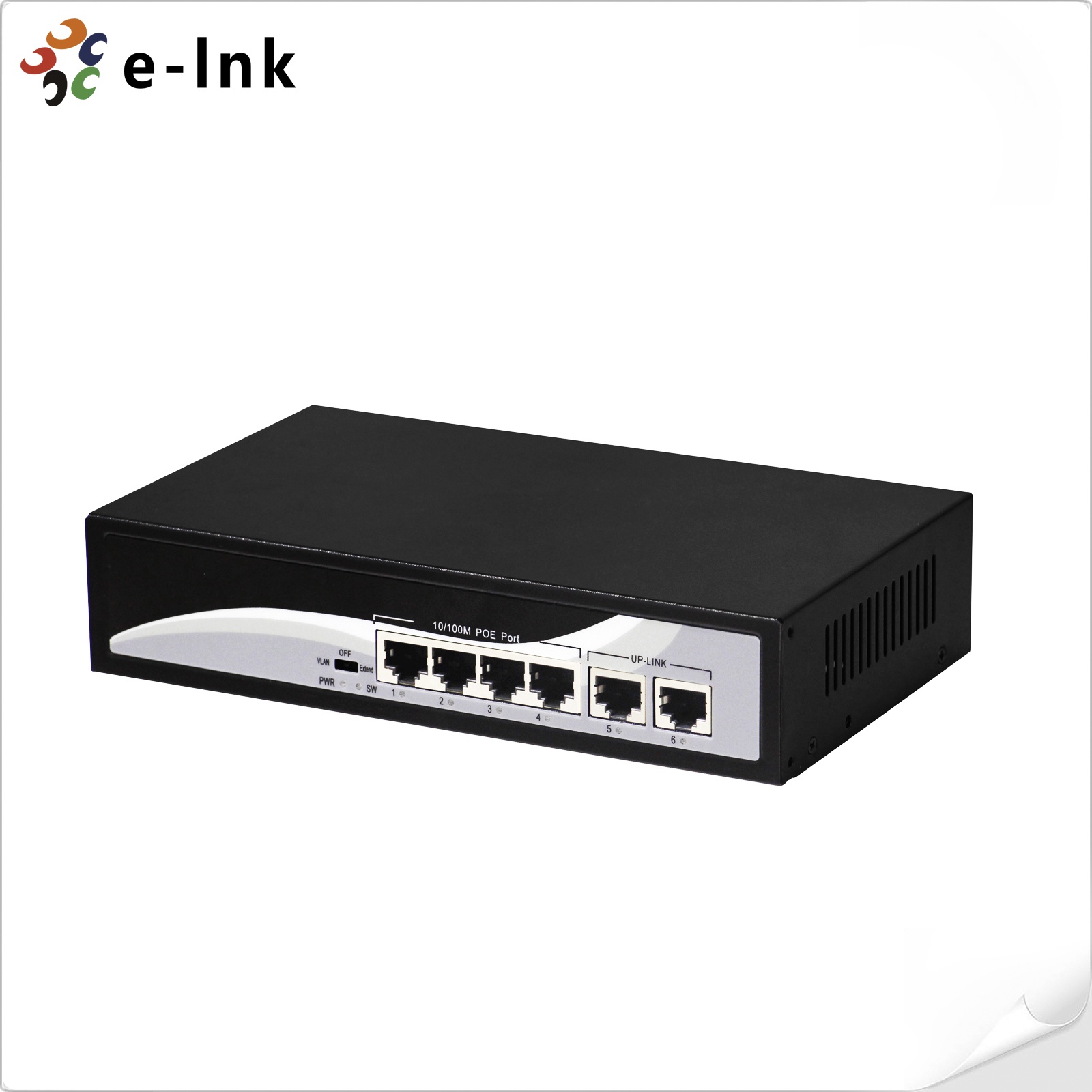

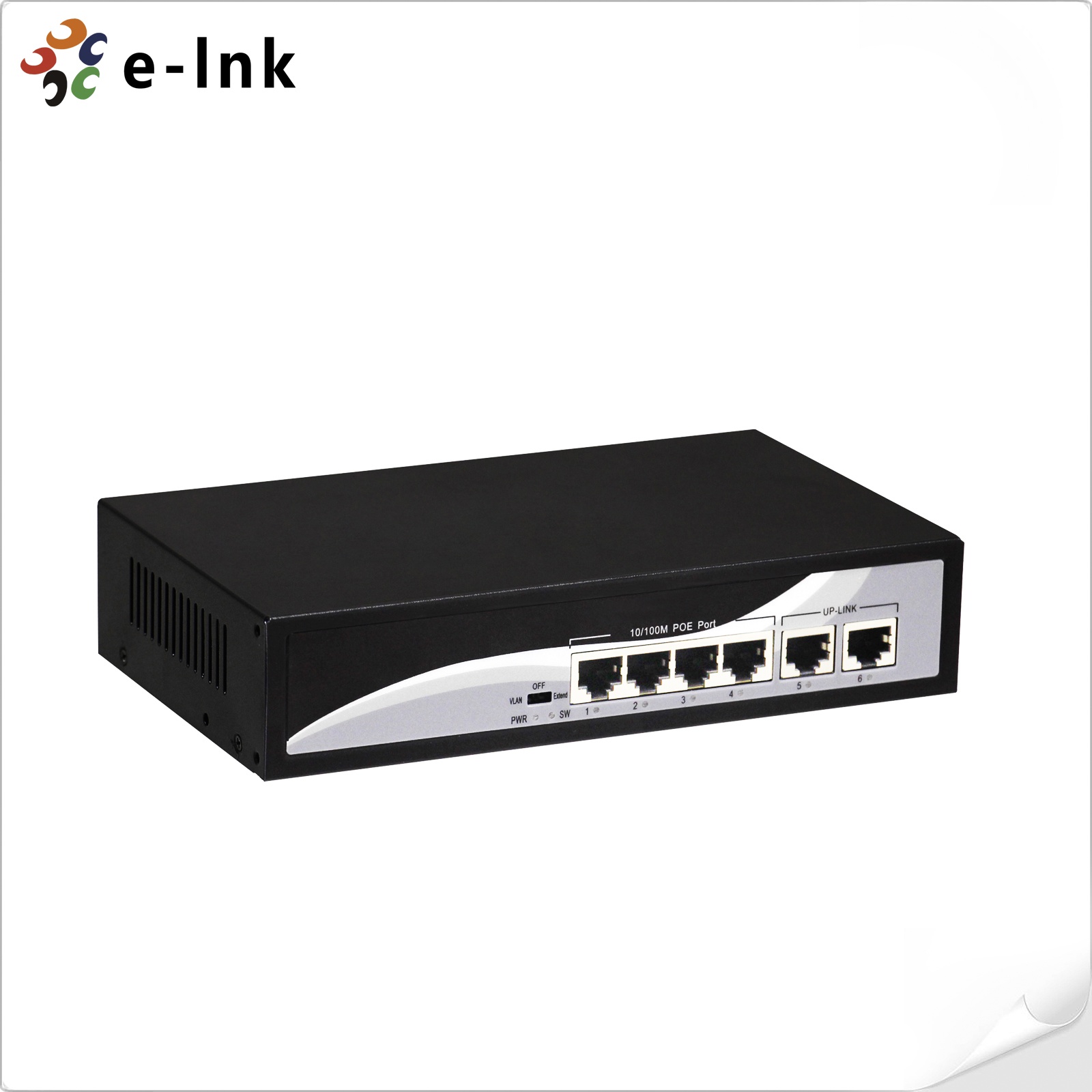

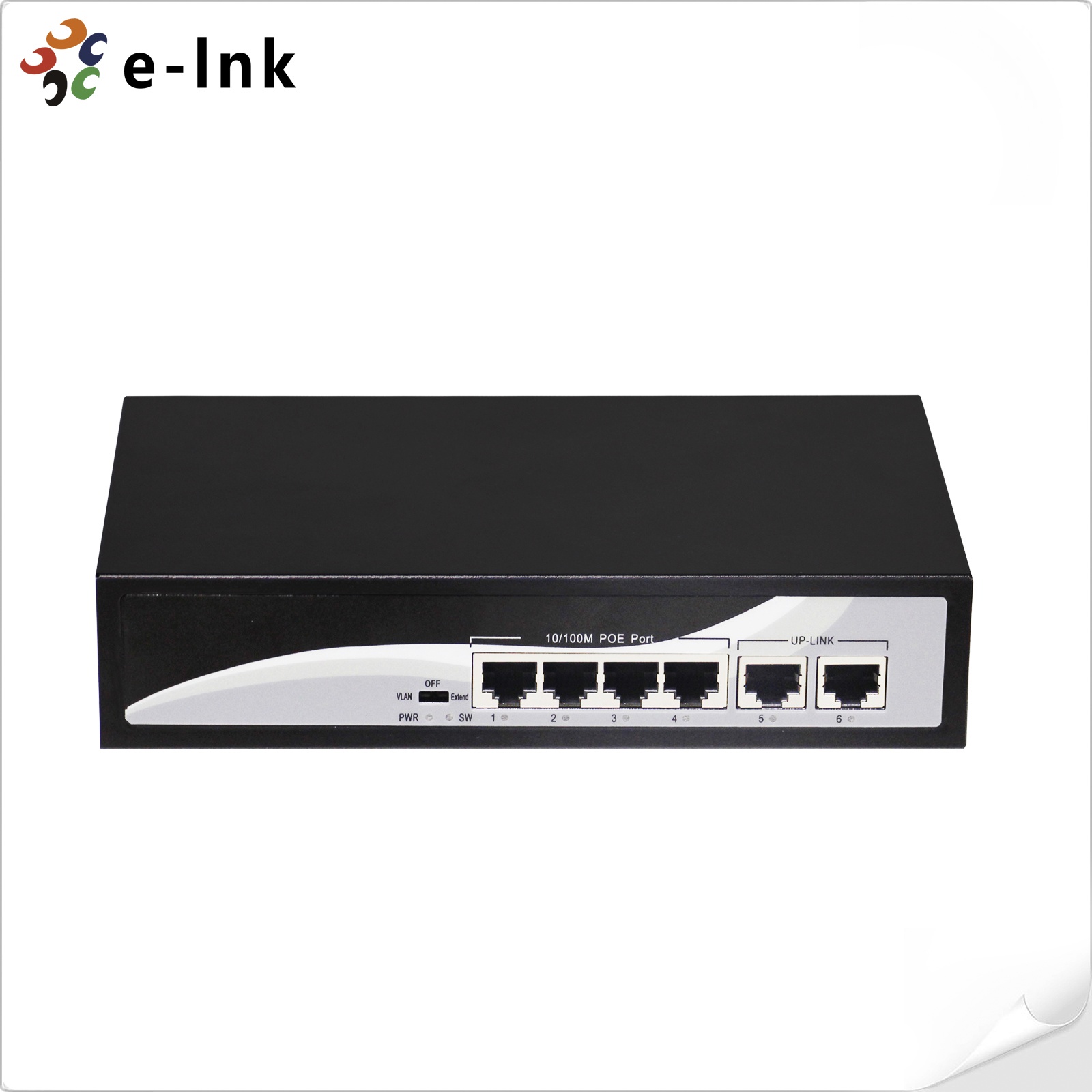

Unmanaged 4-port 10/100BASE-T PoE and 2-port 100BASE-T Uplink Ethernet Switch
Model:LNK-204
► 4*10/100M RJ45 POE port+2*10/100M RJ45 uplink port
► Support IEEE802.3,IEEE802.3U,IEEE802.3af/at
► Ethernet prot support 10/100M and POE function
► With DIP switch Extend mode to support 250 meters long distance transmission (Cat.6 cable)
Overview
LNK-204 Series PoE Switch is equipped with 4-port 10/100BASE-TX PoE and 2-port 100Base-T uplink. LNK-204 Series PoE switch can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs). With DIP switch Extend mode to support 250 meters long distance transmission (Cat.6 cable). There is no need to worry about the damage of standard POE or Non-POE device, it will be power off when the POE Device is not connecting. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc
Features
► 4*10/100M RJ45 POE port+2*10/100M RJ45 uplink port
► Support IEEE802.3,IEEE802.3U,IEEE802.3af/at
► Ethernet port support 10/100M and POE function
► Flowcontrol:Full-duplex:IEEE802.3x,Half-duplex:Back pressure
► Support port auto MDI/MDIX
► With storing-and-forwarding mode
► All port support line switching and jumbo frame
► Zero configuration features, automatically provided to the adaptive device
► Panel lights to monitor the working status and help failure analysis
► With DIP switch Extend mode to support 250 meters long distance transmission (Cat.6 cable)
► Support fixed VLAN (optional)

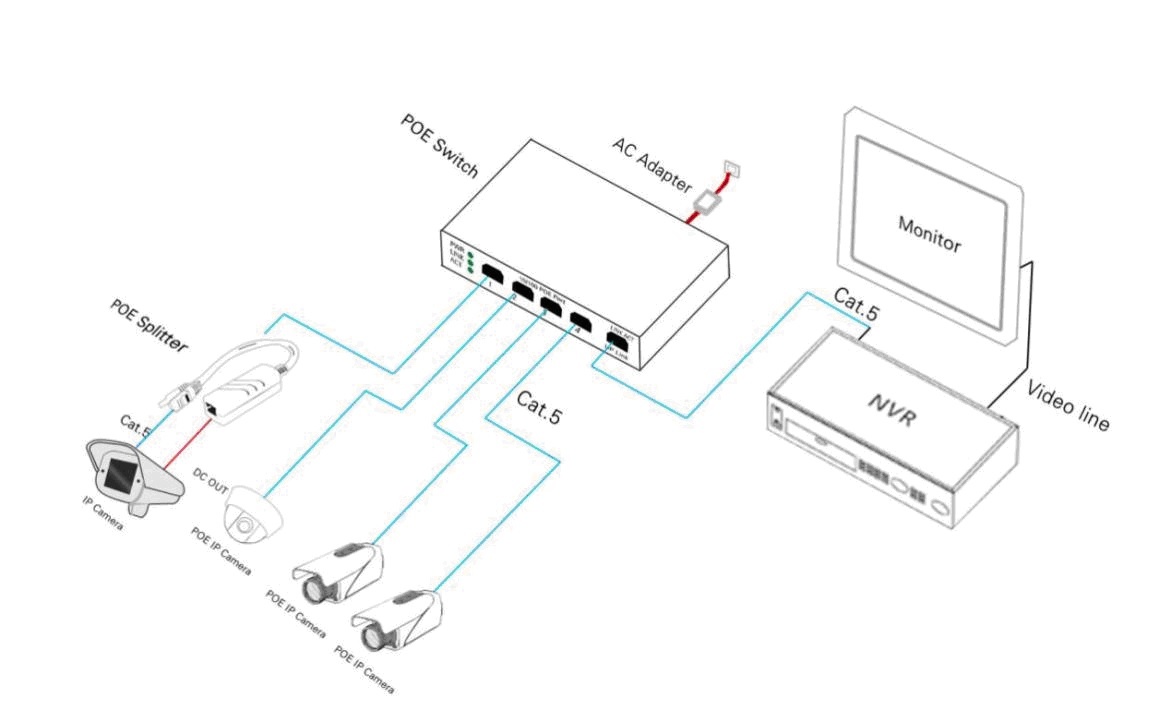

Application
Technical Indexes
|
Product name |
6-Port 10/100 Ethernet Switch with 4 PoE ports |
|
Model |
LNK-204 Series |
|
Port |
4x10/100M RJ-45 POE port, 2x10/100M RJ-45 uplink port |
|
Network protocol |
Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at |
|
POE parameter |
PoE standard: IEEE802.3af /IEEE802.3at |
|
Each port power：15.4 W (IEEE 802.3af) Each port power：30 W (IEEE 802.3at) |
|
|
PoE compatibility：IEEE 802.3af/at adaptive |
|
|
POE output voltage: DC48V |
|
|
POE power pin:1/2+ ; 3/6- |
|
|
DIP switch |
Extend ON: 250 meters transmission OFF:100 meters |
|
Network media |
10Base-T: Cat3 or later UTP/STP(≤100m) 10Base-T:Cat6 or later UTP/STP(≤250m) 100Base-TX: Cat5 or later UTP/STP(≤100m) |
|
Performance |
Bandwidth: 1.0Gbps (non-blocking) Packet forwarding rate: 0.1488M pps/port Cache：448K MAC address table: 1K |
|
Forwarding mode |
Store-and-forward |
|
Power supply |
Input：AC110-260V Output：52V1.25A |
|
Power |
65W |
|
LED indicator |
Green light: Network Red light: POE SW light: 1.ON：VLAN open,100 meters transmission 2.Flashing：VLAN open,250 meters transmission 3.OFF：VLAN close,100 meters transmission 4.Flashing：VLAN close,250 meters transmission |
|
Working environment |
Working temperature：-20℃ to 55℃ Storage temperature：-40℃ to 80℃ Working humidity：10% to 90%RH no condensing Storage humidity：5% to 90%RH no condensing |
|
Certification |
CE Mark ,commercial; CE/LVD EN60950, RoHS, FCC |
|
Radiation |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
|
Physical structure |
Product size(L×W×H)：200*120*45mm Product weight：0.52kg Packing weight：0.78kg |
|
Packaging list |
1. Switch: 1 SET 2. Power Cord: 1 PCS 3. Manual: 1PCS 4. Certificate: 1PCS 5. Warranty card: 1PCS |
|
MTBF |
100000 hours |
|
Warranty |
2 years |
- Download FileName：E-link LNK-204 PoE Switch Datasheet V1.0.pdf Size： 328KB
Ordering Information
|
Model |
Description |
|
LNK-204 |
6-Ports 10/100 switch with 4 PoE ports, IEEE 802.3af/at; PoE Power Output: 15.4Watts/30Watts per port. Total power budget 65Watts, Support fixed VLAN, PoE can be reached 250m at 10M data rate |
