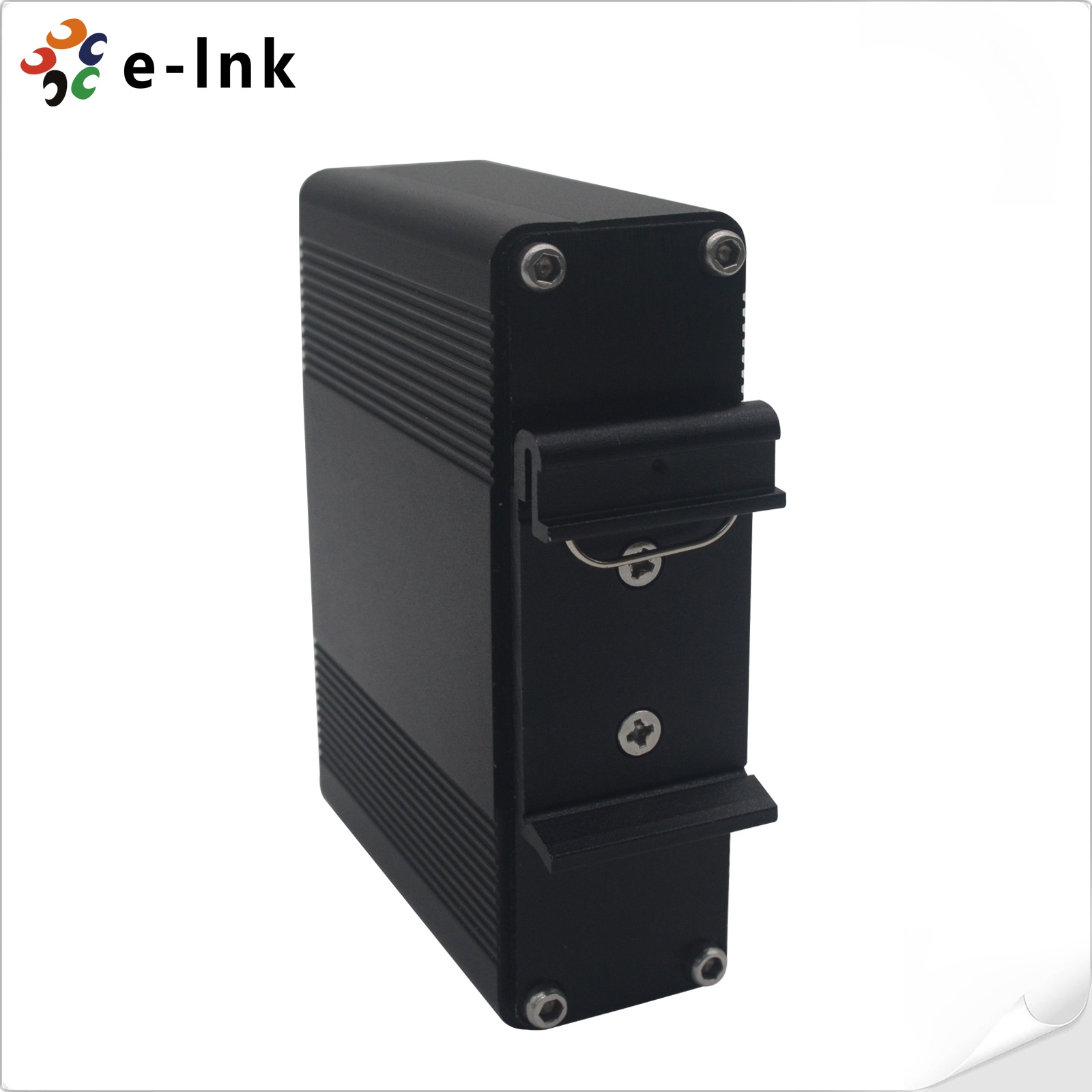

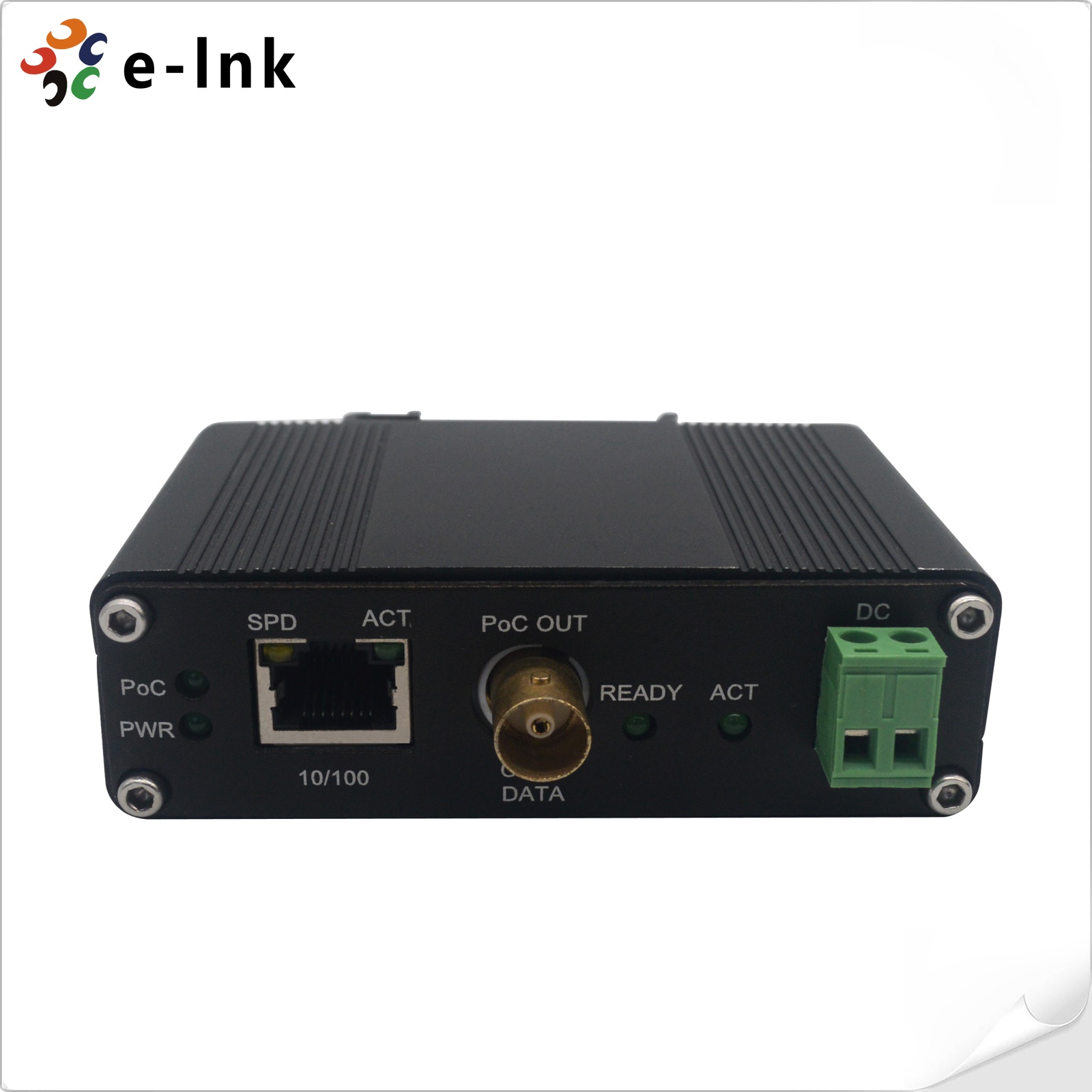

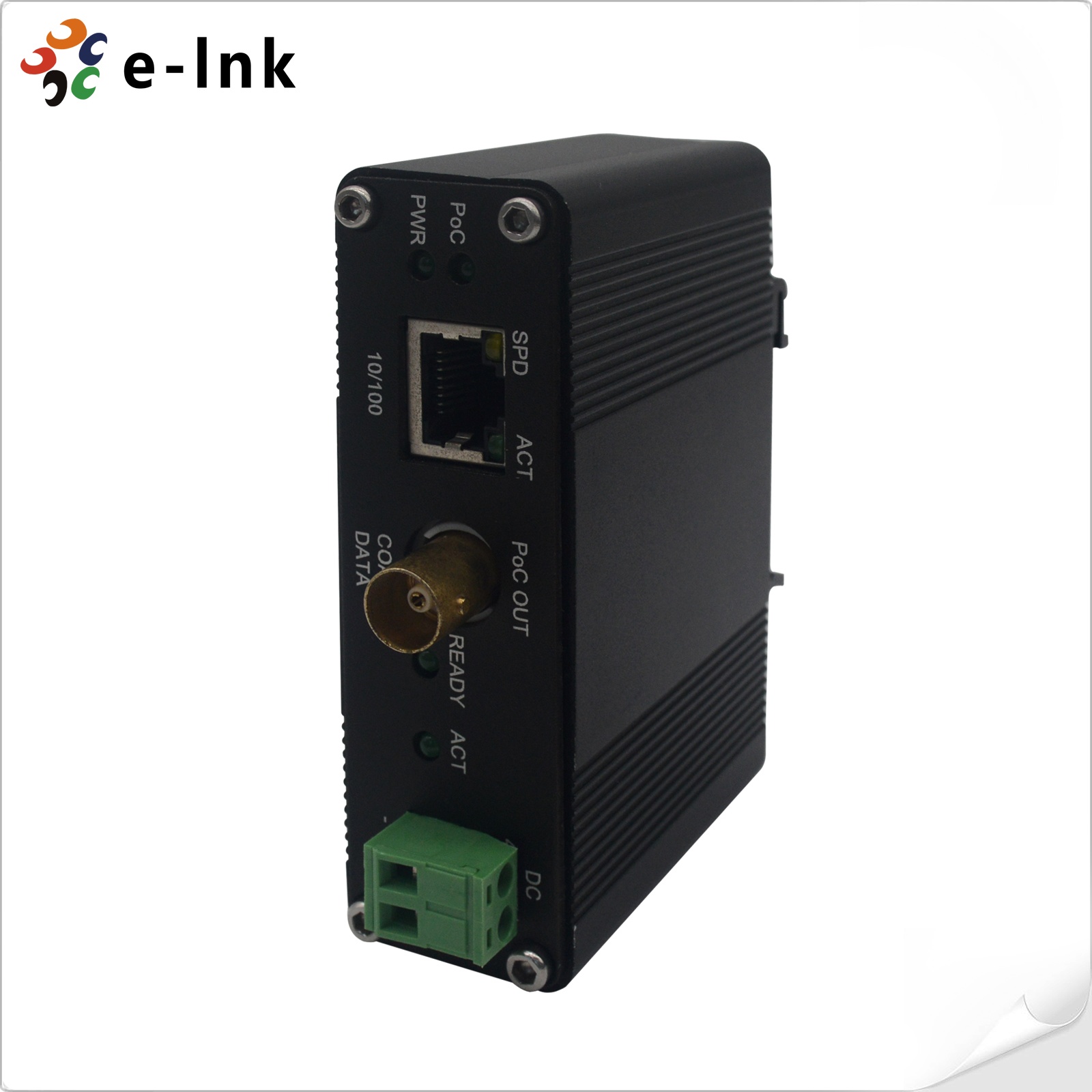

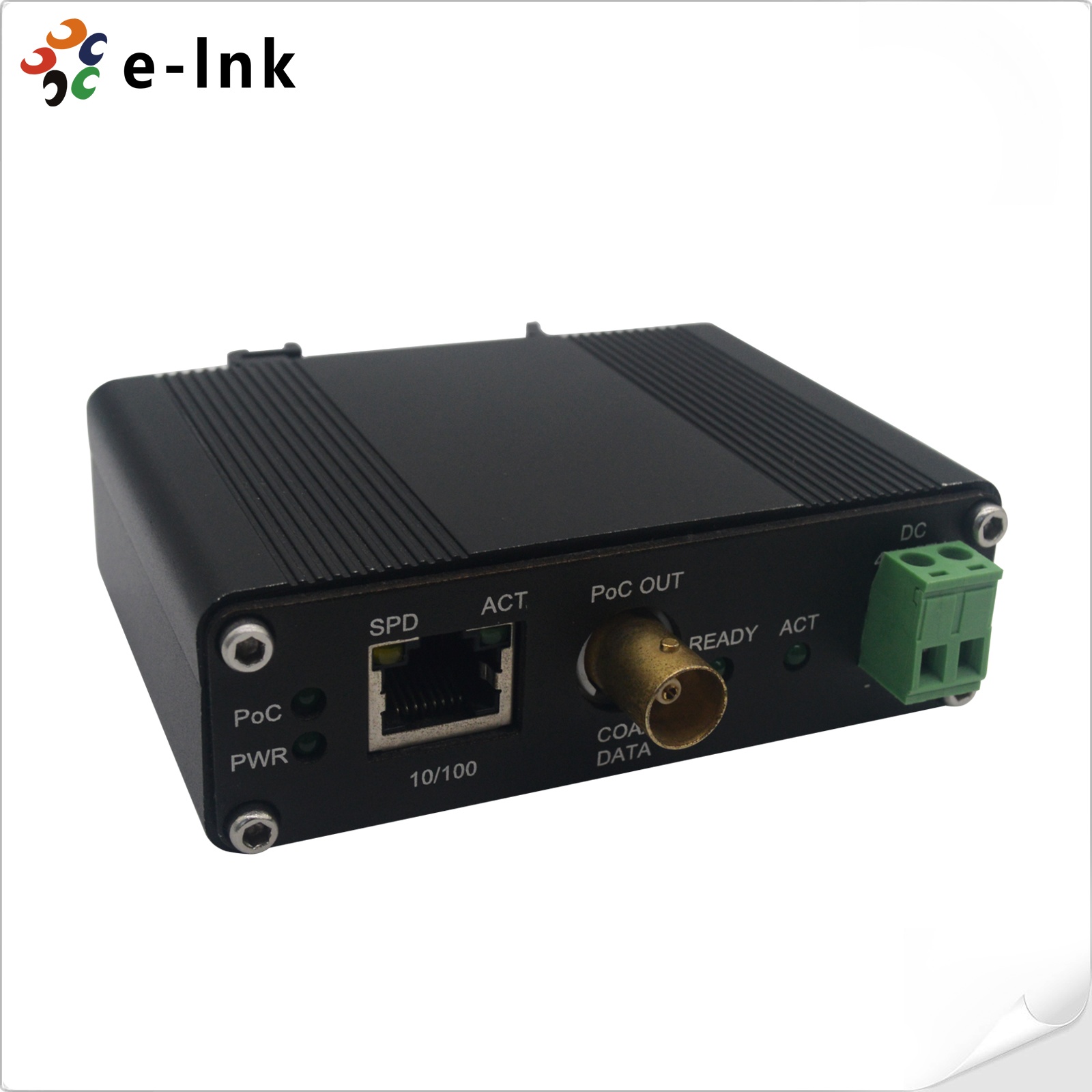

DIN-Rail Industrial 10/100Base-TX (PoE+) Ethernet over Coax Extenders with PoC
Model:LNK-DEC110P Series
► PoE+ (30W) and Power over Coaxial
► 802.3af/802.3at Compliant
► Max. Distance: 1Km over Coax (RG-59/U)
Overview

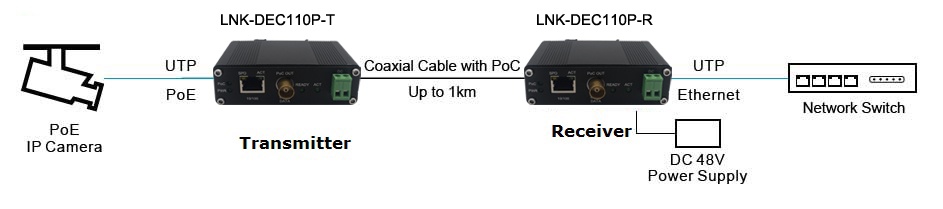

LNK-DEC110P Series DIN-Rail EOC provides Ethernet Extension of 1-CH 10/100Base-TX over Coaxial cable (1Km max.). The products provide high power PoE (30W max Power Sourcing Equipment (PSE)) to the network camera. The products support PoC, hence, no power point is required for the transmitter and the network camera at the transmitter side. The product is good for retrofit of analogue system by using the existing cable infrastructure.
Features
► Ethernet Extension: Security Link over Coax
► PoE+ (30W)and Power over Coaxial
► 802.3af/802.3at Compliant
► Max. Distance:1Km over Coax (RG-59/U)
► Data Rate up to: 90Mbps (Downlink), 90Mbps (Uplink)
► Compatible with 4-port standalone Receiver &
► Rack Mount 8/16-port Receiver
► Accept 48~57VDC external power input or PoE power input from RJ45 port
Application
Technical Indexes
|
Ethernet |
|
|
Standards |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX |
|
|
IEEE802.3af Power Over Ethernet |
|
|
IEEE802.3at Power Over Ethernet |
|
|
Cabling |
10Base-T: Cat 3,4,5, or above |
|
|
100Base-TX: Cat5 or above |
|
Maximum Distance |
Cat5UTP up to 100m |
|
Connector |
1 x RJ45 |
|
Coaxial |
|
|
Cabling |
Coaxial Cable (75 ohm) |
|
Connector |
1 BNC (female) |
|
Distance |
Up to 1Km on RG-59/U |
|
Data Rate |
|
|
Downlink (TX to RX) |
90Mbps (Max.) |
|
Uplink (RX to TX) |
90Mbps (Max.) |
|
Technology |
Power Line Communication (PLC) |
|
Protection |
|
|
Reverse Polarity |
Present |
|
Electrical and Mechanical |
|
|
Input Power |
48-57VDC (2 pin connector) or PoE |
|
Power Consumption |
8W Max. (PoC not in use) |
|
60W Max. (Poc in use) |
|
|
LED Indicators |
|
|
Power |
Power Status |
|
Coax |
LINK(Transmitter) / Ready(Reveiver) / PoC(Receiver), Activity |
|
Ethernet |
SPD, LINK/ACT, PoE(Transmitter) |
|
PoE |
|
|
Standard |
IEEE802.3af/at |
|
Mode |
B Mode |
|
Port |
RJ45 |
|
Max. Power Per Port |
25.5W max.at RX(Powered Device) |
|
30W Max.at TX(Power Souring Equipment) |
|
|
Mode |
Positive(VCC+): RJ45 Pin 4,5 |
|
Negative(VCC-):RJ45 Pin 7,8 |
|
|

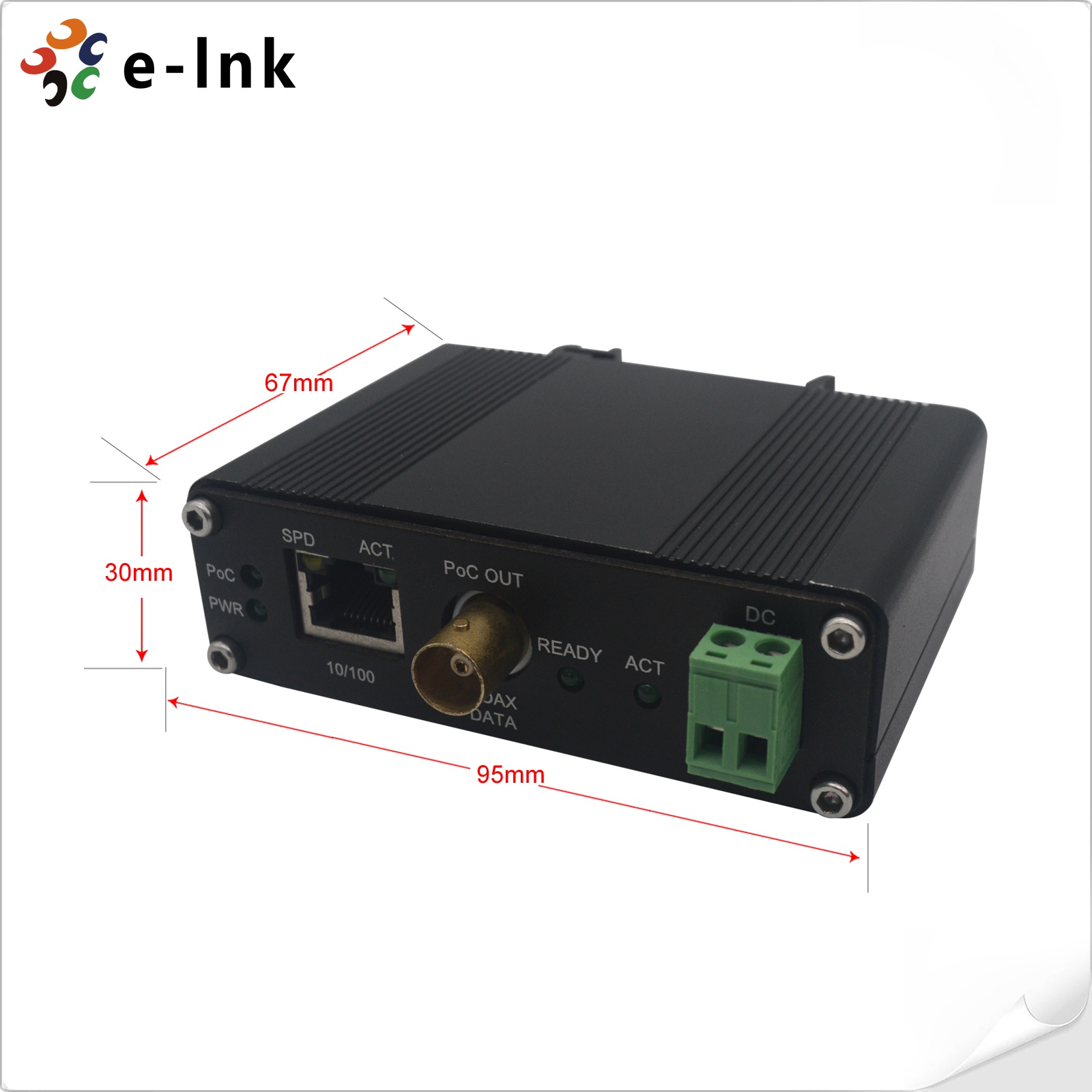

Dimensions (W x D x H) |
95 × 67 × 30 mm |
|
Weight |
0.25kg |
|
Casing |
Aluminum case |
|
Environmental |
|
|
Operation Temperature |
-10˚C to 60˚C (14˚F to 140˚F) |
|
Storage Temperature |
-40˚C to 85˚C (-40˚F to 185˚F) |
|
Relative Humidity |
5% to 90% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Regulatory Approvals |
ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V |
- Download FileName：E-link DIN-Rail Industrial 1Ch EOC Extenders with PoC Datasheet V1.0.pdf Size： 319KB
Ordering Information
|
Model |
Description |
|
LNK-DEC110P-T |
DIN-Rail Transmitter of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC |
|
LNK-DEC110P-R |
DIN-Rail Receiver of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC |
