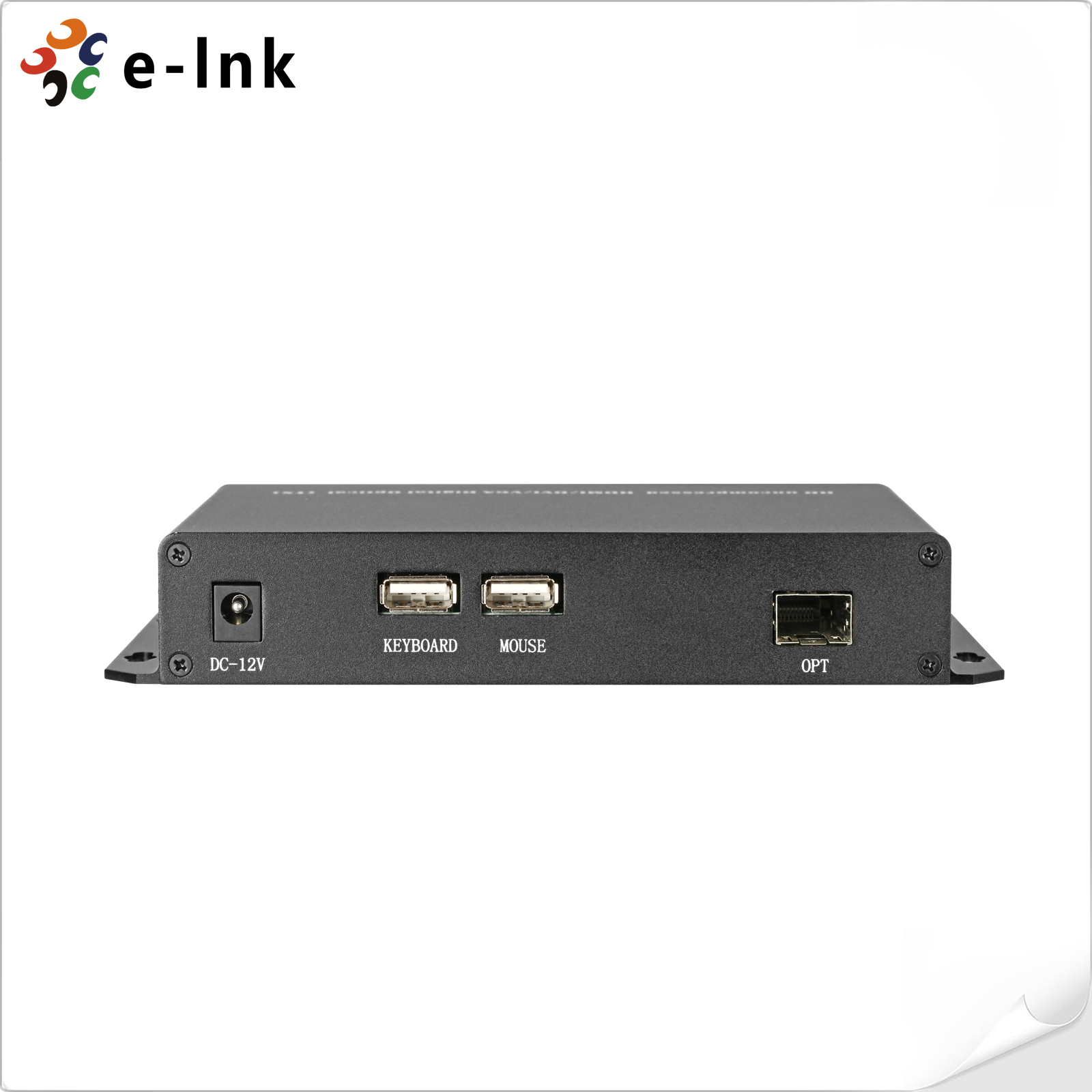

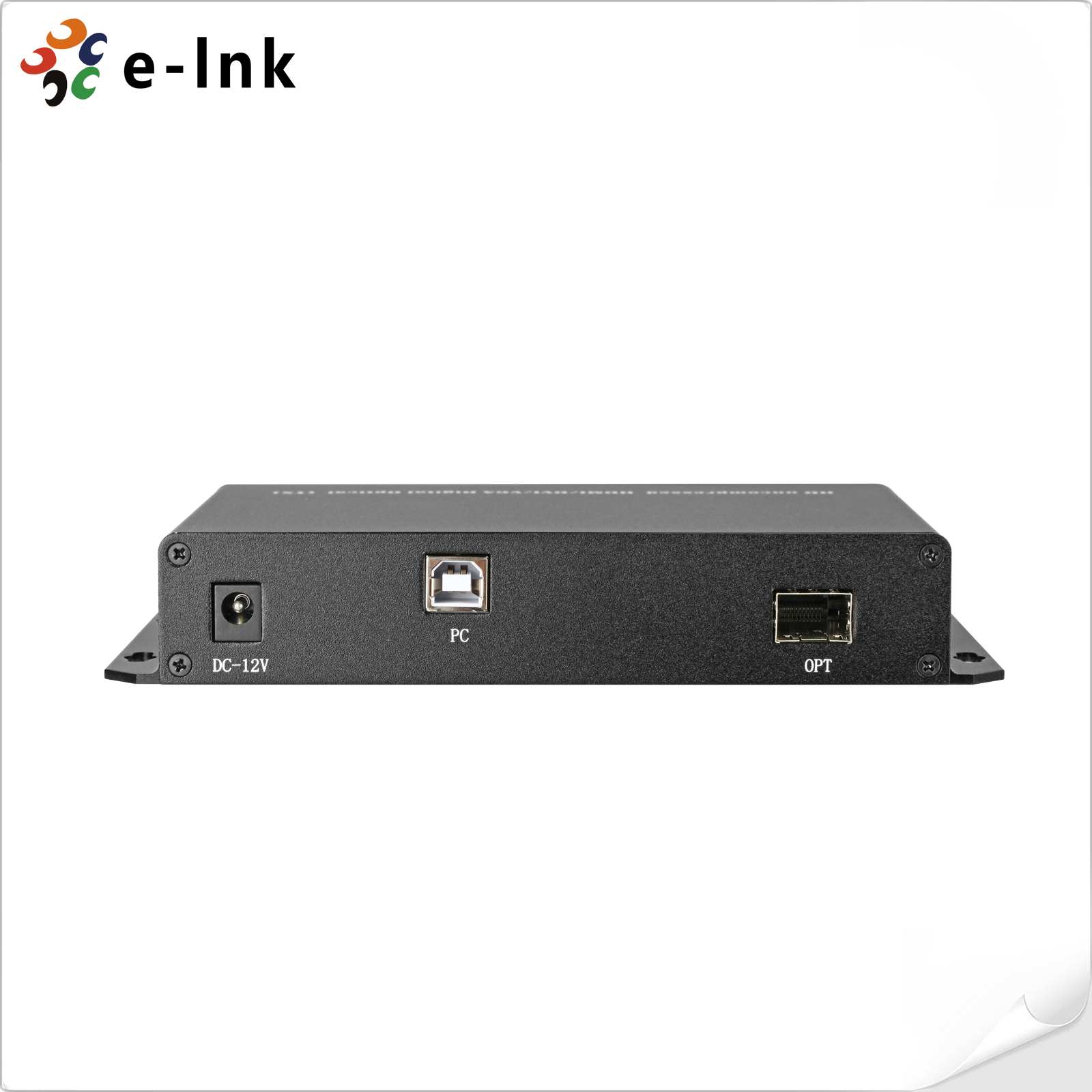

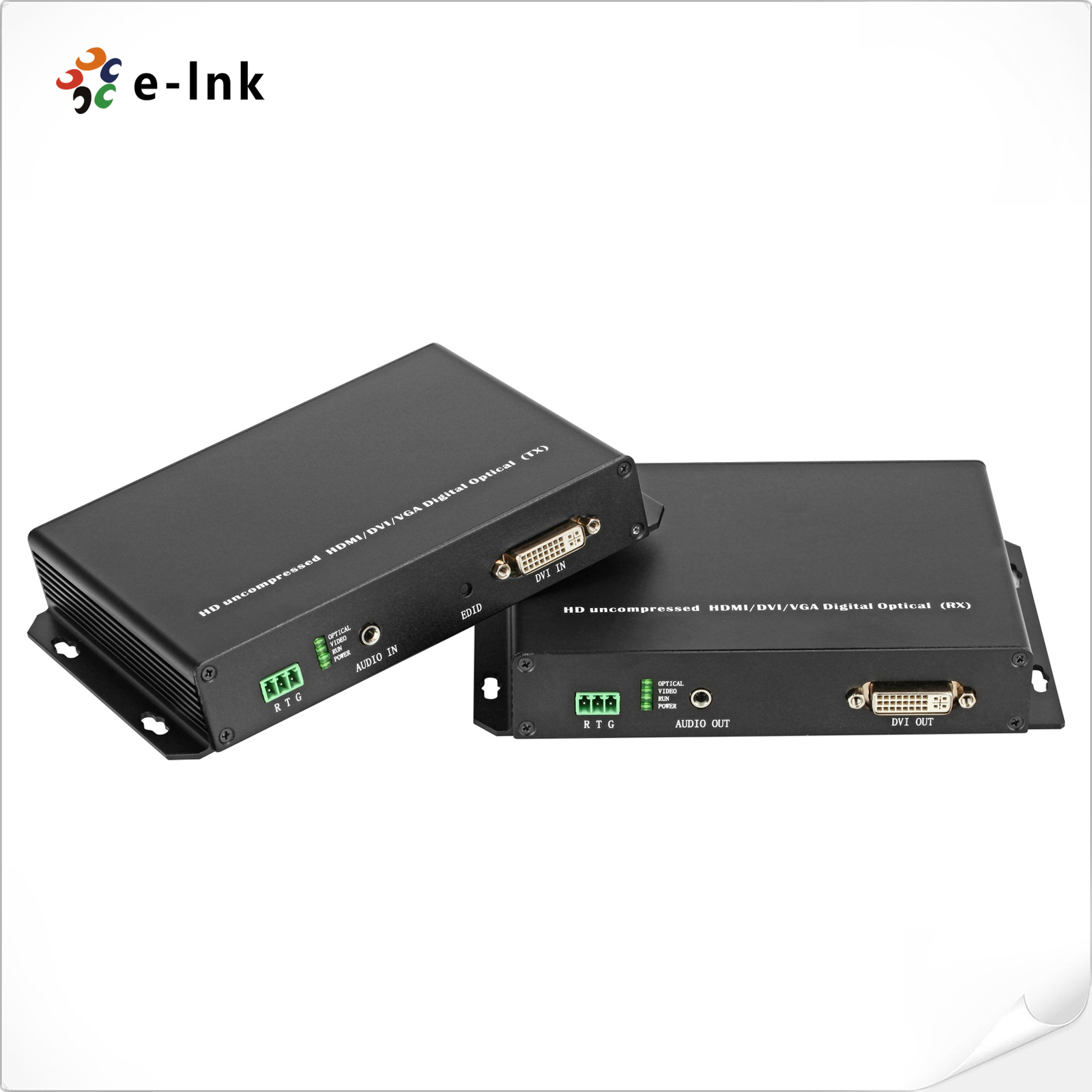

1080P DVI KVM Fiber Optic Extender
Model:LNK-DVI-1V1A1D
► 1 channel analog audio（3.5mm）
► Support DVI 1.0 Protocol
► Support KVM
Overview
The DVI KVM Fiber Extender (including DVI Optical Transmitter & Receiver) adopts the uncompressed digital HD video and high-speed digital optical fiber transmission advanced technology. It can transfer signal source(computer signal source, DVI signal source high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.
Features
►Full digital, Uncompressed HD optical fiber transmission►Support Full HD 1920*1200@60Hz
►The attenuation of optical module SFP low to -3db
►1 channel analog audio（3.5mm）
►Support DVI 1.0 Protocol
►Support KVM
►Automatic identification and configure display mode
►Automatic equalization inside, stable and clear graphics.
►ESD protection circuit inside, to ensure the ESD damage.
►Easily to installation, plug and play, no need to set up

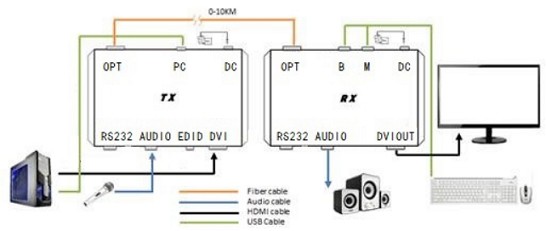

Application
Technical Indexes
|
Temperature |
-5°C to +75°C |
|
Humidity |
5 to 90 % RH (no condensation) |
|
The signal of Input and output |
DVI-I |
|
Protocol |
DVI1.0, HDCP1.2 |
|
Pixel band width |
165MHz |
|
Video format |
800x600P60
|
|
The signa of Audio input and output |
3.5MM Audio |
|
Audio format |
44.1K,48K,96K,176K,192K |
|
RS232 port |
3 ports industrial terminal |
|
RS232 Baud rate |
Support 115200 and all below |
|
RS 232 Data bits |
8 bits |
|
KVM receiver port |
A USB port |
|
KVM transmitter port |
B USB port |
|
Fiber port |
LC |
|
Fiber module |
SFP single mode |
|
Fiber wavelength |
1550/1310nm |
|
Fiber band width |
3Gbps |
|
The Maximum transmission distance of DVI and Audio |
10KM 20KM 40KM 60KM |
|
Input voltage |
DC 12V，inside+ outside- |
|
Power consumption |
DVI receiver 4W DVI transmitter 4W |
|
Device size |
109.5*152*29.3mm(length*width*height) |
|
Packing box size |
328*273*90mm(length*width*height) |
|
Weight |
1500g |
|
Model |
Description |
|
LNK-DVI-1V1A1D |
DVI KVM Extender: DVI
1.0 Protocol, 1Ch Analog Audio,
Support KVM, SFP port (3G), including 1 transmitter & 1 receiver |
