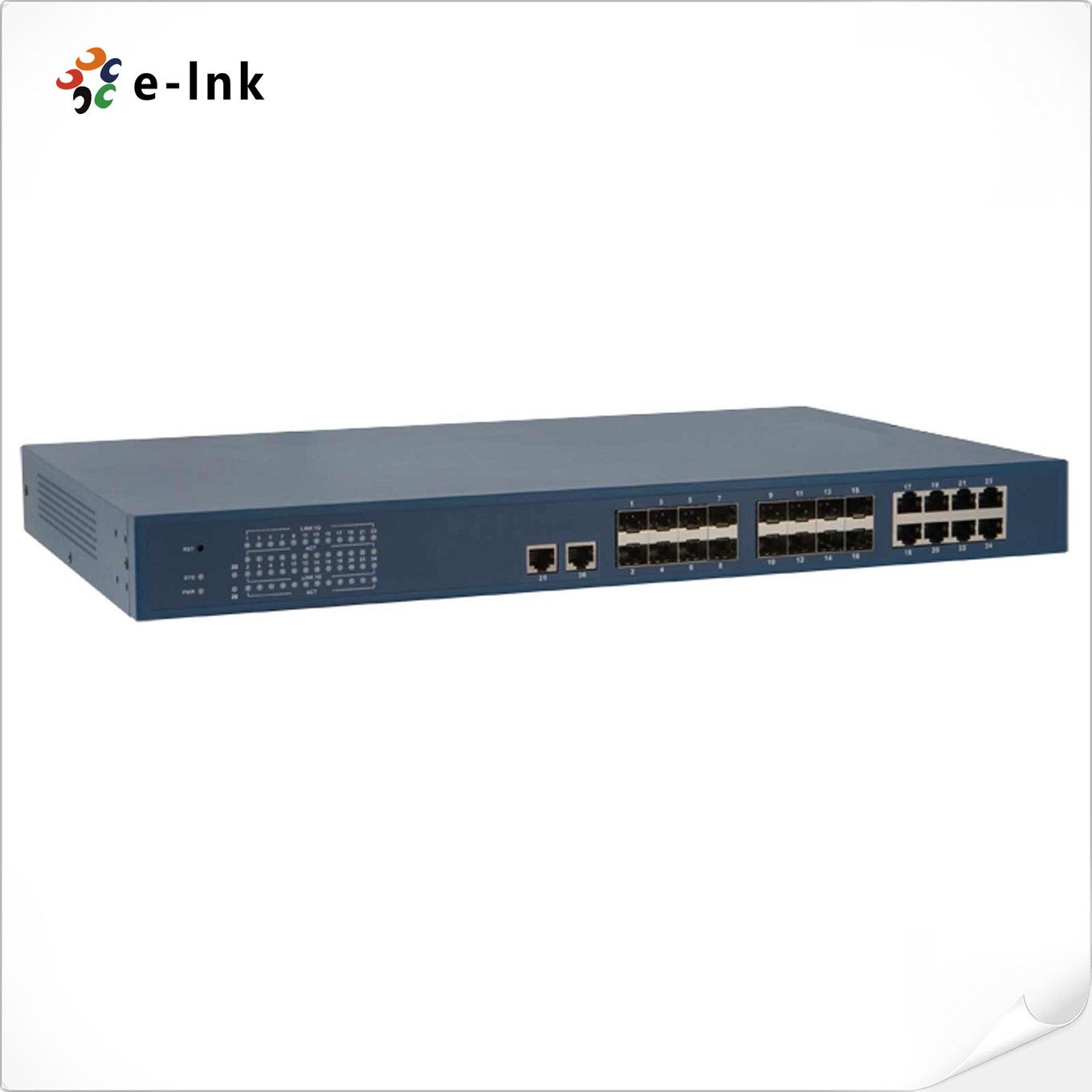

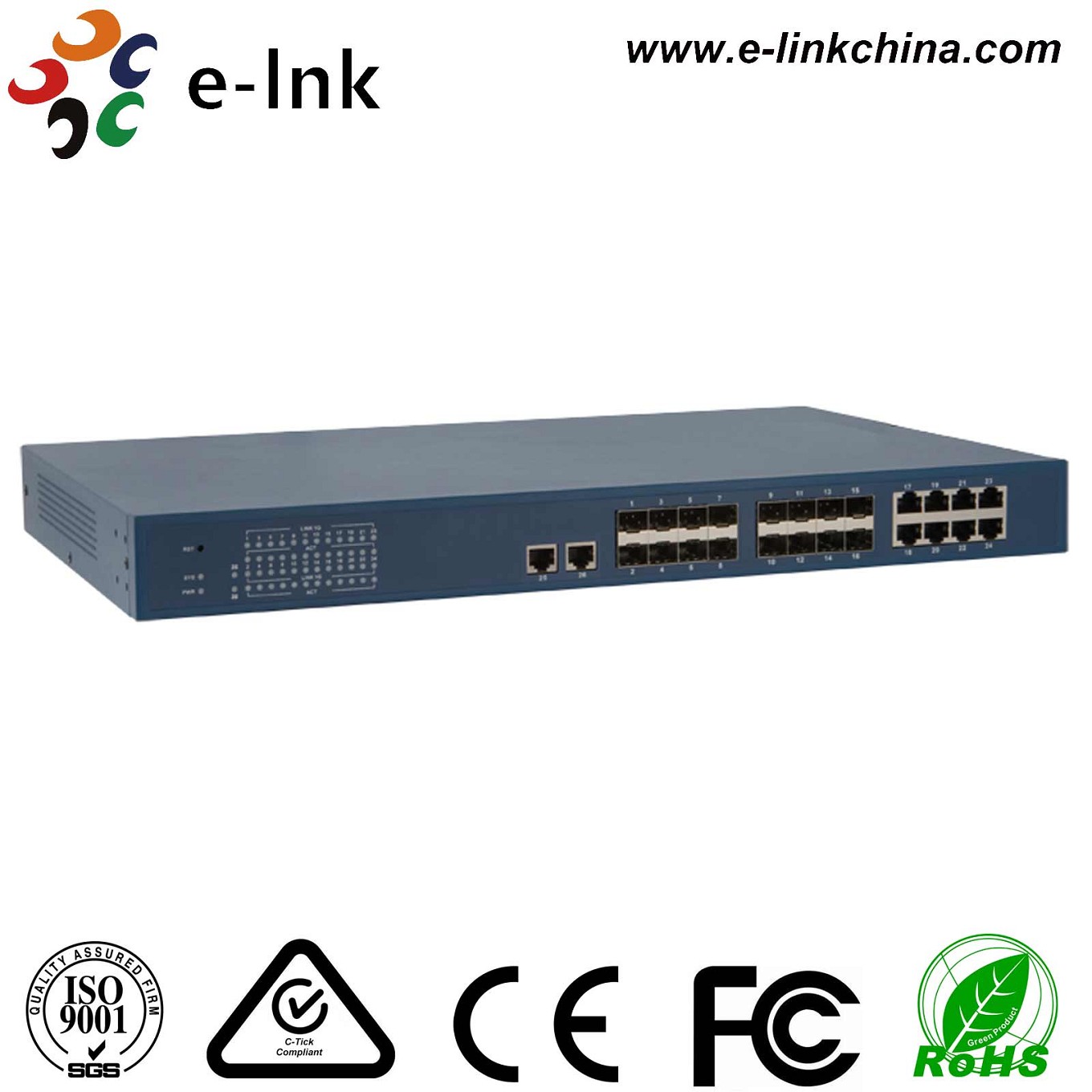

16SFP + 10GE Management Gigabit Fiber Optic Switch

Model:LNK-FS1610

►Support the function of port mirroring, port gathering, port speed limit.

►Support the port-based VLAN and IEEE802.1Q based on VLAN.

Overview

16+10 Management Gigabit fiber network switch is a second, fourth layer gigabit managed switch, provides 1010/100M/1000M RJ45 ports and 16 1000M SFP optical ports. The hard ware supports wire-speed switching of the second layer.

Users can set all kinds of functions of the switch through the Ethernet port in WEB. Built-in ARP and DOS defense system can effectively defense the ARP, DOS and various virus attack, moreover, It is also equipped with many powerful features: a comprehensive QoS, spanning tree, a storm suppression, Bandwidth Control, IGMP Snooping, ACL access control, DHCP snooping etc. Very suitable for small and medium-sized enterprises, campus network, and the metropolitan area network aggregation applications.

Features

► ARP defense: the function of MAC address and port binding and MAC address security filtering can effectively defense the ARP attack; DHCP snooping can provide ARP protection for users to obtain the MAC dynamically.

► Qos: support for multiple QOS strategy. Based on the 802.1p priority setting, each port provides eight priority queues. IP-DSCP can be divided into different service levels according to the IP header , to achieve a comprehensive QOS. AUTO VOIP can set the port to the highest priority of the voice signal, improve the voice quality of network IP telephone greatly.

► Spanning Tree: Support the standard of IEEE 802.1d and IEEE 802.1w (Rapid Spanning Tree Protocol) and IEEE802.1s (Multiple Spanning Tree Protocol).

►AUTO DOS: defense the following DOS attack with seven different forms.
► Storm suppression: can be set with the Broadcast, multicast, DLF traffic.

►ACL Access Control: used to control the exchange of the packet from the port, to ensure that the intranet site will not be access to users without authority, while indirectly defend ARP attack.

► IGMP Snooping: Support IGMP version 2 (RFC 2236): IGMP Snooping is used to establish the multicast groups to forward multicast packets to avoid wasting bandwidth when a multicast packet overflow network.

►Support for 802.1x authentication, and to provide users with access to authentication.

►Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure.

►Support the function of port mirroring, port gathering, port speed limit.

►Support the port-based VLAN and IEEE802.1Q based on VLAN.

Application

Very suitable for small and medium-sized enterprises, campus network, and the metropolitan area network aggregation applications.

Technical Indexes

Product Type

16+10 Management gigabit fiber network switches

Support agreement

IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak

Maximum frame length

9216B

Ports

16 1000M SFP optical ports and 8 10/100/1000M RJ45 ports

Network Media

1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.

1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.

10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S

100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S

1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S

VLAN Address Table

4K

MAC address table

8K

Cache

32Mbits

Backplane bandwidth

52Gbit

Filtering and forwarding rate

10Mbps:14880pps

100Mbps:148800pps

1000Mbps:1488000pps

Dimensions

440x230x44mm(1U19-inch standard chassis)

Use of the environment

Operating Temperature: 0℃~40℃;

Humidity 10% ~ 90% non-condensing

Storage temperature:  -20℃~70℃;
Storage Humidity 5% ~ 90% non-condensing

Power

Input :90-264VAC ,50-60HZ; output: 5V/12A

Power consumption

Power consumption: 60W

  • Download FileName:E-link LNK-FS1610 Series Fiber Switch Datasheet V2.0.pdf Size: 318KB

Order Information

Item Description
LNK-FS1610 10G + 16SFP Management Gigabit Fiber Switch: 16 1000M SFP Ports + 8 10/100/1000M RJ45 Port
