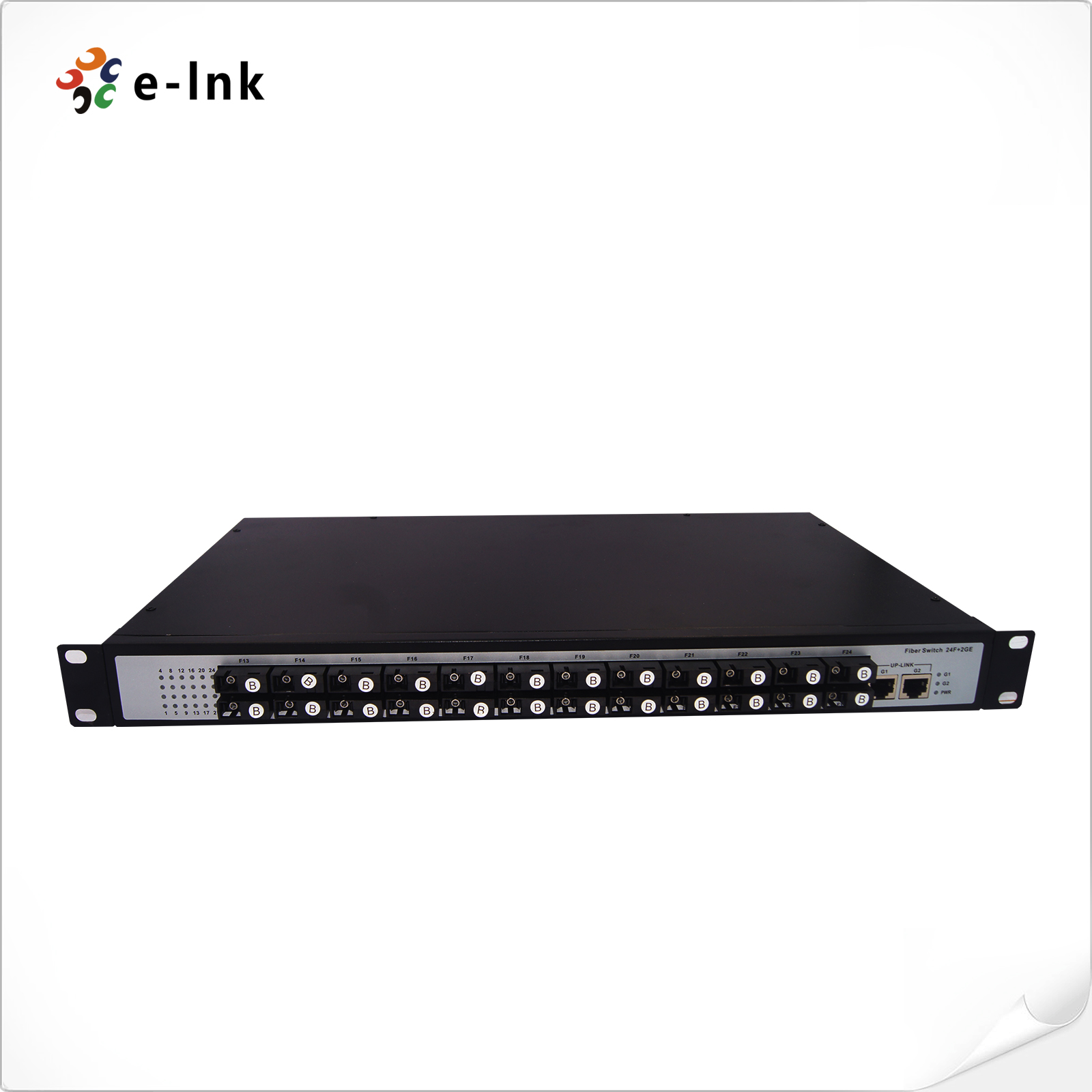

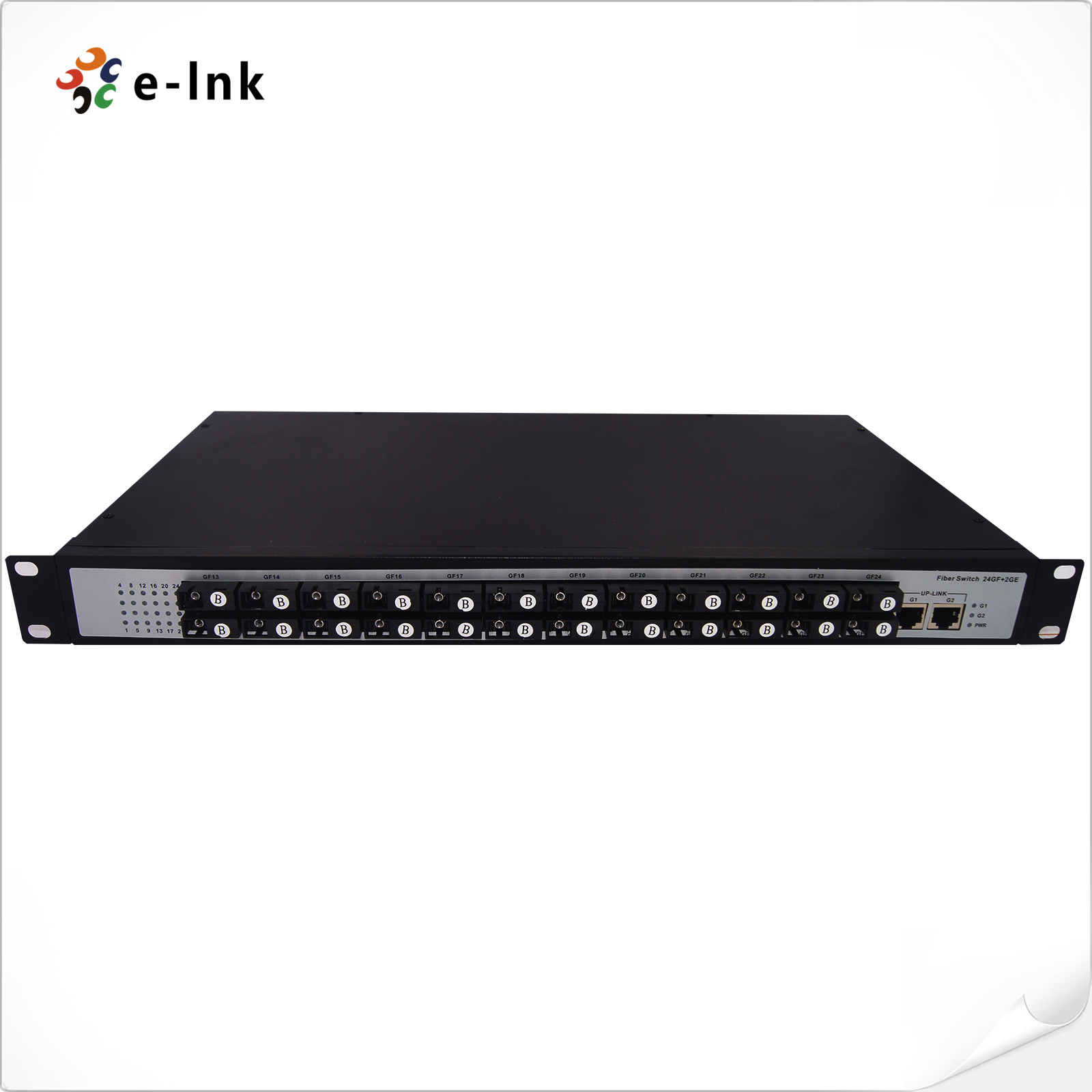

24-port 100Base-FX SFP + 2 -10/100/1000-TX/SFP Fiber Optic Switch
Model:LNK-FS242
►24x100Base-FX SFP Ports + 2x10/100/1000Base-TX/SFP Ports
►Supports external 100BASE SFP hot swap
►Supports 8K MAC address
►1M bits frame buffer memory
►19-inch 1U Rack
Overview
24-port 100Base-FX SFP + 2-10/100/1000-TX/SFP Switch
Features
►24x100Base-FX SFP Ports + 2x10/100/1000Base-TX/SFP Ports
►Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X at TX
►Supports external 100BASE SFP hot swap
►Supports 8K MAC address
►1M bits frame buffer memory
►19-inch 1U Rack
►Operating Temperature:-10°C to60°C
►110~240VACPower Inputs
►Aluminum Case
►Lightning Protection Design
►3-Year Warranty
Application
Very suitable for small and medium-sized enterprises, campus network, and the metropolitan area network aggregation applications.
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX |
|
|
IEEE802.3u 100BASE-FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
Forward&Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
1522 Bytes |
|
Address Table Size: |
8K MAC Addresses |
|
RJ45 Port |
2*10/100/1000Base-T(X) |
|
100M SFP Port: |
24*100Base-X SFP |
|
1000M SFP Port |
2*1000Base-X SFP |
|
Environmental |
|
|
Operating Temperature: |
-10°C to60°C |
|
Storage Temperature: |
-40°C to 85°C |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|
Input Power: |
110~220VAC |
|
Power Consumption: |
15W Max. (Off-load) |
|
25W Max. (Full load) |
|
|
Dimensions (WxDxH): |
483 x250 x44 mm |
|
Weight: |
1900g |
|
Casing: |
Metal Case, IP40 protection |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV |
|
- Download FileName：E-link LNK-FS242 Series Fiber Switch Datasheet V2.0.pdf Size： 145KB
Order Information
| Item | Description |
| LNK-FS242 | Unmanaged 24-port 100Base-FX SFP + 2 -10/100/1000-TX/SFP Switch |
