Parameter

Specifications

Physical Characteristics

Housing: Aluminum Alloy material with IP40 Protection

Dimension: 140mm(L) X 118mm(W) X 60mm(H)

Weight: 710g

Installation: Din-Rail mounting, Wall mounting

Switch Properties

MAC Table Size: 8K

Packet Buffer Size: 1M bit

Processing Type: Store and Forward

Exchange Properties: 148800pps (100M)

Interfaces

16 RJ45 Ports: 10/100Base-T(X) auto negotiation

Power

Input Voltage: 24V DC(18-36VDC) Redundant dual inputs

Input Current: <0.5A @24VDC

Overload Current Protection: Support

Reverse Polarity Protection: Support

Redundant Protection: Support

Environmental

Operating Temperature: -40 to 85°C
Storage Temperature: -45 to 85 °C
Ambient Relative Humidity: 5% to 95% (non-condensing)

Standards

EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS: EN61000-4-2 (ESD), Level 4

EN61000-4-3 (RS), Level 3

EN61000-4-4 (EFT), Level 4

EN61000-4-5 (Surge), Level 4

EN61000-4-6 (CS), Level 3

EN61000-4-8, Level 5

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Industry: IEC61000-6-2

Rail: EN50155, EN50121-4

Traffic: NEMA TS-2

Warranty

5 years

Approvals

FCC,CE, RoHS approvals

Item

Description

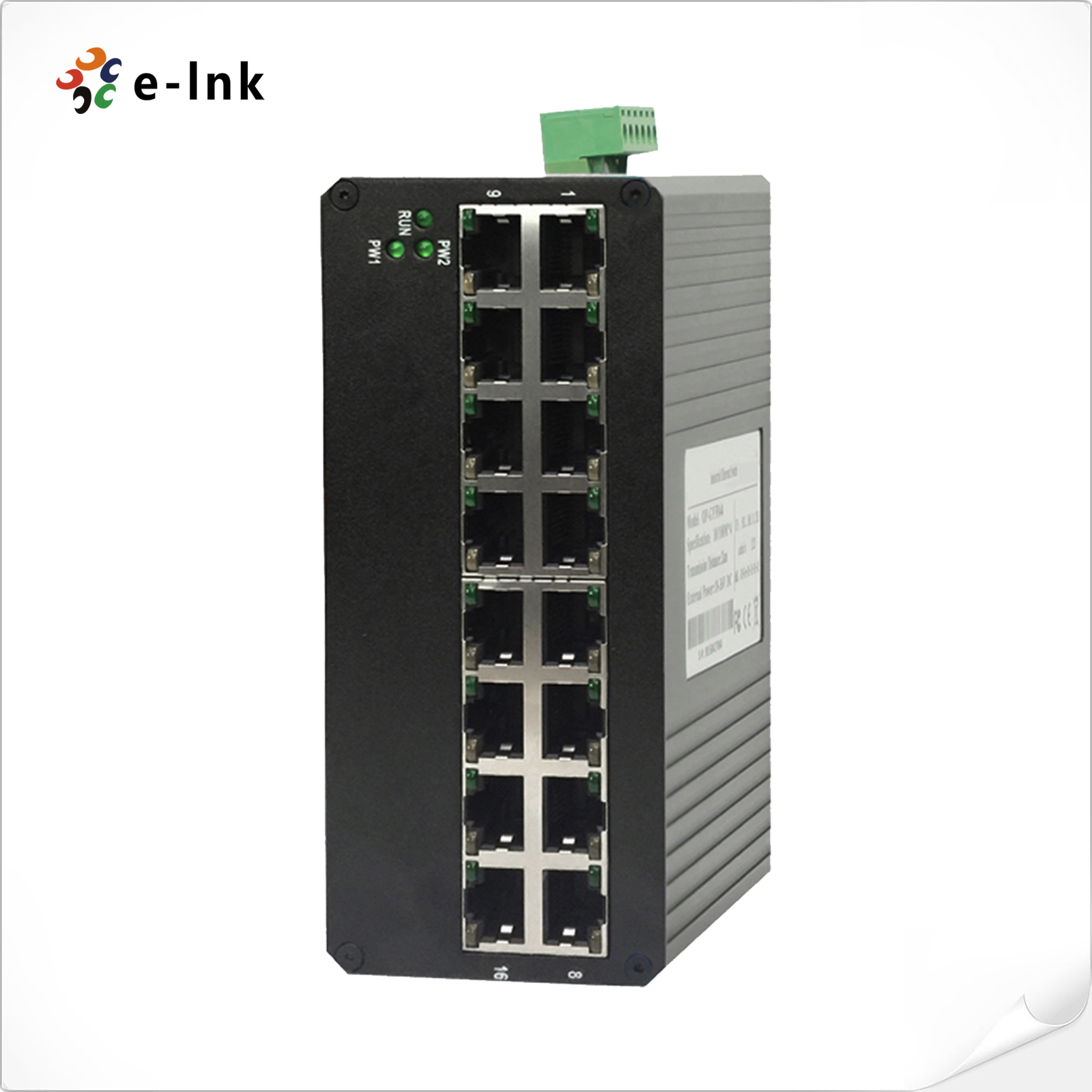

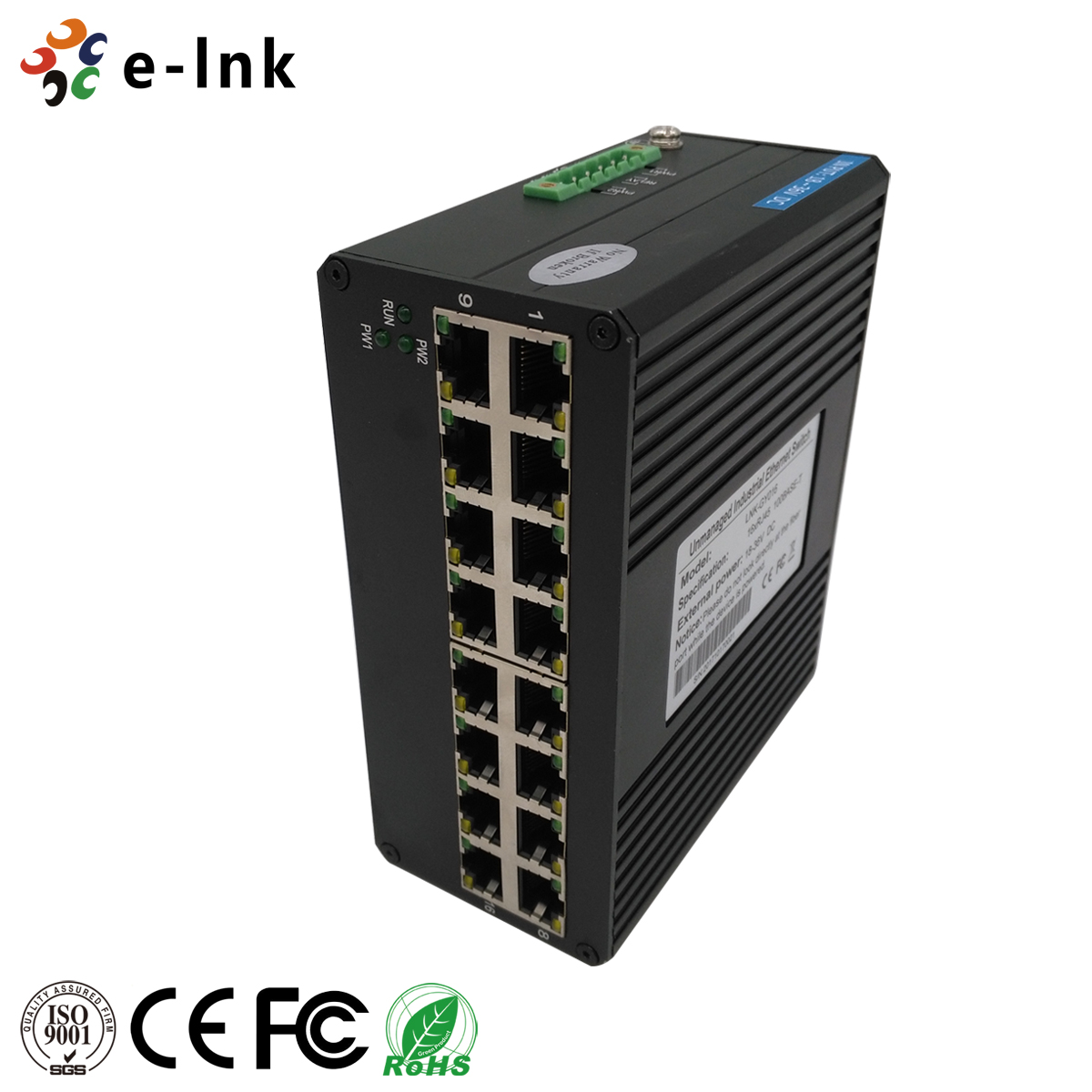

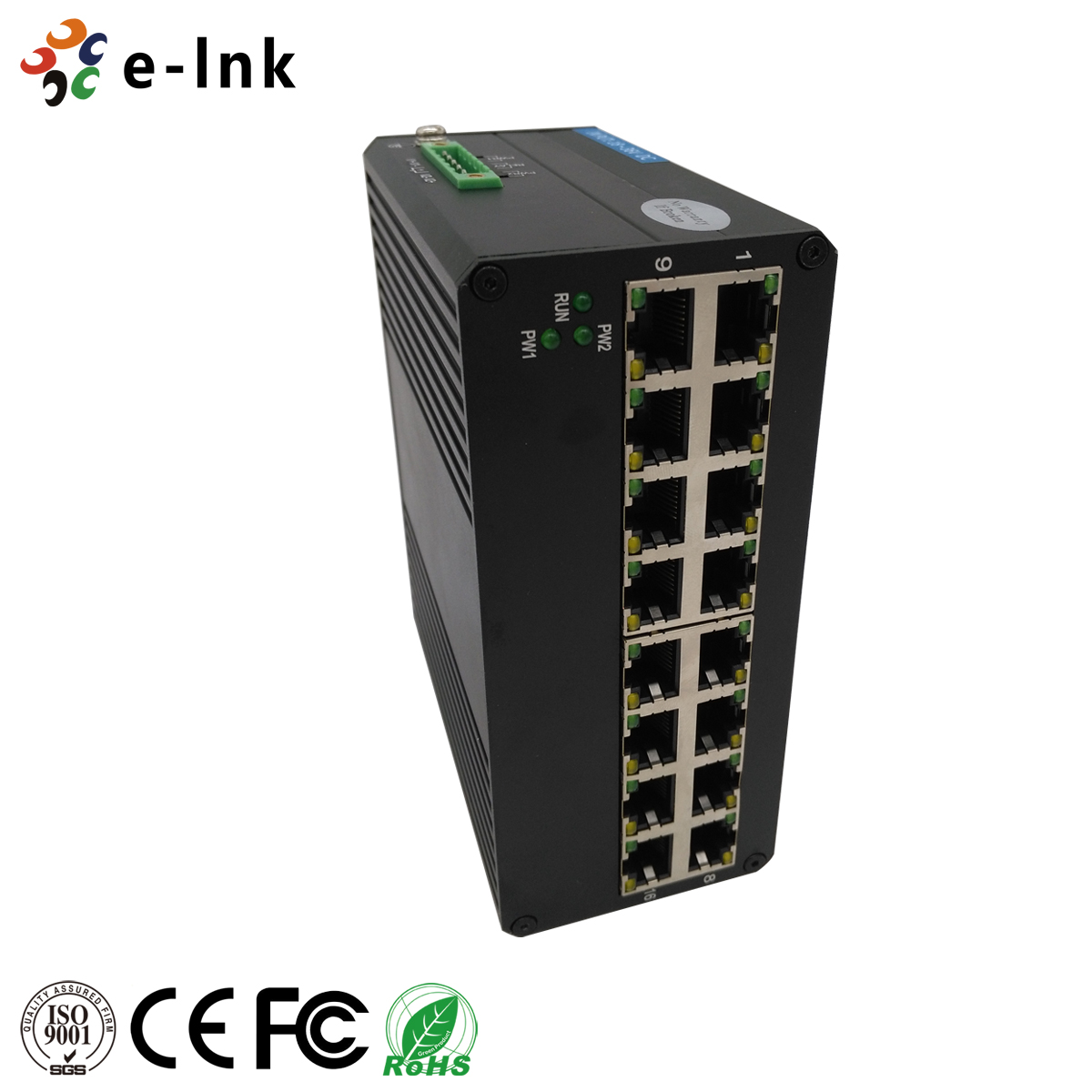

LNK-GY016

16-Port 10/100M Industrial Ethernet Switch, standalone, Support DIN-Rail mounting and Wall mounting installation, 18~36V DC power input,no power supply adapter
