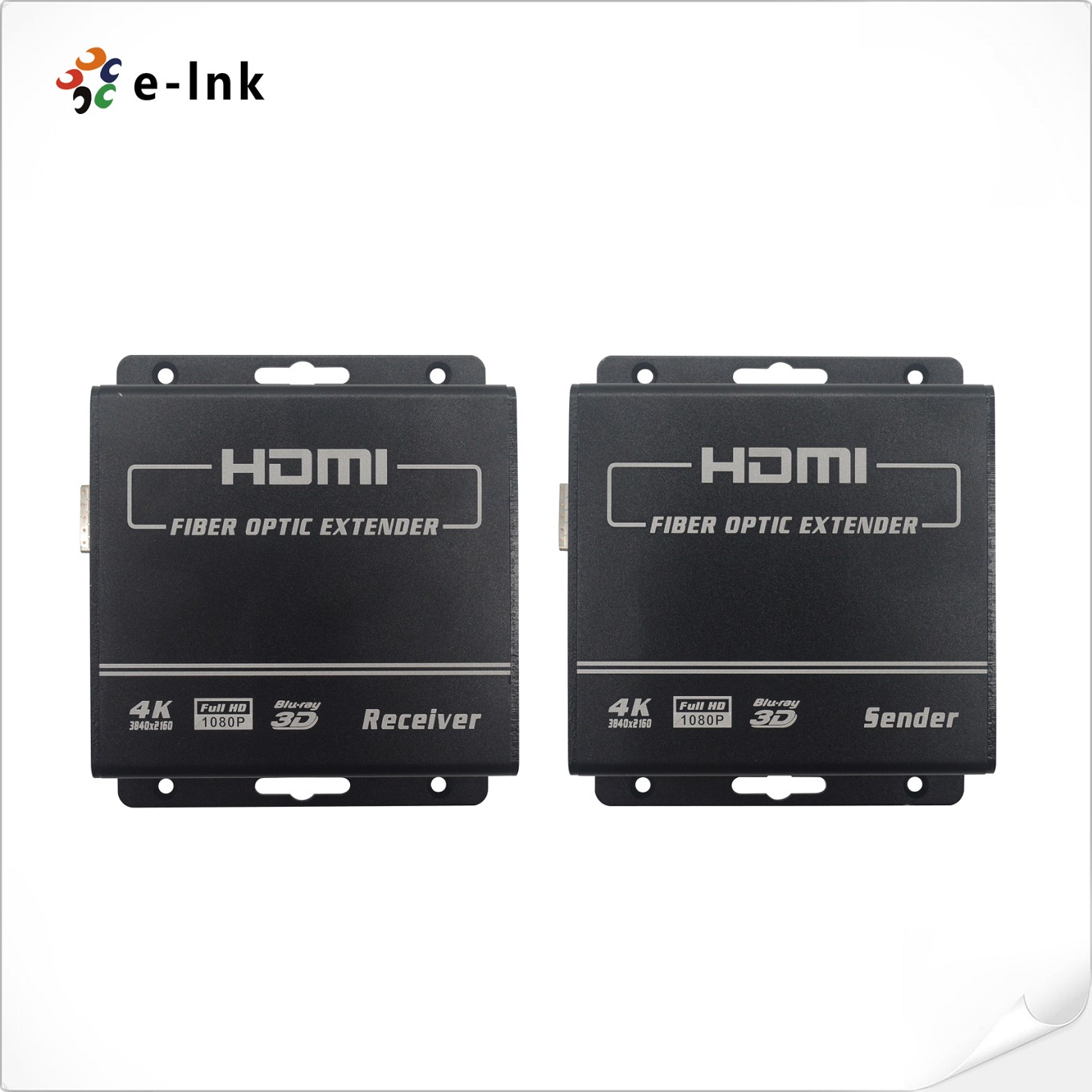

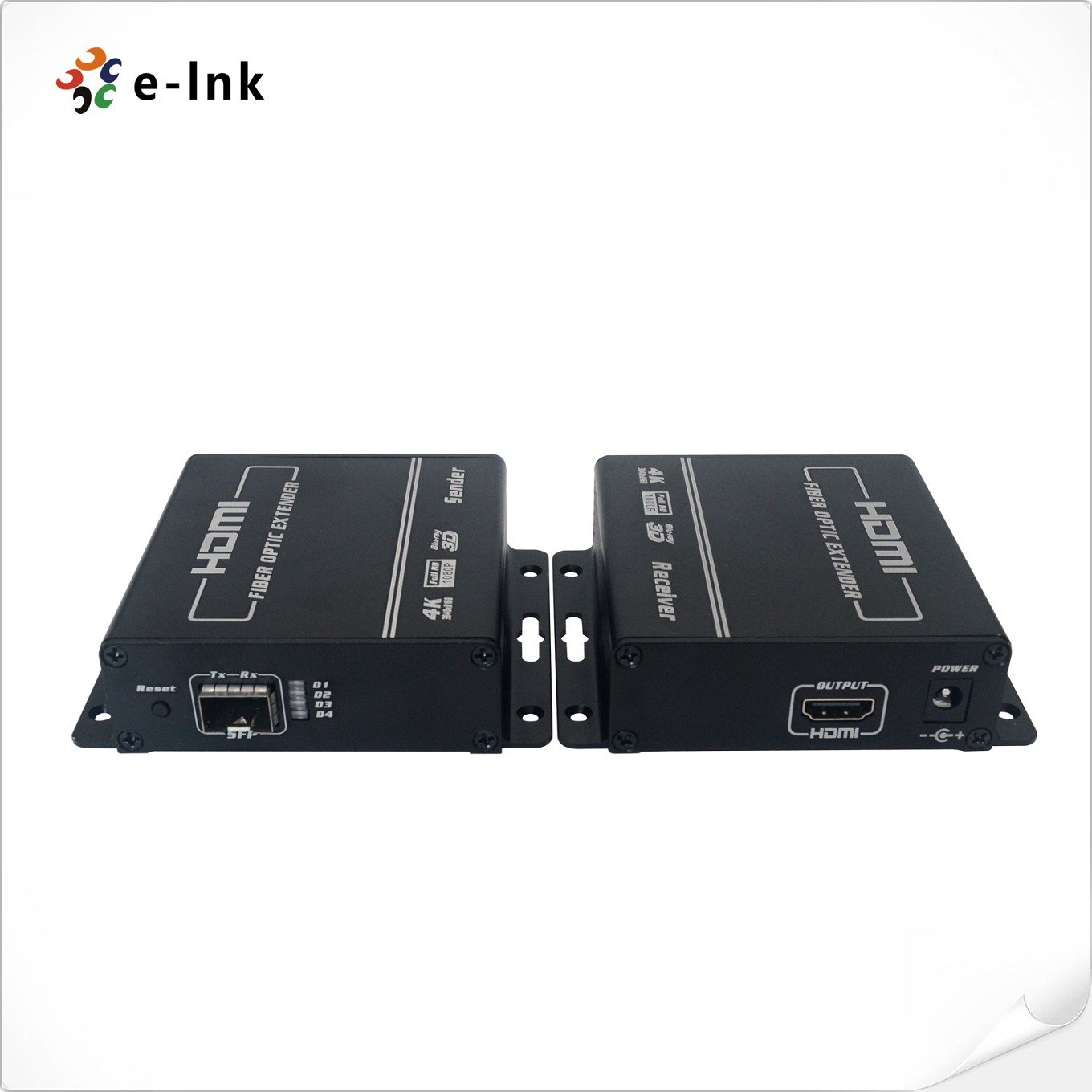

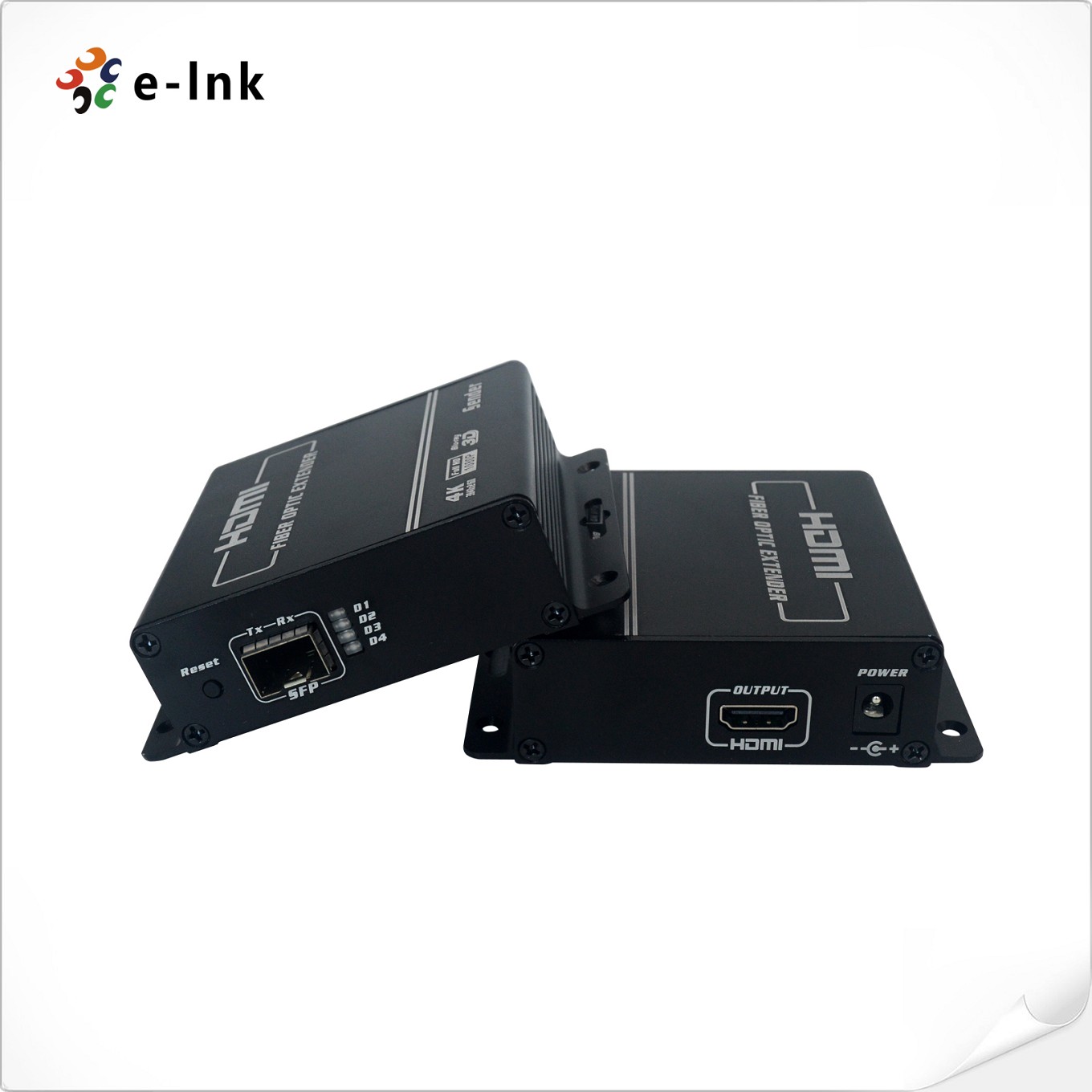

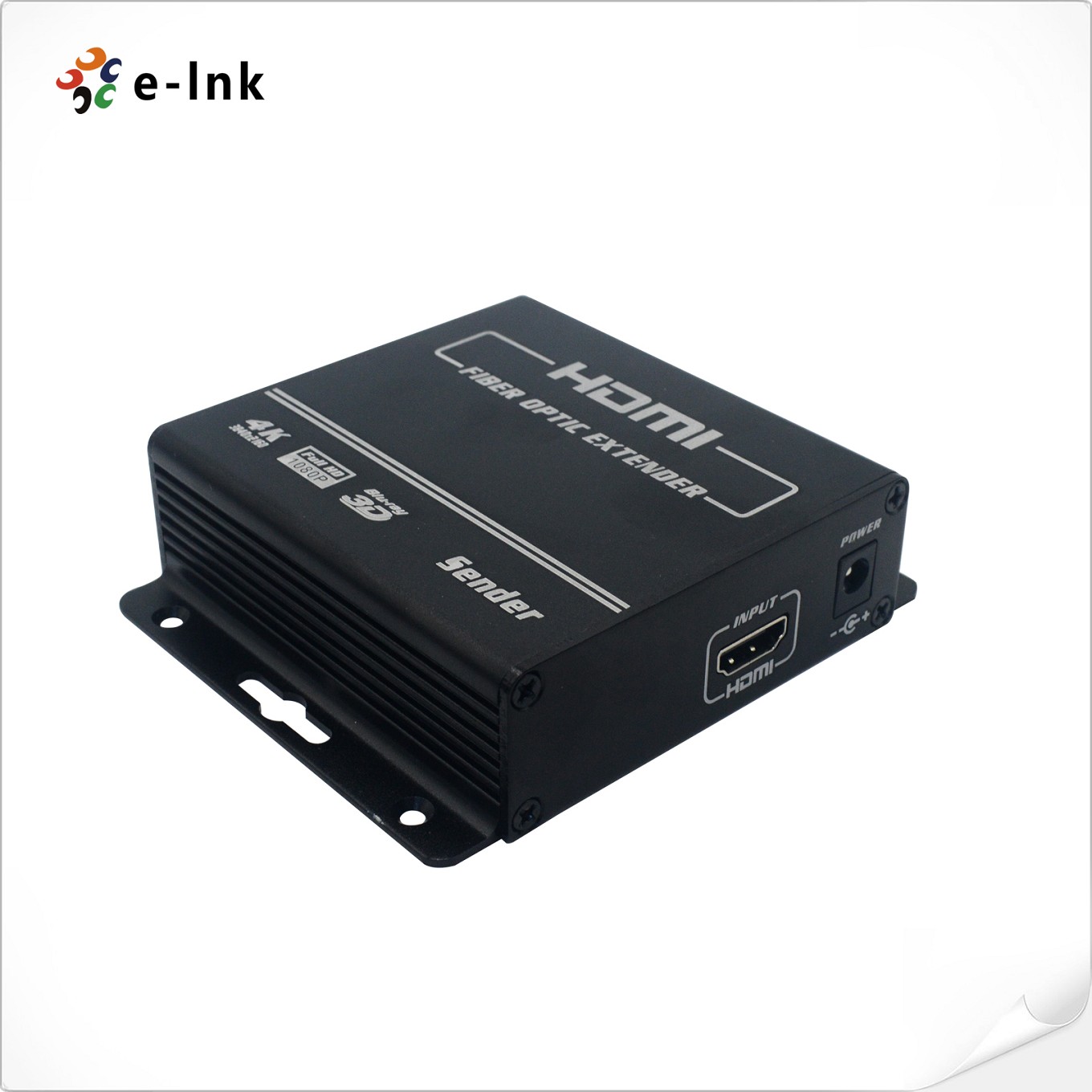

4K HDMI Fiber Optic Extender

Model:LNK-H4K100 Series

►    Support video resolution up to 3840*2160@30Hz, 3D signal;

►    Compliance with HDMI 1.4 and HDCP 1.2 standard;

►    High compatibility, can auto-match source and display device;

Overview

The LNK-H4K100 Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

►    Transmits HDMI video signals up to 2km-60km over one fiber optic cable;

►    Support video resolution up to 3840*2160@30Hz, 3D signal;

►    Compliance with HMDI 1.4 and HDCP 1.2 standard;

►    High compatibility, can auto-match source and display device;

►    Built-in automatic adjustment system, make the image smooth, clear and stable;

►    Built-in ESD protection system;

►    Simple to install, plug and play;

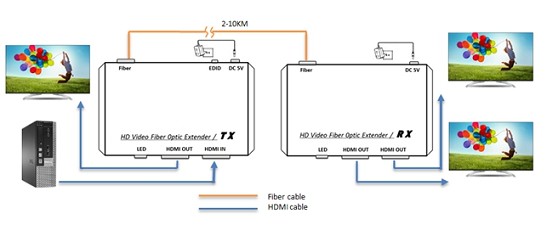

Application


Technical Indexes

Parameter

Description

Video

Standards

HDMI 1.4; HDCP 1.2

Maximum pixel clock

340MHz

Maximum data rate

10.2Gbps

Resolution range

Up to 3840*2160@30Hz

Connector

Female HDMI type A

Impedance

100Ω

Optical fiber

Interface

SFP model – LC connector

Fiber type

Multi-mode / single-mode (optional)

Wavelength

Multi-mode 850nm /

Single-mode 1310nm(optional)

Interface bandwidth

10Gbps

Transmission distance

OM3 multi-mode fiber: maximum 300m,

Single-mode fiber: standard 2km;maximum 60km

Other

Power supply

The power adapter: DC 5V/2A

Power dissipation

Max 4W

Temperature

Operating: -5℃~ +70℃

Humidity

Operating: 5% ~ 90%

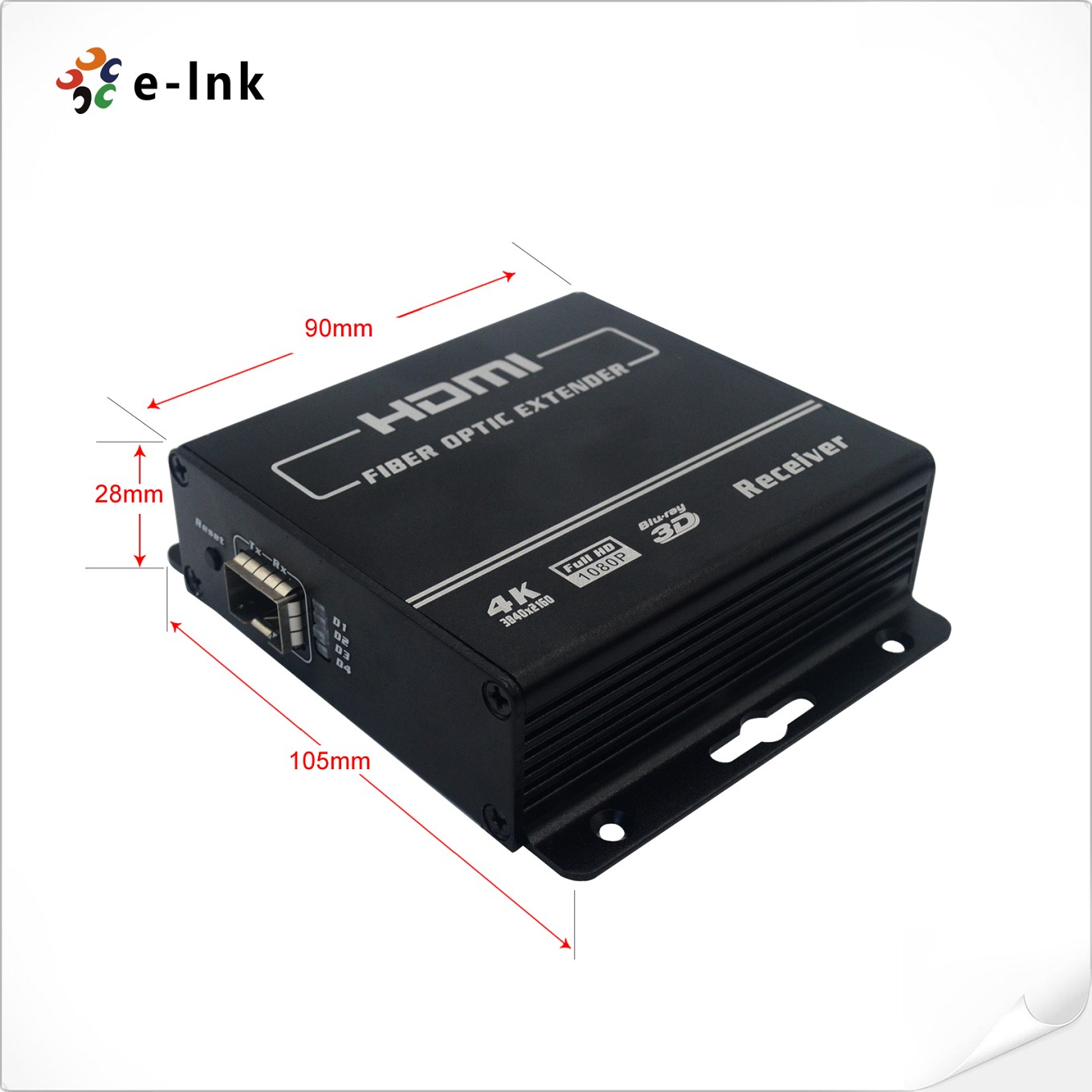

Dimension

104*89*28mm


Pannel

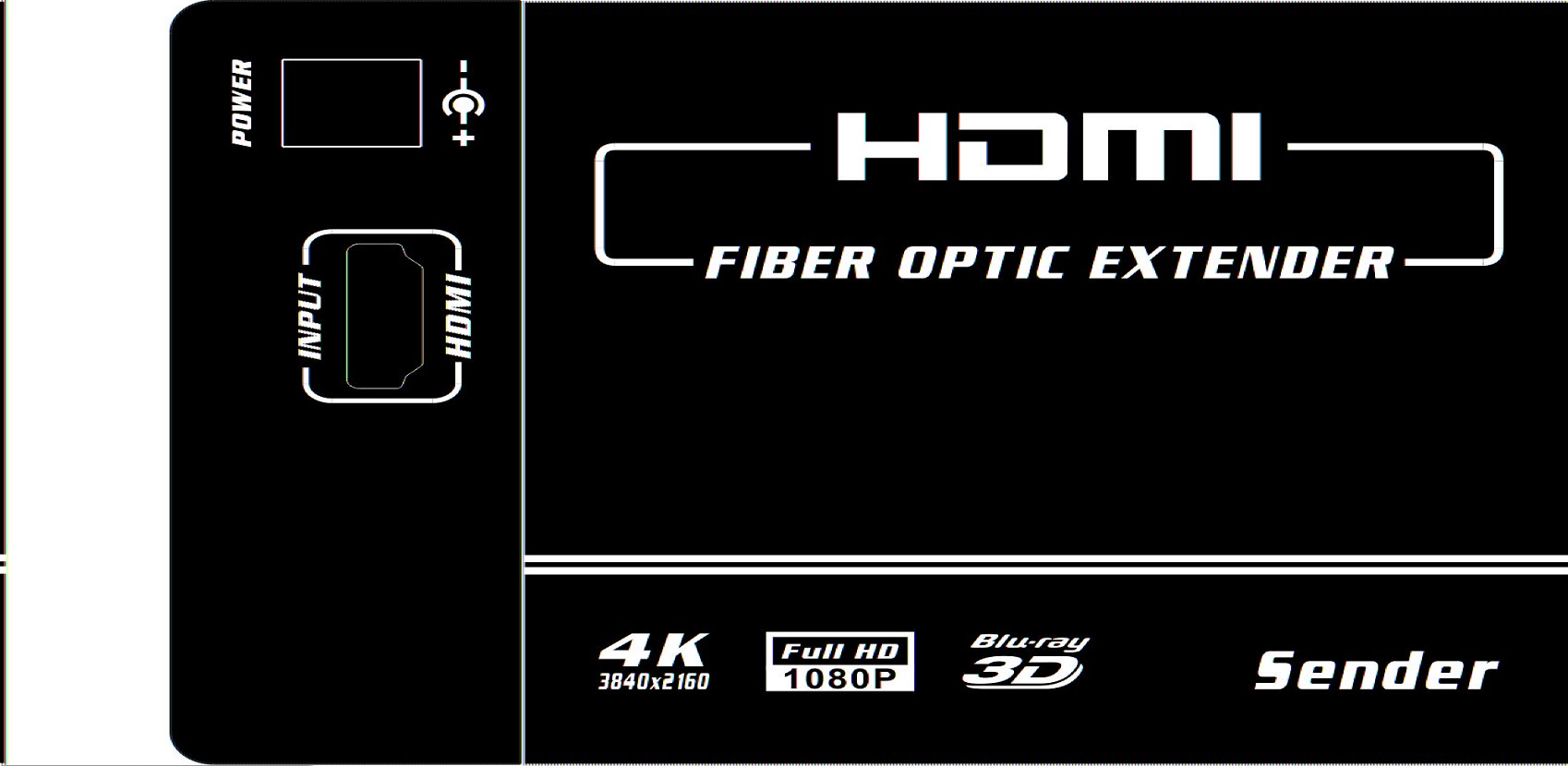

Transmitter:

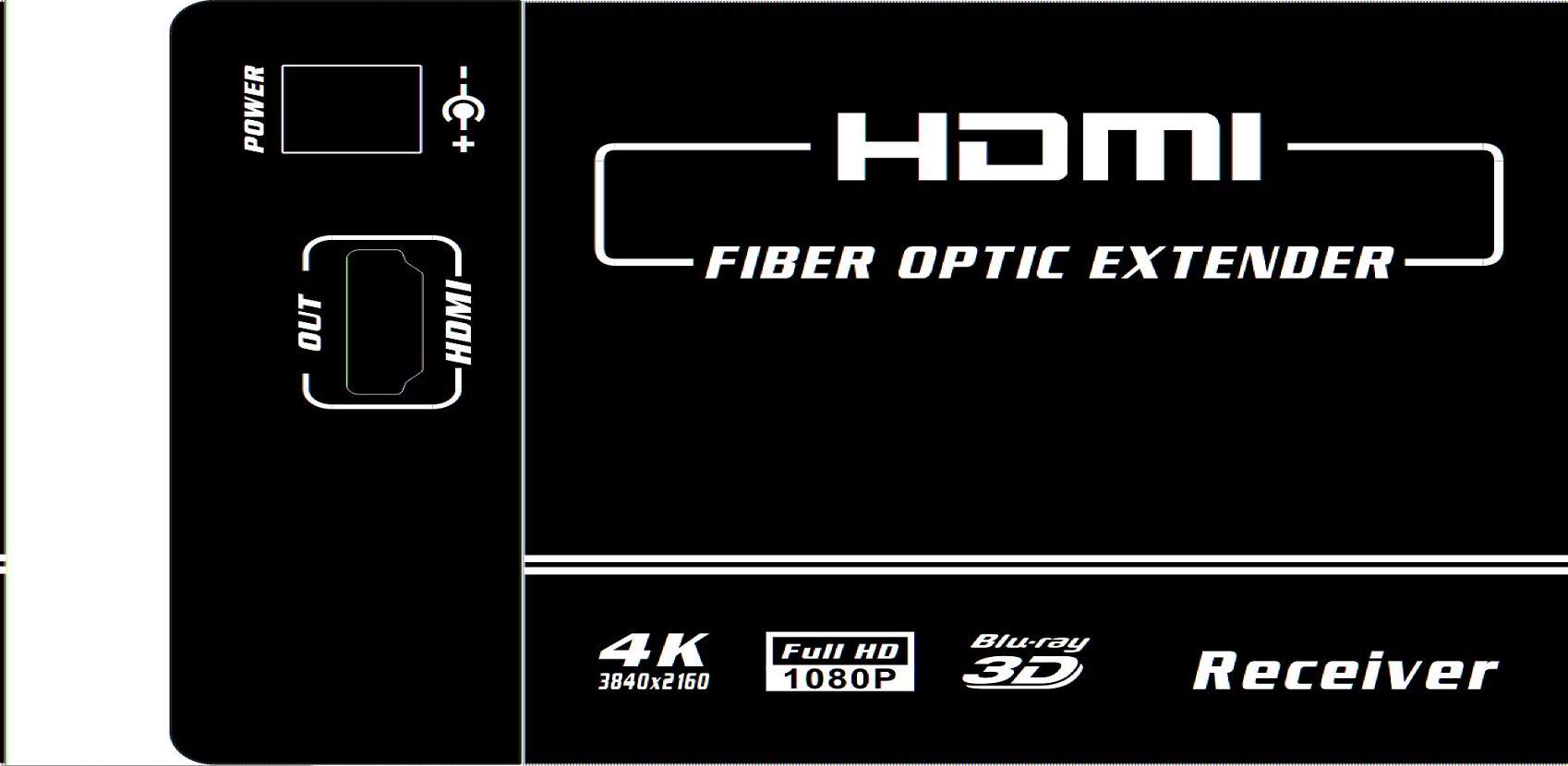

Receiver:




Port name

Description

HDMI IN/OUT

HDMI signal input/output

RESET

System reset button

POWER

Power adapter socket

SFP

SFP model --- LC connector

RS-232

(RS-232 standard)

Non-support

LED indicator

Description

D1

System power indicator

D2

SENDER: Sink plug in and RECEIVER Optical input is ok

RECEIVER: Reserve

D3

Optical fiber signal connection indicator

ON: LOS   OFF: OK

D4

Source plug in

D5

Reserve

D6

Reserve

D7

Reserve

D8

Reserve









  • Download FileName:E-link LNK-H4K100 4K HDMI Fiber Optic Extender Datasheet V1.0.pdf Size: 600KB
  • Download FileName:LNK-H4K100 4K HDMI Fiber Extender User Manual V1.0.pdf Size: 476KB

Ordering Information

Item

Description



LNK-H4K100

4K (3840*2160/30P) HDMI Fiber Extender, SFP Port (Excl. SFP), including 1 transmitter & 1 receiver, used by pairs
