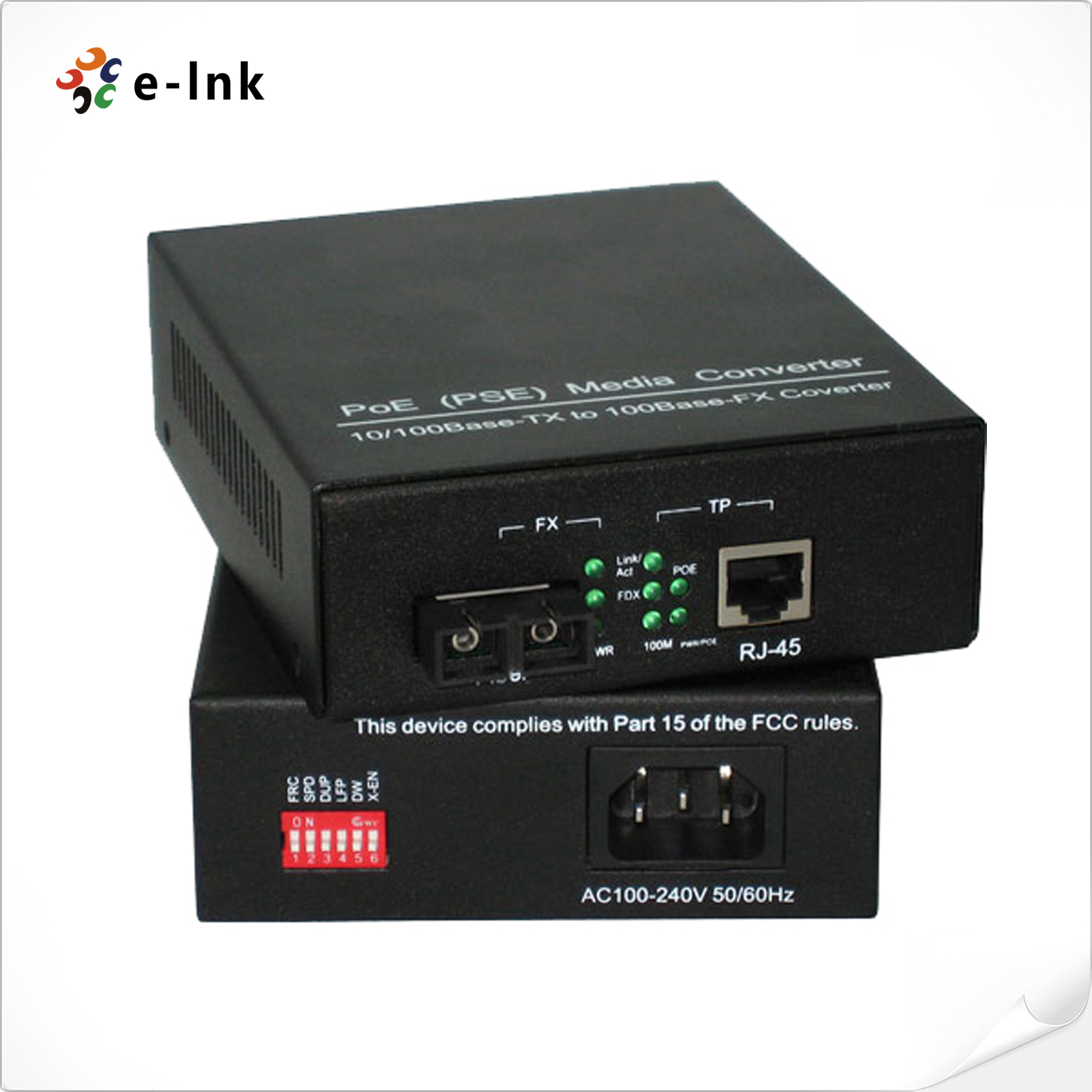

PoE(PSE) 10/100Base-TX to 100Base-FX Media Converter with built-in power supply
Model:LNK-POE100
►10/100Base-TX UTP to 100Base-FX fiber media convertion
►IEEE802.3af PoE PSE compatible
►Built-in AC/DC power supply
Overview
LNK-POE100is a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100 meters / 330 feets).
Features
►10/100Base-TX UTP to 100Base-FX fiber media convertion
►IEEE802.3af PoE PSE compatible
►Built-in AC/DC power supply
►Over-current protection
►choice of SC, BiDi or LC connectors for multimode and singlemode
►DIP switch to set different configurations
►LFP (Link Fault Pass-through) support
Application:
The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
Technical Indexes
|
Data Rates |
10/100 Mbps (802.3 10Base-T/802.3u 100Base-T) |
|
100Mbps (100Base-FX) |
|
|
Input Power Requirements |
|
|
Input voltage |
100 VAC to 240 VAC |
|
Input frequency |
47 Hz to 63 Hz |
|
Power over Ethernet Output |
|
|
Pin Assignment and Polarity |
4/5 (V+),7/8 (V-) |
|
Output Power |
please refer to ordering information |
|
Efficiency |
75% min |
|
Short circuit protection |
auto recovery |
|
Over current protection |
auto recovery |
|
Environmental Conditions: |
|
|
Operating temperature |
0℃ to 50℃ |
|
Cooling |
free air convection |
|
Storage temperature |
-20℃ to +85℃ |
|
Operating Humidity |
90% max, non-condensing |
|
Mechanical Specifications |
|
|
Case Material |
Iron |
|
Case Color |
Black |
|
Net Weight |
540g approx. / unit |
|
Dimensions |
110(W) x 40(H) x 140(L) (mm) |
|
Note:Do not include transceiver length |
|
|
Connectors |
|
|
AC Inlet |
IEC-J-4 |
|
LAN |
Shielded RJ-45 |
|
Fiber |
see ordering information |
- Download FileName：E-link LNK-POE100 Series PoE Media Converter Datasheet V1.0.pdf Size： 177KB
Ordering Information:
|
P/N |
Description |
- |
X |
X |
- |
X |
X |
X |
X |
|
LNK-POE100 |
10/100M POE (PSE) Media Converter |
|
T: IEEE802.3at F: IEEE802.3af N: Non－standard |
1：15.4W 2: 25W 3: 30W 5: 50W |
|
S: Duplex Single-mode M: Duplex Multi-mode B: Simplex Single-mode SFP: SFP Slot |
3: TX 1310nm 4: TX 1490nm 5: TX 1550nm 8: TX 850nm |
S: SC F: FC T: ST L: LC |
05: 550M 2: 2KM 20: 20KM 40: 40KM |
