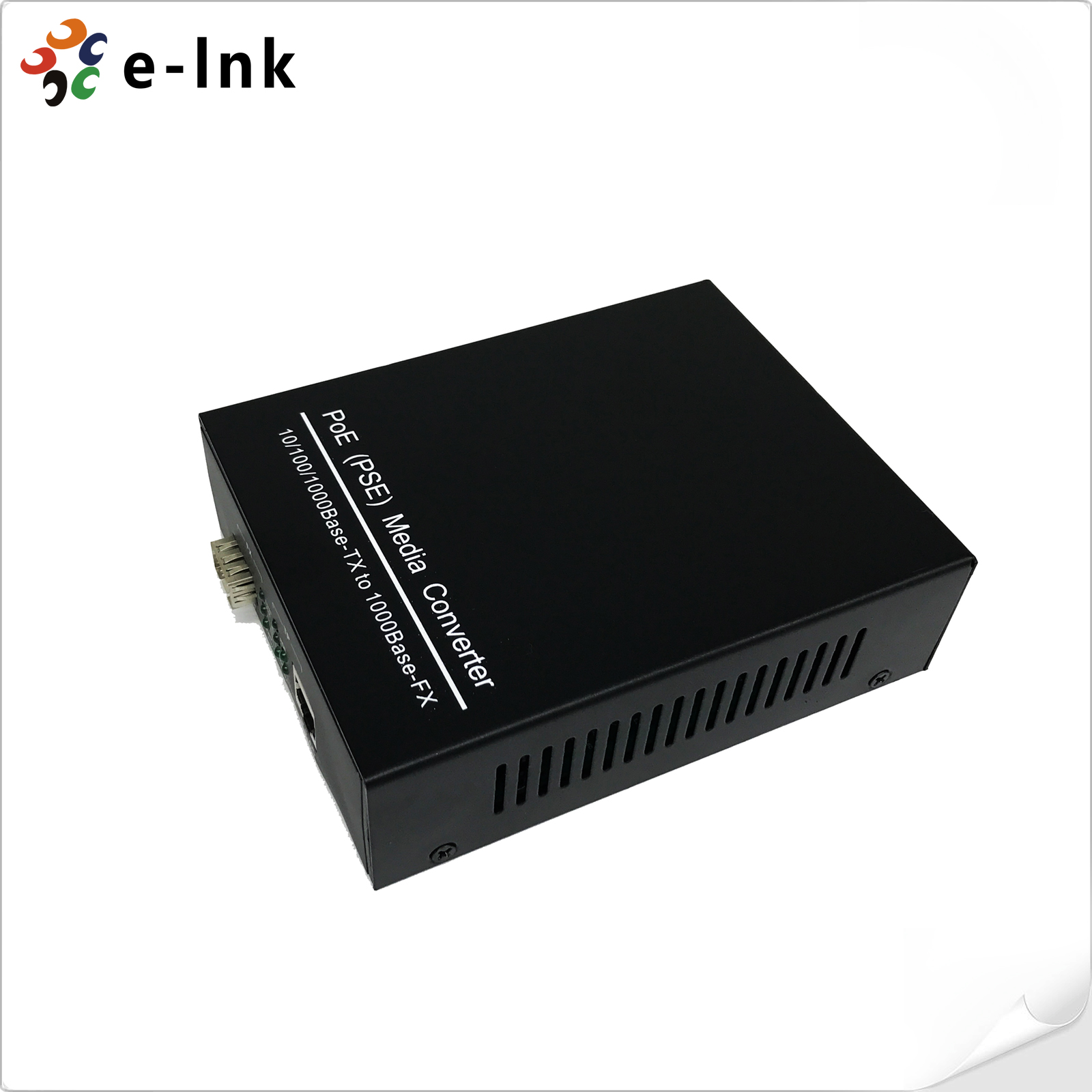

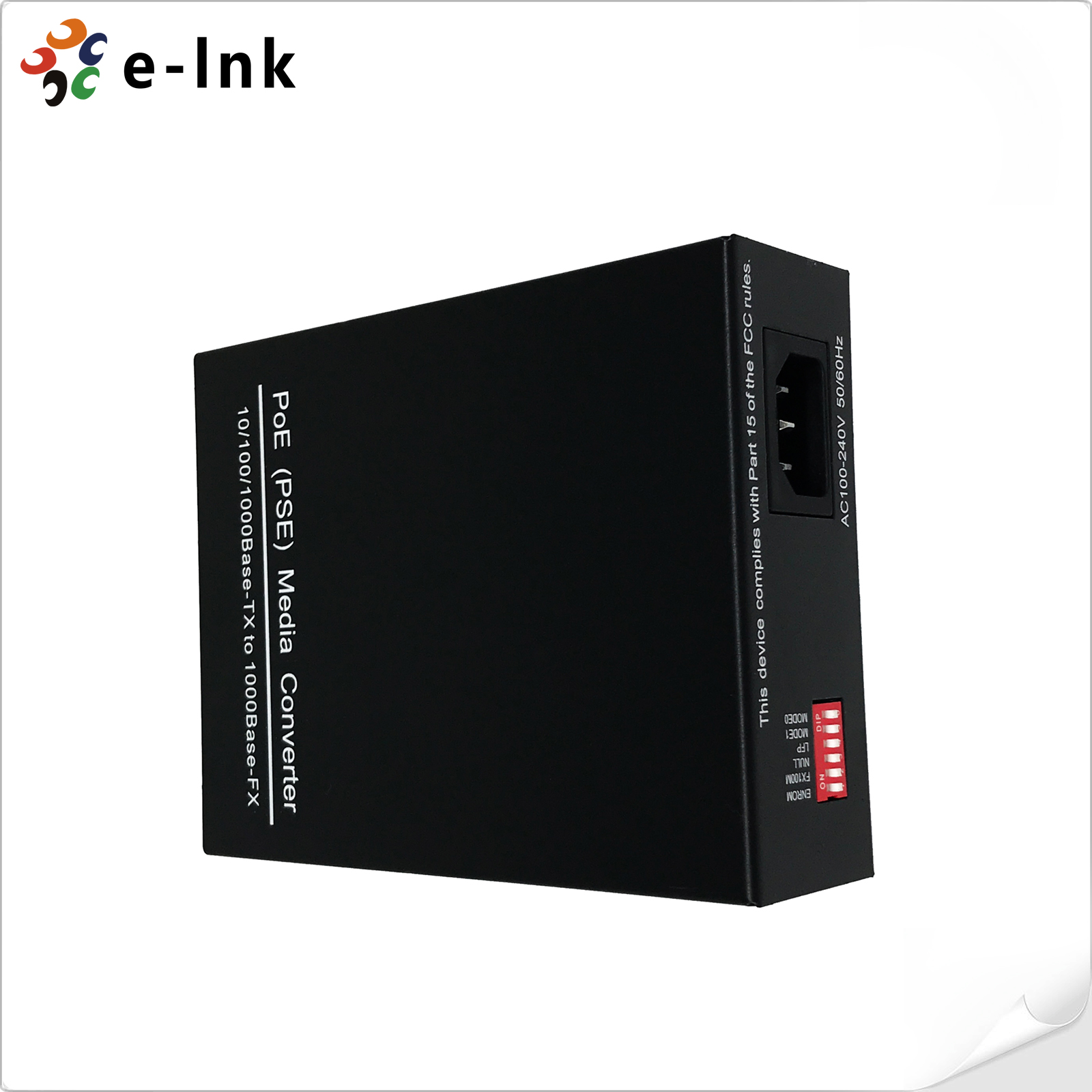

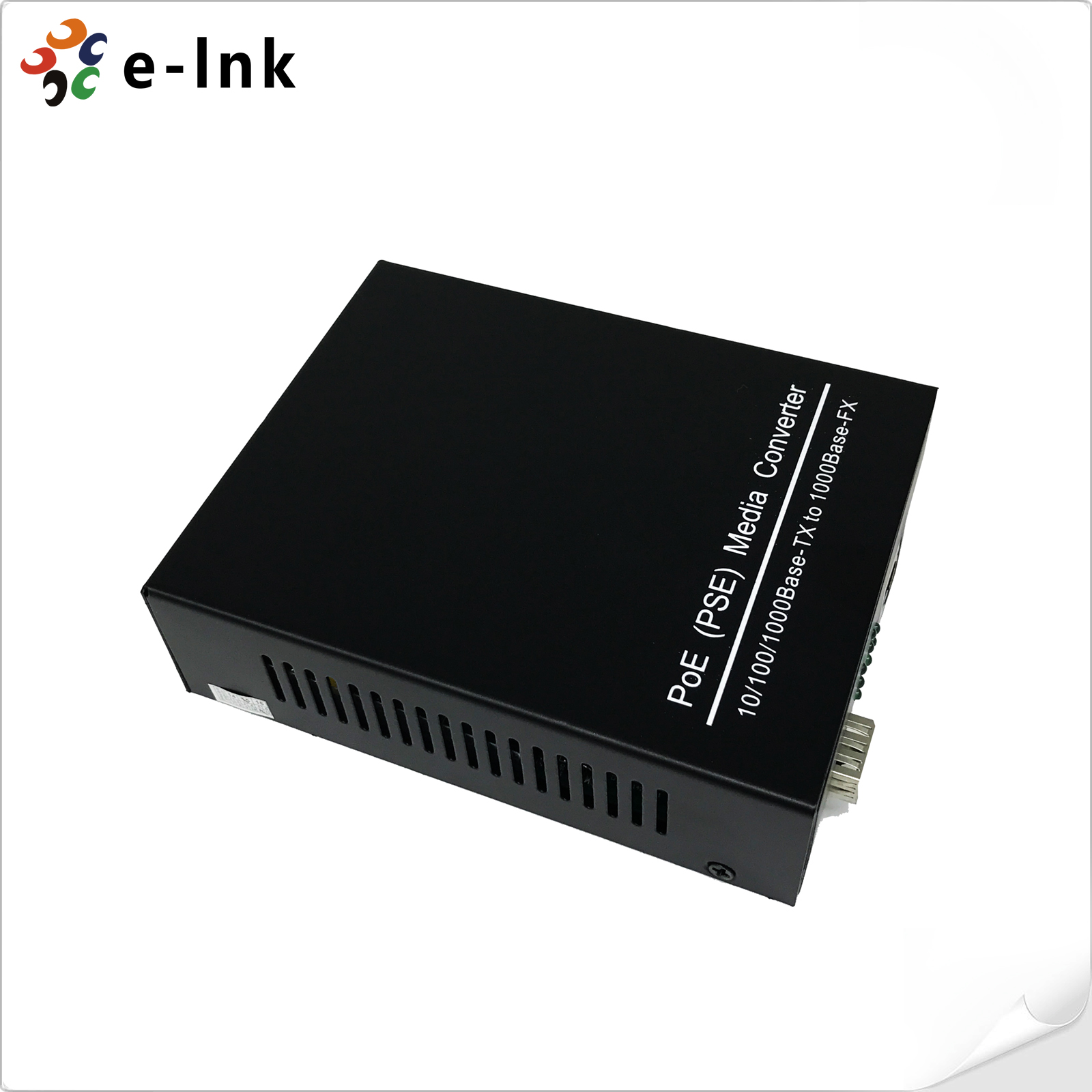

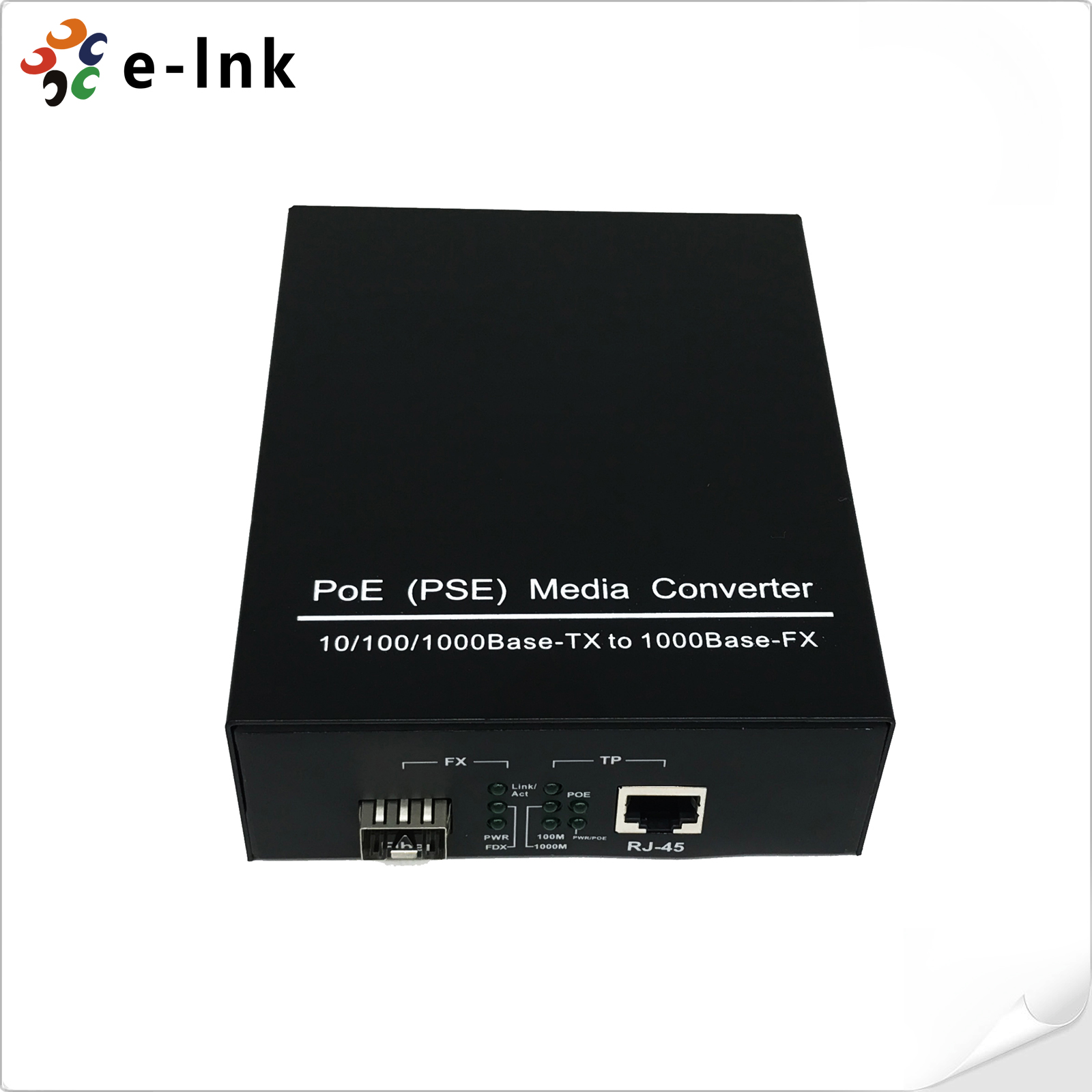

PoE(PSE) 10/100/1000Base-TX to 1000Base-X SFP Media Converter with built-in power supply
Model:LNK-POE1000SFP
►10/100/1000Base-TX UTP to 1000Base-X SFP fiber media conversion
►IEEE802.3at / IEEE802.3af PoE PSE compatible
►Built-in AC/DC power supply
Overview
LNK-POE1000SFP series is a 10/100/1000Base-TX to 1000Base-X SFP (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).
Features
►10/100/1000Base-TX UTP to 1000Base-X SFP fiber media conversion
►IEEE802.3at / IEEE802.3af PoE PSE compatible
►Built-in AC/DC power supply
►Over-current protection
►Supports external 1000Base-X SFP
►DIP switch to set different configurations
►LFP (Link Fault Pass-through) support
►DIN mounted.
Application:
The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
Technical Indexes
|
Data Rates |
10/100/1000Mbps(IEEE802.3U IEEE802.3z 1000Base-Tx) |
|
1000Mbps (1000Base-FX) or 100Mbps (100Base-FX) |
|
|
Input Power Requirements |
|
|
Input voltage |
100 VAC to 240 VAC or 48DC |
|
Input frequency |
47 Hz to 63 Hz |
|
Power over Ethernet Output |
|
|
Pin Assignment and Polarity |
|
|
For IEEE802.3af standard |
1/2 (V+),3/6 (V-) |
|
For IEEE802.3at standard (30watts maximum) |
1/2 (V+),3/6 (V-) |
|
For IEEE802.3at standard (50watts maximum) |
1/2/4/5 (V+),3/6/7/8 (V-) |
|
Output Power |
please refer to ordering information |
|
Efficiency |
75% min |
|
Short circuit protection |
auto recovery |
|
Over current protection |
auto recovery |
|
Environmental Conditions |
|
|
Operating temperature |
-20℃ to70℃ |
|
Cooling |
free air convection |
|
Storage temperature |
-40℃ to +85℃ |
|
Operating Humidity |
90% max, non-condensing |
|
Mechanical Specifications |
|
|
Case Material |
Iron |
|
Case Color |
Black |
|
Net Weight |
560g approx. / unit |
|
Dimensions |
110(W) x 40(H) x 140(L) (mm) |
|
Do not include transceiver length |
|
|
Connectors |
|
|
AC Inlet |
IEC-J-4 |
|
LAN |
Shielded RJ-45 |
|
Fiber |
see ordering information |
- Download FileName：E-link LNK-POE1000SFP Series SFP PoE Media Converter Datasheet V2.0.pdf Size： 198KB
Ordering Information:
|
Part Number |
Supported Standard |
Output Voltage |
Output Current |
Output Power |
Remark |
|
LNK-POE1000S-XX-XXX |
IEEE 802.3af |
48V |
0.35A max |
15.4W max |
default |
|
LNK-POE1000-XX-XXX |
IEEE 802.3af |
48V |
0.54A max |
25W max |
default |
|
LNK-POE1000T-XX-XXX |
IEEE 802.3at |
52V |
0.60A max |
30W max |
default |
|
LNK-POE1000H-XX-XXX |
IEEE 802.3at |
52V |
1.00A max |
50W max |
default |
|
LNK-POE1000B-XX-XXX |
Non-standard |
48V |
0.60A max |
30W max |
optional |
|
LNK-POE1000C-XX-XXX |
Non-standard |
24V |
1.20A max |
30W max |
optional |
*XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us.
|
Suffix |
Description |
Suffix |
Description |
|
SFP-M005 |
LC/SFP, Multi-Mode, 550m , 850nm |
SFP-S20 |
LC/SFP, Single-Mode, 20km , 1310nm |
|
SFP-S10 |
LC/SFP, Single-Mode, 10km , 1310nm |
SFP-S40 |
LC/SFP, Single-Mode, 40km , 1310nm |
