10/100/1000M IEEE802.3af/at POE Injector
Model:LNK-POE300 Series
► Up to 15.4W/30W of PoE Power
► Fully IEEE802.3af/IEEE802.3at compliant
► Supports 10/100/1000M LAN environment
Overview
The LNK-POE300 Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.
Features
► Up to 15.4W/30W of PoE Power
► Fully IEEE802.3af/IEEE802.3at compliant
► Supports 10/100/1000MLAN environment
► Plug & Play
► No configuration required
► Reduced Installation cost
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non–standard Ethernet Terminals

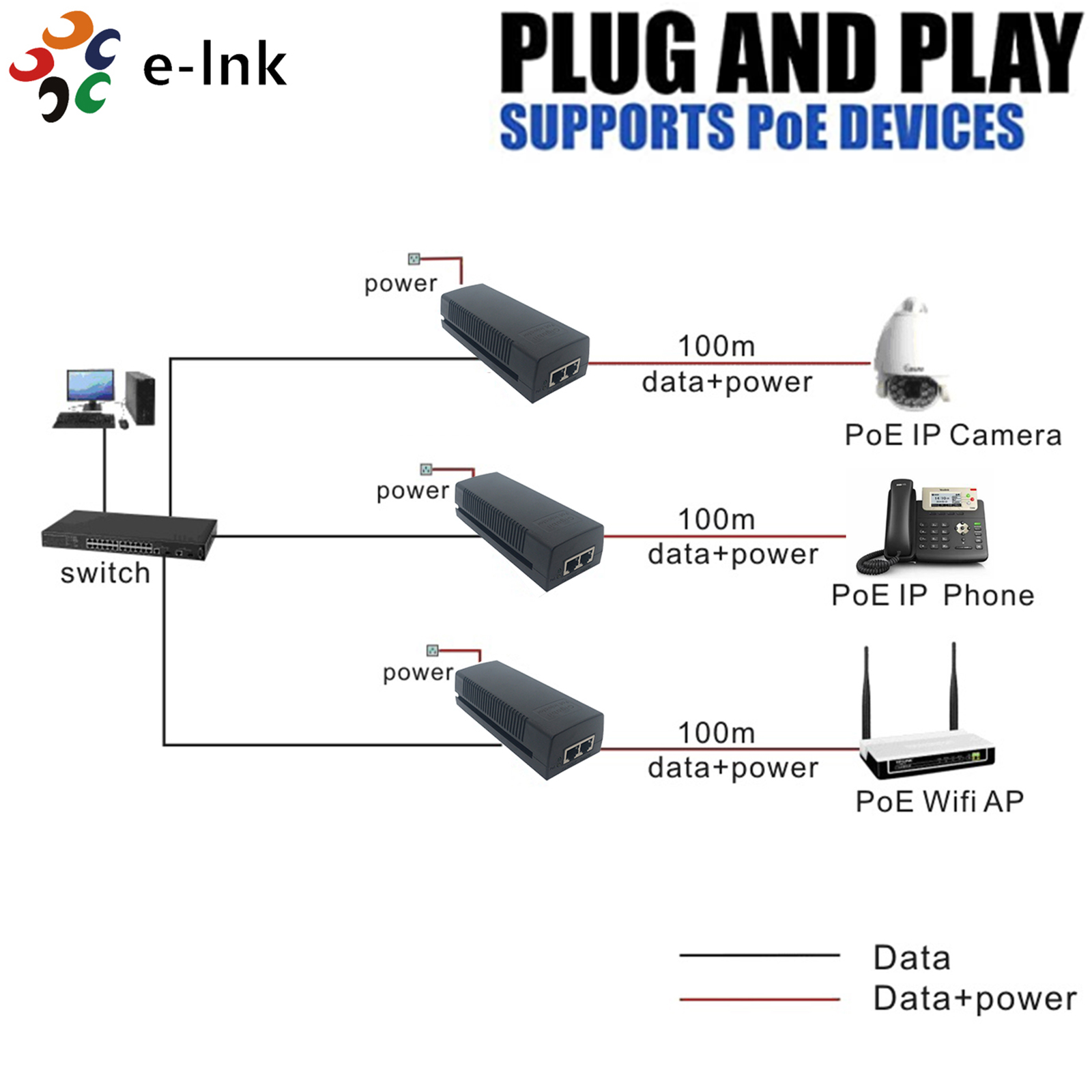

Application
Technical Indexes
|
Parameter |
Specifications |
|
Features |
• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45 |
|
•Data Input Interface RJ-45 10/100/1000Base-TX |
|
|
•Output Port Power Cable Included |
|
|
Data Rate |
10/100/1000Mbps |
|
Input Power |
90-240VAC,50-60Hz |
|
Output Power |
15.4W Max IEEE802.3af 30W Max IEEE802.3at |
|
Wiring |
• Data provide over pairs1/2(+) and 3/6(-) |
|
• Power over spare pairs4/5(+) and 7/8(-) |
|
|
LED Display |
YES |
|
Operating Temperature |
0 to +40°C, |
|
Humidity |
Max. 95% RH(non-condensing) |
|

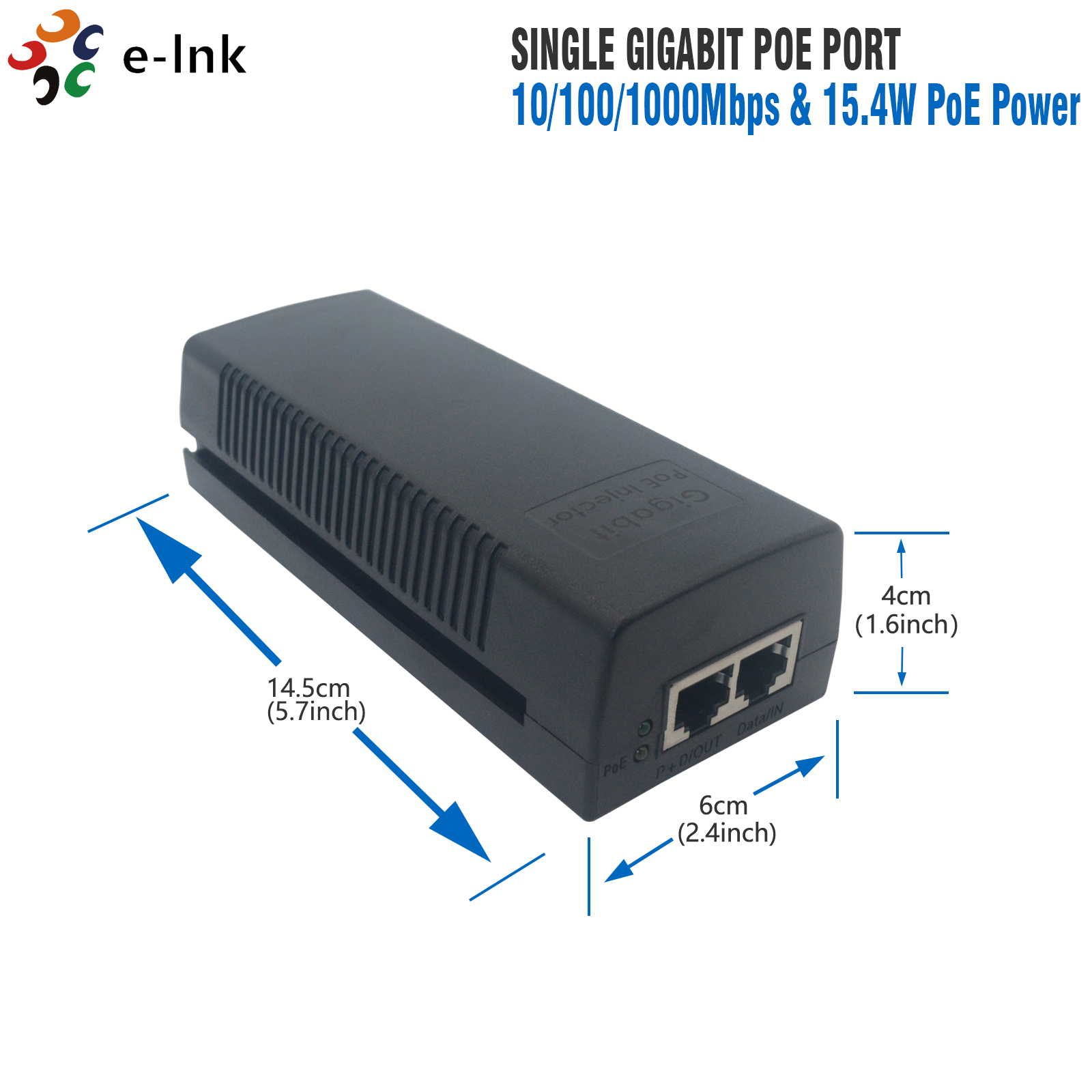

Dimension |
61×40×12(H×D×W) |
|
Weight |
200g |
- Download FileName：E-link LNK-POE300 Series PoE Injector Datasheet V1.0.pdf Size： 247KB
Ordering Information
|
Model |
Decription |
|
LNK-POE300 |
PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W |
|
LNK-POE300AT |
PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W |
