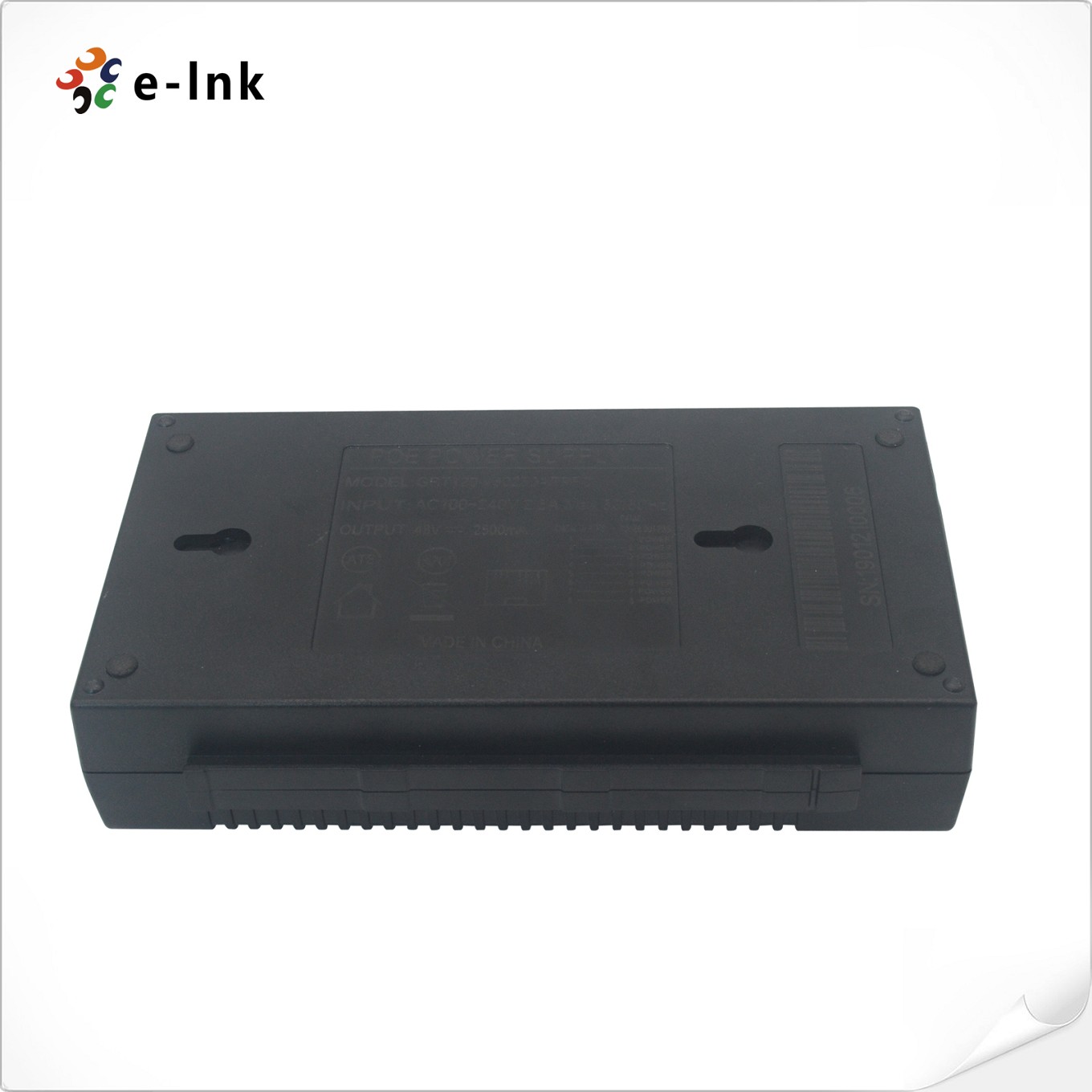

Single-Port 10/100/1000Mbps 120W 802.3bt Ultra PoE Injector

Model:LNK-PSE1201G


►Up to 120W of PoE Power over 4-pairs

►PoH (802.3bt), IEEE802.3at and 802.3af compliant

►Supports 10/100/1000M LAN environment


Overview

LNK-PSE1201G is a single port, wide-temperature, high power PoE Injector, output 48VDC, 120W for remote PDs over full 4 paris, transmission rate 10/100/1000Mbps. LNK-PSE1201G provides power for IEEE802.3af/at/bt, PoH standard terminal devices, such as high power stations, outdoor wireless AP, outdoor IP cameras. LNK-PSE1201G is designed for working temperature during -10 to 40℃, with the input voltage 100-240VAC. A detection chip inside, it will do detection PDs before power. The better work distance is 100m, it special suitable for complex power situations.

Features

►Up to 120W of PoE Power over 4-pairs

►PoH (802.3bt), IEEE802.3at and 802.3af compliant

►Supports 10/100/1000M LAN environment

►Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)

►Plug & Play installation

►Data and power passed by the Ethernet cable

►Full protection: overload/overcurrent/over-voltage/short circuit

►Applications: IP phone, VoIP phone, wireless networks access points, IP print servers, Bluetooth access points, security cameras, the smart door system

►100% full burn-in testing, strictly inspect and control during production

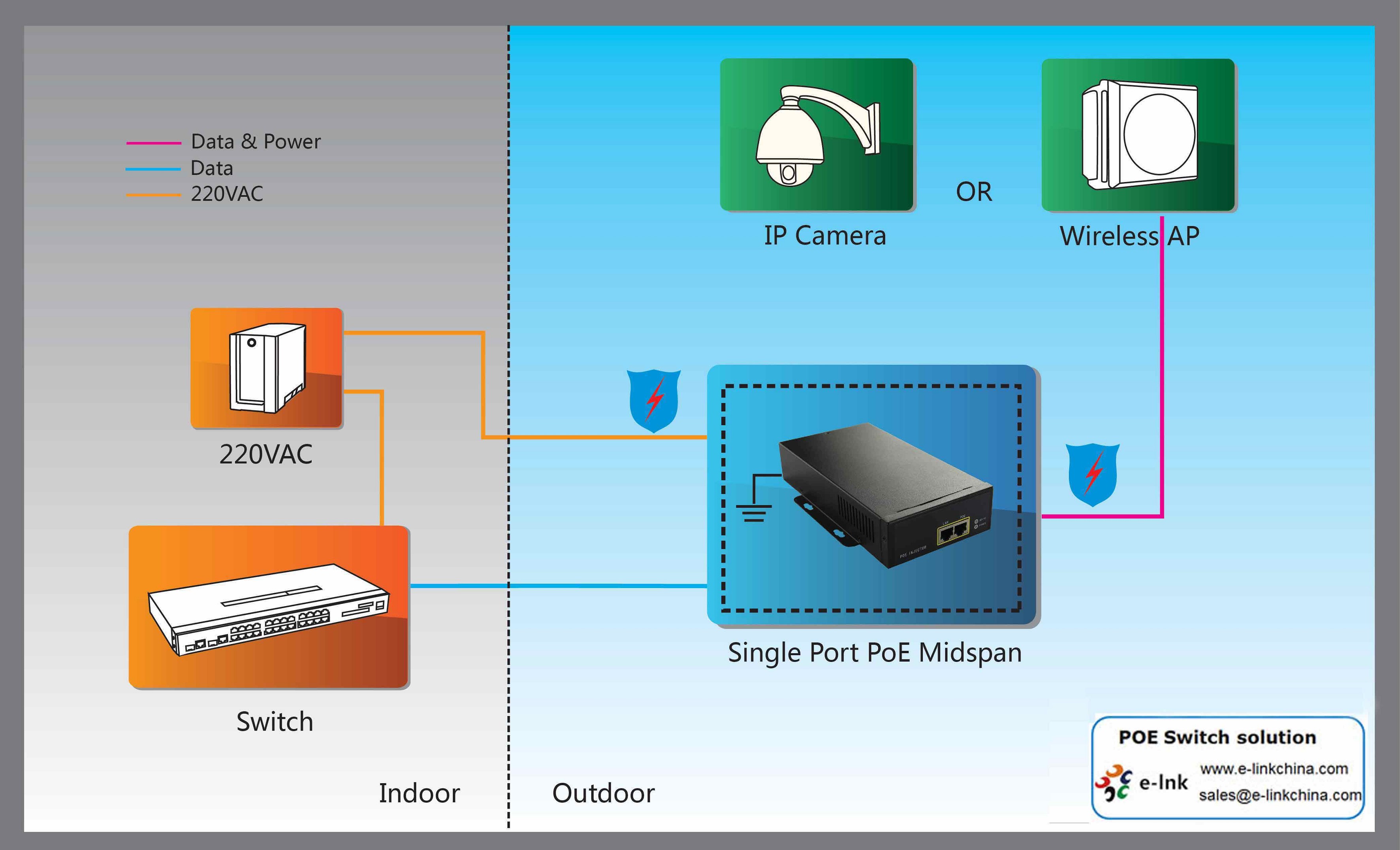

Application

Technical Parameters

Product Name

120W Single Port PoE Injector

Product Model

LNK-PSE1201G

Standard Compliance

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3bt 4-pair Power over Ethernet Type 3

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Regulatory Compliance

RoHS Compliant

WEEE Compliant,CE/FCC

FCC Part 15,Class B

EN 55022 Class B



PoE Output

PoE Pin: 4/5(+),7/8(-) and 3/6(+),1/2(-), 4pairs

Transmission Rate: 10/100/1000Mbps

Output Power:48VDC

Output Current:2.5A

Input Voltage: 100-240VAC

Input Current:0.6A@100-240VAC

Frequency: 50-60Hz

PoE Surge Protection

Common-mode Surge Protection(10/700us): 6KV

Clamp Voltage(1, 2; 3, 6; 4, 5; 7, 8): 7.5VDC

AC Surge Protection

Differential-mode(L-N): 6KV 2ohm

Common-mode(L-PE, N-PE): 6KV 12ohm(1.2/50us)

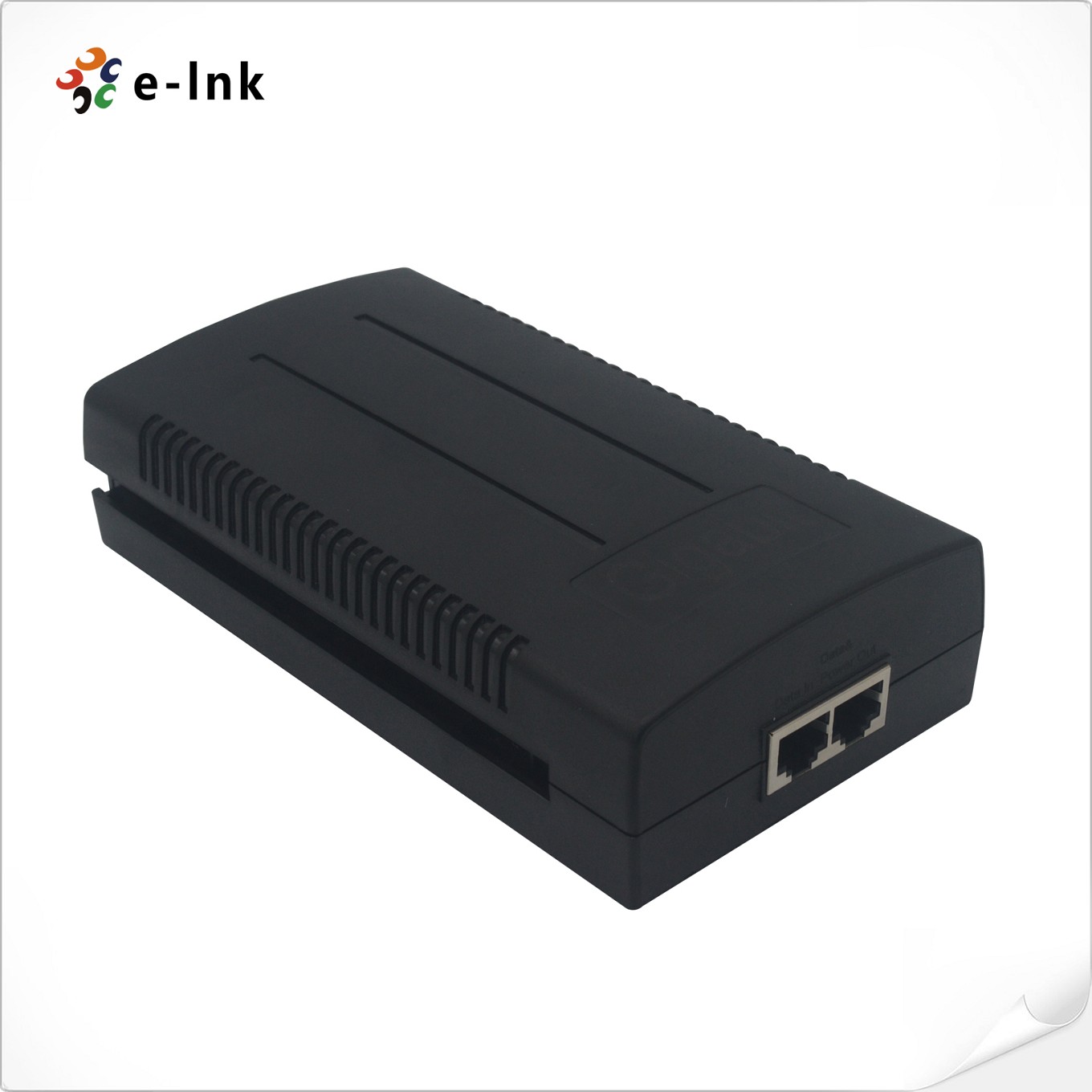

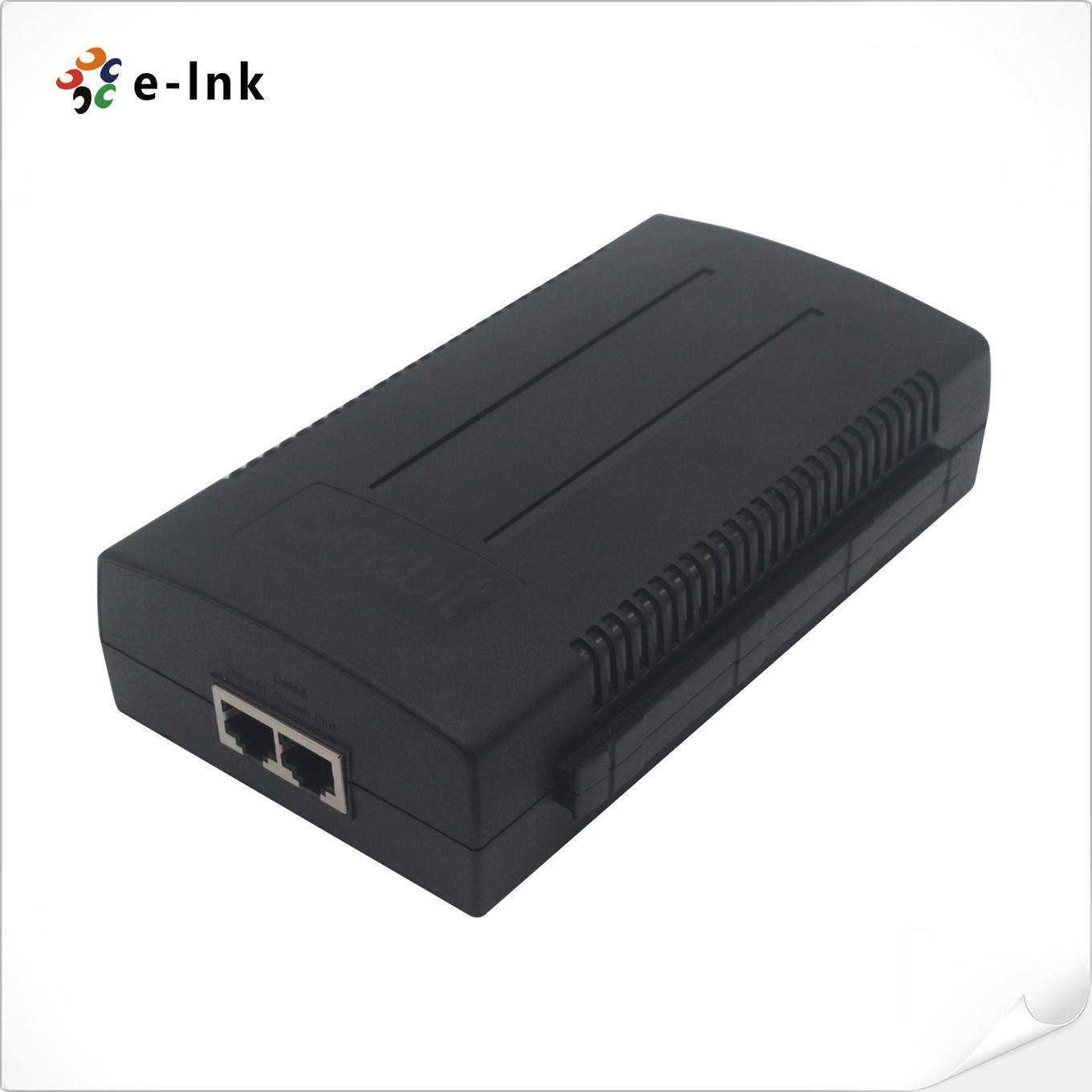

Physical Interface

LAN: RJ45

POE: RJ45

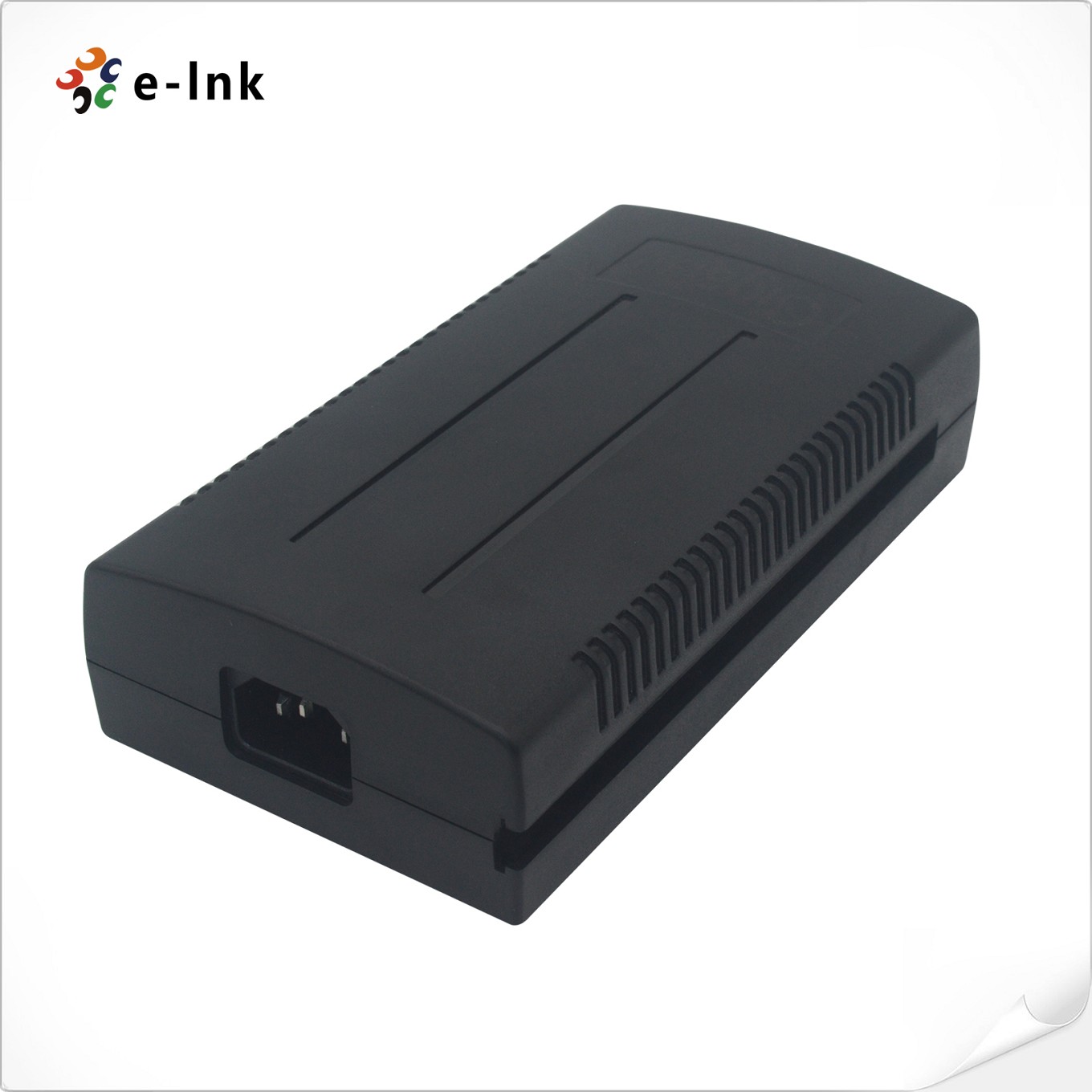

AC port: three-pin AC power

Materials

Plastic (ABS+PC)

Output ripple

1% max

Efficiency

84% min

Response time

<1ns

Size & Weight

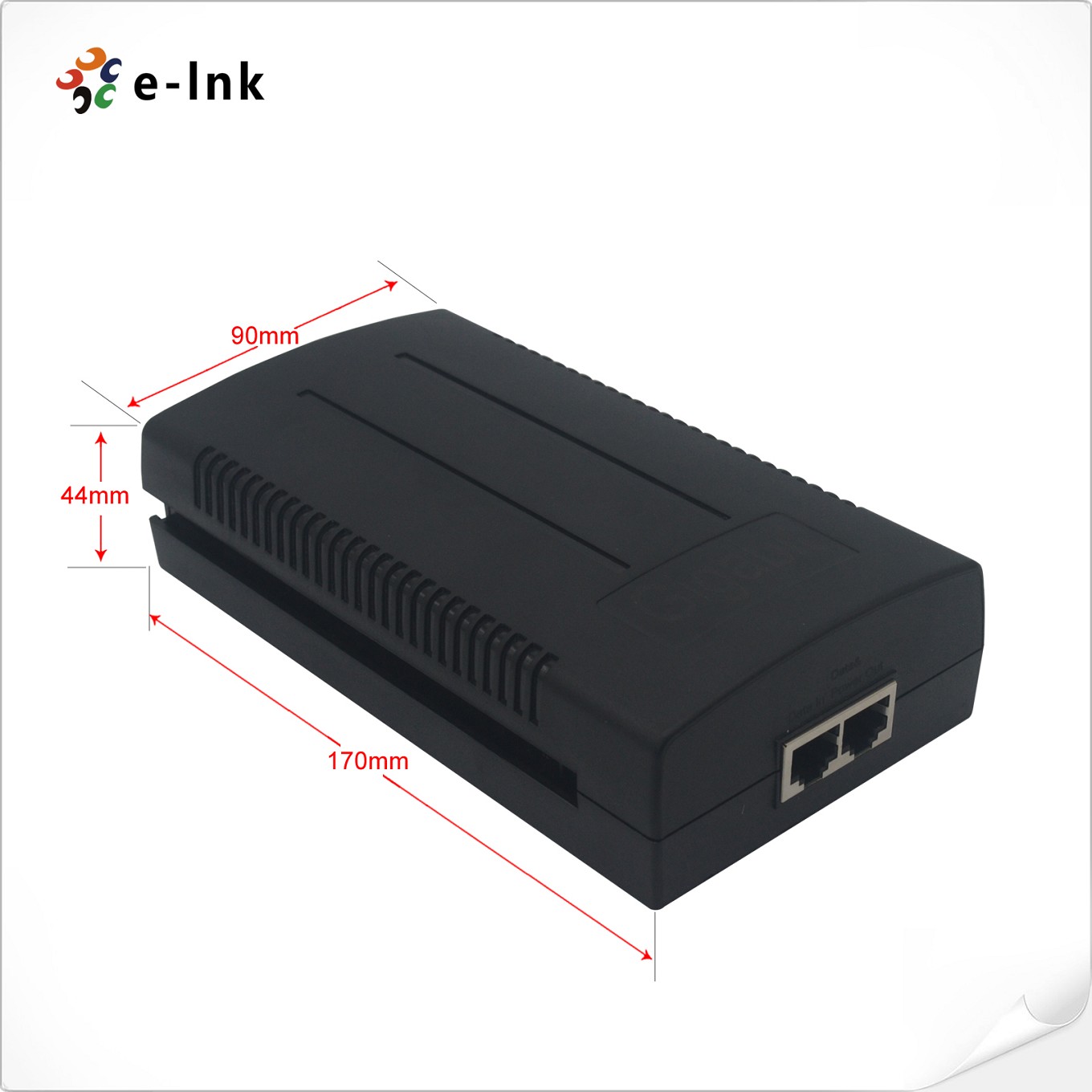

Size:171mm X97.5mm X 45mm (LxWxH)

Weight:535g

LED Indicator

POWER LED: GREEN

ACTIVE LOAD LED, GREEN

Working Environment

Working Temperature: -10 to+40℃

Operation Height: -304.8m to 3048m

Working Humidity : MAX 90%, non-condensation

  • Download FileName:E-link 120W 802.3BT Gigabit PoE Injector Datasheet V1.0.pdf Size: 742KB

Ordering Information

Model

Description

LNK-PSE1201G

10/100/1000M120W Single PortIEEE802.3BTPoE Injector
