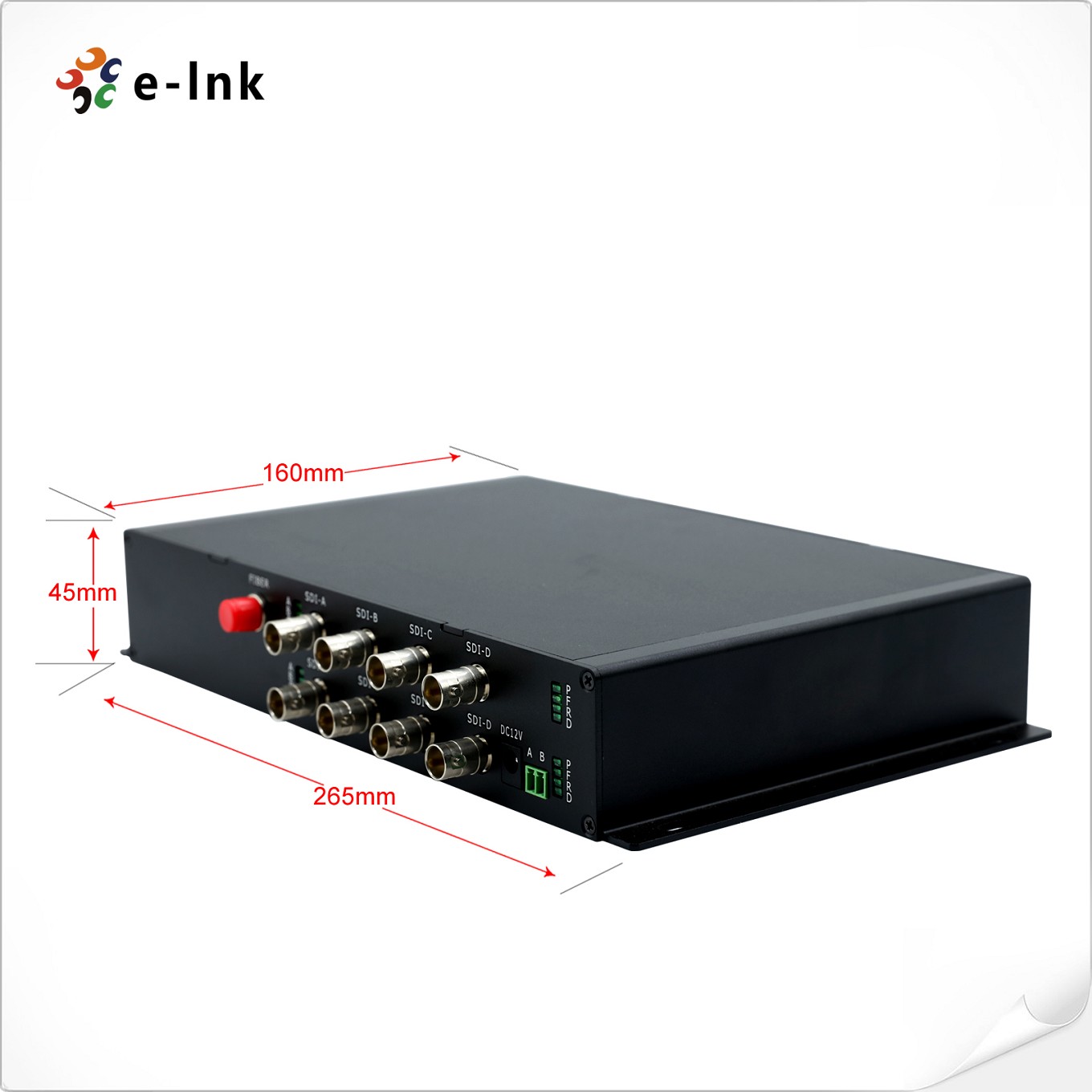

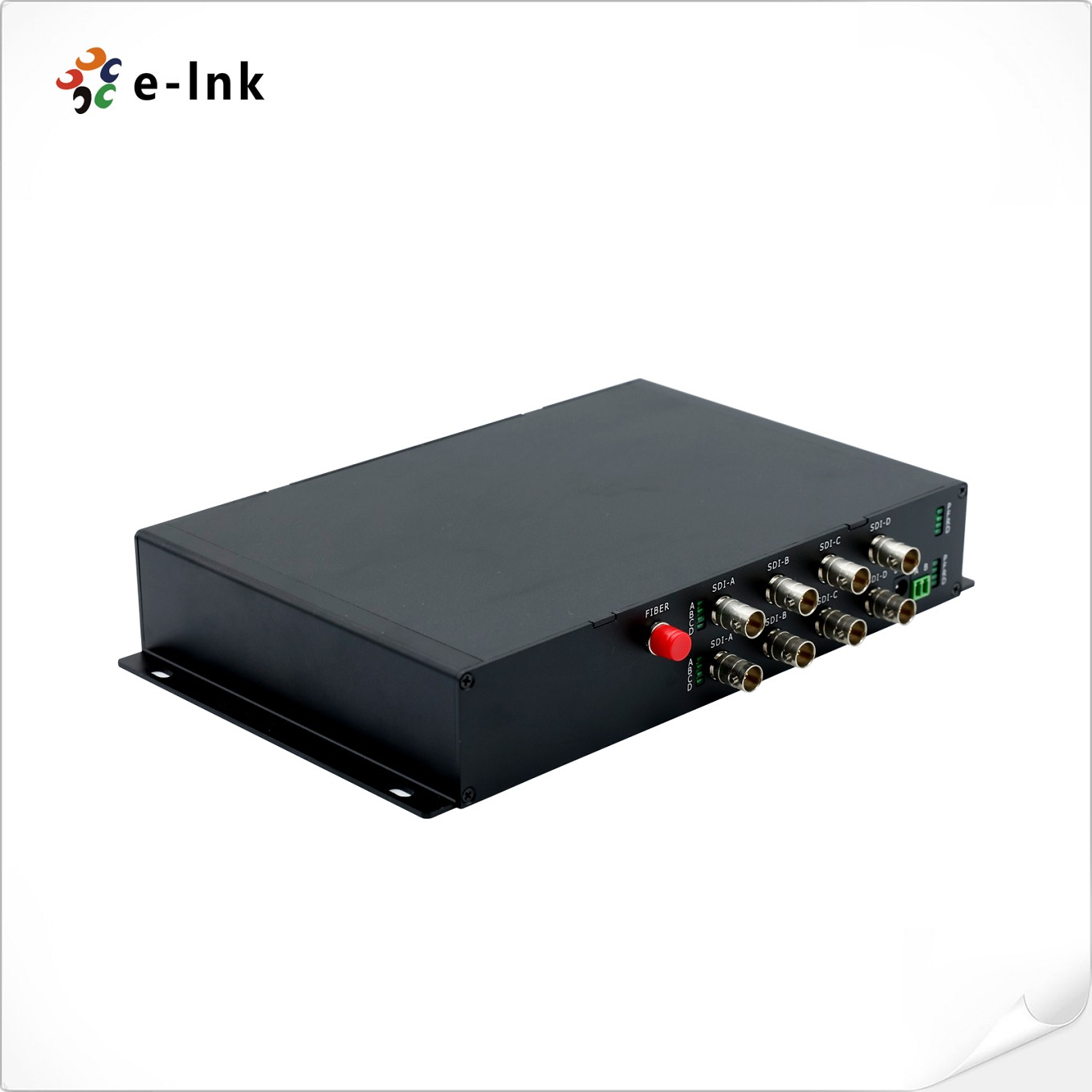

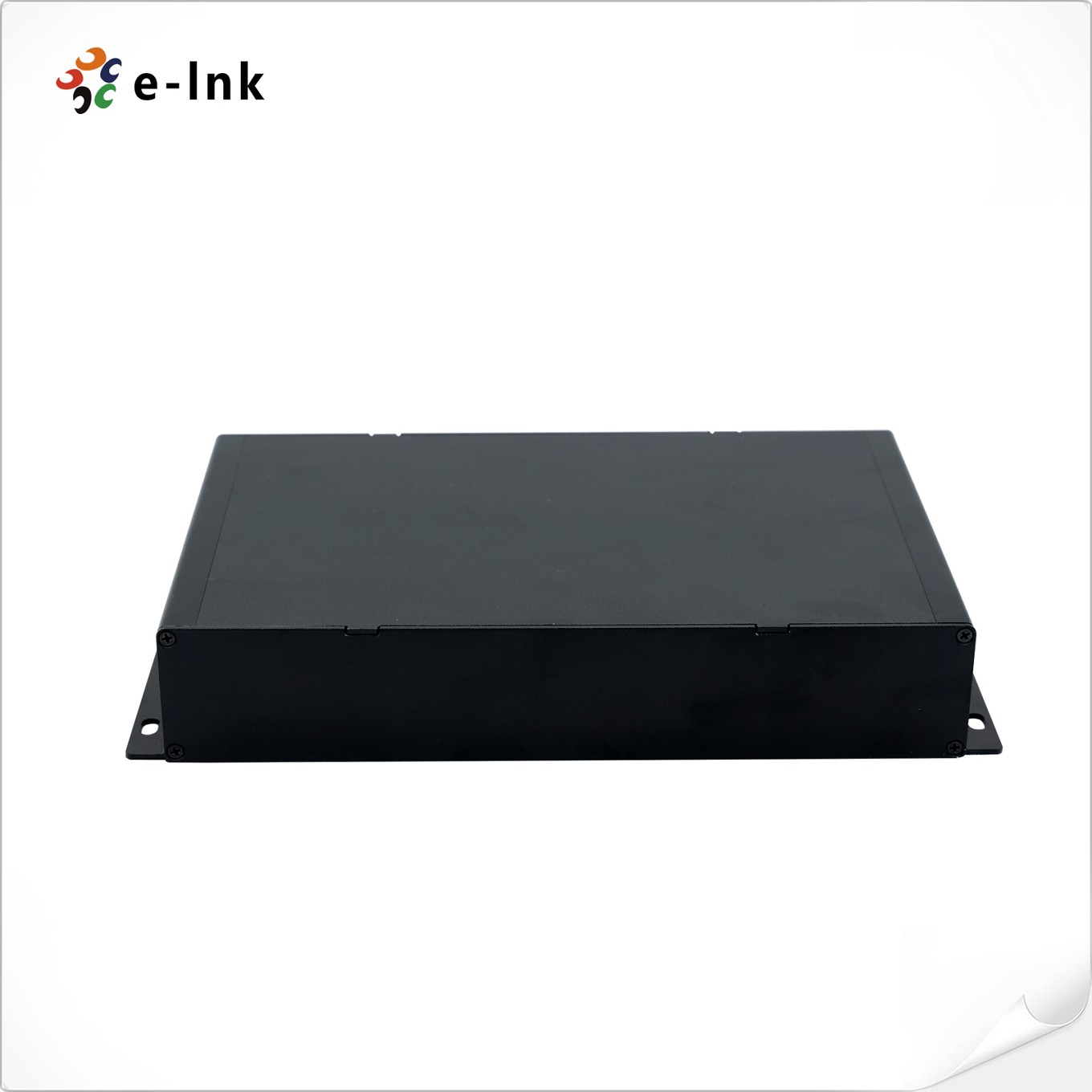

8-Channel HD-SDI Fiber Converter
Model:LNK-SDI-8V Series
►8 channel HD-SDI video transmission over optic fiber
►Automatic reclocking 270Mbit/s - 1.48Gbit/s
►Directly compatible with HD-SDI camera systems and support Reverse RS-485 data protocols
Overview

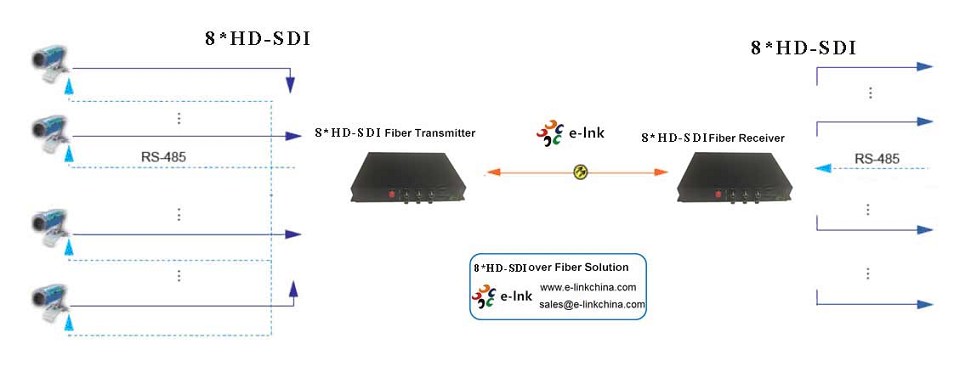

LNK-SDI-8V Series supports 8-channel HD-SDI standard high-definition video signal transmitted via single fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal. E-link HD-SDI Fiber Converters can simultaneously transmit 8-Ch HD-SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level, supports Reverse RS-485 data communication format.
Features
►8 channel HD-SDI video transmission over optic fiber
►Automatic cable equalization to ensure signal integrity
►Automatic reclocking 270Mbit/s - 1.48Gbit/s
►Directly compatible with HD-SDI camera systems and support Reverse RS-485 data protocols
►Long transmission capability at least 10 km (6.2miles) , up to 80 km
►Terminal block power input for industrial application
►Supports hot swapping and hot plugging
►Full digital non-compression broadcast level transmission;
►super optic dynamic range and free of adjustment prior to use;
►surface coating technique;
►fiber optic WDM/CWDM/DWDM technique;
►1000M optical fiber transmission, easy for update;
►industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;
Application
►Intelligent HP monitoring & HD multiple-media system
►Community safety & security HD multi-media system and campus network
►Industrial monitoring (power, chemical industry, steel, oil and railway etc.)
►Military monitoring (warehouse, border of defense and security guarding etc.)
►HD multi-media system for transmission of TV programs
►Stadium (HD audio & video synchronized transmission for live telecast),
Technical Indexes
|
Serial TV, BNC Input |
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom |
|
|
270Mbit/s - 1.48Gbit/s |
|
|
|
Input number:8 |
|
|
|
Reflection loss: >15DB |
|
|
|
Equilibrium: 0-150m @1.485Gb/s |
|
|
|
Connector: FC/PC（SC/PC optional） |
|
|
|
Optics |
Channel: 1 |
|
|
Type: single-mode (multimode optional) |
|
|
|
Wavelength: 1310nm /1550nm |
|
|
|
Transmission distance (550m-120Km |
|
|
|
Reflection loss: > 15dB |
|
|
|
Dithering: < 0.2UI |
|
|
|
Connector: FC/PC (SC/PC optional) |
|
|
|
Serial TV, BNC output (EO/OE) |
Output number:8 |
|
|
Signal level: 800mV nominal |
|
|
|
Rise/fall time: 200ps indication |
|
|
|
Overshoot: < 10% amplitude |
|
|
|
Reflection loss: >15dB |
|
|
|
Dithering: < 0.2UI |
|
|
|
Connector: 75Ω BNC |
|
|
|
Data |
Channel: 1 |
|
|
Data format:ReverseRS-485 (full/half duplex) and support NRZ, RZI and Manchester |
|
|
|
Data rate: DC to 100 Kb/s |
|
|
|
Mode: Full/half duplex |
|
|
|
Connector: wire connecting terminal |
|
|
|
Power and environmental indication |
Operating temperature: -40℃～＋85℃ |
|
|
Pressure: 1A@12VDC |
|
|
|
Power: 12 W |
|
|
|
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard |
|
|
|
Average time trouble-free: >100000 hours |
|
|
|
SDI video format supports |
625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; |
|
- Download FileName：E-link LNK-SDI-8V 8-Channel HD-SDI Fiber Converter Datasheet V1.0.pdf Size： 315KB
Ordering Information
|
LNK-SDI-8V |
8-Ch SDI Video, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-SDI-8V1R |
8-Ch SDI Video + 1-Ch RS485 Reverse Data, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
