Overview

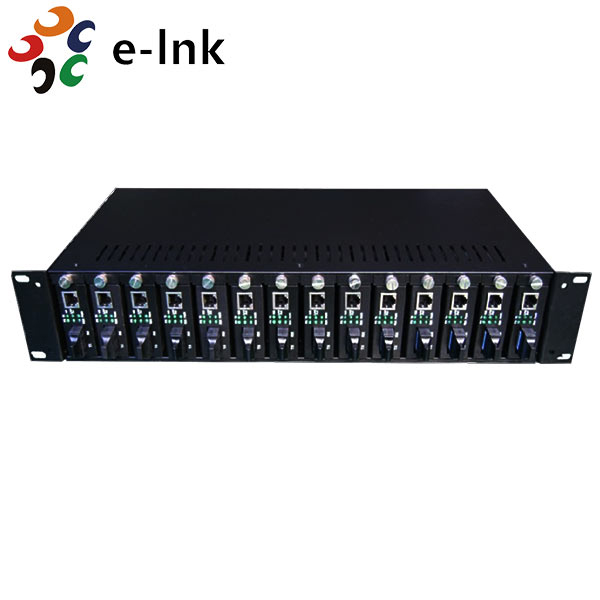

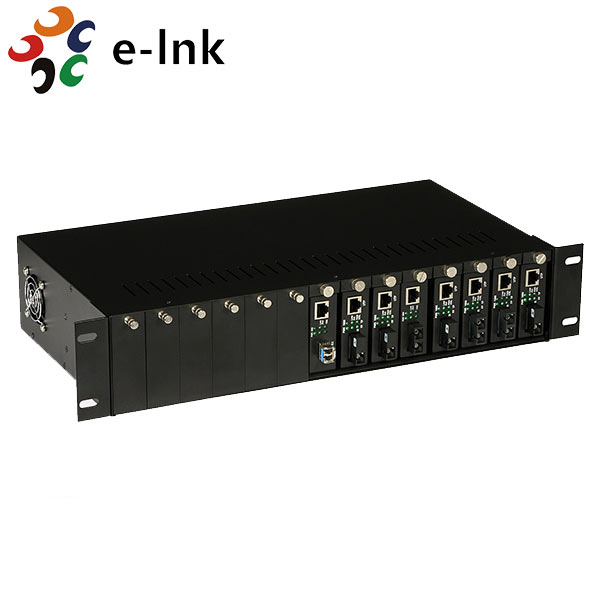

LNK-R14 is a kind of cost-effective media converter rack (2U) widely used in the equipment room. Different types of module type media converter developed by our company can be inserted into this rack, which total slots up to 14. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.

Features

►   The configuration of active/standby power supply ensures uninterruptible operation of the system

►   Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments

►   Support simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability

►   Support hot swapping

►   Application module types: LNK-1100 (10/100M Standalone Media Converter)series and LNK-3011 (10/100/1000M Standalone Media Converter) series

Technical Indexes

Parameter	Specifications
Number of slots	14
Structure	2U rack
Dimension	90mm（H）x 485mm（W）x 230mm（D）
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
	DC voltage: DC -36~72V
Power output	DC5V 16A
Ripple	≤20 mv
Power configuration	Single power supply, or dual power supply for warm backup mode
LED indication	POWER (power supply)
Max power consumption	95W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

• Download FileName：E-link LNK-R14 Series Media Converter Chassis Datasheet V1.0.pdf Size： 182KB
• Download FileName：14-Slot Media Converter Chassis User Manual V1.0.pdf Size： 74KB

Order Information

Item	Description
LNK-R14-1-A	14-slot, single power supply-AC220V-19''2U- black-for converter standalone
LNK-R14-2-A	14-slot, dual power supply-AC220V-19''2U- black-for converter standalone
LNK-R14-1-D	14-slot, single power supply-DC-48V-19''2U- black-for converter standalone
LNK-R14-2-D	14-slot, dual power supply-DC-48V-19''2U- black-for converter standalone
