Overview

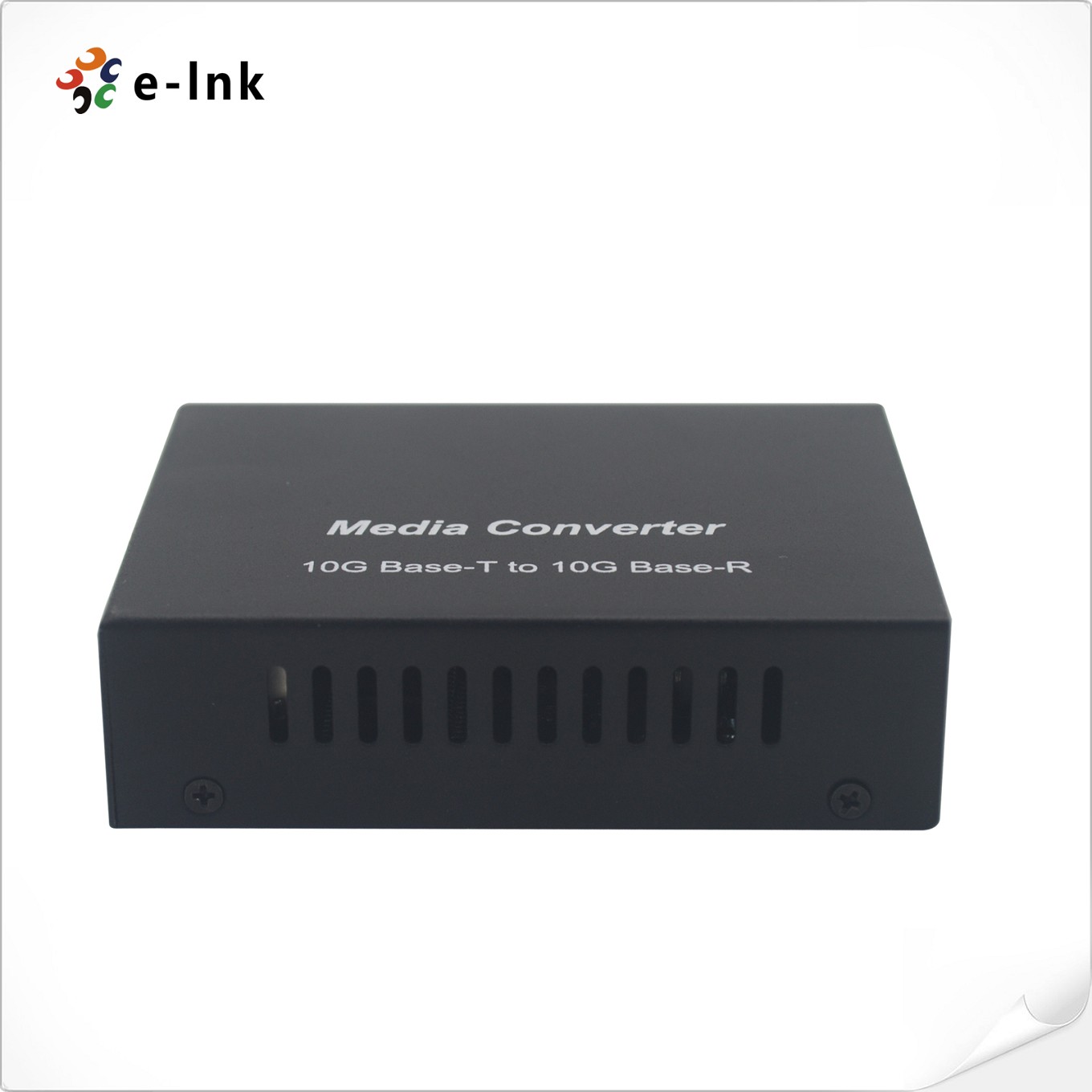

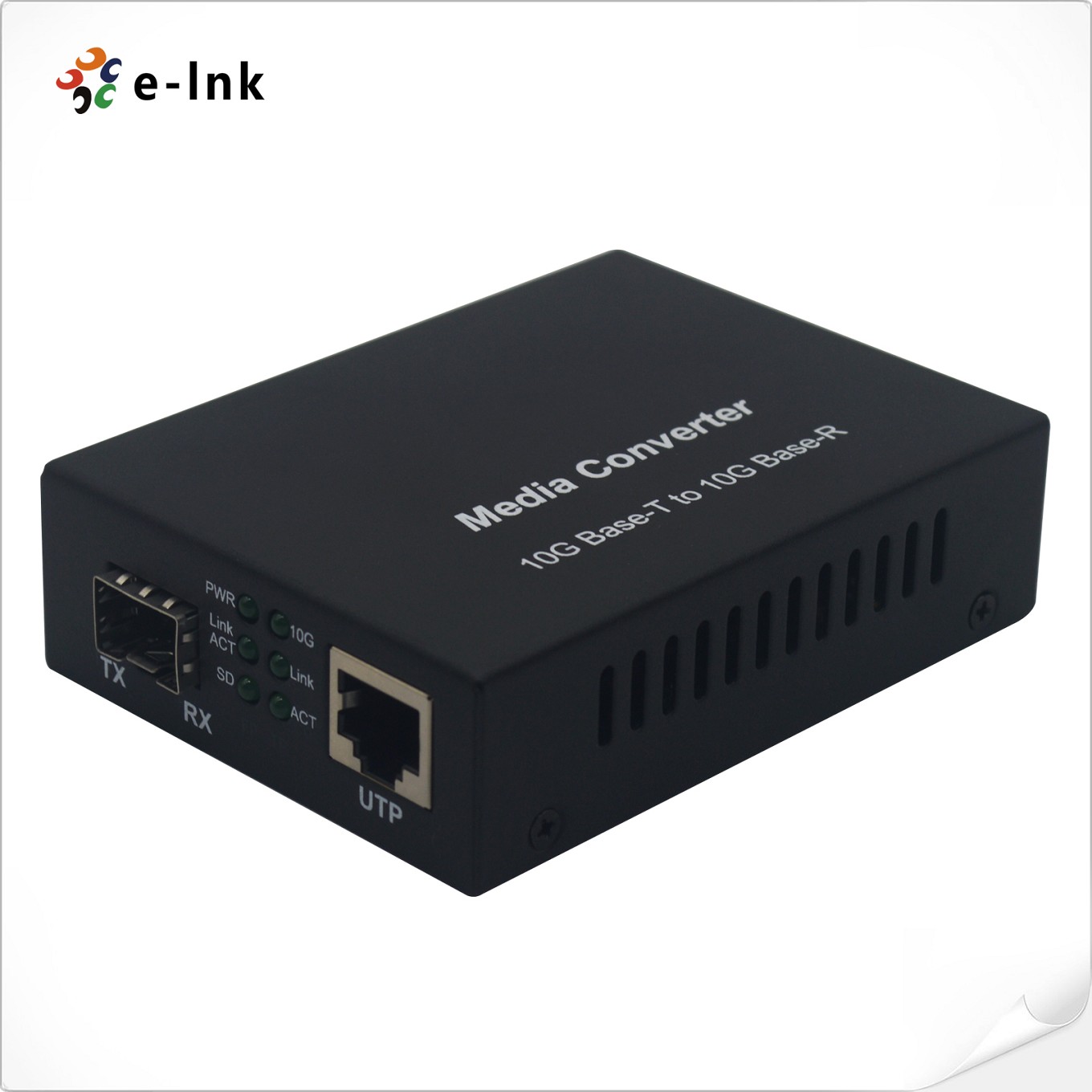

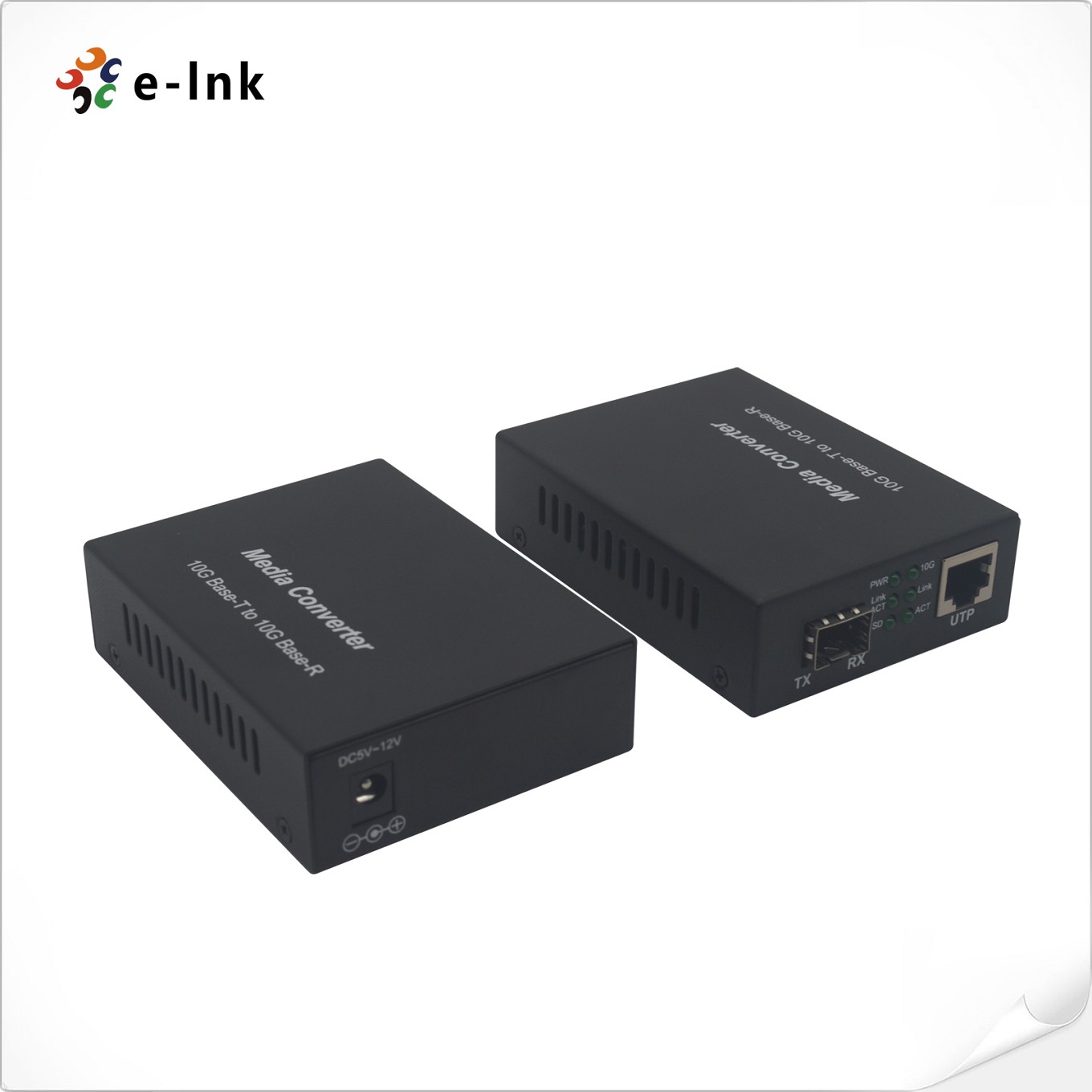

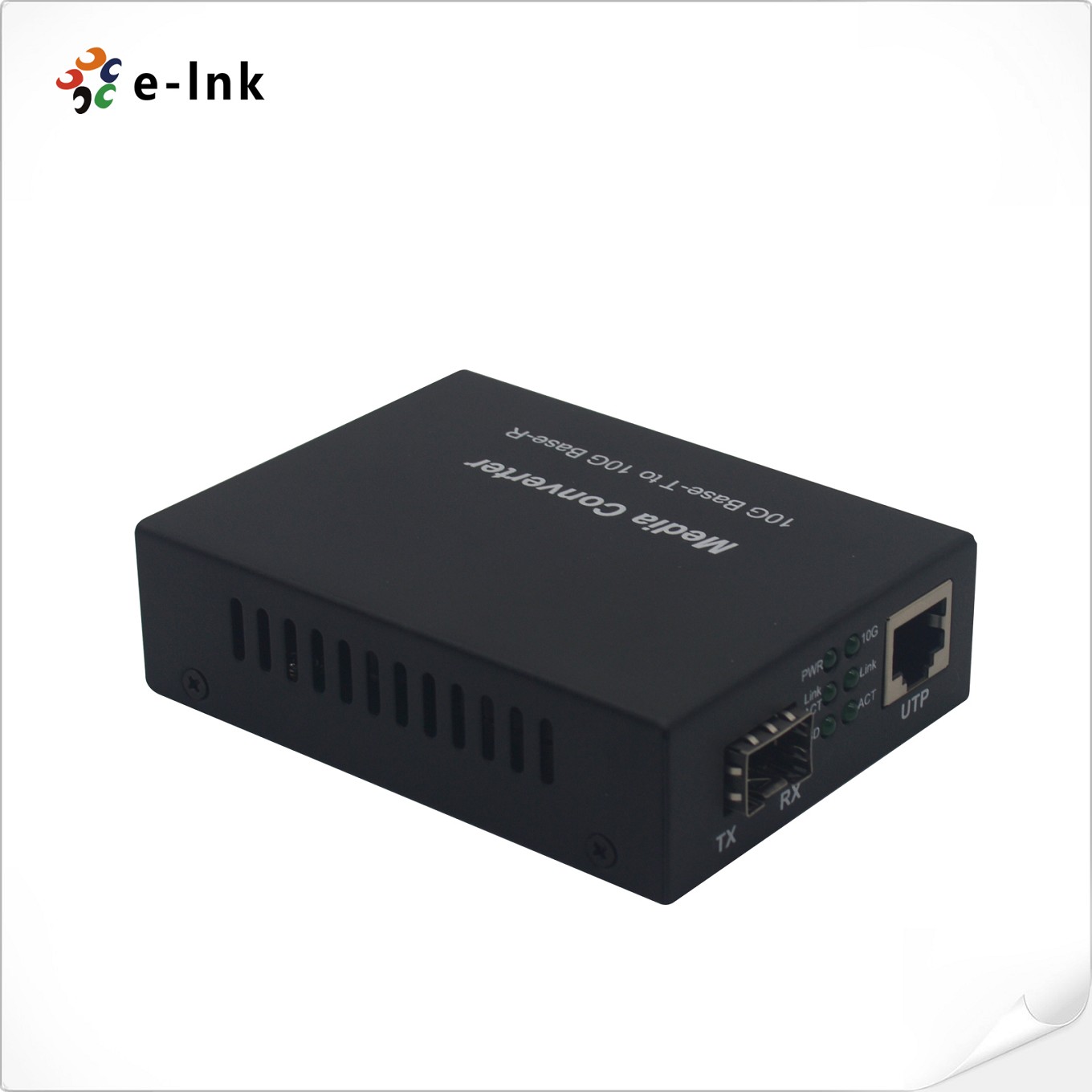

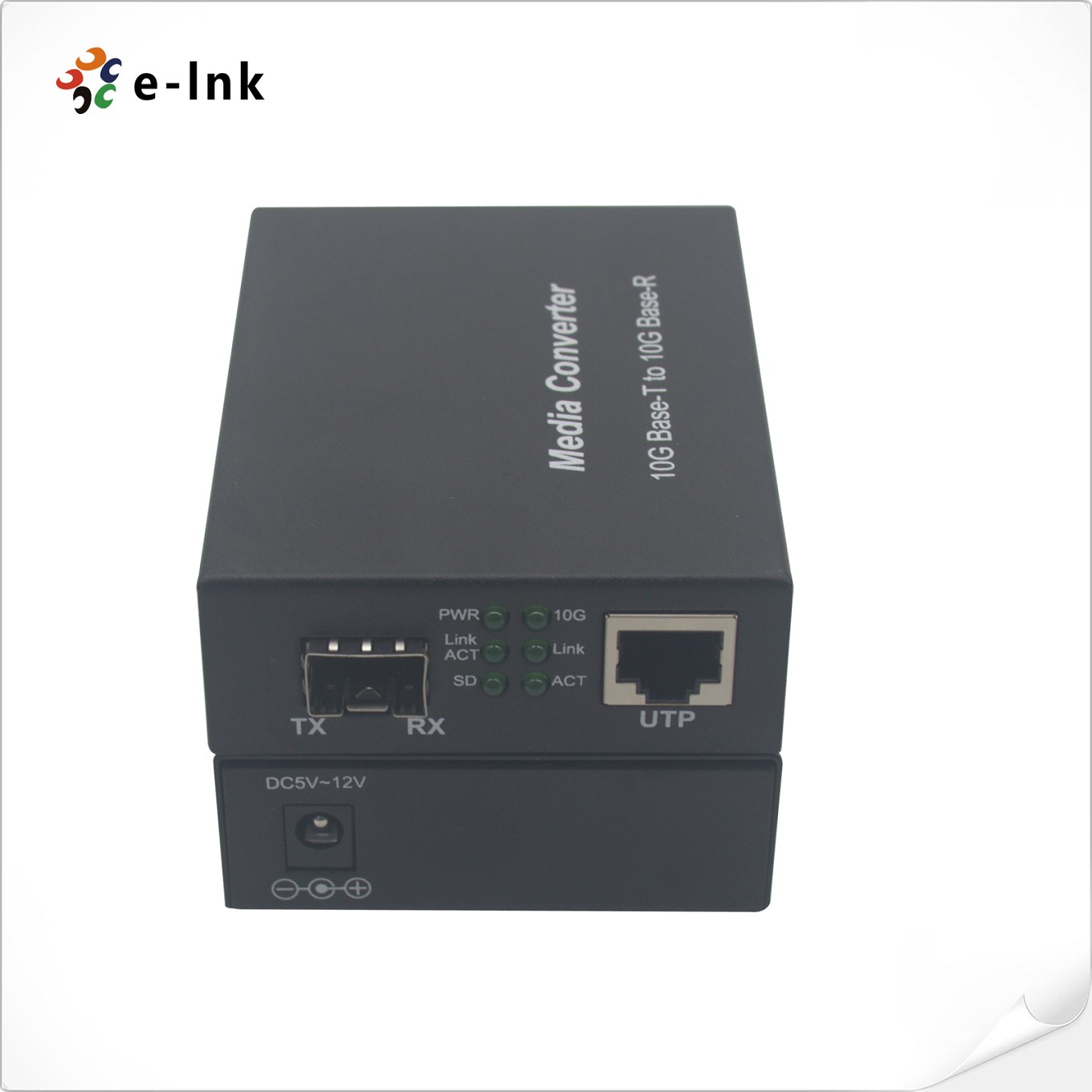

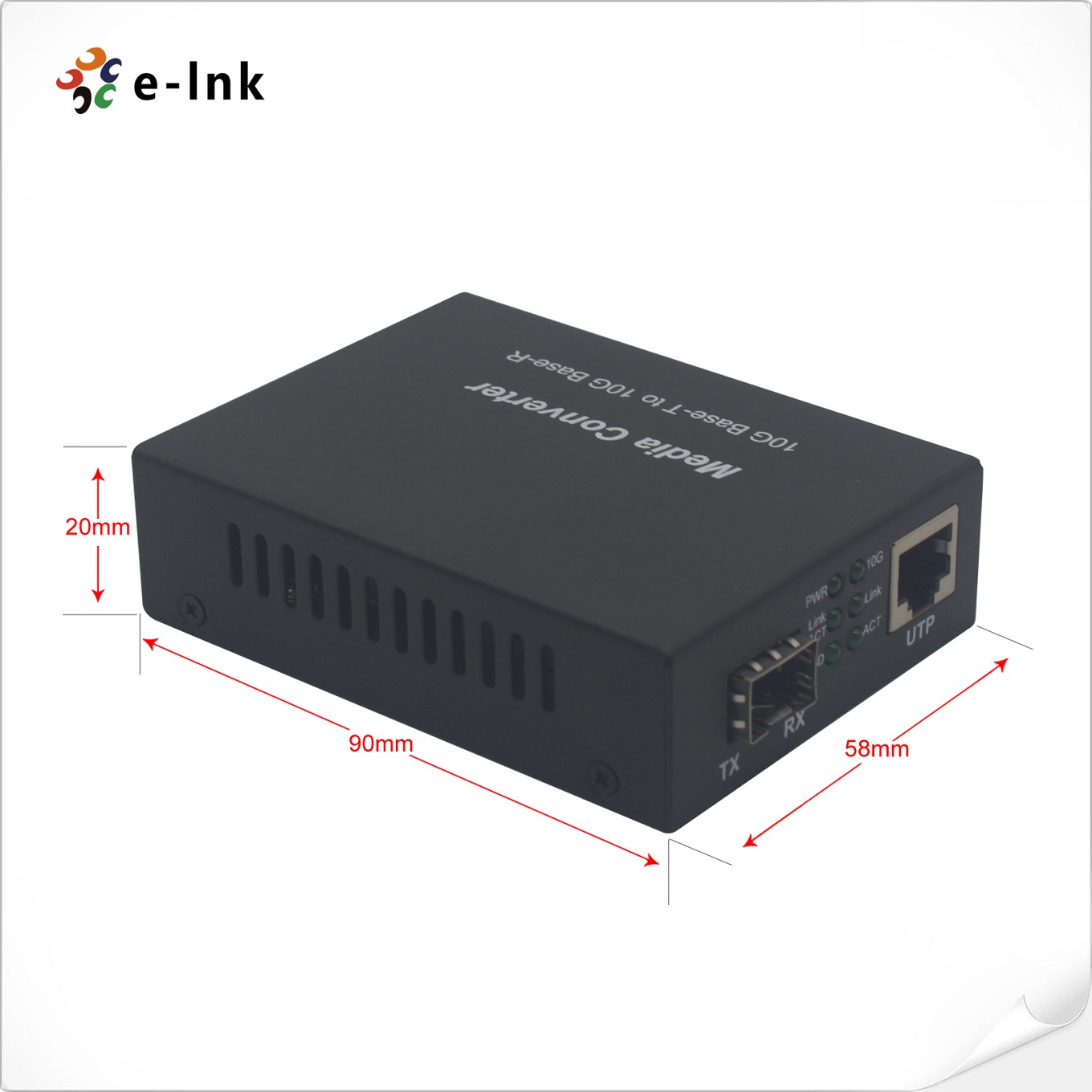

E-link 10G Base-T to 10G Base-R Media Converter supports two types media for network connection such as 10GBase-T and 10GBase-FX. The bridge media converter is designed with a 10G base Ethernet PHY chip that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the19" converter rack Chassisfor use at a central wiring closet.

Features

►Support Jumbo Frame
►Transparent Transport and very low delay
►Support hot plugging
►Full State Led display
►Easy installation
►Provide reliable long-distance connection
►Fast connection with multi-function
►Small portable size case
►Plug and play

Application

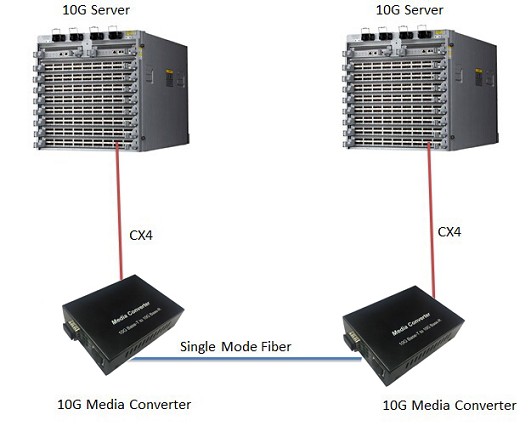

►Connection between fiber to copper 10Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km

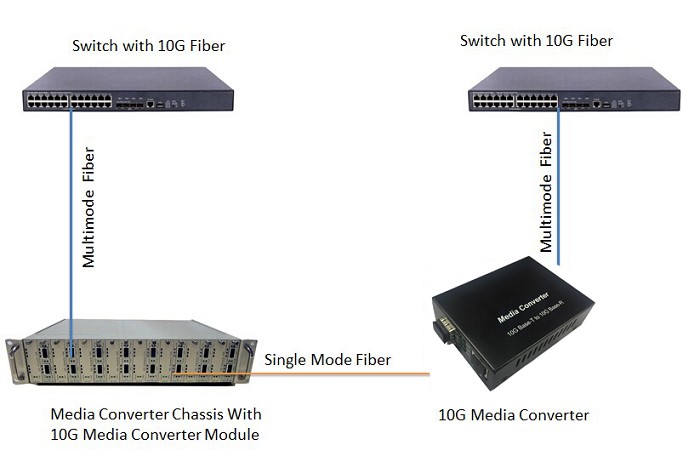

►Extend the network distance between two 10 Gigabit Fiber Switches across a fiber link up to 80km in length

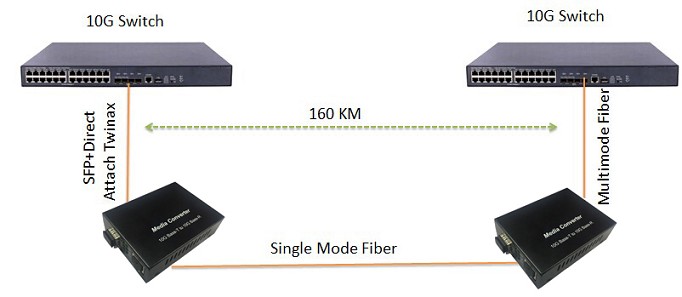

►Convert your 10G SFP+ Direct Attach to multimode or single mode fiber.

Technical Indexes

Standards	1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T 1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R
Media Supported	1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10G Base-T: Cat6a UTP/STP. MAX 50m;
Port Type	RJ45, SFP Slot
Work Mode	1000Base-T to 1000Base-X 2.5GBase-T to 2500Base-X 5Gbase-T   to 5GBase-R 10Gbase-T  to 10GBase-R
Power Supply	12V DC
Power consumption	MAX 5W
Operation Temperature	0℃to 55℃
Relative Humidity	5% to 80% (non-condensation)

• Download FileName：E-link LNK-MC10G-SFP 10G Media Converter Datasheet V1.0.pdf Size： 397KB
• Download FileName：E-link 10G Base-T to 10G Base-R Media Converter User Muanal V1.0.pdf Size： 419KB

Ordering Information

Model	Description
LNK-MC10G-SFP+	10G Base-T to 10G Base-R Media Converter, SFP+ Ports, not including SFP+ Modules
