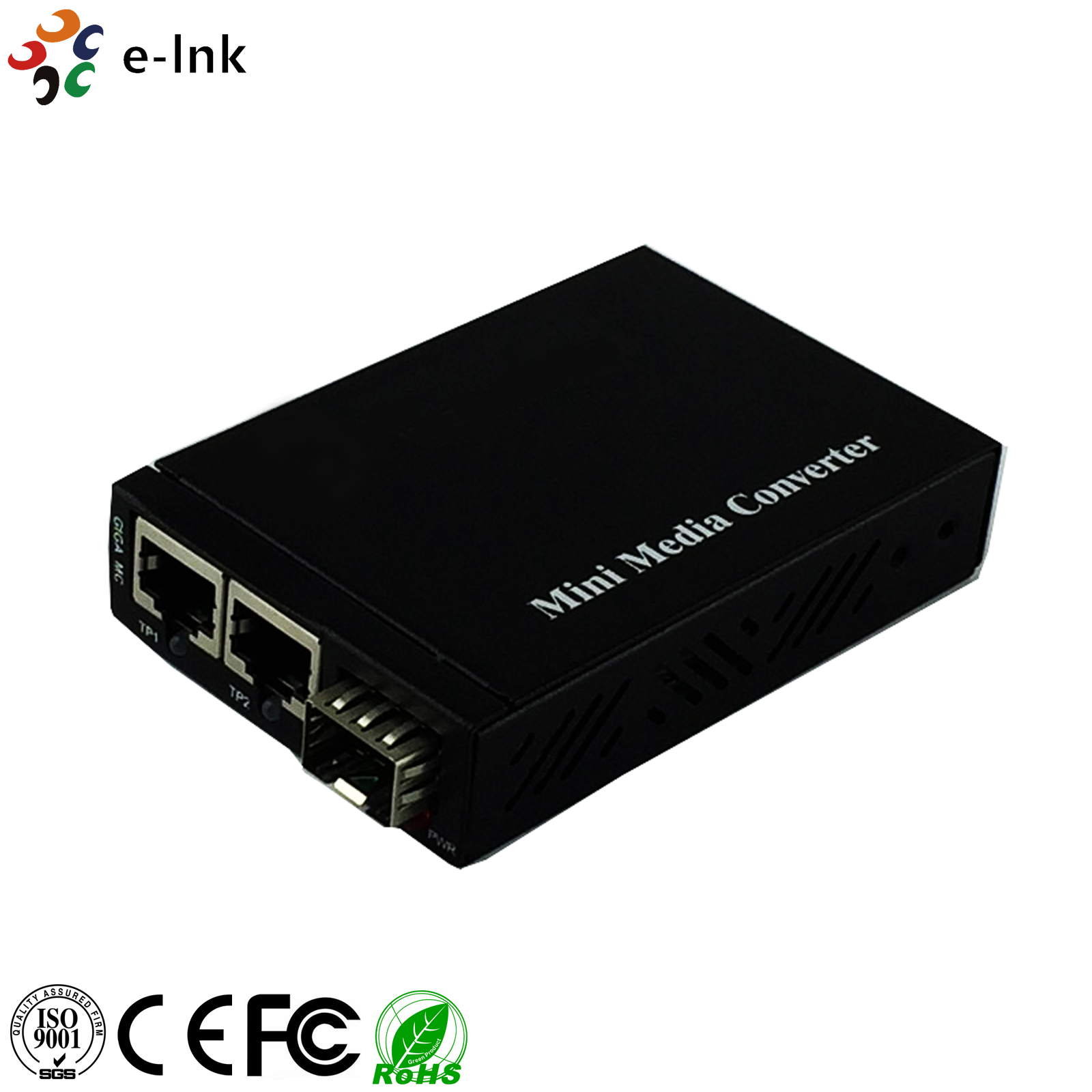

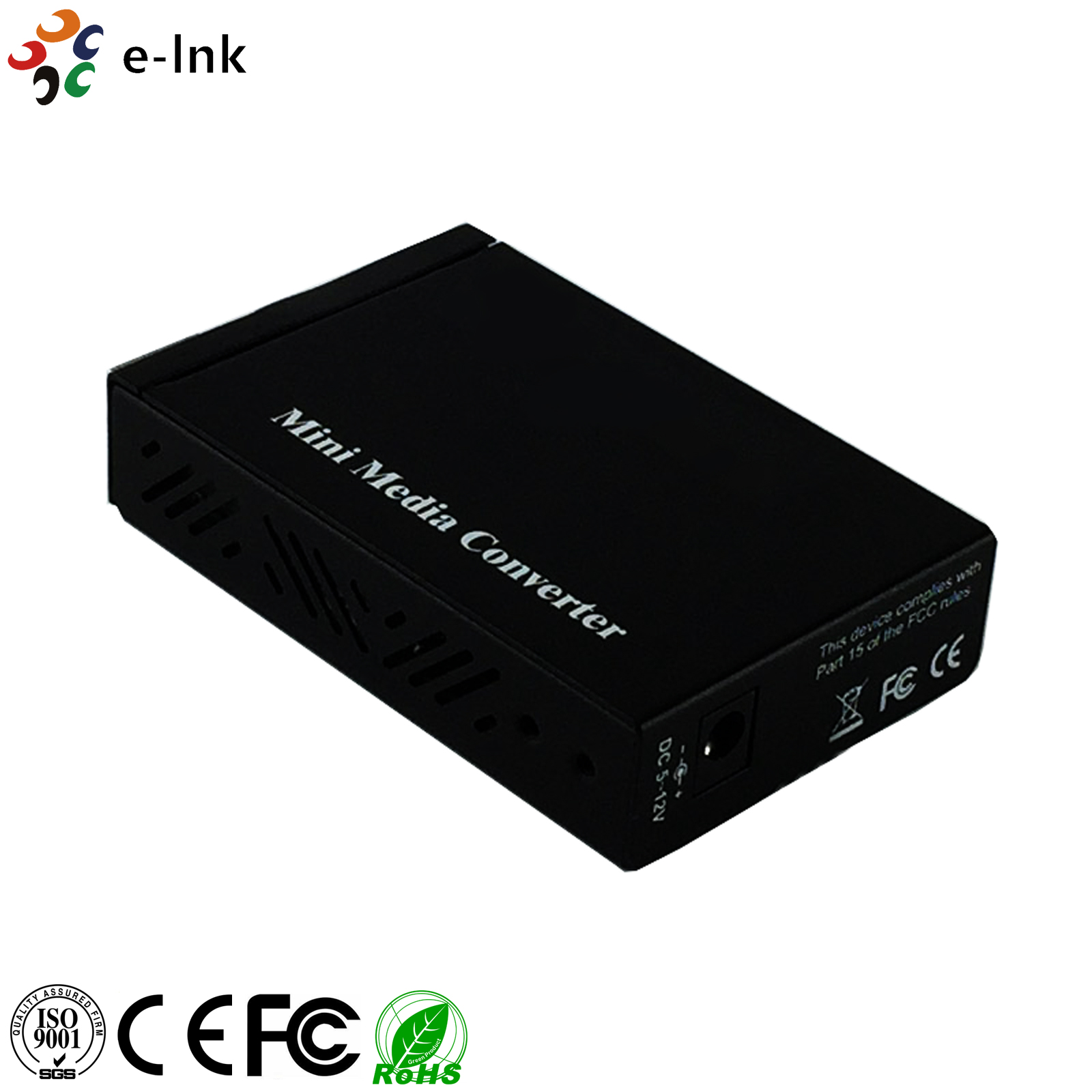

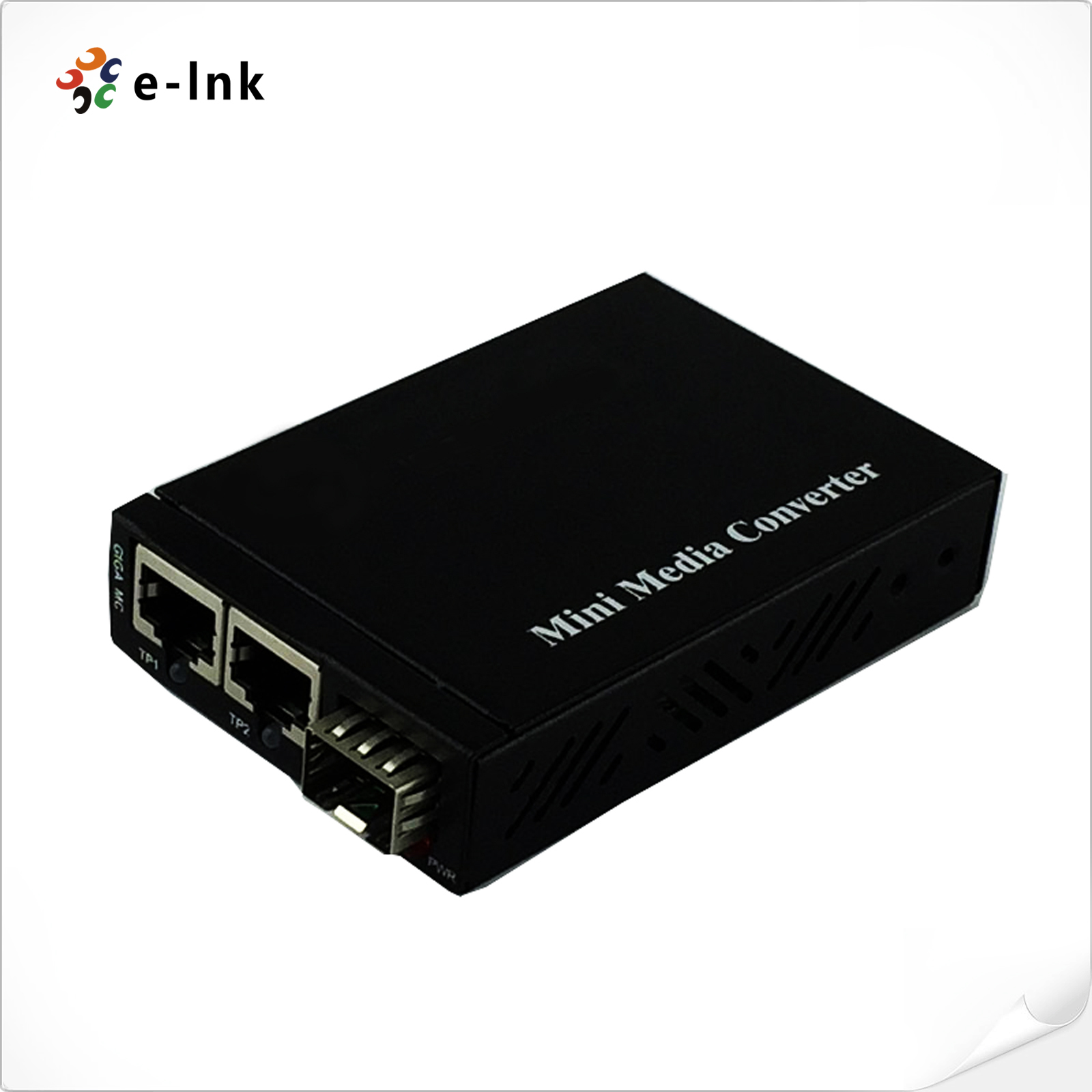

Unmanaged 2-port 10/100/1000Base-T and 1-port 1000Base-FX Ethernet Switch
Model:LNK-MN1200G-SFP
►2 10/100/1000Base-TX UTP to 1000Base-FX fiber media converter
►Support one SFP Fiber port and two RJ-45 ports
►Support IEEE802.3, IEEE802.3Z ,1000Base-TX/FX standards
Overview
The mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc. The compact size of Mini Media Converter is suitable for space limit installation and Mini size is the ideal media converter for enterprise Plug-and-play,providing store-and-forward data transmission Wide voltage from 5V to 12V.
Features
►2 10/100/1000Base-TX UTP to 1000Base-FX fiber media converter
►Support one SFP Fiber port and two RJ-45 ports
►Support IEEE802.3, IEEE802.3Z ,1000Base-TX/FX standards
►SC/LC/ST/FC Optional
►DIP switch to set different configurations
►Compact package size
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3,IEEE802.3u,IEEE802.3Z,IEEE802.3x 1000Base-FX or 100Base-FX |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Fiber: Depend on SFP Transceiver Cat-5 twisted pairs: 100m |
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Input voltage |
DC 5V~12V |
|
Power consume |
<3W |
|
Operating temperature |
0~50ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
60mm (W)×20mm (H)×90 mm (L) |
- Download FileName：E-link LNK-MN1200G-SFP Media Converter Datasheet V1.0.pdf Size： 252KB
Order information
| Item | Description |
| LNK-MN1200G-SFP |
Mini 2x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Gigabit Ethernet Media Converter, standalone, external power adaptor |
