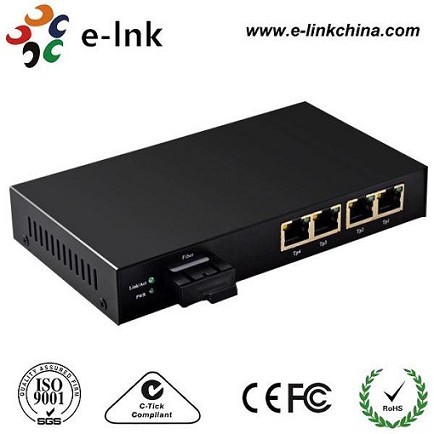

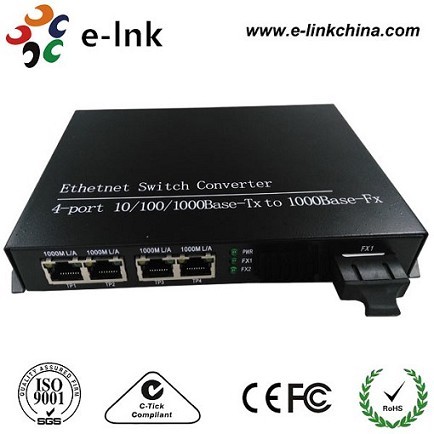

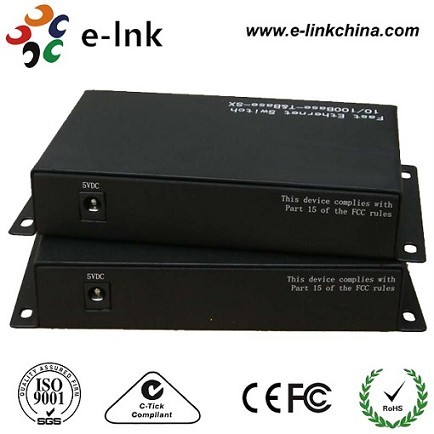

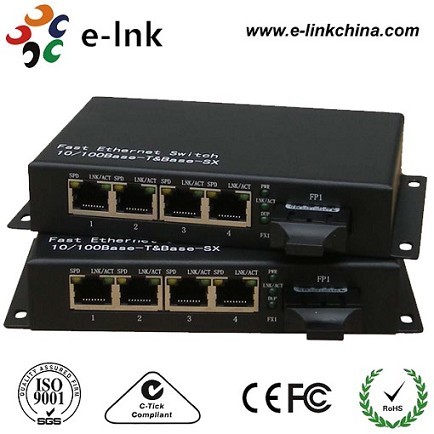

4-port RJ45 + 1-port Fiber 1000M Ethernet Switch
Model:LNK-1400
►1000M Fiber port supports 1000M and Full Duplex mode
►Supports flow control and broadcast storm protection
►Supports VLAN and QoS
►Supports max 10K bytes frame
Overview
LNK-1400G Series 4 port Gigabit Ethernet Switch with four 10/100/1000M UTP ports and one 1000M SC sockets, which converting the 4 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
Features
►Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)
►Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
►1000M Fiber port supports 1000M and Full Duplex mode.
►Supports flow control and broadcast storm protection.
►Supports VLAN and QoS.
►Supports max 10K bytes frame.
►Low power consume (4W), low heat, and good reliability.
Application
It is applicable to use in small patterns of Optical Fiber Ethernet.
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE 802.3/ 802.3u Ethernet, IEEE802.3ab 1000BaseT, IEEE802.3z 1000BaseX, IEEE 802.1d Spanning Tree, IEEE 802.1q VLAN TAG, IEEE 802.1p Qos ,10/100/1000Base-T and 1000Base-FX |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Fiber Optic: Multimode Fiber: 50/125, 62.5/125μm (2km) Single mode Fiber: 8/125,8.7/125,9/125μm(the max distance up to 10~120 km) Category-5 twisted pairs: 100m |
|
Port |
4*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 1*SC socket |
|
Conversion means |
Media conversion, store-and-forward |
|
Flow control |
Full duplex: flow control; half duplex: back pressure |
|
Error rate |
<10-9 |
|
MTBF |
100,000 hours |
|
MAC address table |
1K |
|
Power supply |
DC5V 2A (external) |
|
Power consumption |
<5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
- Download FileName：E-link LNK-1400 Series Media Converter Datasheet V2.0.pdf Size： 258KB
Ordering Information
|
Item |
Description |
|
LNK-1400G |
10/100/1000Base-T to 1000Base-F, 1 Fx Port + 4 RJ-45 Ports, Multi-mode, 550m, 1310nm, SC, standalone, external power adaptor |
|
LNK-1400GS-20 |
10/100/1000Base-T to 1000Base-F, 1 Fx Port + 4 RJ-45 Ports, Single Mode, 20km, 1310nm, SC, standalone, external power adaptor |
|
LNK-S1400G-20 |
10/100/1000Base-T to 1000Base-F, 1 Fx Port + 4 RJ-45 Ports, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
