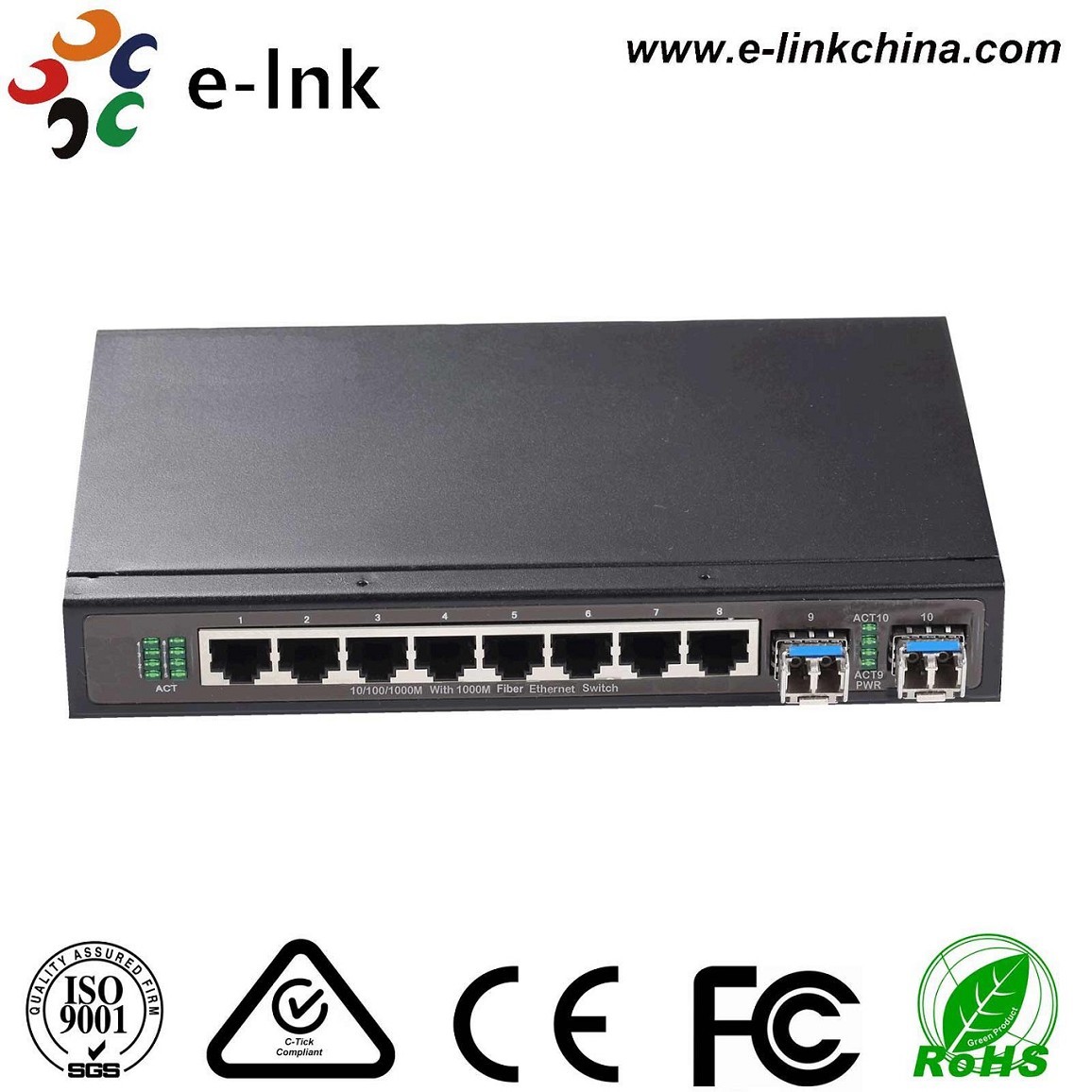

Managed 8 ports 10/100/1000M Gigabit Switch with 2 SFP slots

Model:LNK-M2800G-SFP


►Support 8 1000M (10/100/1000M adaptive) RJ45 ports and 2 1000M SFP port uplink

►Support SFP hot plug, Support Jumbo frames

►Support 100/1000M port full rate, full-duplex non-blocking forwarding

Overview

This switch is 10 ports 100M/1000M Ethernet Switch, it provides 8 1000M (10/100/1000M adaptive) RJ45 ports and 2 Gigabit SFP port uplink, include non-managed and managed types, managed types support Web and SNMP management(optional).

LNK-M2800G-SFP Series supports SFP hot plug; Fiber port supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mod; Support to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements. The two additional dedicated Gigabit SFP Fiber ports are for uplinks with greater distance.

Features

►Support 8 1000M (10/100/1000M adaptive) RJ45 ports and 2 1000M SFP port uplink

►It can build 1000M fiber internet

►Support SFP hot plug, Support Jumbo frames

►Support 100/1000M port full rate, full-duplex non-blocking forwarding

►Support 16K MAC learning, 2Mbit storage and forward cache space, 18G back plane bandwidth

►Support to provide wall-mounted hanger better for installation(optional), metal casing better for heat dissipating

Application

Applies to Security system, electronic power system and traffic system requirements.

Technical Indexes

Network Standards

IEEE802.3 10Base-T Ethernet,

IEEE802.3u 100Base-TX Fast Ethernet,

IEEE802.3ab 1000Base-T,

IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,

IEEE802.3x Flow control,

IEEE802.1q VLAN

IEEE802.1p QoS,

IEEE802.1d Spanning Tree

Wavelength

SFP Module: 850nm/1310nm/1490nm/1550nm

Distance

1000M SFP  multi-mode:220m (fiber 62.5/125μm)/550m(fiber 50/125μm)

Single-mode:10/20/40/60/80/100/120Km

Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m

Port

8 1000M RJ45 ports : 10/100/1000Mbps

2 1000M SFP: 1 Gbps, 1000M SFP

MAC

16K

Buffer memory space

2Mbit

Bit error rate

<1/1000000000

MTBF

100000 hours

Power

DC12V/1A

Power consumption

10W

Working temperature

-10~60℃

Storage temperature

-40~80℃

Humidity

5%~90% non-condensing

Dimension

70mm (H)×290mm(W)×185mm (D)

  • Download FileName:E-link LNK-M2800G-SFP Series Managed Ethernet Switch Datasheet V2.0.pdf Size: 418KB

Order Information

Item Description
LNK-M2800G-SFP L2 Managed 8G + 2SFP Ethernet Switch: 2 x 1000Base-SFP + 8 x 10/100/1000M RJ-45 Ports, SFP Slot, not including SFP modules, standalone, external power adaptor
