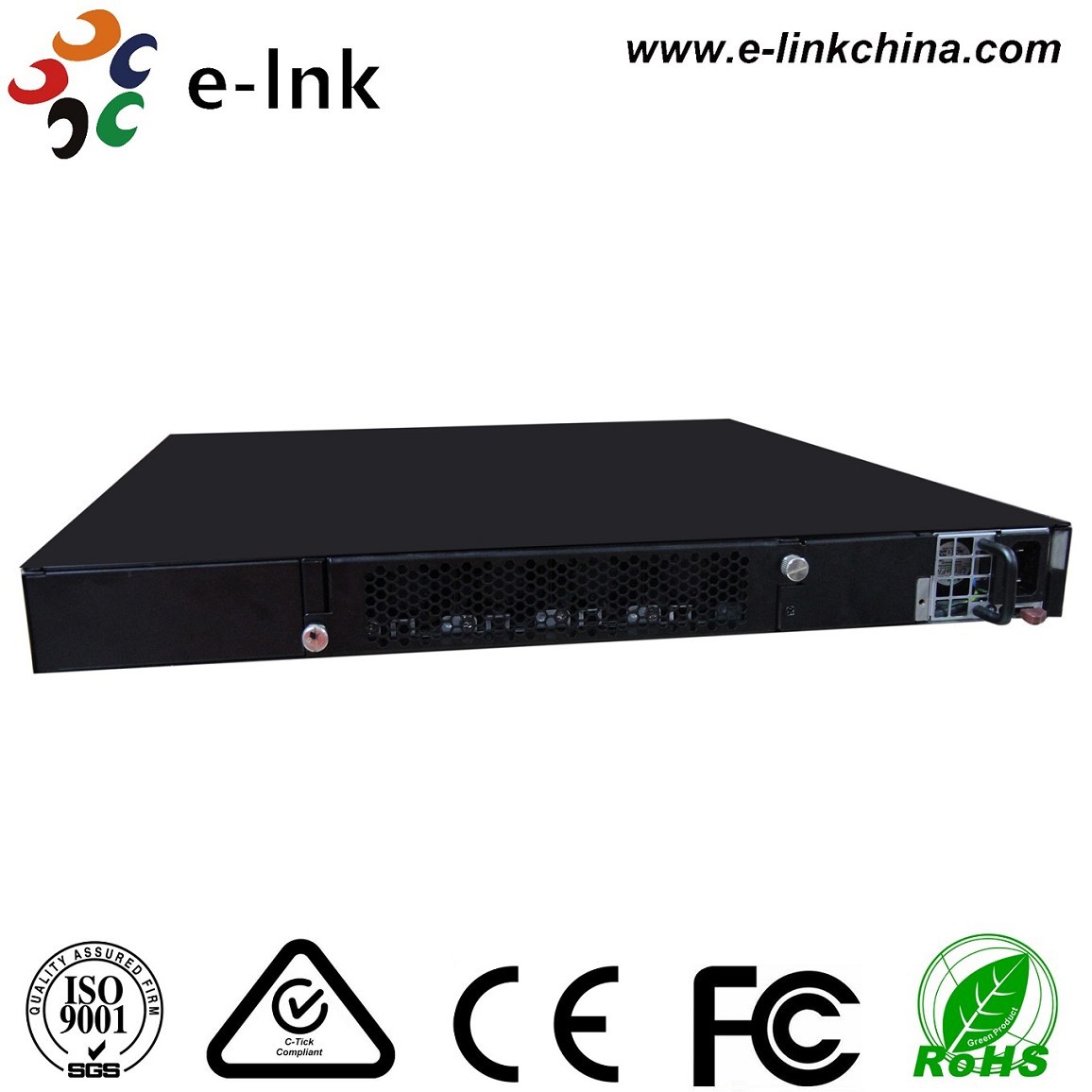

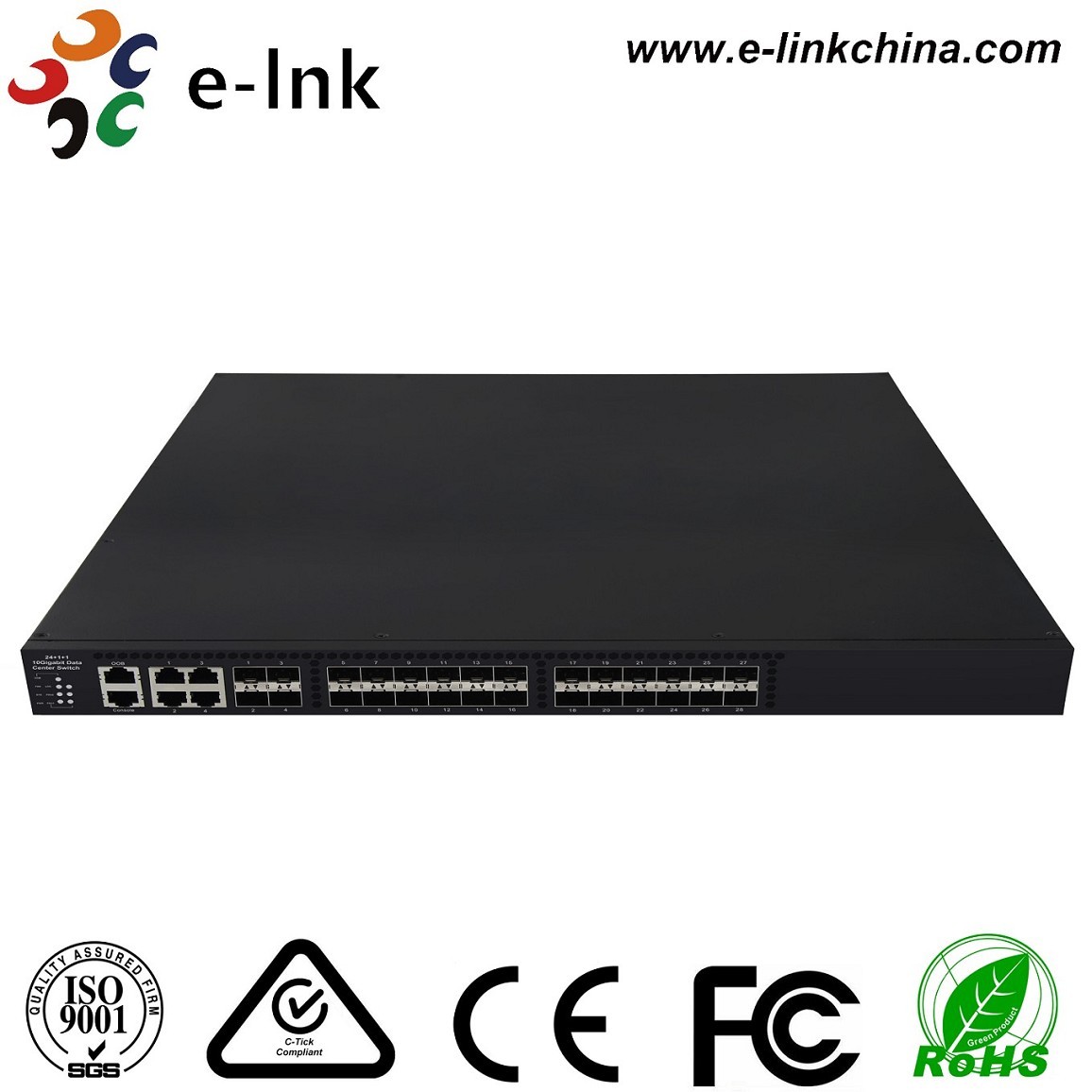

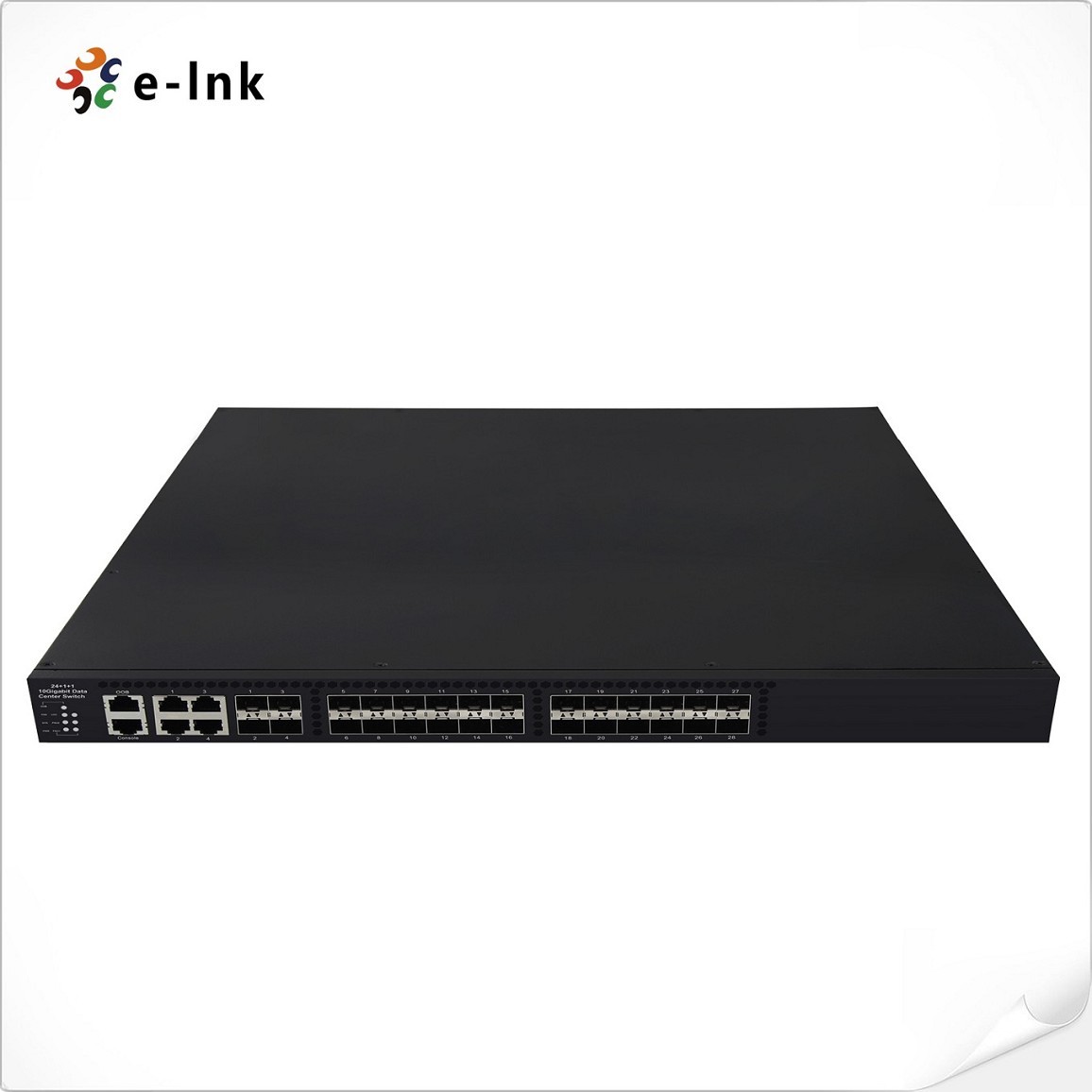

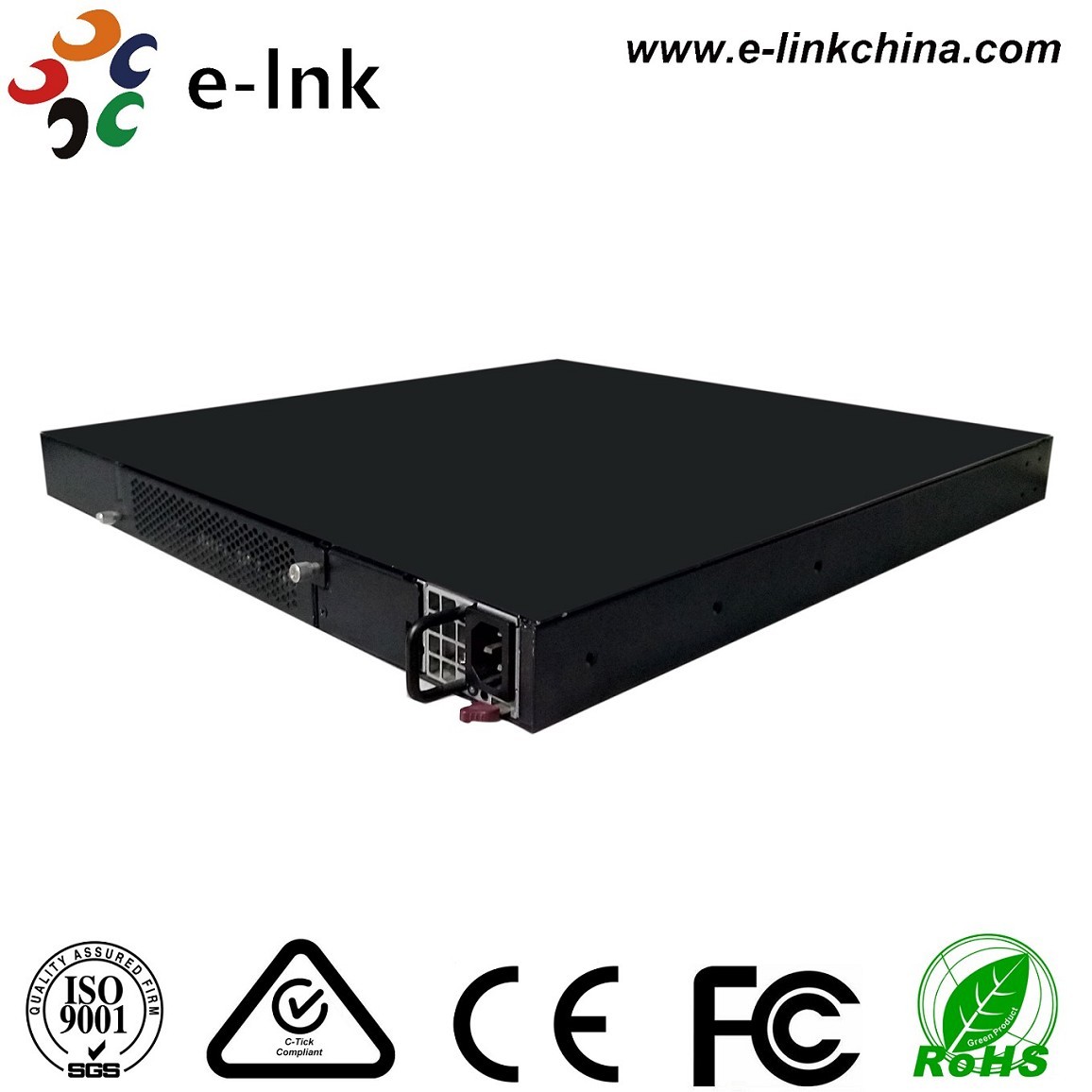

24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch

Model:LNK-XS2404

►High density 10G access, performance is remarkable
►Wind direction flexible choice, green and energy saving

►Convenient in operation and maintenance

Overview

LNK-XS2404 Series Switches are 10Gb Data Center Switch. Provided high exchange capacity, the capacity of support ACL function based on three or four layers. Perfect safety control strategy and the CPU protection strategy (CPU protect policy) to improve the fault tolerance, ensure the stable operation of the network and link load.6600 Series Switches adopts modular design, Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. To provide enough bandwidth, the user can according to demand to choose the appropriate 10G port in a flexible response network requirements. 6600 Series Switches Provided high backplane bandwidth , low latency, simple network management and other characteristics,located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, gathering.

Features

►High density 10G access, performance is remarkable
►Wind direction flexible choice, green and energy saving

►Convenient in operation and maintenance

Application

Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange.

Product's Technical Parameters

Product Model

LNK-XS2404 Series (24+4+1+1 10Gigabit Data Center Switch)

Basic Featrue

Fixed port

24 10Gbps SFP+ ports +4 10/100/1000Mbps TP/SFP combo ports

Console port

1

OOB management port

1

Backplane bandwidth

490Gbps

Packet forwarding rate

364.56Mpps

Jumbo frames

9216 bytes

Transfer mode

Support store-forward mode and cut-through mode

IPv4/IPv6 route

6k/8k

MAC address table

128K

Packet Buffer

9MB

VLAN ID

4K

Flash

32MB

Memory

1GB DDR3 SDRAM

CPU

PPC Dual-core 800MHz

Soft Specification

security feature

IP+MAC+PORT+VLAN binding

ARP inspection

DoS defend

port protect

IP Source Guard binding

VLAN

Port based VLAN

802.1Q VLAN

IP based VLAN

MAC based VLAN

MAC address table

static MAC address table

dynamic MAC address table

Storm Control

Broadcast Limit

Multicast Limit

DLF Limit

Limit Speed

Traffic Control

Half-duplex control based on the back pressure type

Full-duplex control based on the PAUSE frame

Port Mirror

Support port mirror

Port management

system info

port Statistics

config port

port trunk

port-isolate

QoS

IEEE 802.1Q Congestion mechanism

Each port has 8 send queue mapping to 8 802.1p priority

IP services

Ping dectection

DHCP Snooping

Spanning Tree Protocol

MSTP(802.1s),STP,RSTP

Multicast management

IGMP Snooping frame

System management

Support SNMP v1/v2/v3

Support Console

Support TELNET

Support WEB

Remote Upgrade

Web  host

Physical Characteristics

External Dimension

438.48mm*473mm*43.4mm

Power Supply Features

AC:90V~290V

DC:-38.4V~-72V

Power

≤230W

Indicator light

Power indicator, system, connection/sending and receiving instructions

Environment temperature/humidity

operating temperature:0°C~50°C(0m~1800m)storage temperature:-40°C~+70°C,relative humidity:5%RH~95%RH,Non-condensing















Authentication

ROHS authentication

European Community (CE) Electromagnetic Compatibility Directive:This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/EN60555-2 and the Generic European Immunity Standard EN50082-1.

EMC:

EN55022(1988)/CISPR-22(1985),class A EN60555-2(1995),class A

EN60555-3

IEC1000-4-2(1995),4K V CD, 8KV, AD

IEC1000-4-3(1995),3V/m

IEC1000-4-4(1995),1KV – (power line), 0.5KV – (signal line)

Federal Communications Commission (FCC) statement:This equipment has been tested and found to comply with the limits for a class A computing device pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment

  • Download FileName:E-link LNK-XS2404 Series Fiber Switch Datasheet V2.0.pdf Size: 165KB

Order Information

Item Description
LNK-XS2404 24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
