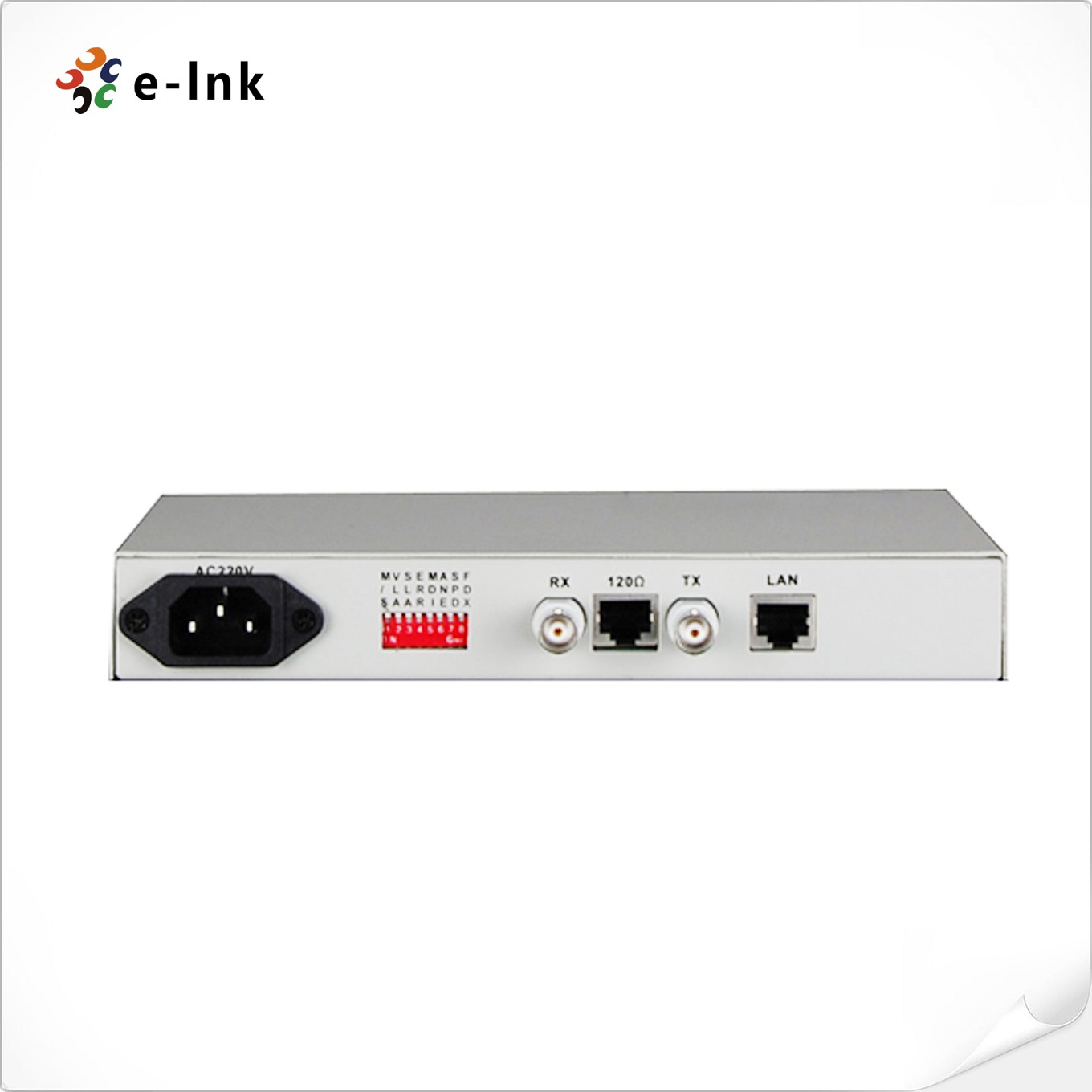

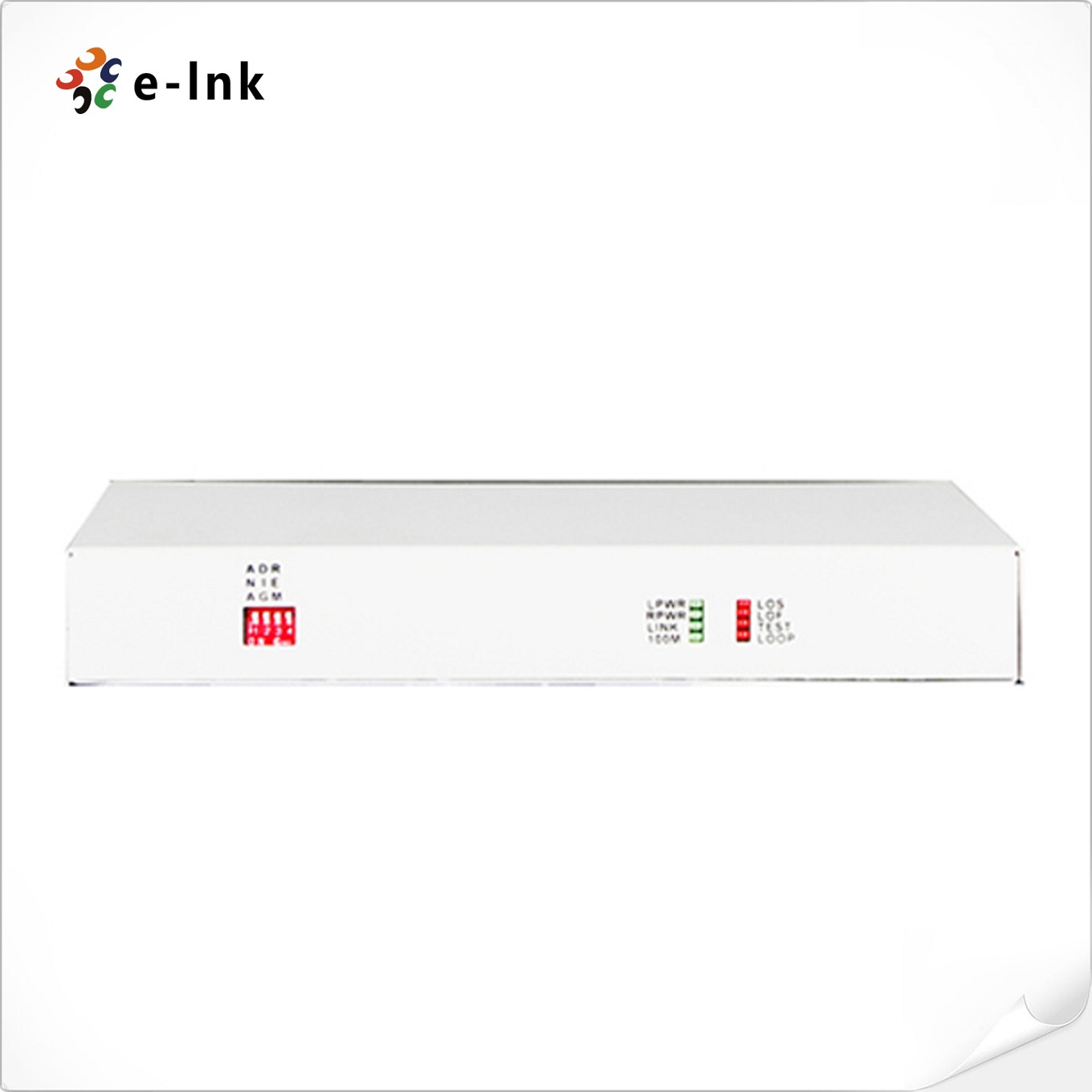

Overview

This interface converter provides one unframed 2048K E1 interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

Features

►Based on self -copyright IC
►Support unframed mode (2048K) set and can manage the remote device condition, OAM management data did not take up user’s timeslot
►Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop back;
►Have indicator when the device is power-off or E1 line is broken or lose signal;
►Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
►The Ethernet interface supports jumbo frames (2036 Bytes);
►Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering
►Ethernet interface supports 10M/100M, half/full duplex auto- Negotiation and AUTO-MDIX (crossed line and straightly connected line self-adaptable );
►Have Ethernet monitor self-reset function, the equipment will not dead
►Can achieve the remote device setting any 5 mode of Ethernet and can closed the AUTO-MDIX function;
►Provide 2 clock types: E1 master clock and E1 line clock;
►The local device can forced the remote device rate follow it(when the device is unframed mode, that is invalid)
►Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote Ethernet interface Loop Back(REM)
►Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
►Support SNMP Network Management;
►Can realize monitor of remote equipment temperature and voltage from local equipment;

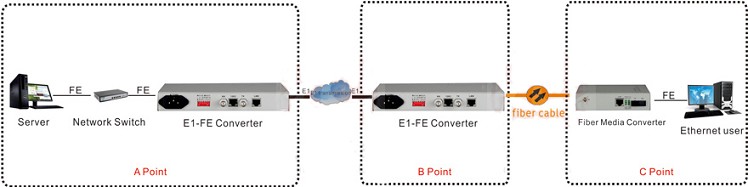

►Can form the structure: Ethernet E1 Bridge(A)－－-E1 Optical Fiber Modem(B)－－-Ethernet Optical Fiber Modem (C)
►Can form the structure: Ethernet E1 Bridge(A)－－-Optical Ethernet Modem(B)－－-Ethernet Optical Fiber Transceiver (C), can manage (B) and (C) at (A)

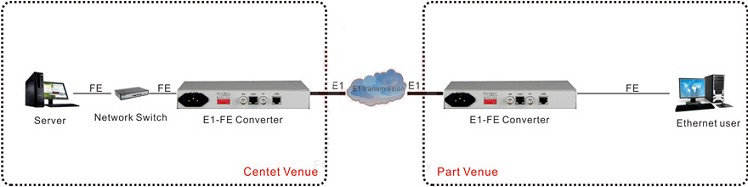

Application

Technical Indexes

Parameter	Specification
E1 Interface
Interface Standard	comply with protocolG.703
Interface Rate	n*64Kbps±50ppm
Interface Code	HDB3
E1 Impedance:	75Ω (unbalance), 120Ω (balance)
Jitter tolerance	In accord with protocol G.742 and G.823
Allowed Attenuation	0~6dBm
Ethernet Interface (10/100M)
Interface rate	10/100 Mbps, half/full duplex auto-negotiation
Interface Standard	Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability	4096
Connector	RJ45, support Auto-MDIX
Power
Power supply	AC180V ~ 260V；DC–48V；DC +24V
Power consumption	≤10W
Dimension
Product Size	216X140X31mm( WXDXH))
Simple Packaging	274X193 X84mm ( WXDXH)
Piece weight	1.2KG
Working environment
Working temperature	-10°C~ 50°C
Working Humidity	5%~95 % (no condensation)
Storage temperature	-40°C~ 80°C
Storage Humidity	5%~95 % (no condensation)

• Download FileName：E-link 1E1-1FE Converter Datasheet V1.0.pdf Size： 468KB

Model	Description
LNK-E1F1	Unframed 1E1-1FE Converter, E1 Interface 120ohm or 75ohm, AC220V or DC-48V, EU
