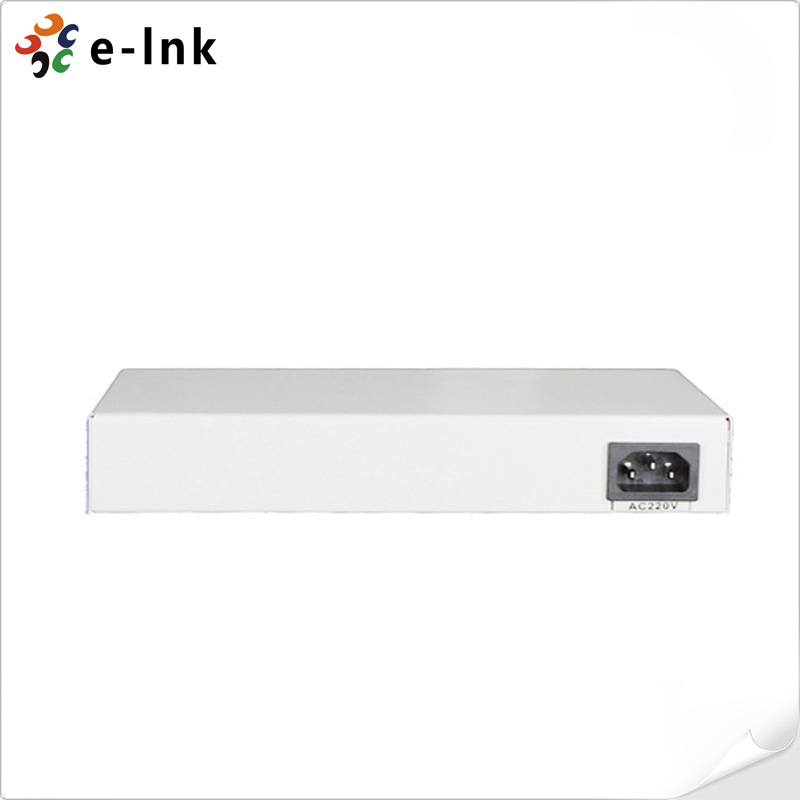

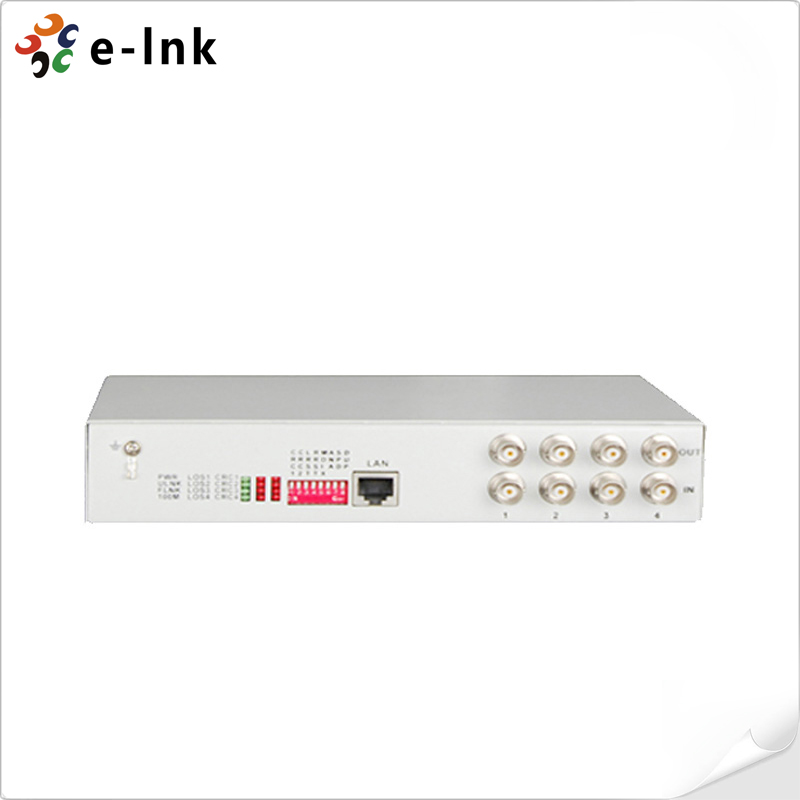

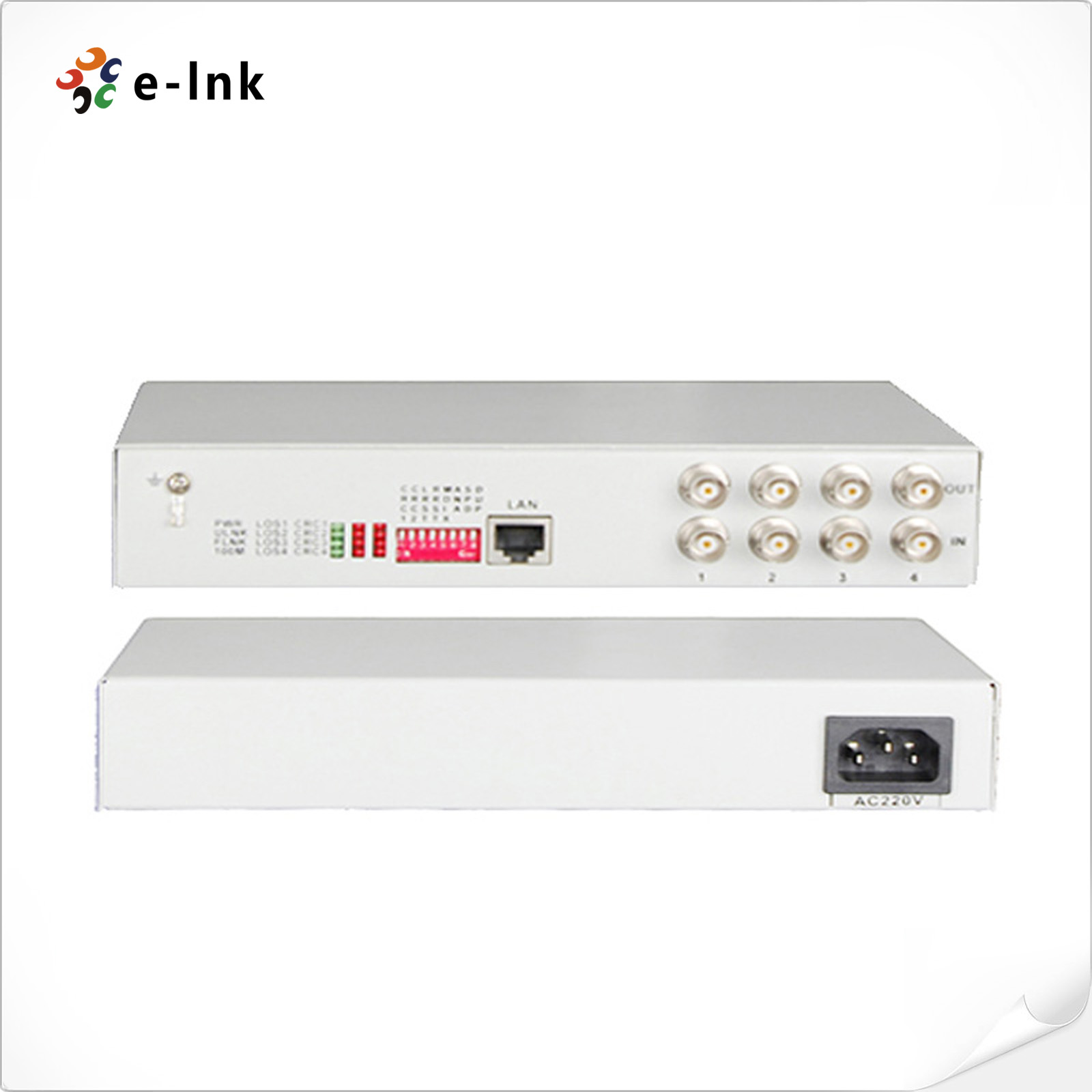

4E1-1FE Converter

Model:LNK-E4F1

►Ethernet Interface is 100BASE-FX, support VLAN protocol

►E1 interface conform to ITU-T G.703, G.704 and G.823

►Single Channel lines rate is 1984Kbit/s, 4Channel Bandwidth is up to 7936Kbit/s

Overview

This interface converter is based on FPGA, using reverse direction multiplexing technology to bundle for multiple E1 circuits to transmit the Ethernet data of 4 Channel 100BASE-TX. It can realize 1~4 E1 channel to convert between Ethernet optical interface. This device can transmit the transceiver signal point to point to Ethernet optical interface to make E1 channels interconnected with Ethernet optical interface. Unlike general remote network bridge, this device can support 1-4 Channel E1 channel configuration, can automatically detect the number of E1 and select the E1 available. It allows E1 lines transmission time delay difference.

Features

►Based on self-copyright IC
►To achieve Ethernet data transparent transmission in 1-4E1 circuits
►Can realize the local and the remote device reset
►Ethernet Interface is 100BASE-FX, support VLAN protocol
►Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering function
►Single Channel lines rate is 1984Kbit/s, 4 Channel Bandwidth is up to 7936Kbit/s
►Support all set of Ethernet Work Mode
►CRC automatic alarm threshold can be set to isolate the poor quality transmission lines and cut off a single-direction. When 2M branch circuit one direction error rate exceeds threshold, cutting off this direction the other direction is not affected; that is to say, both of the Ethernet direction transmission can be asymmetric
►Allow 4 Channel E1 transmission time delay difference 100ms. When the margin exceed the allowed range, the system can automatically stop on the E1 that time delay is too large to send data
►E1 interface conform to ITU-T G.703, G.704 and G.823, not support the use of signal timeslot
►E1 interface module with inter-set clock recovery circuit and HDB3 code circuit
►Support E1 channel hot-plug in the device, and automatically detects the effective E1 channel and will not interrupt data transmission
►Can support 1-4 Channel E1 channel configuration, can automatically detect the number of E1 and select the E1 available;

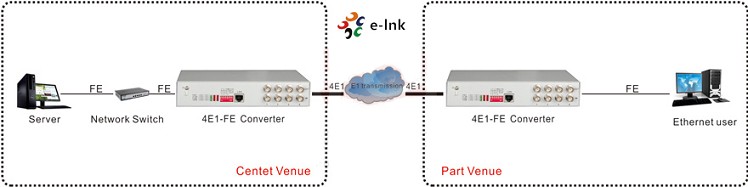

Application


Technical Indexes

Parameter

Specification

E1 Interface

Interface Standard

comply with protocol G.703

Interface Rate

n*64Kbps±50ppm

Interface Code

HDB3

E1 Impedance:

75Ω (unbalance), 120Ω (balance)

Jitter tolerance

In accord with protocol G.742 and G.823

Allowed Attenuation

0~6dBm

Ethernet Interface (10/100M)

Interface rate

10/100 Mbps, half/full duplex auto-negotiation

Interface Standard

Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability

4096

Connector

RJ45, support Auto-MDIX

Power

Power supply

AC180V ~ 260V;DC–48V;DC +24V

Power consumption

≤10W

Dimension

Product Size

216X140X31mm( WXDXH))

Simple Packaging

274X193 X84mm ( WXDXH)

Piece weight

1.3KG

Working environment

Working temperature

-10°C~ 50°C

Working Humidity

5%~95 % (no condensation)

Storage temperature

-40°C~ 80°C

Storage Humidity

5%~95 % (no condensation)


  • Download FileName:E-link 4E1-1FE Converter Datasheet V1.0.pdf Size: 194KB
Model
Description
LNK-E4F1
4E1-1FE Converter, E1 Interface 120ohm or 75ohm, AC220V or DC-48V
