Overview

LNK-SDE300 is cost-effective intelligent converter which offers a cost-effective connection between E3/DS3 services and 10/100BaseT LANs. They enable service providers and ISPs to provide transparent Ethernet services without interfering with user traffic. In addition to point to point application, the equipment can also work with center device H0FL-P as a terminal device with 16 service directions.

Features

►Support 4x10/100Base-Tx FE over 1xE3/DS3 channel;
►Customer should offer E3 or DS3 separately, E3 and DS3 cannot be supported simultaneously;
►Comply with IEEE802.3;
►Automatically restrain broadcast storm;
►Support diagnostic tools for TDM and Ethernet networks, for fast isolation of network problems, saving time and costs;
►Rich alarm indications such as E3/DS3 AIS/LOS, ETH LINK/ACT etc;
►Ethernet ports support 10/100M half/full duplex auto-adapted;
►Plug-and-Play LAN connection;
►Support HP auto MDIX function, MDI/MDIX auto-adapted;
►High reliability with low CAPEX and OPEX.

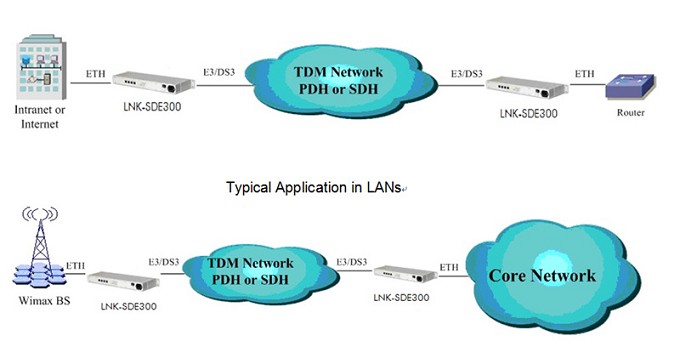

Application

Technical Indexes

Item	Description
Products List	LNK-SDE300	Connects four-port 10/100Base-Tx Ethernet LAN over one E3/DS3 channels
E3 interface	Comply with ITU-T G.703, 75ohm unbalanced
DS3 interface	44.736Mbps, 75 ohm unbalanced
Ethernet interface	10/100Base-Tx, RJ45
	10/100M auto-adaptive, half/full duplex auto-adaptive
Power	Supply optional	DC -48V (-32V~-72V)
		AC 220V (90V~265V)
	Consumption	≤8 W
Dimension	(W×H×D)	440 × 44 ×138 (mm)

• Download FileName：LNK-SDE300_datasheet.pdf Size： 169KB

Model	Description
LNK-SDE300	E3/DS3 to Ethernet Converter, Support 4x10/100Base-Tx FE over 1xE3/DS3 channel
