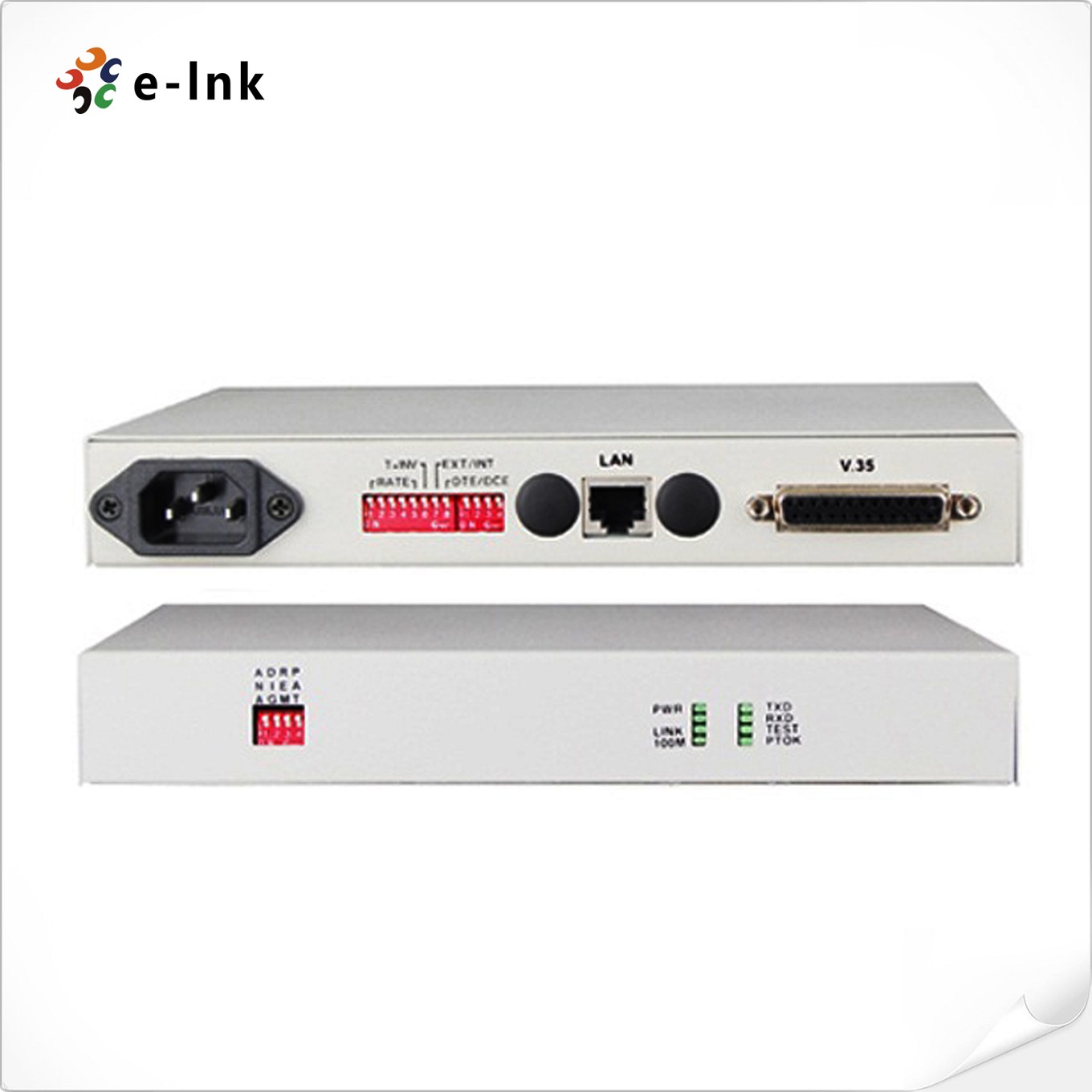

V.35 to Ethernet Interface Converter

Model:LNK-2705

►V.35 interface provide DTE and DCE type: DTE rate is 0 to 10M, DCE rate is n x 64k(N=1 to 32)

►Provide 2 loop functions: local V.35 loop, local 10 Base-T loop

►Network manager interface SNMP management

Overview

This convertor provide conversion from V.35 channel to Ethernet interface, and delivers Ethernet services over existing V.35 lines V35-ETH converter provides easy conversion from V.35 channel to standard 10/100 Base T Ethernet interface Can used widely in connecting between WAN and LAN, monitoring, etc. The Ethernet interface is 10/100Mbps auto negotiation and can be full/half duplex. Local management of the V35-ETH Converter is provided via DIP switches. Front panel LEDs monitor the V.35 link, Ethernet LAN and other serial ports for status and Loss of Sync V35-ETH compact V.35 Access Converter provides V.35 Network Termination as well as serial or Ethernet LAN interface conversion in a standalone or rack mount package. V35-ETH terminates the V.35 Telco interface and converts the data for transmission to a user-oriented 10BaseT interface.

Features

►Based on self-copyright IC , high software content (kernel chip based on software)
►V.35 interface provide DTE and DCE type: DTE rate is 0 to 10M, DCE rate is n x 64k(N=1 to 32)
►Provide 2 loop functions: local V.35 loop, local 10 Base-T loop.
►Have pseudo random code test function, easy the installation and maintenance.
►Power supply option: AC220V, DC-48V. The positive and negative terminal can be exchanged for DC-48V, easy for installation
►Network manager interface SNMP management
►Deliver Ethernet over V.35 line

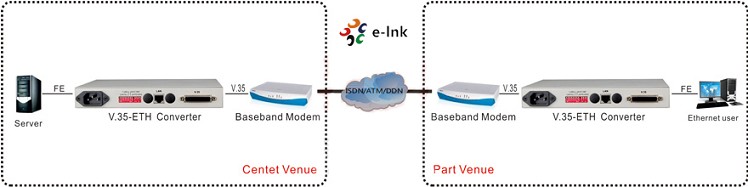

Application

Technical Indexes

Parameter

Specification

Ethernet Interface

Interface Rate

10/100 Mbps, half/full duplex auto-negotiation

Interface Standard

Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability

4096

Connector

RJ45, support Auto-MDIX

V.35 Interface

Interface rate

n*64Kbps

Interface Standard

Compatible with V.35 Standard

Connector

DB25

Connect Mode

DCE

Clock Type

G.703 restored clock, Internal clock

Power

Power supply

AC: 90V ~ 260V;
DC: -48V (-36 to -72V); +24 V (Optional)

Power consumption

≤3W

Dimension

Product Size

216X140X31mm( WXDXH))

Simple Packaging

274X193 X84mm ( WXDXH)

Piece weight

1.25KG

Working environment

Working temperature

-10°C~ 50°C

Working Humidity

5%~95 % (no condensation)

Storage temperature

-40°C~ 80°C



5%~95 % (no condensation)

  • Download FileName:E-link V.35-Ethernet Converter Datasheet V1.0.pdf Size: 194KB
  • Download FileName:E-link V.35-Ethernet Converter User Manual V1.0.pdf Size: 660KB
Model
Description
LNK-2705
V.35 to Ethernet Converter, V.35 Interface: DB25 Connector, DCE mode, 10/100M Ethernet Interface: RJ45, AC220V or DC-48V
