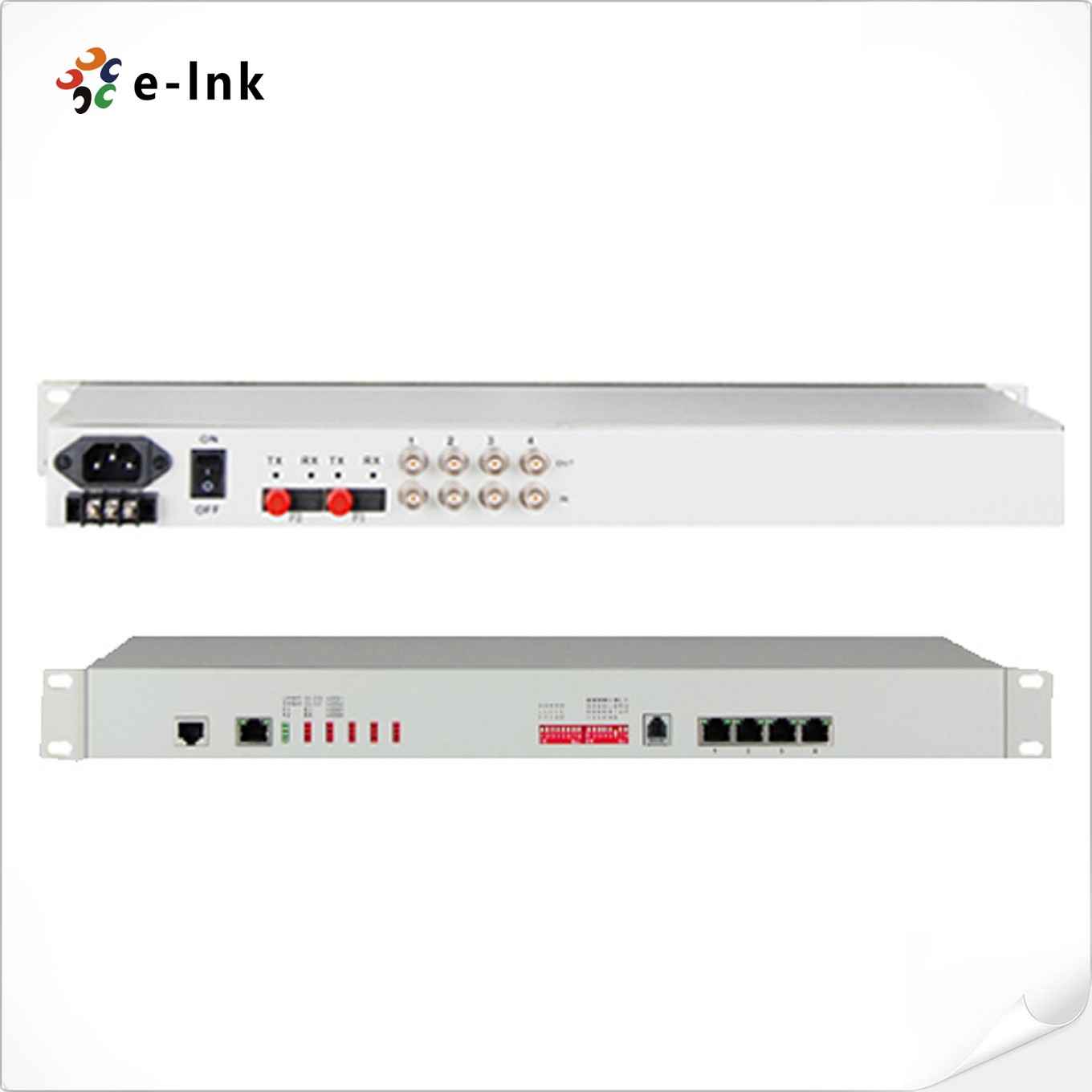

4E1 + 4FE 1+1 Fiber PDH Multiplexer

Model:LNK-PDH-E4F4

►Ethernet interface rate is 10M/100M, half/full duplex auto- Negotiation

►4 Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation

Overview

This device provides 1-4 Channel E1 interface, master optical fiber interface and backup optical fiber interface, 1-4 Channel 10M/100M Ethernet interface (Line Rate 100M) and 2 expansion interface. 4 Channel Ethernet interface is switch interface, can support VLAN. 2 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.

Features

►Based on self-copyright IC
►Modular wide dynamic optical detector
►The device provides master optical fiber interface and backup optical fiber interface, Dual Optical Port backup function ensures that the work will never break
►Ethernet interface rate is 10M/100M, half/full duplex auto- Negotiation
►4 Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
►E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
►1 Channel PCM digital business phone (optional)
►When optical lose signal, it can detect the remote device is power off or fiber is disconnected, and indicates alarm by LED
►The local device can view the remote device working condition
►Provide 2 expansion interface, you can extend 1~2 Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;
►1~2 Channel voice,1~4 Channel switch , or two/four line audio and so on
►Provide command the remote interface Loop Back, ease line maintenance
►The transmission distance is up to 2-120Km without interruption
►AC 220V, DC-48V, DC24V can be optional
►DC-48V/DC24V power supply polarity detection function, Polarity-Free

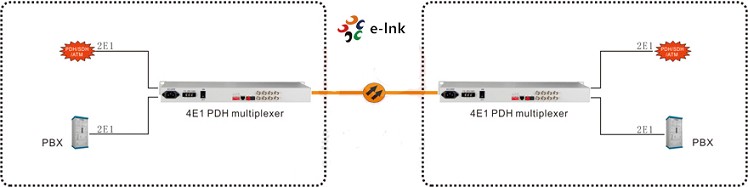

Application


Technical Indexes

Parameter

Specification

Fiber

Multi-mode Fiber

Fiber Type

50/125um, 62.5/125um

Maximum transmission distance

5Km@ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

Transmitting power

-12dBm (Min) ~-9dBm (Max)

Receiver sensitivity

-28dBm (Min)

Link budget

16dBm

Single-mode Fiber

Fiber Type

8/125um, 9/125um

Maximum transmission distance

40Km

Transmission distance

40Km@ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length

1310nm

Transmitting power

-9dBm (Min) ~-8dBm (Max)

Receiver sensitivity

-27dBm (Min)

Link budget

18dBm

E1 Interface

Interface Standard

comply with protocol G.703

Interface Rate

n*64Kbps±50ppm

Interface Code

HDB3

E1 Impedance:

75Ω (unbalance), 120Ω (balance)

Jitter tolerance

In accord with protocol G.742 and G.823

Allowed Attenuation

0~6dBm

Ethernet Interface (10/100M)

Interface rate

10/100 Mbps, half/full duplex auto-negotiation

Interface Standard

Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability

4096

Connector

RJ45, support Auto-MDIX

Power

Power supply

AC180V ~ 260V;DC–48V;DC +24V

Power consumption

≤10W

Dimension

Product size

19 inch 1U 485X138X44mm(WXDXH)

Simple packaging

522X198X82mm(WXDXH)

Piece weight

3KG

Working environment

Working temperature

-10°C~ 50°C

Working Humidity

5%~95 % (no condensation)

Storage temperature

-40°C~ 80°C

Storage Humidity

5%~95 % (no condensation)

  • Download FileName:E-link 4E1+4FE PDH Mux Datasheet V1.0.pdf Size: 187KB
Model
Description
LNK-PDH-E4F4
PDH Multiplexer, 1 Fiber port, 4E1 (75ohm or 120ohm) + 4FE (10/100M Ethernet, Single Mode, Single Fiber, 20KM, FC, 19" Rack, DC-48V or AC220V
