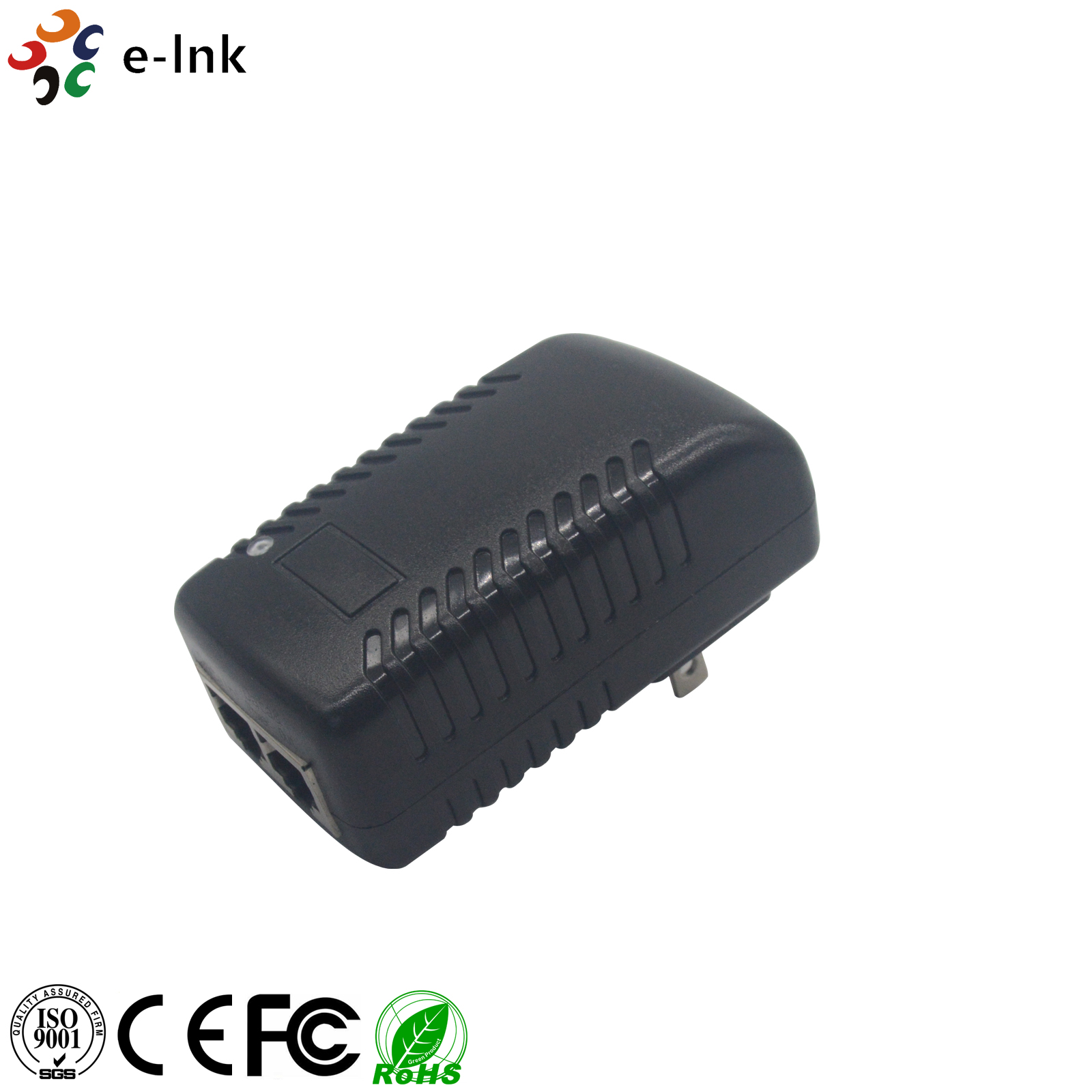

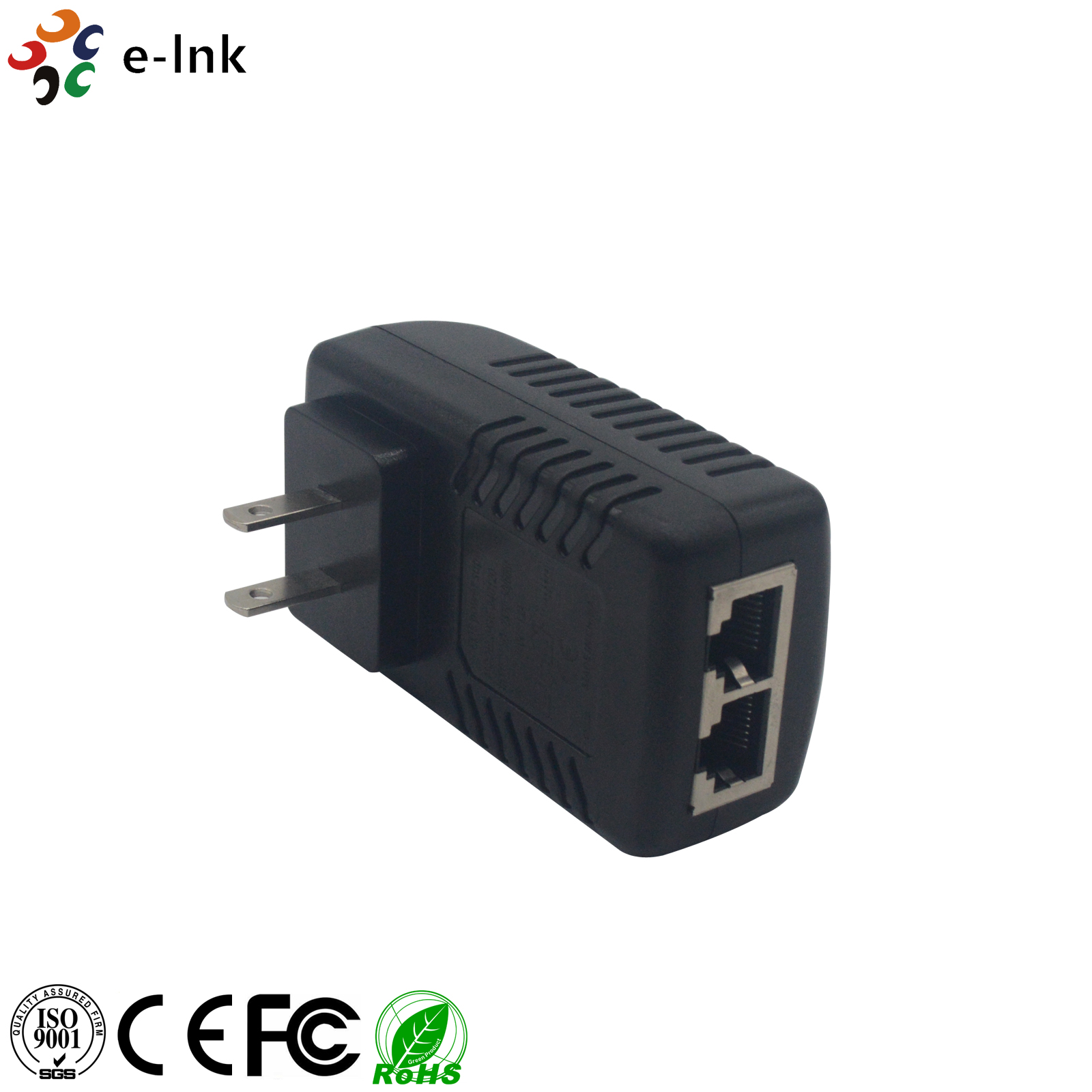

12VDC@1.5A 18W POE Adapter Injector
Model:LNK-POE-12-18W Series
► Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meter(328 ft)
► 1x10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port
► 1x10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port
Overview
The LNK-POE-12-18W & LNK-POE-12-18W-G Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.
Features
►Up to 18W of PoE Power
►Supports 10/100M or 10/100/1000M LAN environment
►Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)
►1 x 10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port
►1 x 10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port
►Power port
►Power LED indicator
►Easily install a PoE device where a power outlet is not available
►Plug & Play in remote location
►No configuration required
►Reduced Installation cost
►Safe and Reliable Power to WLAN Access Points
►Automatic Detection and Protection of Non–standard Ethernet Terminals

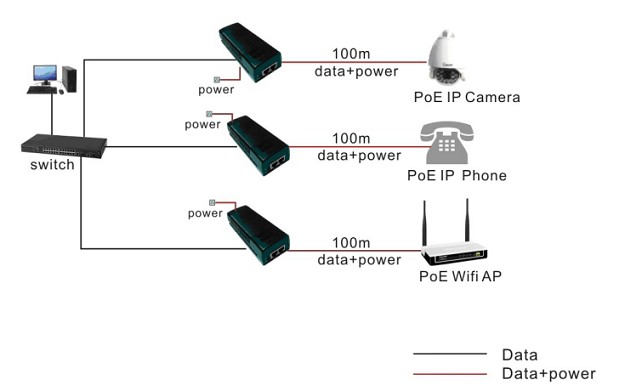

Application
Technical Parameters
|
Ethernet power supply (POE) |
|
|
POE characteristic |
*PoE Power(max):18W |
|
*one port support POE power supply |
|
|
Power supply way |
*Spare Part to 4/5(+), 7/8(-) |
|
*Data Part to 1/2(+), 3/6(-) |
|
|
Port and Performance |
|
|
Port |
2 Ethernet front-end ports |
|
Port parameters |
*Electrical interface : RJ45 |
|
*Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level |
|
|
Transmission rate |
LNK-POE-12-18W:10/100Mbps LNK-POE-12-18W -G:10/100/1000Mbps |
|
Protocol standard |
*IEEE802.3 i 10 BASE-T; |
|
*IEEE802.3 u 100 BASE-TX; |
|
|
*IEEE 802.3ab Gigabit Ethernet |
|
|
*IEEE802.3 x Flow Control; |
|
|
LED indicator |
Every port : rate, link indicator |
|
Environment and Specification |
|
|
Environment condition |
*Operating Temperature :0~55℃; Storage Temperature : -20~70℃ |
|
*Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation |
|
|
Safety standard |
CE/LVD |
|
Other Characteristic |
|
|
Input Voltage |
90-260VAC @ 47-63 Hz |
|
Output Voltage |
|
|
Electromagnetic compatibility |
*CE Class B |
|
*FCC Part 15 , Class B |
|
|
*VCCI Class B |
|
|
*C-Tick |
|
- Download FileName：E-link LNK-POE-12-18W Series PoE Injector Datasheet V1.0.pdf Size： 231KB
Ordering Information
|
Model |
Description |
|
LNK-POE-12-18W |
PoE Adapter, 10/100Mbps,12VDC @1.5A Output Voltage, 18W PoE Power |
|
LNK-POE-12-18W -G |
PoE Adapter, 10/100/1000Mbps,12VDC @1.5A Output Voltage, 18W PoE Power |
