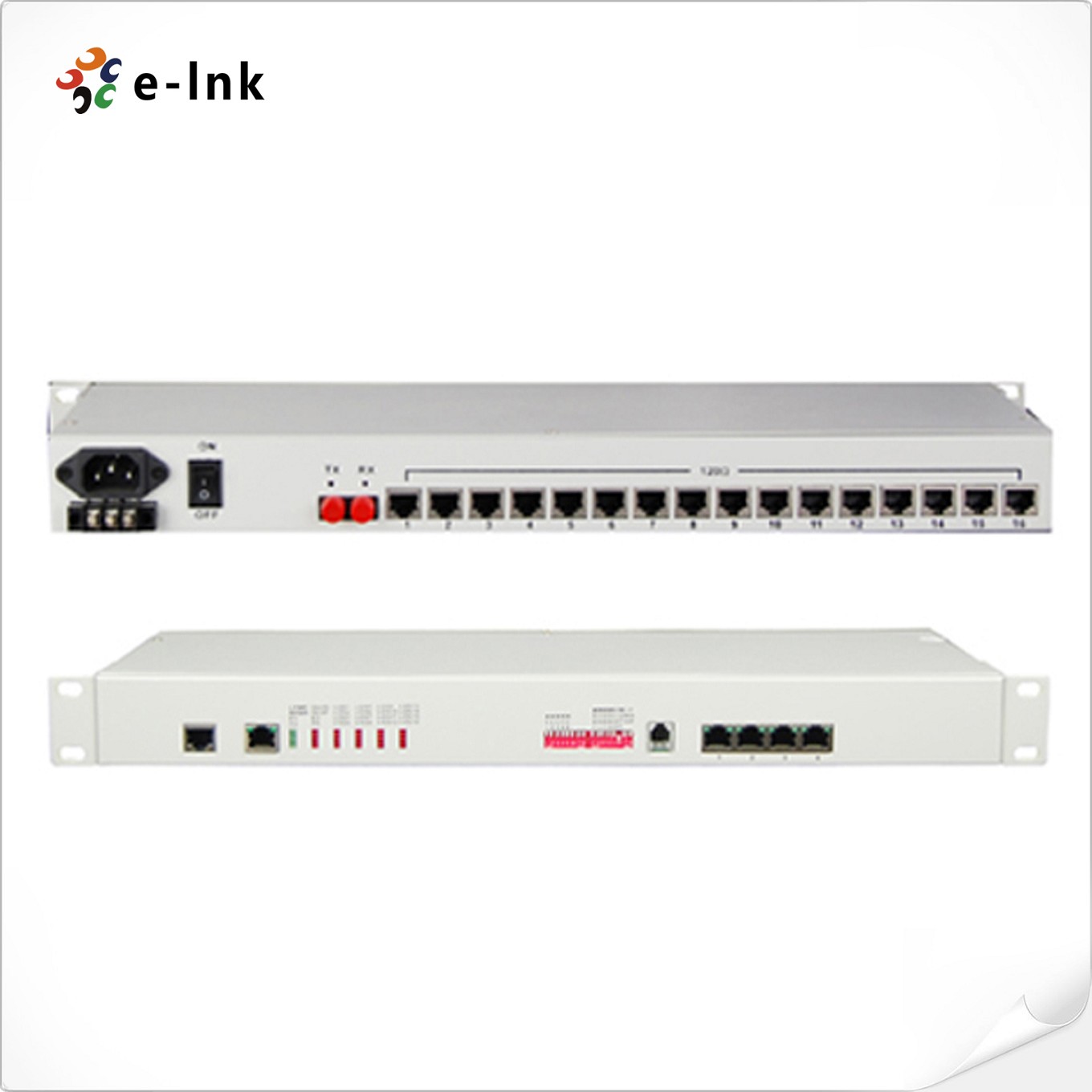

16E1 + 4FE PDH Multiplexer
Model:LNK-16E4F
►Ethernet interface rate is 10M/100M, half/full duplex auto
►Provide command the remote interface Loop Back, ease line maintenance
Overview
This device provides 1-16 Channel E1 interface, 1-4 Channel 10M/100M Ethernet interface (Line Rate 100M) and 2 expansion interface. 4 Channel Ethernet interface is switch interface, can support VLAN. 1 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, and small size.
Features
►Based on self-copyright IC
►Modular wide dynamic optical detector
►Ethernet interface rate is 10M/100M, half/full duplex auto- adaptable
►E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
►1 Channel PCM digital business phone (optional)
►When optical lose signal, it can detect the remote device is power off or fiber is disconnected, and indicates alarm by LED
►The local device can view the remote device working condition
►Provide command the remote interface Loop Back, ease line maintenance
►The transmission distance is up to 2-120Km without interruption
►AC 220V, DC-48V, DC24V can be optional
►DC-48V/DC24V power supply polarity detection function, Polarity-Free

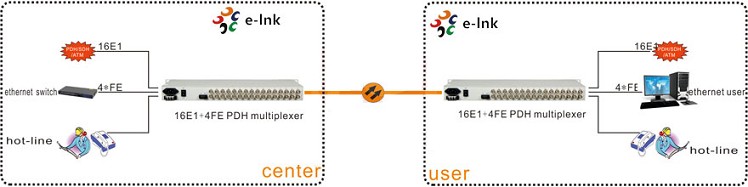

Application
Technical Indexes
|
Parameter |
Specification |
|
Multi-mode Fiber |
|
|
Fiber Type |
50/125um, 62.5/125um |
|
Maximum transmission distance |
5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm |
|
Transmitting power |
-12dBm (Min) ~-9dBm (Max) |
|
Receiver sensitivity |
-28dBm (Min) |
|
Link budget |
16dBm |
|
Single-mode Fiber |
|
|
Fiber Type |
8/125um, 9/125um |
|
Maximum transmission distance |
40Km |
|
Transmission distance |
40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km) |
|
Wave Length |
1310nm |
|
Transmitting power |
-9dBm (Min) ~-8dBm (Max) |
|
Receiver sensitivity |
-27dBm (Min) |
|
Link budget |
18dBm |
|
E1 Interface |
|
|
Interface Standard |
comply with protocolG.703 |
|
Interface Rate |
n*64Kbps±50ppm |
|
Interface Code |
HDB3 |
|
E1 Impedance: |
75Ω (unbalance), 120Ω (balance) |
|
Jitter tolerance |
In accord with protocol G.742 and G.823 |
|
Allowed Attenuation |
0~6dBm |
|
Ethernet Interface (10/100M) |
|
|
Interface rate |
10/100 Mbps, half/full duplex auto-negotiation |
|
Interface Standard |
Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) |
|
MAC Address Capability |
4096 |
|
Connector |
RJ45, support Auto-MDIX |
|
Power |
|
|
Power supply |
AC180V ~ 260V；DC–48V；DC +24V |
|
Power consumption |
≤10W |
|
Dimension |
|
|
Product size |
19 inch 1U 485X138X44mm(WXDXH) |
|
Simple packaging |
522X198X82mm(WXDXH) |
|
Piece weight |
3KG |
|
Working environment |
|
|
Working temperature |
-10°C ~ 50°C |
|
Working Humidity |
5%~95 % (no condensation) |
|
Storage temperature |
-40°C ~ 80°C |
|
Storage Humidity |
5%~95 % (no condensation) |
- Download FileName：E-link 16E1+4FE PDH Mux Datasheet V1.0.pdf Size： 195KB
|
Model |
Description |
|
LNK-PDH-16EF4 |
PDH Multiplexer, 1 Fiber port, 16E1 (75ohm or 120ohm) + 4FE (10/100M Ethernet, Single Mode, Single Fiber, 20KM, FC, 19" Rack, DC-48V or AC220V |
