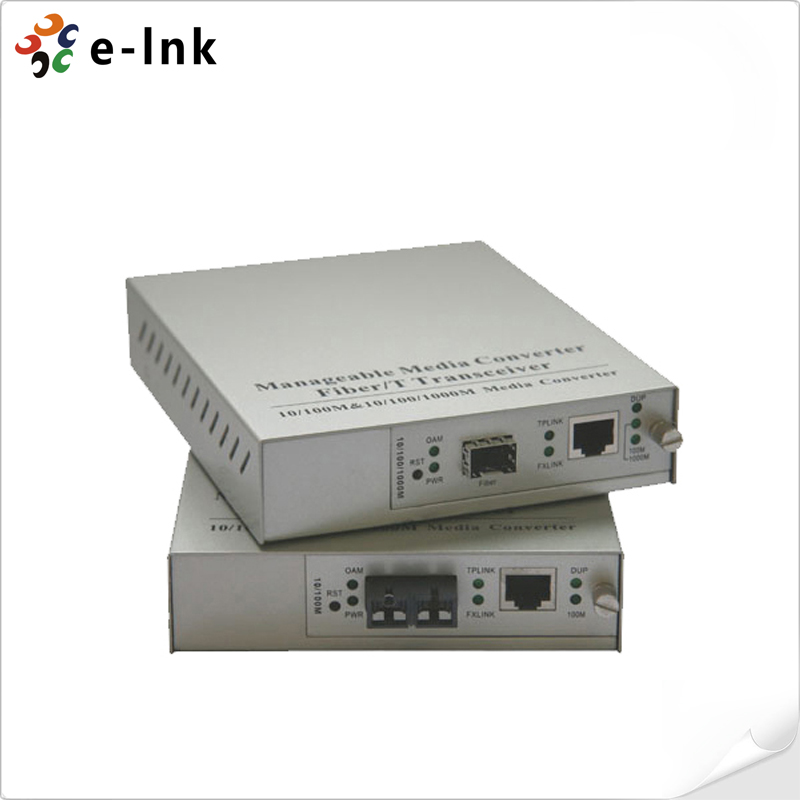

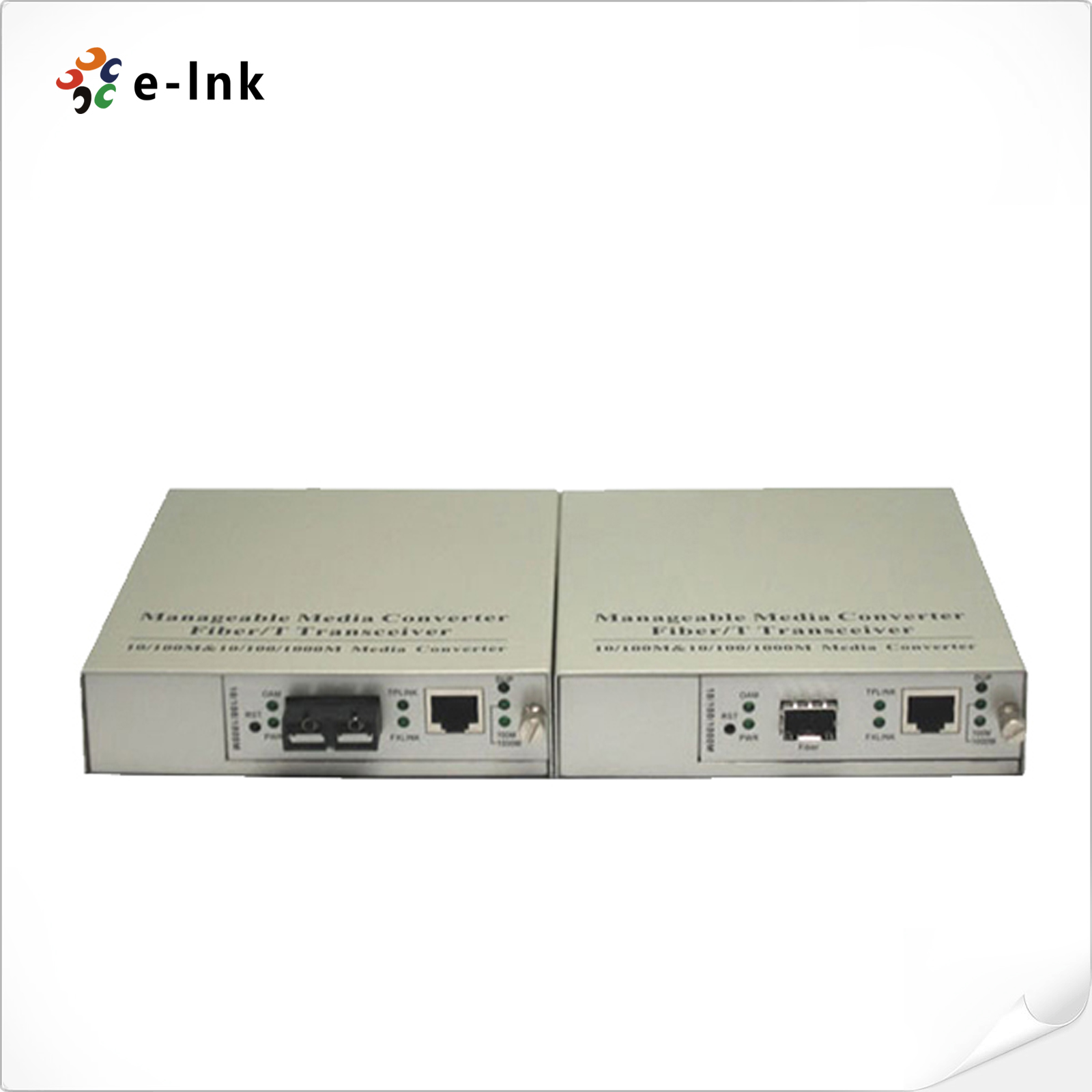

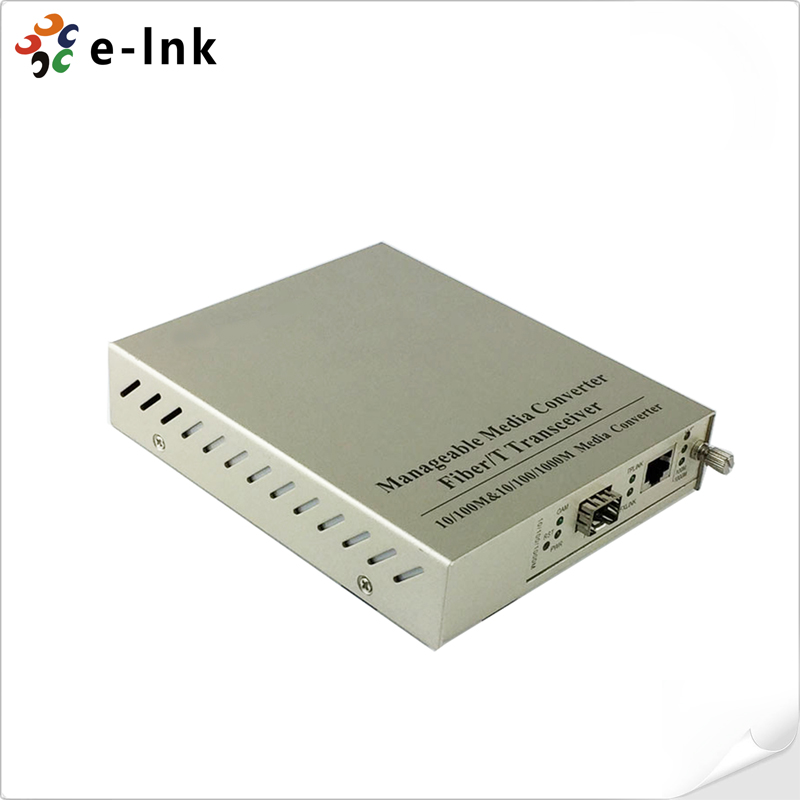

10/100/1000Base-T to 1000Base-X SFP One to One Manageable Media Converter

Model:LNK-103OAM Series

►Store and Forward mechanism

►Event trap and SNMP trap support

►Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN

►TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test

Overview

LNK-103OAM-SFP series supports 10/100/1000M Ethernet Port and 1000M SFP Port. The 10/100/1000M IEEE802.3ah OAM manageable Ethernet Fiber Media Converter can supervise the real time situation of remote manageable fiber media converter and set the functions. With this system, the response speed of the operator is quickened, the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.

Features

►Built-in IP-based Web Interface

►Supporting remote and local management

►Support IEEEE 802.3X Frame Flow Control for Full-Duplex mode

►Store and Forward mechanism

►Manual IP address setting/DHCP client for IP address assignment

►SNMP v1 / v2c monitor / private Enterprise MIB

►Event trap and SNMP trap support

►Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port

►Supports Port Status / Ethernet Statistics on both TP and Fiber intertace

►Supports Maximum frame size to 16K bytes

►Loop detection / Broadcast / Multicast / Unicast storm control

►Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN

►802.1p Tag Priority / IP address priority / IP DSCP option in

►Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies

►TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test

►16 TCP / UDP Filter groups

►Password setting, IP setting and devices description setting through Planet Smart discovery utility

►Firmware upgrade via remote Web interface

►LED indicators for easy network diagnosing

►Reset Button at the front panel for the factory default reset

►SFP port: 1000Base-FX/LX/BX mini GBIC module

Technical Indexes

Standards &Protocols

IEEE802.3x full duplex on 10BaseT, 100BaseTX,1000BaseT IEEE802.3-2002

IEEE802.3u 100BaseTX, IEEE802.3ah-2004

IEEE 802.1d Spanning Tree

IEEE 802.1w

IEEE 802.1p Qos

IEEE 802.1q VALN TAG IEEE802.3X Flow control

Connector

SFP

Operating wavelength

850nm, 1310nm at Multi-mode; 1310nm, 1550nm at single mode

Optical fibers

Multi-mode: 50/125,62.5/125,100/140um;
Single-mode: 8.3/125,8.7/125,9/125,10/125um

Management port

1 console (RJ45)

Serial port configuration

9600bps/8bit/none parity/1 stop bit/none low control

User port

10/100/1000BaseTX (RJ45), Full/Half duplex;

1000Base-FX (SFP module)

Fiber link option

Dual fiber/single fiber (WDM)

Max frame size

1518 Bytes (100M);9728 Bytes (1000M)

Transmission distance

Depending on SFP module type

Band width management

Support bandwidth control by step of64Kbps (N*64K)

LLCF

Support Link loss carry forward (LLCF)

Q-in-Q

Q-in-Q functionality(addanotherouter9100tag)makes the customer packets tunneled and unmodified through the providers network by using a provider  configured 802.1QVLANtags,alleviating the burden of aggregation switch

IEEE802.3ah OAM
standard function

LNK-103OAM-SFP Series series has two working modes: Master and Slave. Central Office device works at Master mode, and Customer Premise device at Slave mode. The OAM functions are originated by Master device.

Link monitoring

Report local events to remote device, including Critical Event (voltage and  temperature abnormal) and Dying Gasp (power down).

OAM discovery

Check if remote device has implemented/enabled IEEE802.3ah OAM function, and negotiate with remote device

Working Temperature

0℃~60℃

Working Humidity

5%~90%(non-condensing)

Storage Temperature

-10℃~70℃

Storage Humidity

RH: 5~90% non-condensing

Power supply

85VAC~265VAC or -40VDC~-57VDC

Power consumption

≤5W

  • Download FileName:E-link LNK-102OAM&LNK-103OAM Series Media Converter Datasheet V2.0.pdf Size: 295KB
  • Download FileName:E-link One to One Manageable Media Converter User Manual V1.0.pdf Size: 151KB

Order Information


Model

Description

LNK-103OAM-SFP

10/100/1000M One TO One Manageable Media Converter, IEEE802.3ah OAM compliant, Internal Power Supply: AC220V, 1-port UTP and 1-port SFP

LNK-103OAM

10/100/1000M One TO One Manageable Media Converter, IEEE802.3ah OAM compliant, Internal Power Supply: AC220V, 1-port UTP and 1-port SC, MM, 500m

LNK-103OAMS-20

10/100/1000M One TO One Manageable Media Converter, IEEE802.3ah OAM compliant, Internal Power Supply: AC220V, 1-port UTP and 1-port SC, SM, 20KM

LNK-S103OAM-20

10/100/1000M One TO One Manageable Media Converter, IEEE802.3ah OAM compliant, Internal Power Supply: AC220V, 1-port UTP and 1-port SC,Single Mode, Single Fiber,20KM
