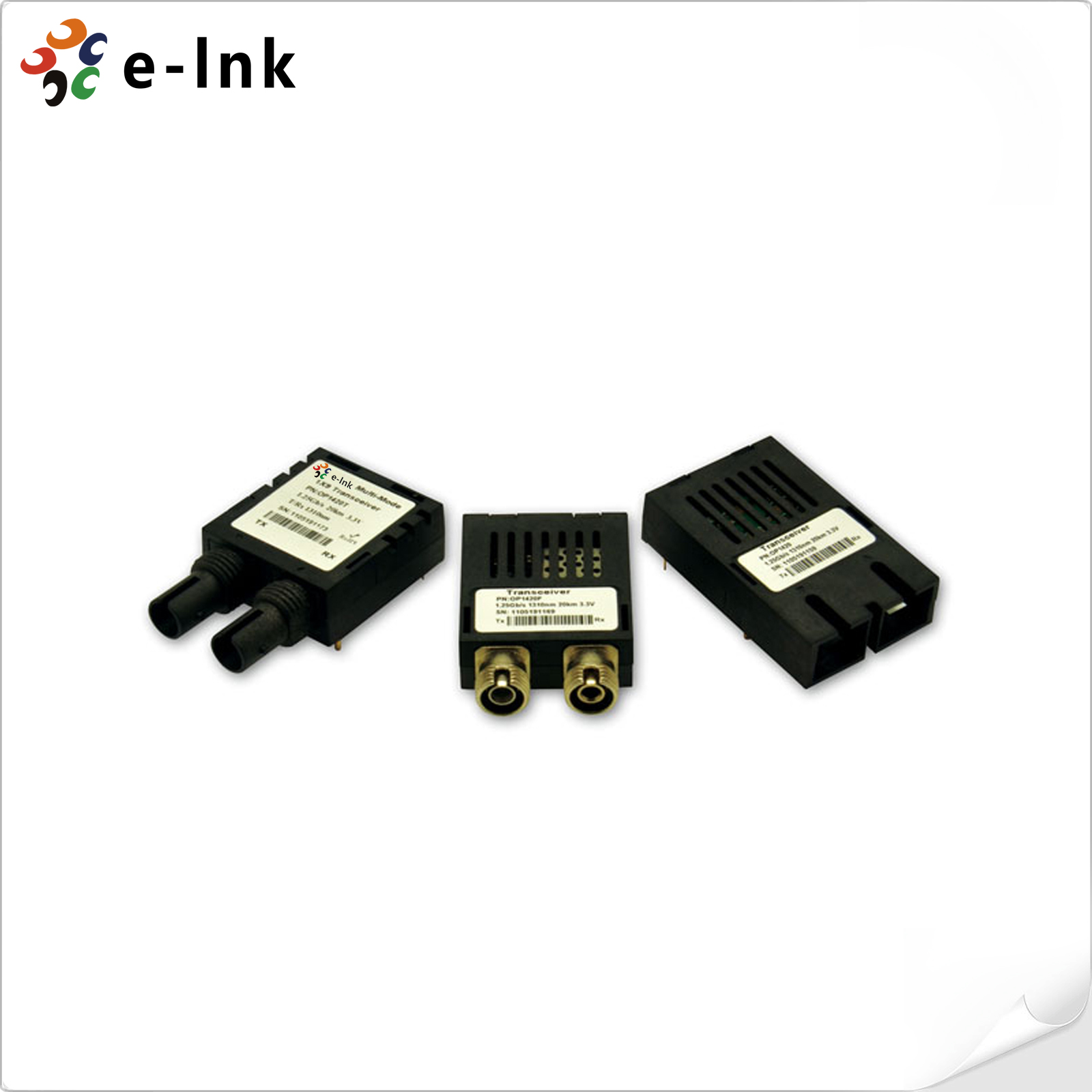

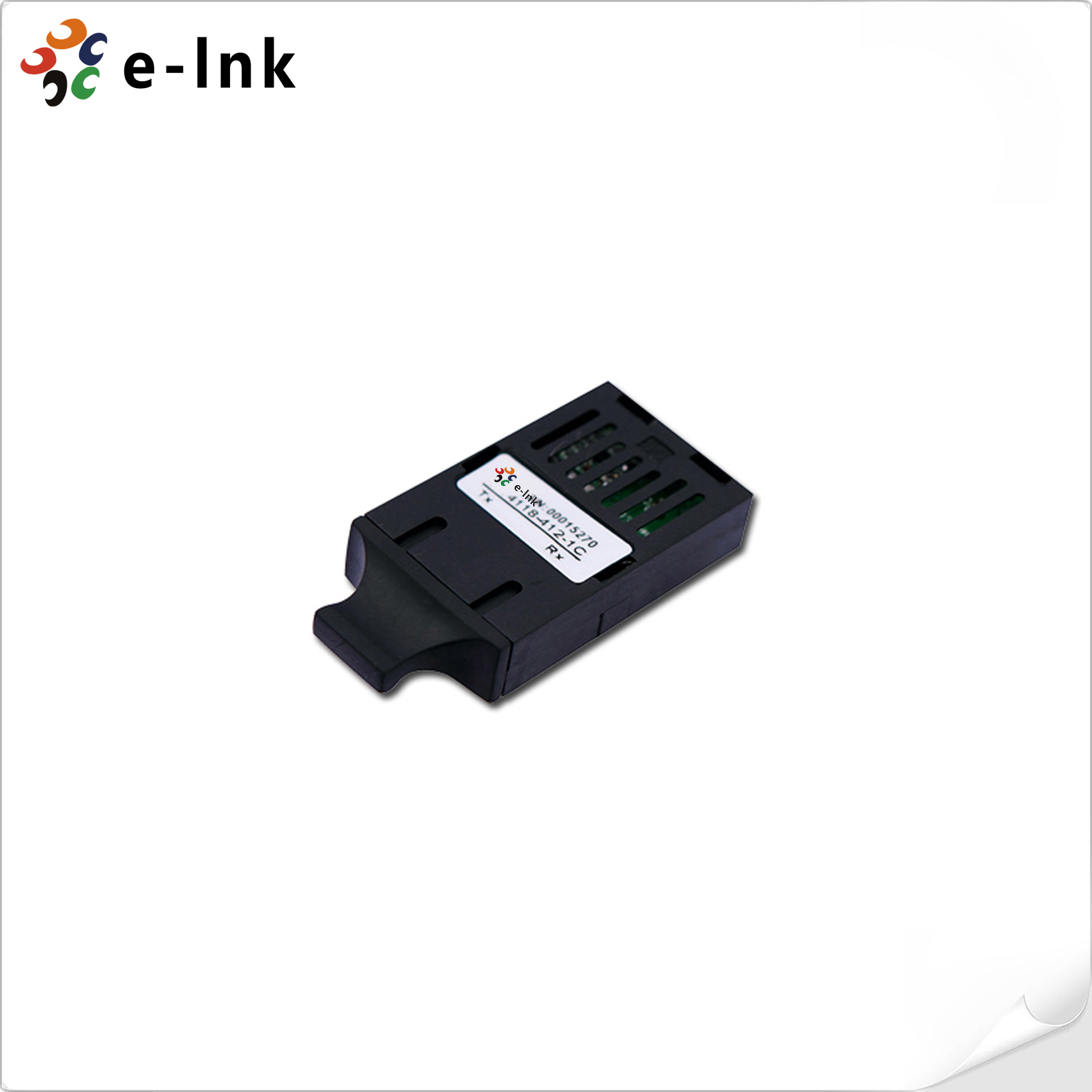

155M Single Mode 1x9 Optical Transceiver
Model:LNK-155M Series
►1×9 package with SC connector
►+3.3V single power supply
►LVPECL compatible data input/output interface
Description
The 1×9 transceiver supports 155Mbps and 20km transmission distance with SMF.
The transceiver consists of two sections: The transmitter section incorporates aFP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).
Feature
►1×9 package with SC connector
►+3.3V single power supply
►LVPECL compatible data input/output interface
►Low EMI and excellent ESD protection
►laser safety standard IEC-60825 compliant
►Compatible with RoHS
►Operating case temperature: Commercial: 0°C to +70°C Industrial: -40°C to +85°C
Application
►Ethernet
►Telecom
Transmitter Section
(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
Data rate |
- |
- |
155 |
- |
Mb/s |
|
Center Wavelength |
lo |
1260 |
1310 |
1360 |
nm |
|
Output Spectral width |
Dl |
- |
- |
4 |
nm |
|
Average Optical Output Power |
Po |
-15 |
- |
-3 |
dBm |
|
Extinction Ratio |
Er |
12 |
- |
18 |
dB |
|
Rise/Fall Time(20%~80%) |
Tr/Tf |
|
|
0.26 |
ns |
|
Total jitter |
Tj |
|
|
0.43 |
UI |
|
Optical Eye Diagram |
IEEE 802.3u and ANSI Fibre Channel Compatible |
||||
|
Input differential impendence |
Zdiff |
|
100 |
|
Ohm |
Receiver Section
(Ambient Operating Temperature 0°C to +70°C, Vcc =5 V)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
unit |
|
Data rate |
|
|
155 |
|
Mb/s |
|
Wavelength |
l |
1260 |
|
1620 |
nm |
|
Receiver Sensitivity |
Rsen |
- |
|
-34 |
dBm |
|
Receiver Overload |
Rov |
-3 |
|
|
|
|
Output differential impendence |
Zdiff |
|
100 |
|
Ohm |
|
LOSS Thresholds |
LOSSD |
- |
- |
-34 |
dBm |
|
LOSSA |
-45 |
|
|
|
Ordering Information
|
Part Number |
Product Description |
|
1x9 Transceiver 155Mb/s (Fast Ethernet), Single Mode SC Duplex 1310nm, 20km, +3.3V, operating temperature 0°C to +70°C |
|
|
LNK-155M-L20 |
1x9 Transceiver 155Mb/s (Fast Ethernet), Single Mode SC Duplex 1310nm, 20km, +3.3V, operating temperature - 40°C to +85°C |
|
LNK-155M-40 |
1x9 Transceiver 155Mb/s (Fast Ethernet), Single Mode SC Duplex 1310nm, 40km, +3.3V, operating temperature 0°C to +70°C |
|
LNK-155M-L40 |
1x9 Transceiver 155Mb/s (Fast Ethernet), Single Mode SC Duplex 1310nm, 40km, +3.3V, operating temperature - 40°C to +85°C |
