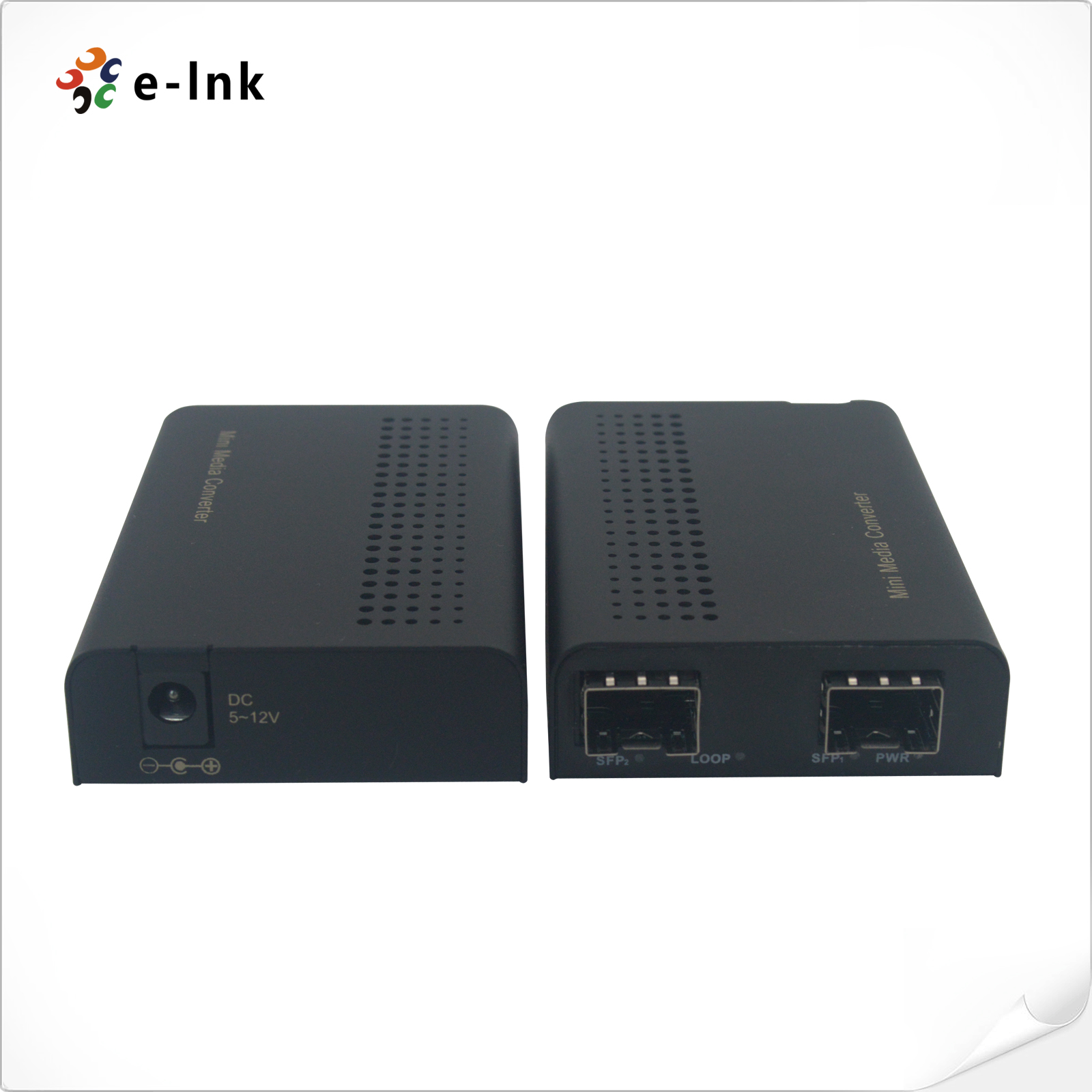

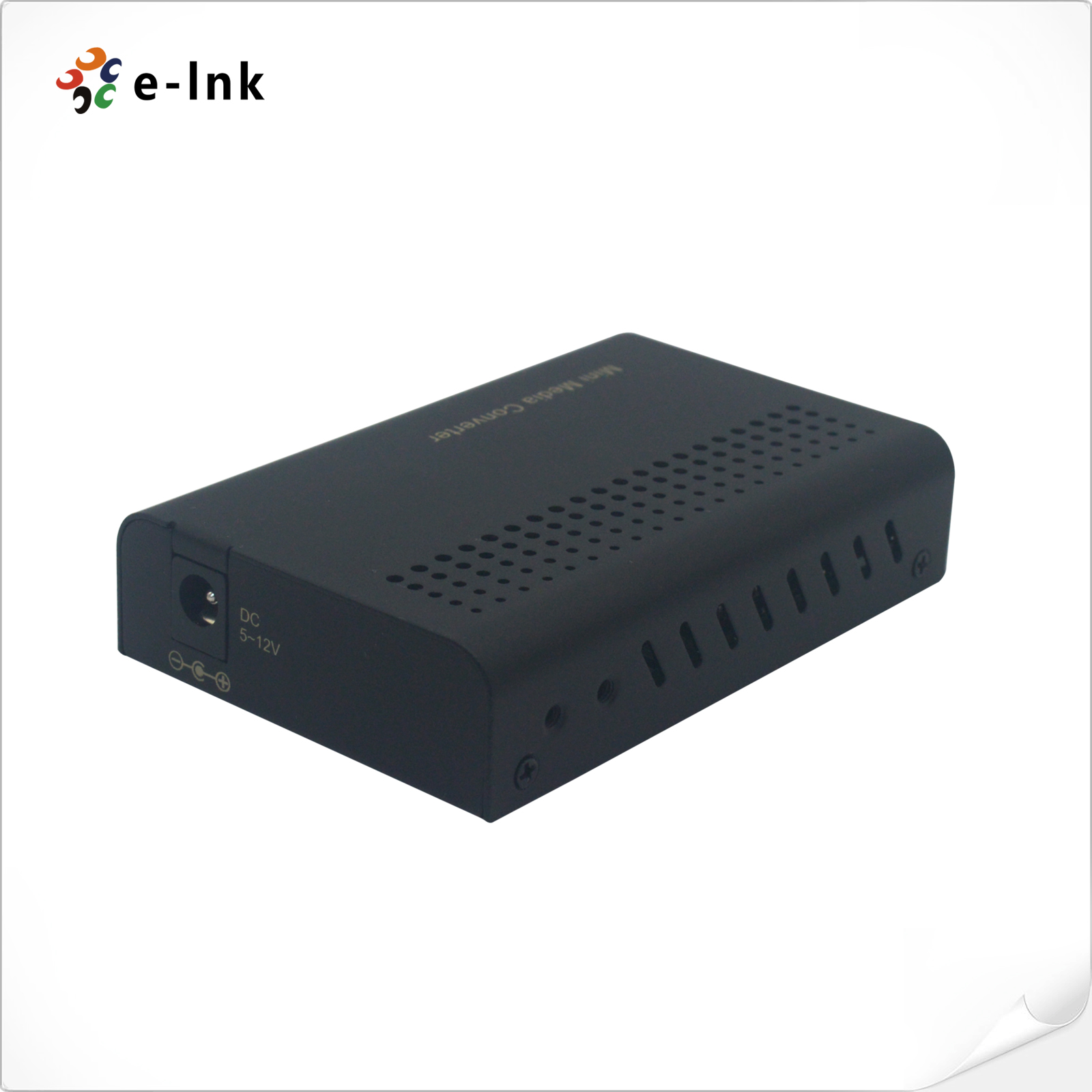

Mini-type 125M~1.25G OEO Media Converter (3R Repeater)
Model:LNK-MN-OEO-1G Series
► SFP to SFP optical mode converter
► Supports rate from 100Mbps to 1250Mbps
► Supports multimode and single-mode
Overview
E-link mini SFP to SFP converter offers protocol transparent connectivity between different wavelengths or fiber modes for speed from 100Mbps to 1250Mbps. Protocol independence allows for use in broad range of applications including Fast Ethernet, Gigabit Ethernet, OC-12 and Fiber Channel.
Features
► SFP to SFP optical mode converter
► Supports rate from 100Mbps to 1250Mbps
► Supports multimode and single-mode
► Wide power supply voltage range
► Compact package size
► Easy installation
Technical Indexes
|
Performance Data |
Technical Indexes |
|
Equipment function |
3R Repeater |
|
Transmission Speed |
100Mbps to 1250Mbps |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission Distance |
Multi-mode: 2 km; Single mode: 20/40/60/80/100 km; |
|
Conversion means |
Cut-Through mode |
|
Input voltage |
DC 5V~12V |
|
Power consumption |
<3W |
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% （ non-condensing ） |
|
Dimension |
Standalone：58 (W) x 20 (H) x 90 (L) (mm) |
- Download FileName：E-link LNK-MN-OEO-1G OEO Media Converter Datasheet V1.0.pdf Size： 270KB
Ordering Information
|
Model |
Description |
|
LNK-MN-OEO-1G |
Mini 125M~1.25G SFP to SFP Converter |
