1Ch POTS(FXO/FXS)Telephone over Fiber Mux

Model:LNK-PCM01 Series

►   1 channel support voice access, Support Caller ID and Fax

►   Voice port supports O port and S port, O port connects switch and S port connects user’s phone

Overview

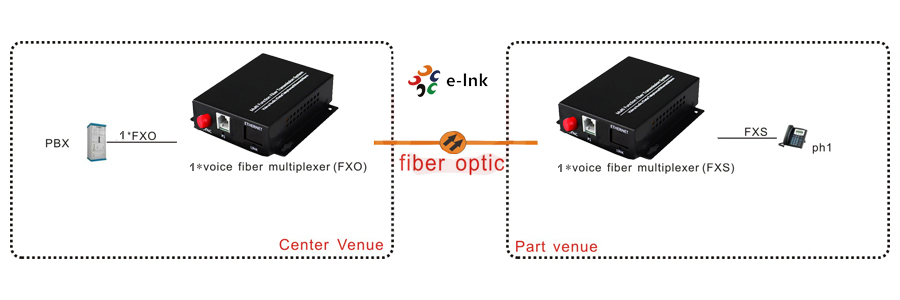

E-link 1 channel POTS (Plain Old Telephone System) phone lines over fiber converter/extender. This Voice over Fiber converter uses RJ-11C modular connectors for each copper pair connection. FXO type unit connects to a telephone line (PSTN) or PBX station line and has ability to detect ringing voltages and to act as a telephone. FXS type unit is the reciprocal unit and has ability to act as PSTN and connects to a telephone device.

Features

►   standard RJ11 telephone interface

►   1 channel support voice access, Support Caller ID and Fax

►   Voice port supports O port and S port, O port connects switch and S port connects user’s phone

►   Support FXO/FXS ordinary telephone

►   Support point-to-point, cascaded and distributed network connections, and SNR will not decline

►   Power link to fiber optic, data status indication LED can monitor system health

►   Industrial design, modular design allows flexible and reliable equipment

Application


►   Factory renovation, relocation distance call system

►   Highway 122 phone system

►   Remote multimedia teaching/campus monitoring, video conferencing systems

►   Telephone intercom, phone calls, related applications


Technical Indexes

Product Name

1 channel telephone over fiber converter

Product Model

LNK-PCM01 Series

Description

FXO/FXS Ordinary telephone

Telephone Ports

1 telephone port RJ11 port

Switch Terminal

Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN

FXS

Ringing voltage: 75V, ringing frequency: 25HZ

FXO

Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V

Ring detection frequency

17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db

Broadband Voice

8KHZ

Connection

Point to point,
telephone to telephone,

telephone to switch

Code

PCM code

Fiber Ports

FC/UPC

Ethernet Ports (optional)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 402.3, IEEE 402.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

Transmission distance

Single-mode single fiber 20KM

Environmental Specifications

Operating Temperature:  -35°~ 75°C

Storage Temperature: -40°~ 45°C

Operating Humidity: 0%~95%, non-condensing

Total power consumption

2.5w(Input:DC12V 1A)

Power supply

External power supply,
Input:AC110-40V 50/60Hz,
Output:12V 1A

  • Download FileName:E-link LNK-PCM01 Series 1Ch Telephone Fiber Mux Datasheet V1.0.pdf Size: 320KB

Ordering Information

Model

Description

LNK-PCM01

Analog Telephone to F/O Converter: 1-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs

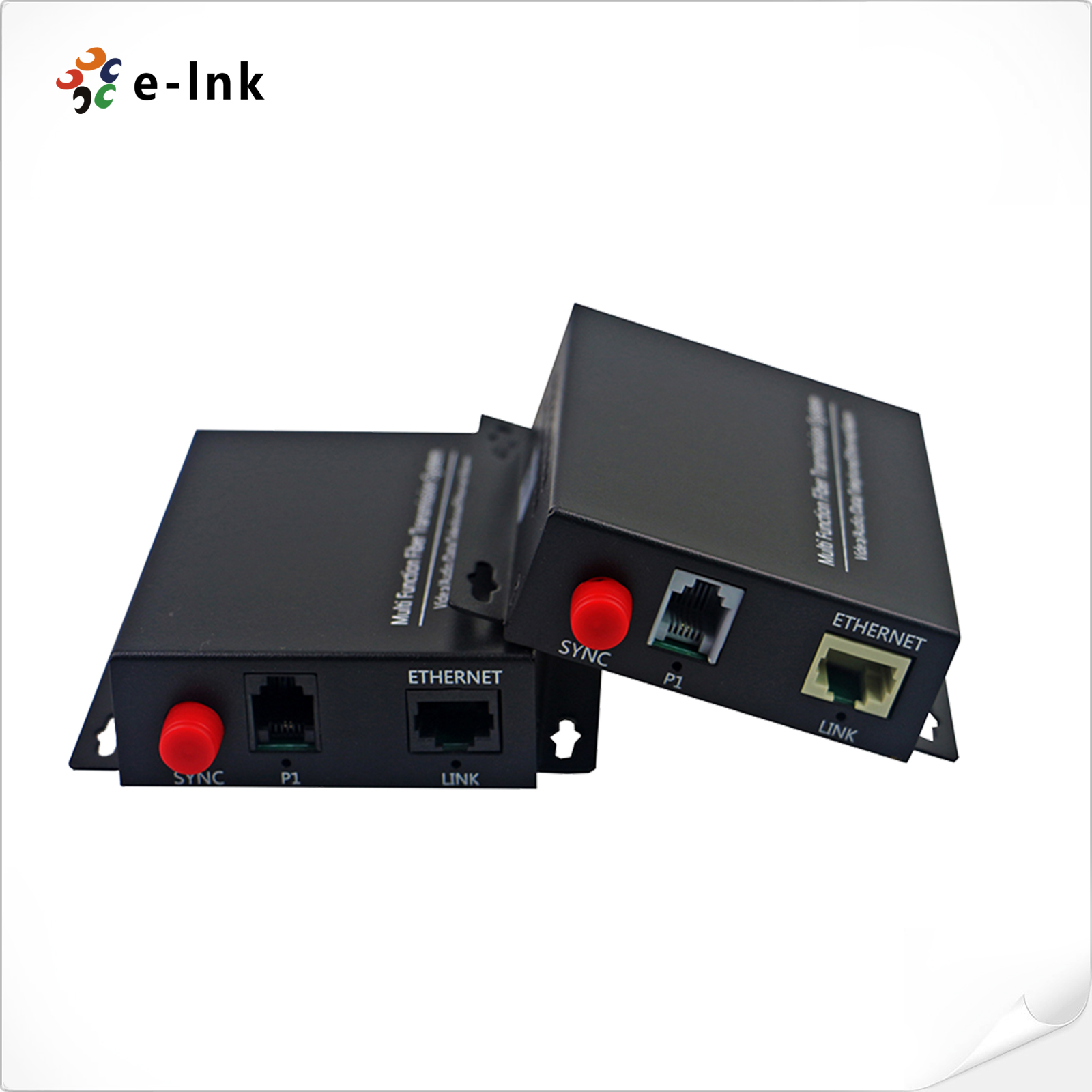

LNK-PCM01-E

Analog Telephone to F/O Converter: 1-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
