Overview

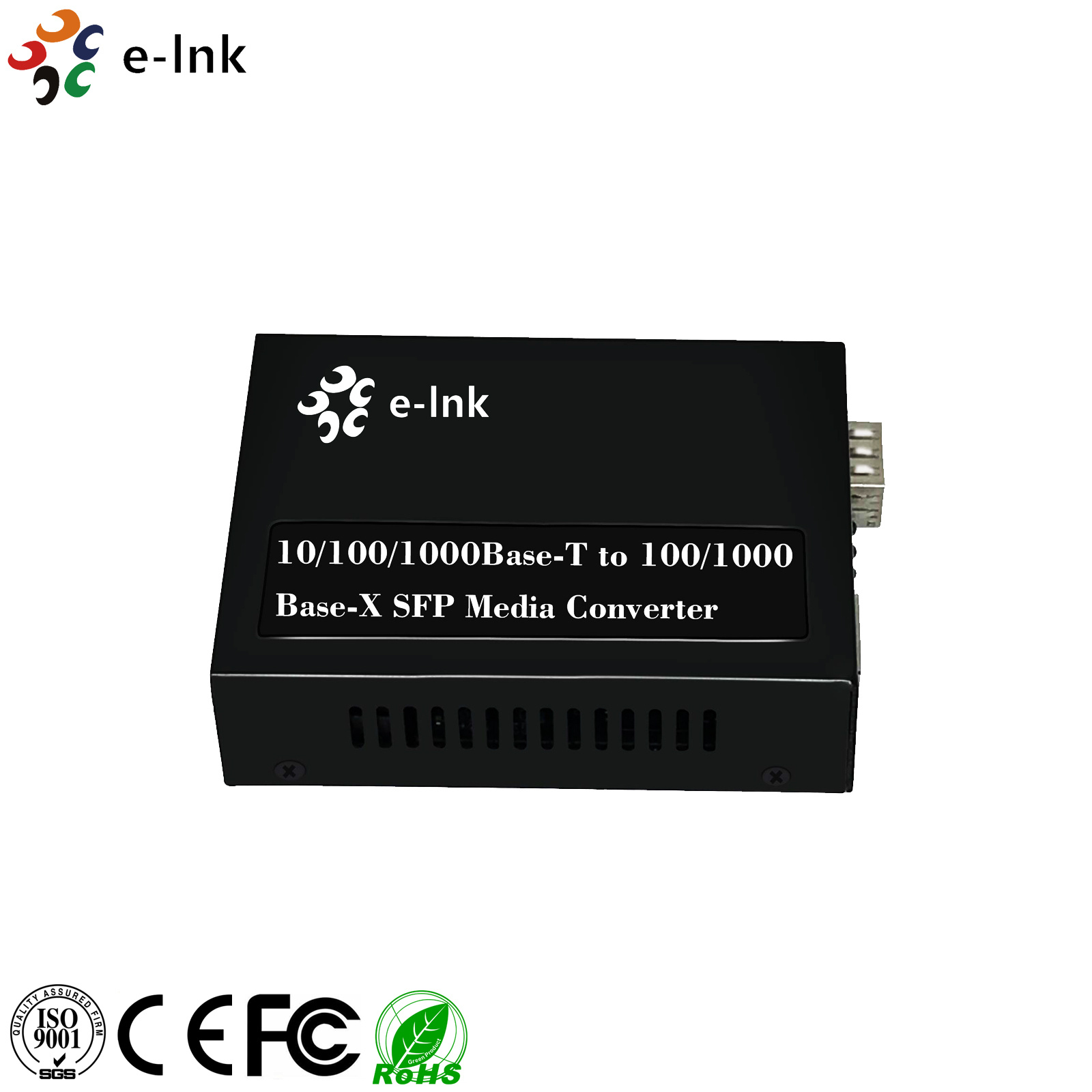

LNK-3012-SFP is equipped with one 10/100/1000BASE-T RJ45 copper and one 100/1000BASE-X SFP fiber optic interface with built-in power supply. The media converter fulfills 100/1000M auto-sensation at fiber optic port, which increase the flexibility of the whole network. The SFP slot of the LNK-3012-SFP is compatible with 100BASE-FX and 1000BASE-SX / LX / WDM through SFP fiber-optic transceivers.

Customer can easily migrate from 100M fiber to Gigabit without changing customer premise equipment (CPE). Start using the LNK-3012-SFP in your current 100M infrastructure. When you are ready to move to Gigabit Ethernet, only change the central switch and all the LNK-3012-SFP will automatically adjust to Gigabit speed. This cuts the number of customer visits in half and reduce installation cost with 50%. No need for proprietary equipment, it is compatible with you existing Ethernet products and follows all the accepted standards.

Features

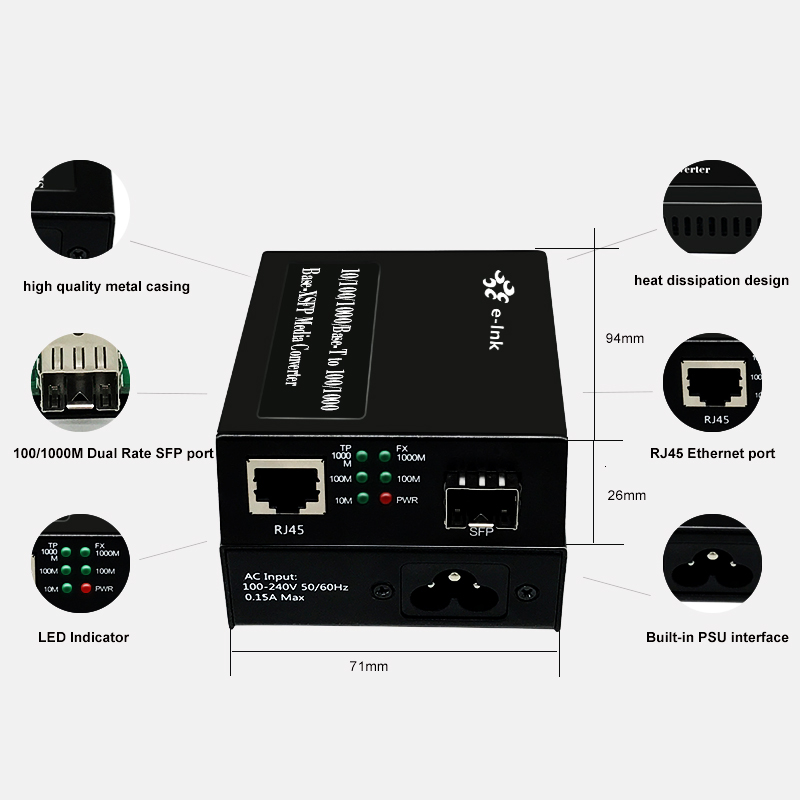

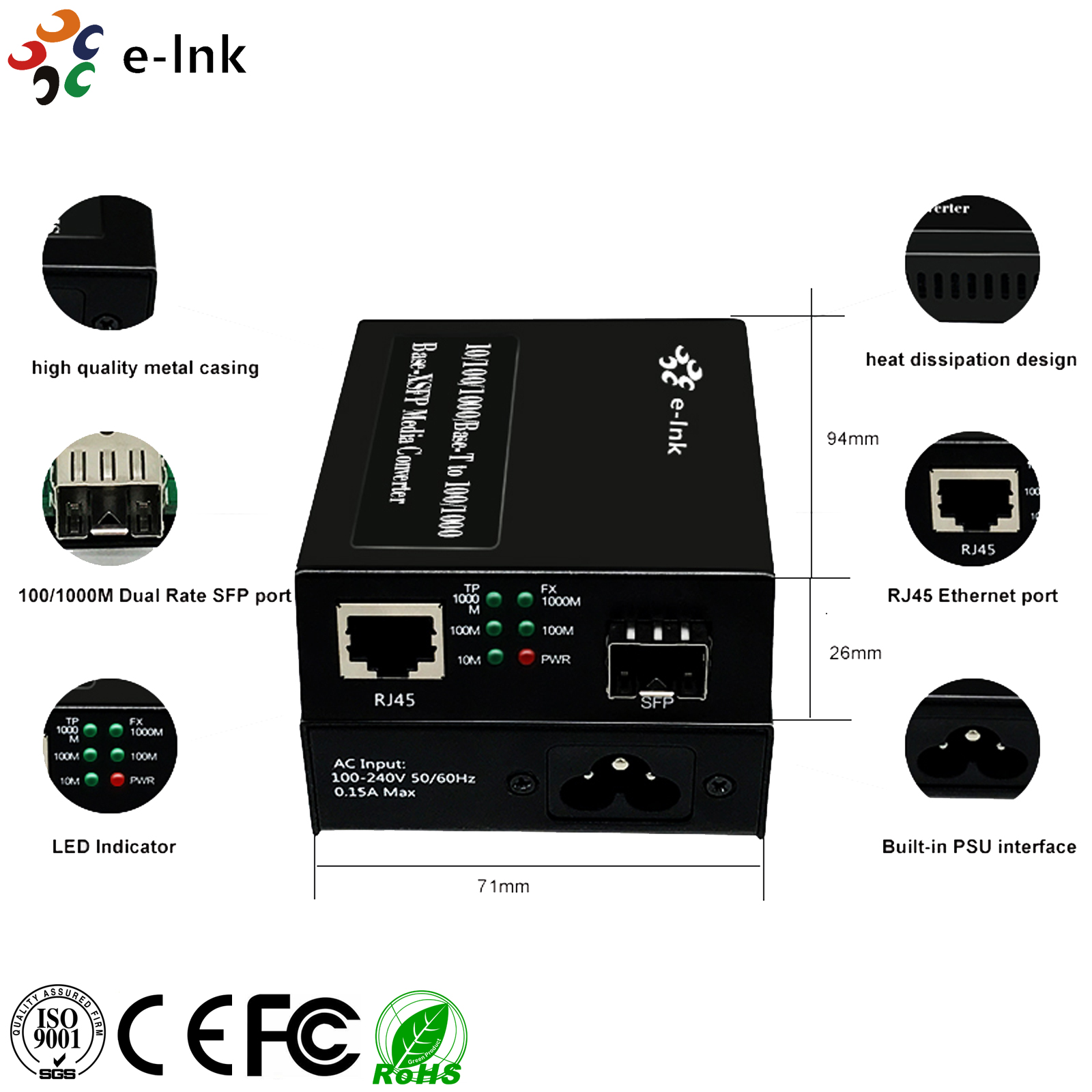

►   1-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function

►   1 SFP interface, 100/1000BASE-X dual mode (auto detection)

►   IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standard compliant

►   Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode

►   Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

►   9K jumbo frame size support

►   LFP function support

►   Supporting low-time lag transmission

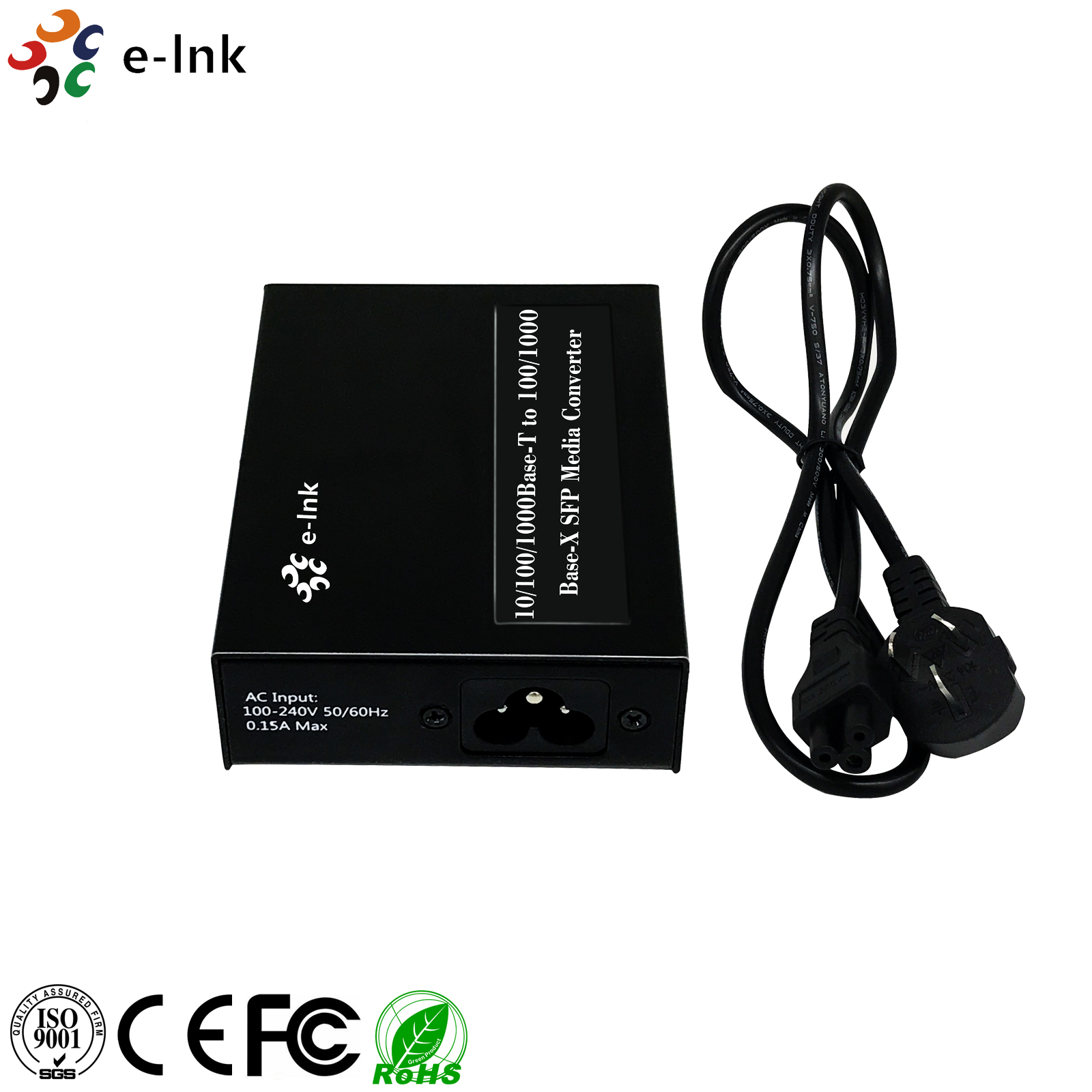

►   Built-in Power Supply

►   Extremely low power consumption (less than 3W), reliable and stable performance

Application

Technical Indexes

*Specifications subject to change without notice.

• Download FileName：E-link LNK-3012-SFP Series Media Converter Datasheet V2.0.pdf Size： 286KB

Ordering Information
