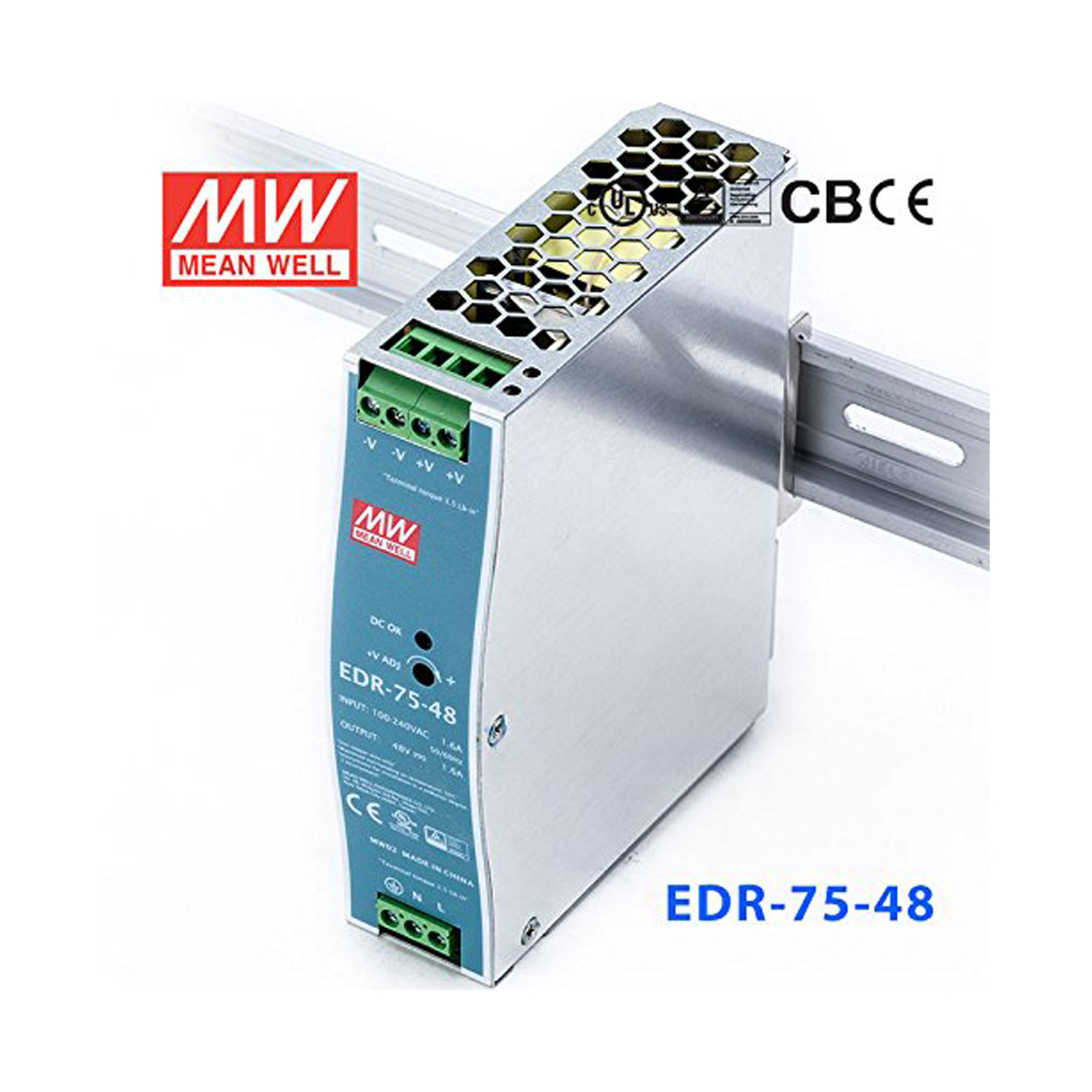

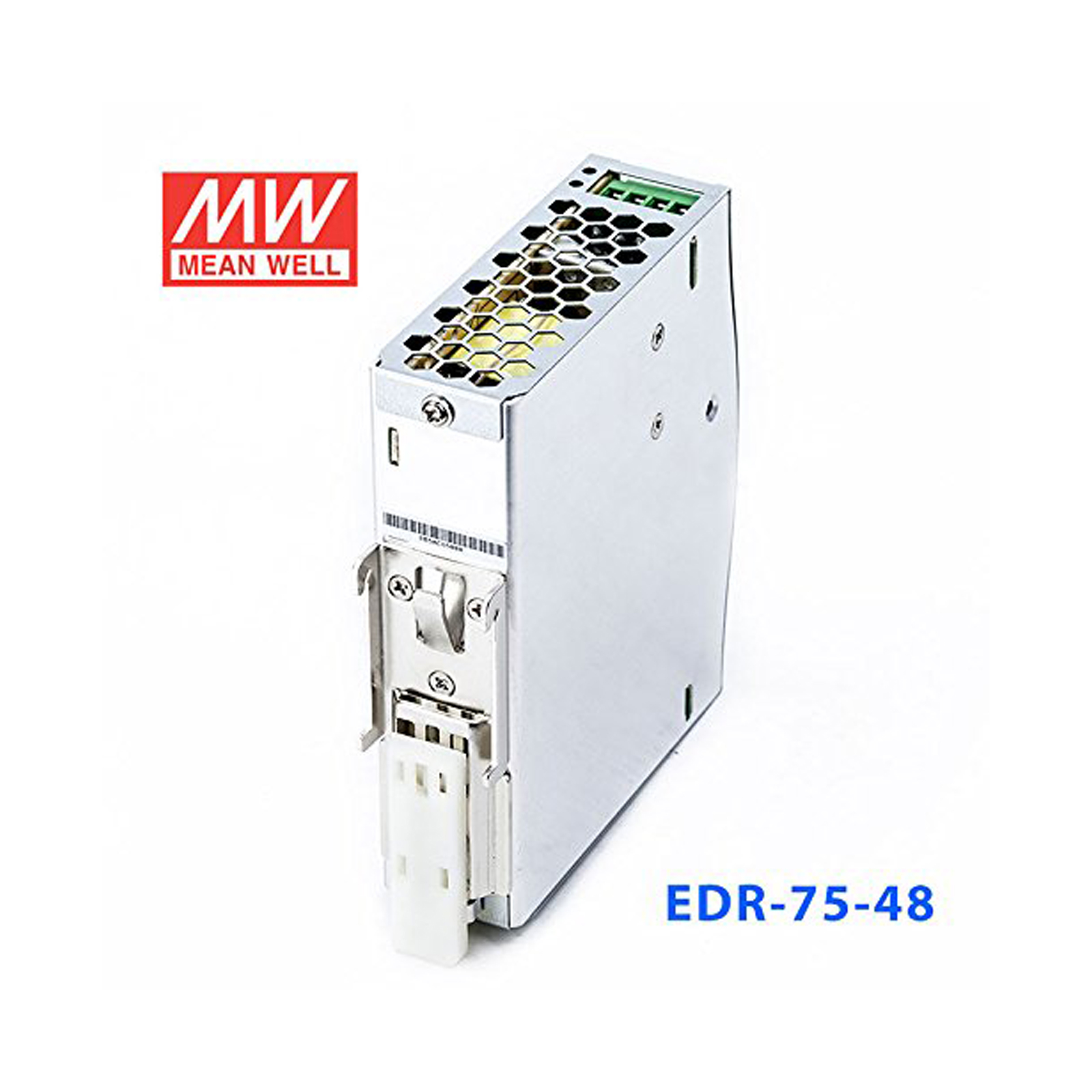

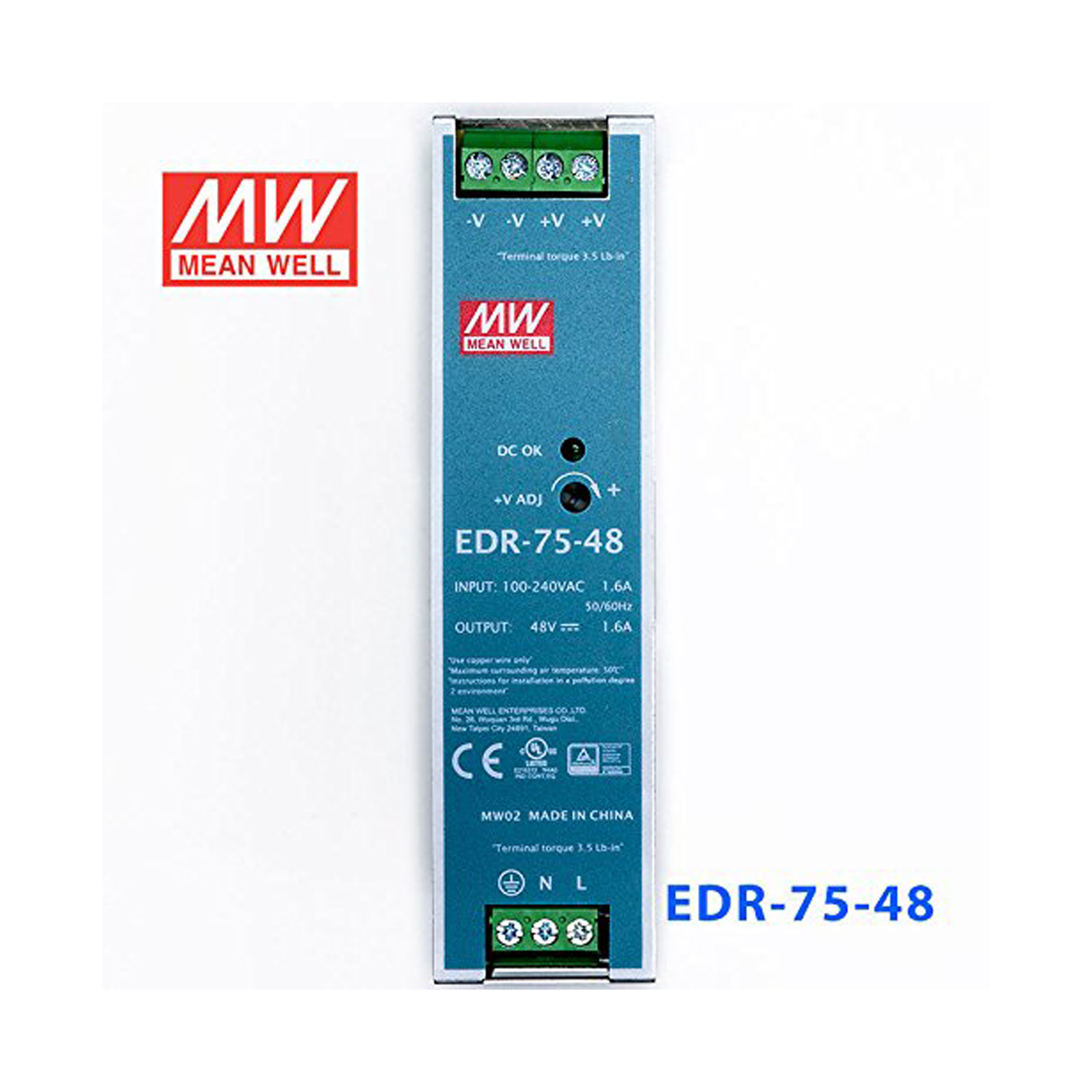

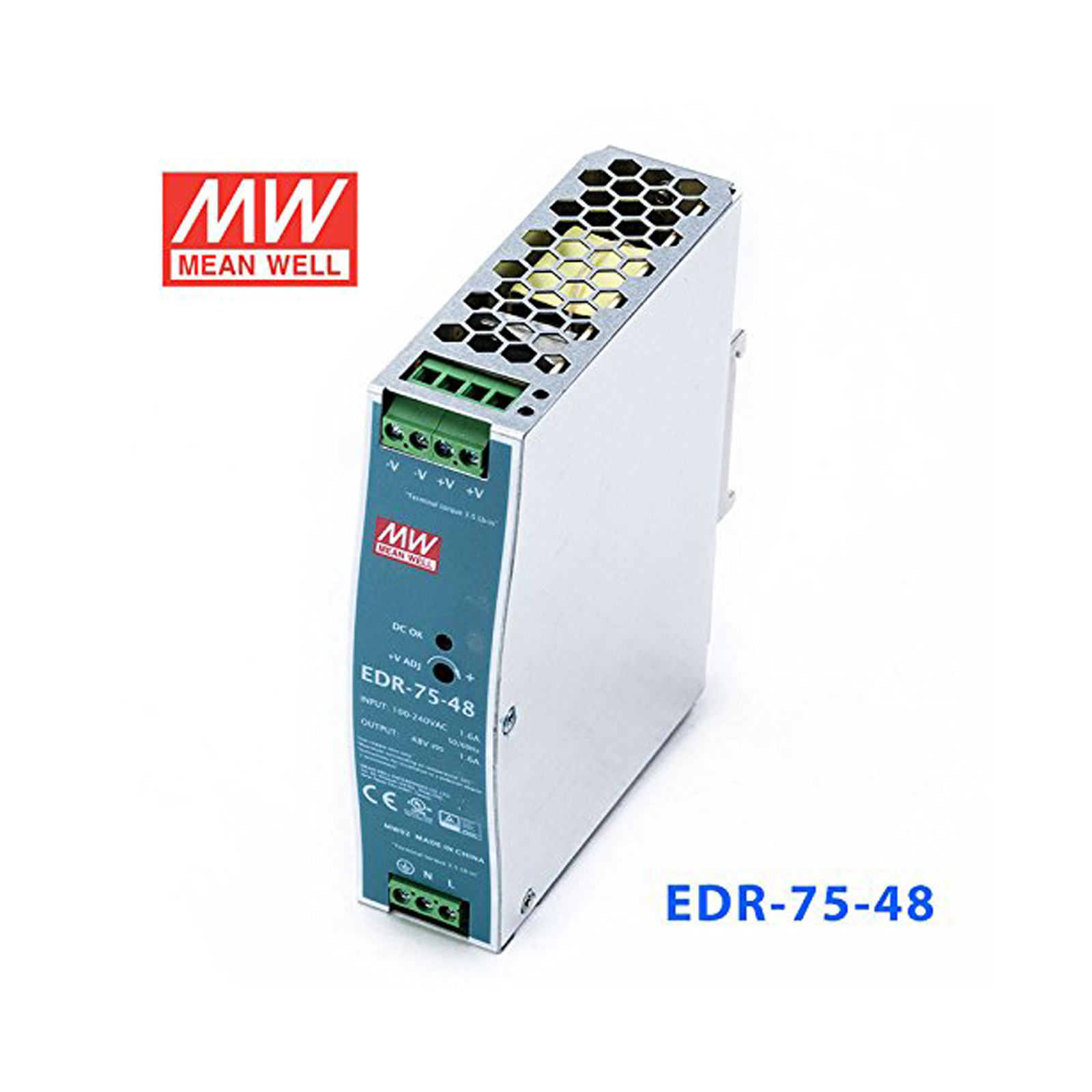

MEAN WELL 75W/48V 1.6A Industrial DIN RAIL Power Supply EDR-75-48
Model:EDR-75-48
► Universal AC input / full range
► Protection features: short circuit, overload, over voltage and over temperature
► Cooling by free air convection
► Can be installed on DIN rail TS-35/7.5 or 15 installation
MEAN WELL 75W/48V 1.6A Industrial DIN RAIL Power Supply
EDR-75-48
Features
► Universal AC input / full range
► Protection features: short circuit, overload, over voltage and over temperature
► Cooling by free air convection
► Can be installed on DIN rail TS-35/7.5 or 15 installation
► UL 508 (industrial control equipment) approved
► EN61000-6-2 (EN50082-2) industrial immunity level
► 100% full load burn-in test
► 2 years warranty
Technical Indexes
|
MEAN WELL/EDR-75-48 |
|
|
Configuration |
Enclosed |
|
Dimensions (W x H x D) |
32 x 125.2 x 102 mm |
|
Weight (kg) |
0.51kg |
|
Mounting Type |
DIN-Rail Mount |
|
Input Voltage |
100-240V AC,50/60Hz, 1.45A |
|
Power Output |
76.8 Watts, 48V, 1.6A |
|
Primary Type |
AC-DC |
|
Series |
EDR Series |
|
Type |
Industrial |
|
Temperature |
Operating:-20~+60 degrees C |
|
Humidity |
Operating: 20 ~ 95% |
|
Installation |
DIN rail TS-35/7.5 or 15 |
|
Safety & Function |
Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
|
Special Features |
*2 Year Warranty; 100% Full Load Burn-In Test ; DC OK Active Signal; Short Circuit Protection ; Overload Protection; Over Voltage Protection |
- Download FileName：EDR-75-48 MEAN WELL Industrial DIN-RAIL Power Supply.PDF Size： 557KB
| Item | Description | Unit |
| EDR-75-48 | 75W/1.6A 48VDC Single Output Industrial DIN Rail Power Supply | pcs |
