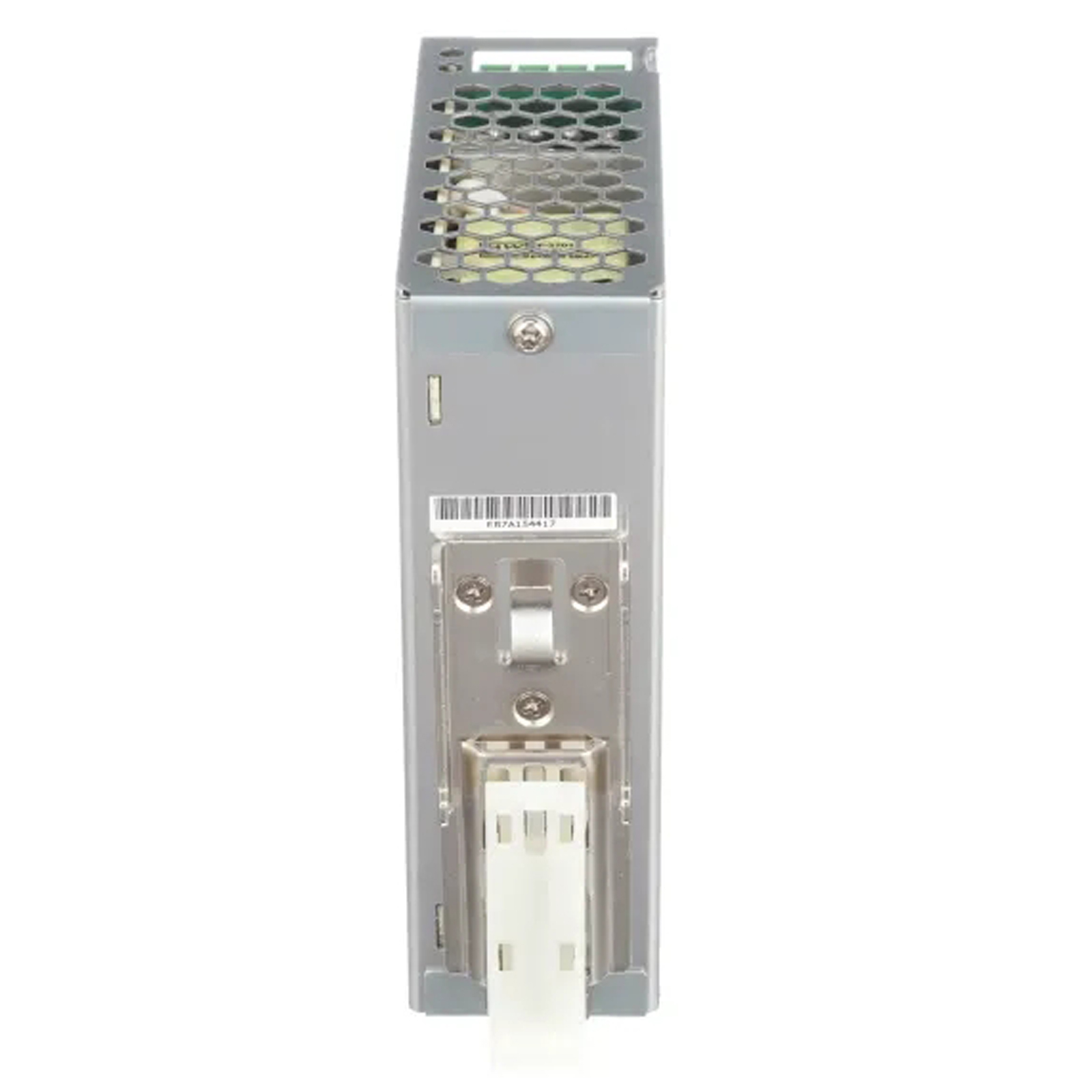

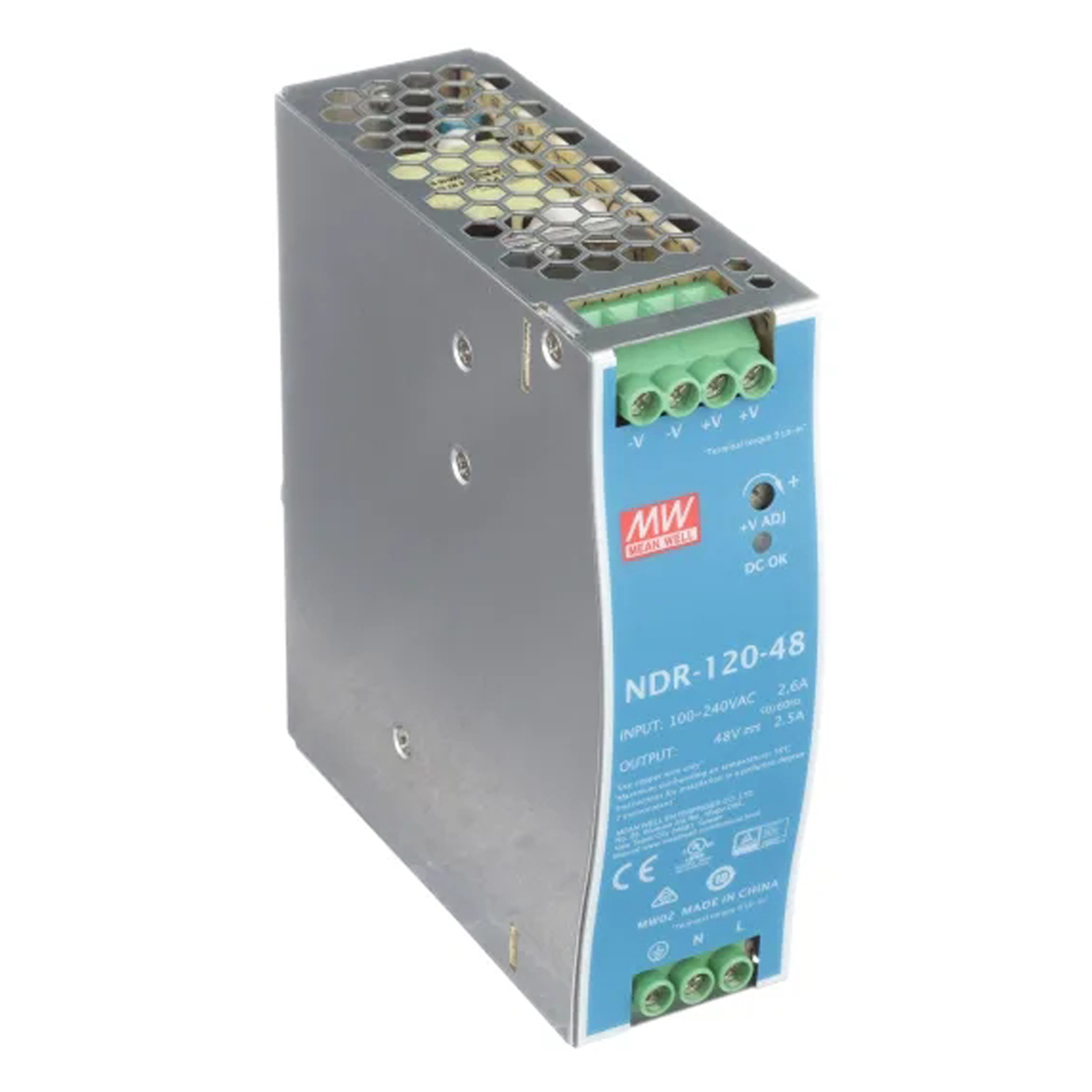

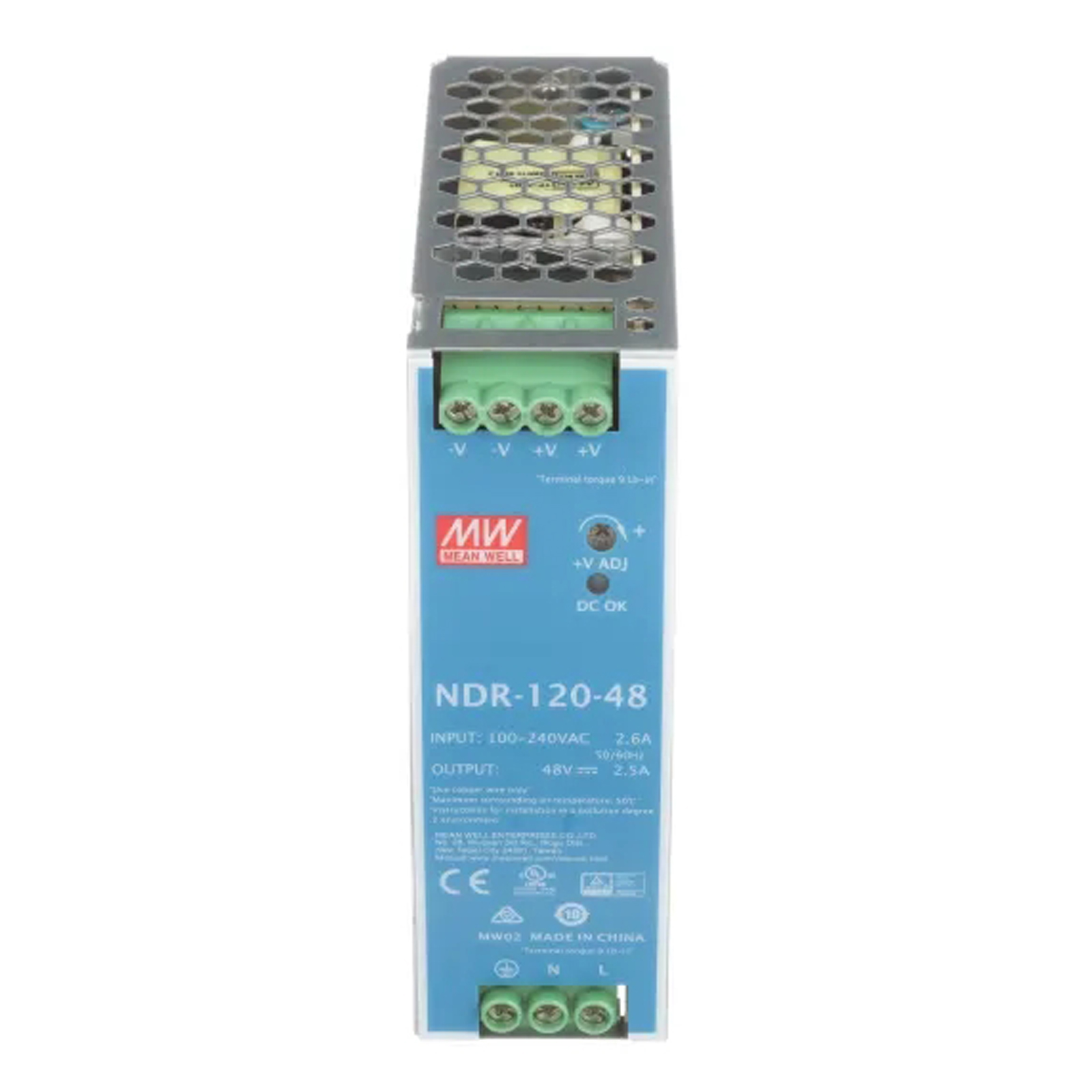

MEAN WELL 120W/48V 2.5A Industrial DIN RAIL Power Supply NDR-120-48
Model:NDR-120-48
► Universal AC input for full operation
► Protection features: short circuit, overload, over voltage and over temperature
► Cooling by free air convection
► DIN rail TS-35/7.5 or 15 installation
MEAN WELL 120W/48V 2.5A Industrial DIN RAIL Power Supply
NDR-120-48
Features
► Universal AC input for full operation
► Protection features: short circuit, overload, over voltage and over temperature
► Cooling by free air convection
► DIN rail TS-35/7.5 or 15 installation
► UL 508 (industrial control equipment) approved
► EN61000-6-2 (EN50082-2) industrial immunity level
► 100% full load burn-in test
► 3 years warranty
Technical Indexes
|
MEAN WELL/NDR-120-48 |
|
|
Configuration |
Enclosed |
|
Dimensions (W x H x D) |
40 x 125.2 x 113.5 mm |
|
Weight (kg) |
0.6kg |
|
Mounting Type |
DIN-Rail Mount |
|
Input Voltage |
100-240V AC,50/60Hz, 2.25A |
|
Power Output |
120 Watts, 48V, 2.5A |
|
Primary Type |
AC-DC |
|
Series |
NDR Series |
|
Type |
Industrial |
|
Temperature |
Operating:-20~70 degrees C |
|
Humidity |
Operating: 20 ~ 95% |
|
Installation |
DIN rail TS-35/7.5 or 15 |
|
Safety & Function |
Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
|
Special Features |
*3 Year Warranty; 100% Full Load Burn-In Test ; DC OK Active Signal; Short Circuit Protection ; Overload Protection; Over Voltage Protection |
- Download FileName：NDR-120-SPEC.PDF Size： 573KB
| Item | Description | Unit |
| NDR-120-48 | MEAN WELL 120W/48V 2.5A Industrial DINRAIL Power Supply | pcs |
