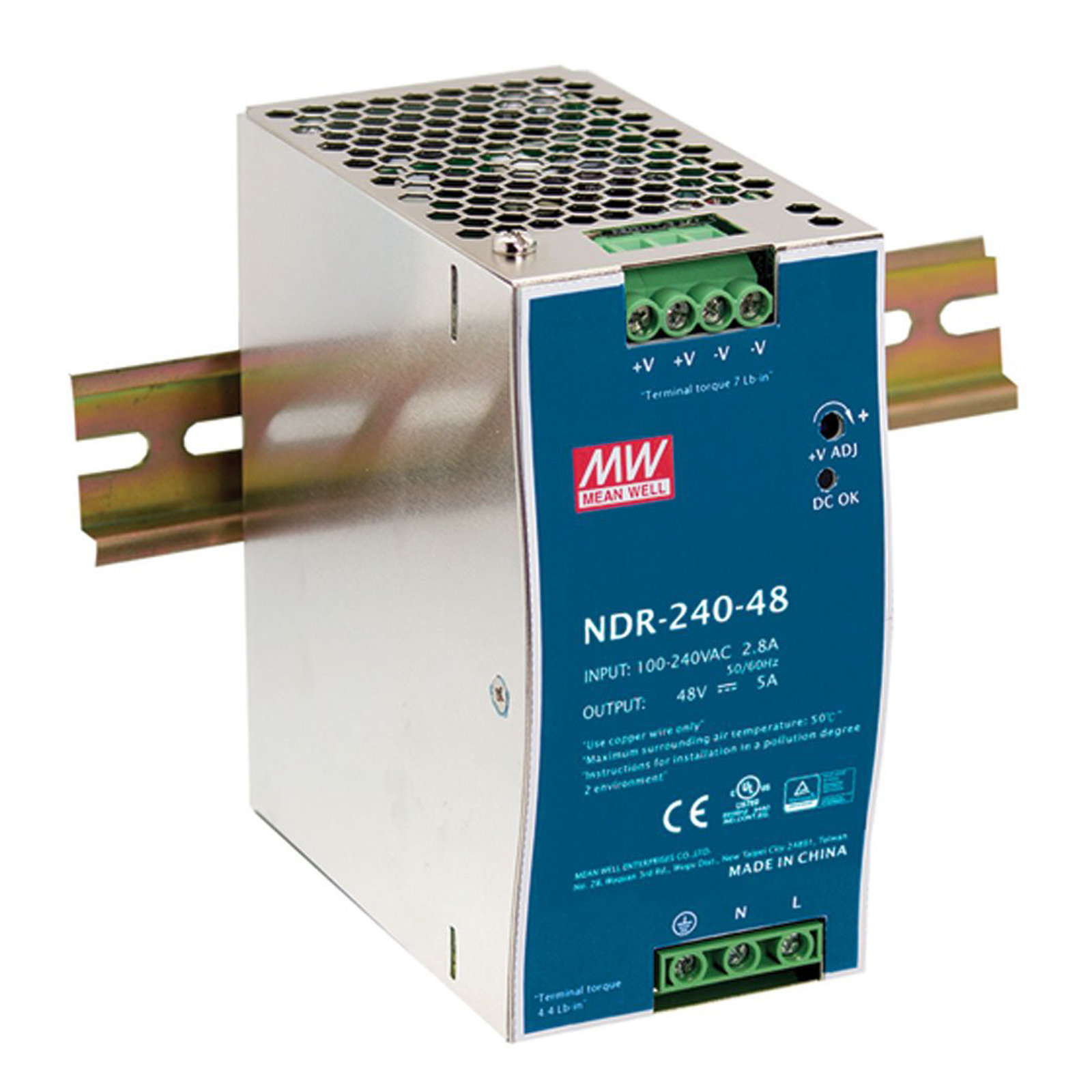

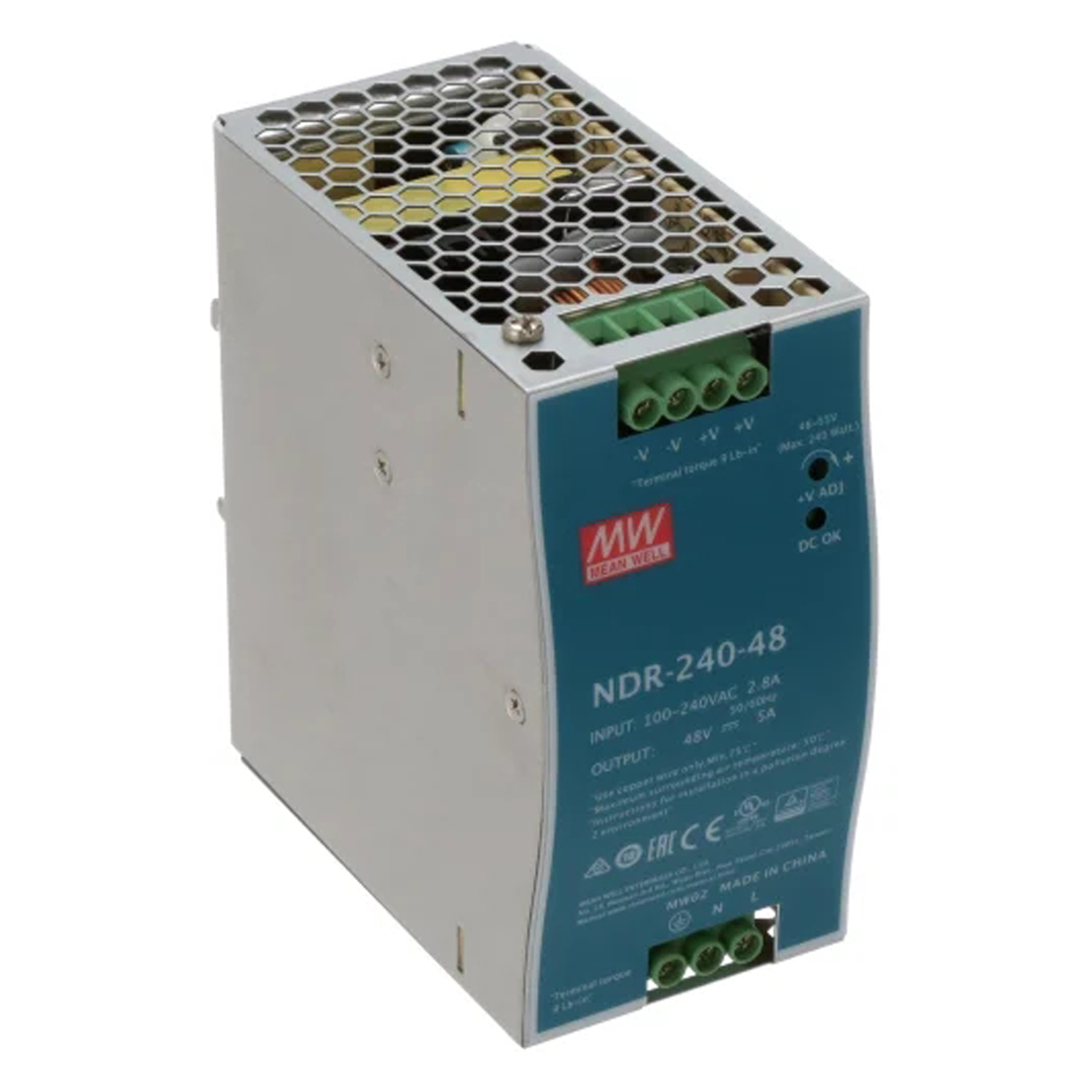

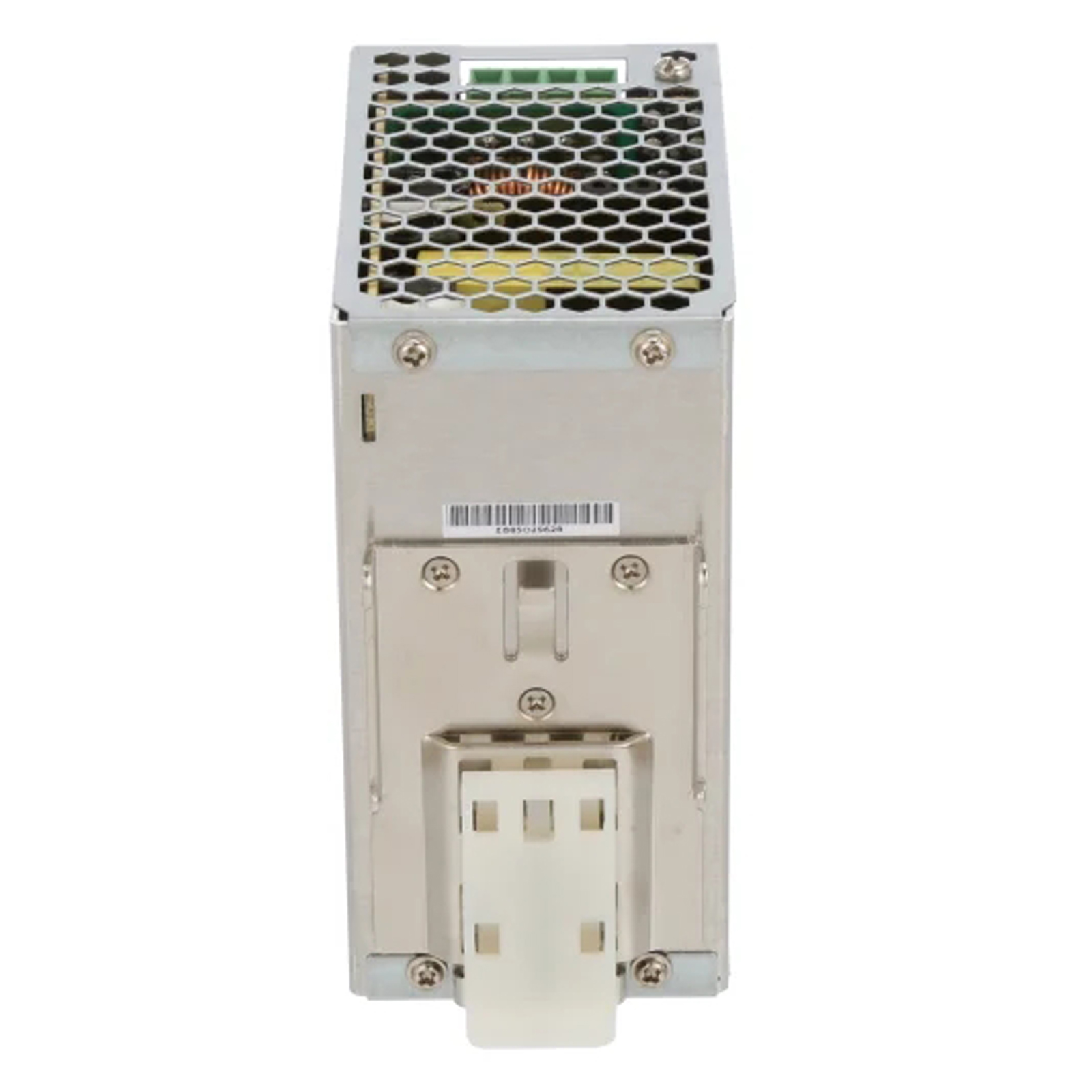

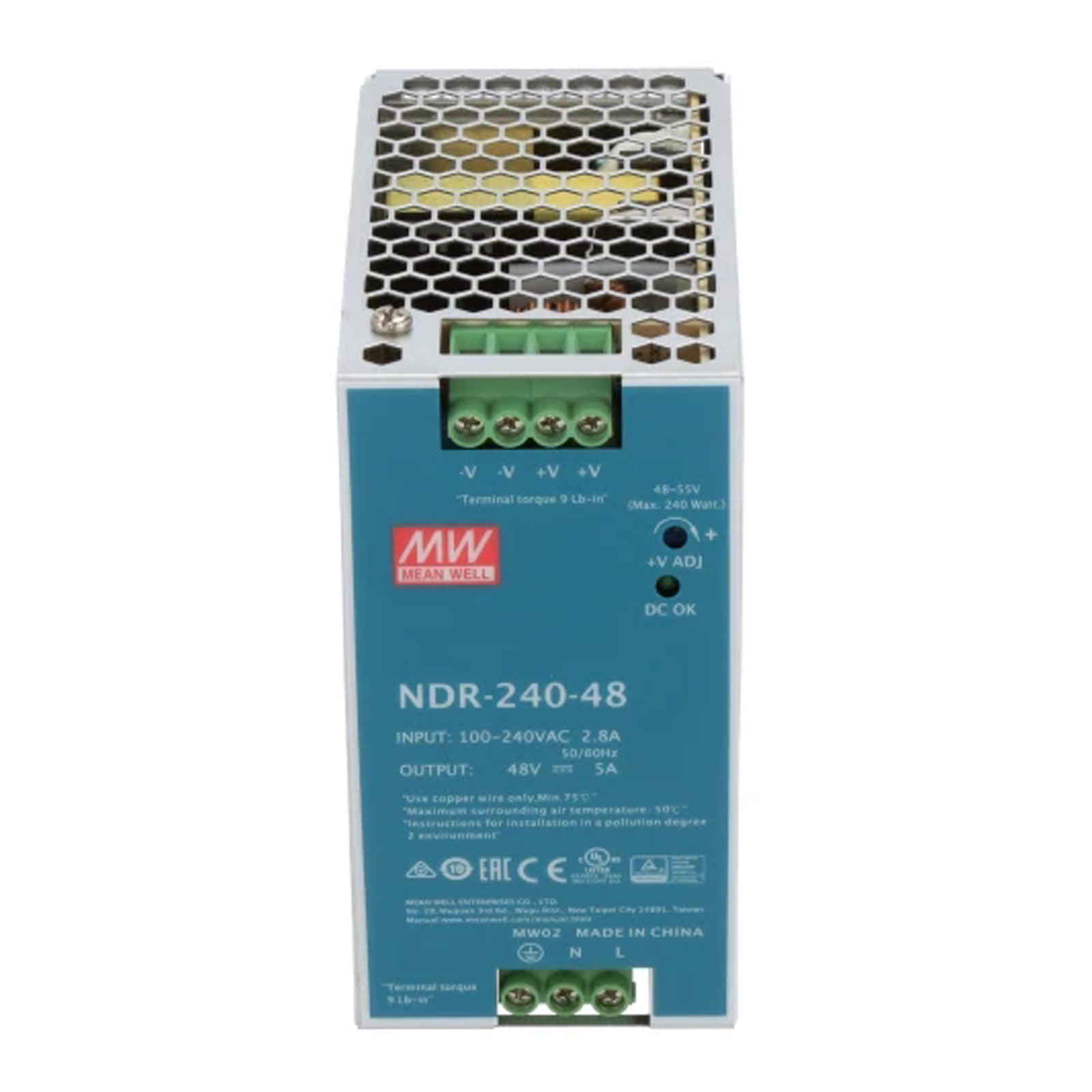

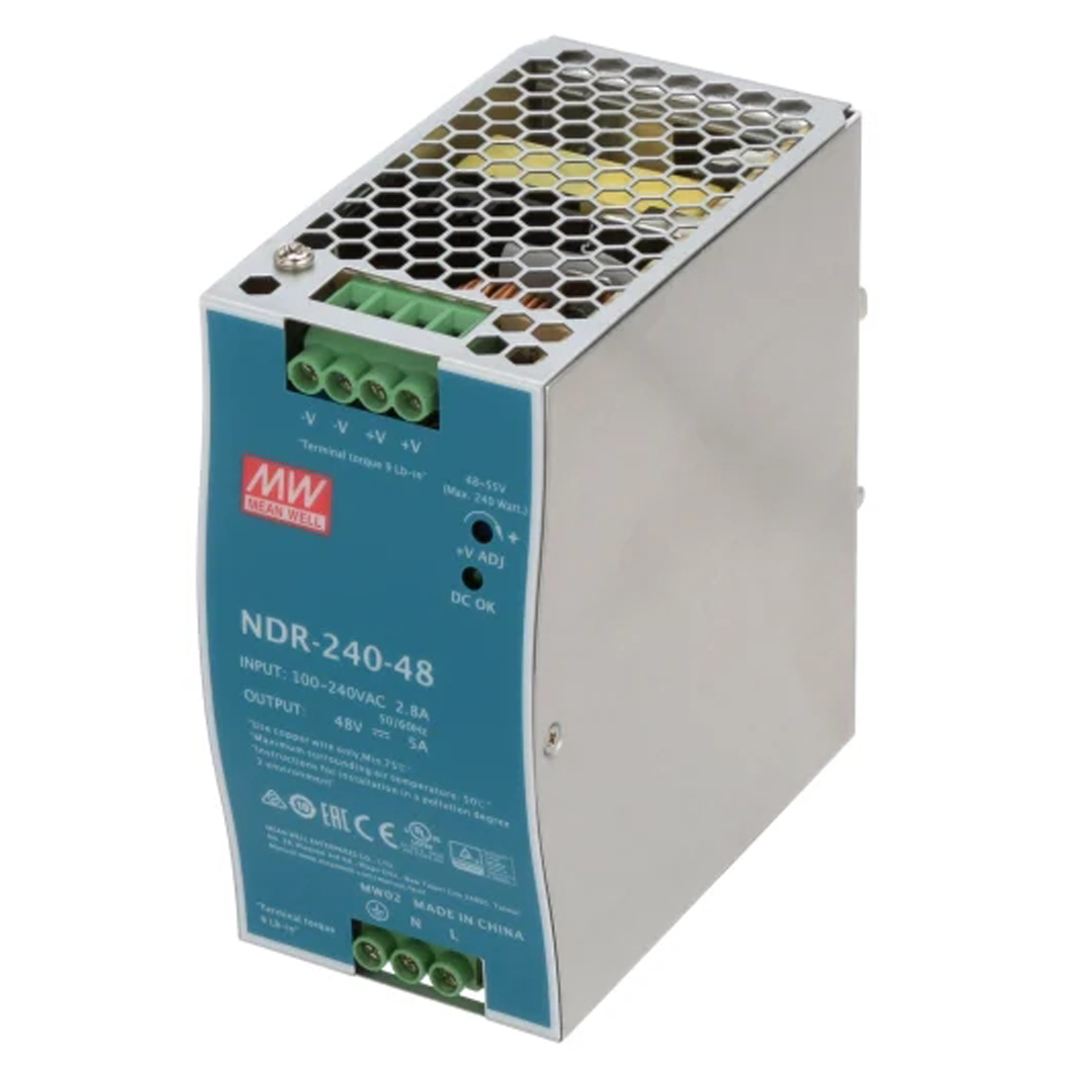

MEAN WELL 240W/48V 5A Industrial DIN RAIL Power Supply NDR-240-48
Model:NDR-240-48
► Universal AC input/Full range
► Built in active PFC function
► Protections: Short circuit / Overload / Over voltage
► Cooling by free air convection
MEAN WELL 240W/48V 5A Industrial DIN RAIL Power Supply
NDR-240-48
Features
► Universal AC input/Full range
► Built in active PFC function
► Protections: Short circuit / Overload / Over voltage
► Cooling by free air convection
► Can be installed on DIN rail TS-35/7.5 or 15
► UL 508 (industrial control equipment) approved
► EN61000-6-2 (EN50082-2) industrial immunity level
► 100% full load burn-in test
► 3 years warranty
Technical Indexes
|
MEAN WELL/NDR-240-48 |
|
|
Configuration |
Enclosed |
|
Dimensions (W x H x D) |
63 x 125.2 x 113.5 mm |
|
Weight (kg) |
1kg |
|
Mounting Type |
DIN-Rail Mount |
|
Input Voltage |
100-240V AC,50/60Hz, 2.5A |
|
Power Output |
240 Watts, 48V, 5A |
|
Primary Type |
AC-DC |
|
Series |
NDR Series |
|
Type |
Industrial |
|
Temperature |
Operating:-20~70 degrees C |
|
Humidity |
Operating: 20 ~ 95% |
|
Installation |
DIN rail TS-35/7.5 or 15 |
|
Safety & Function |
Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
|
Special Features |
*3 Year Warranty; 100% Full Load Burn-In Test ; DC OK Active Signal; Short Circuit Protection ; Overload Protection; Over Voltage Protection |
- Download FileName：NDR-240-SPEC.PDF Size： 606KB
| Item | Description | Unit |
| NDR-240-48 | MEAN WELL 240W/48V 5A Industrial DIN-RAIL Power Supply | pcs |
