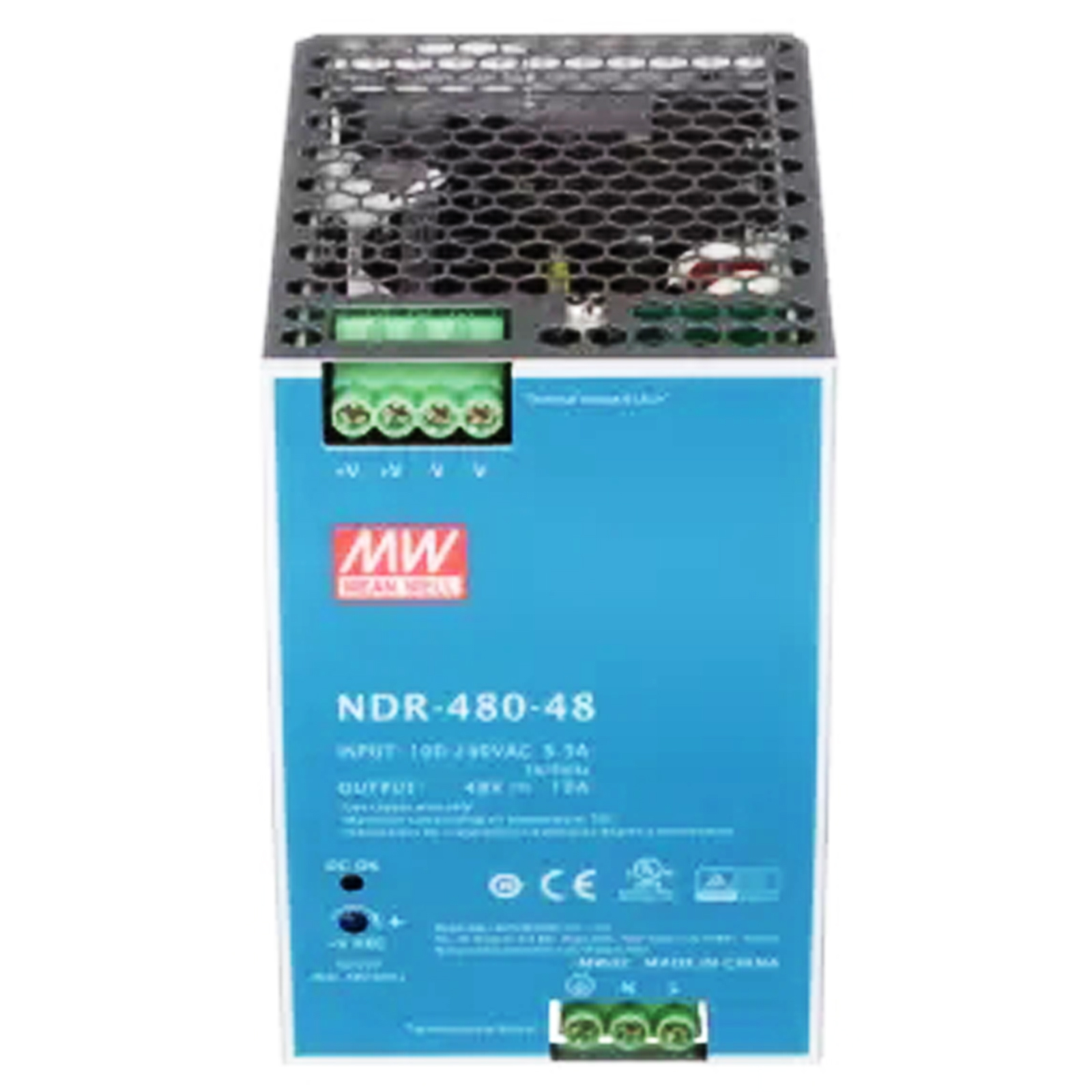

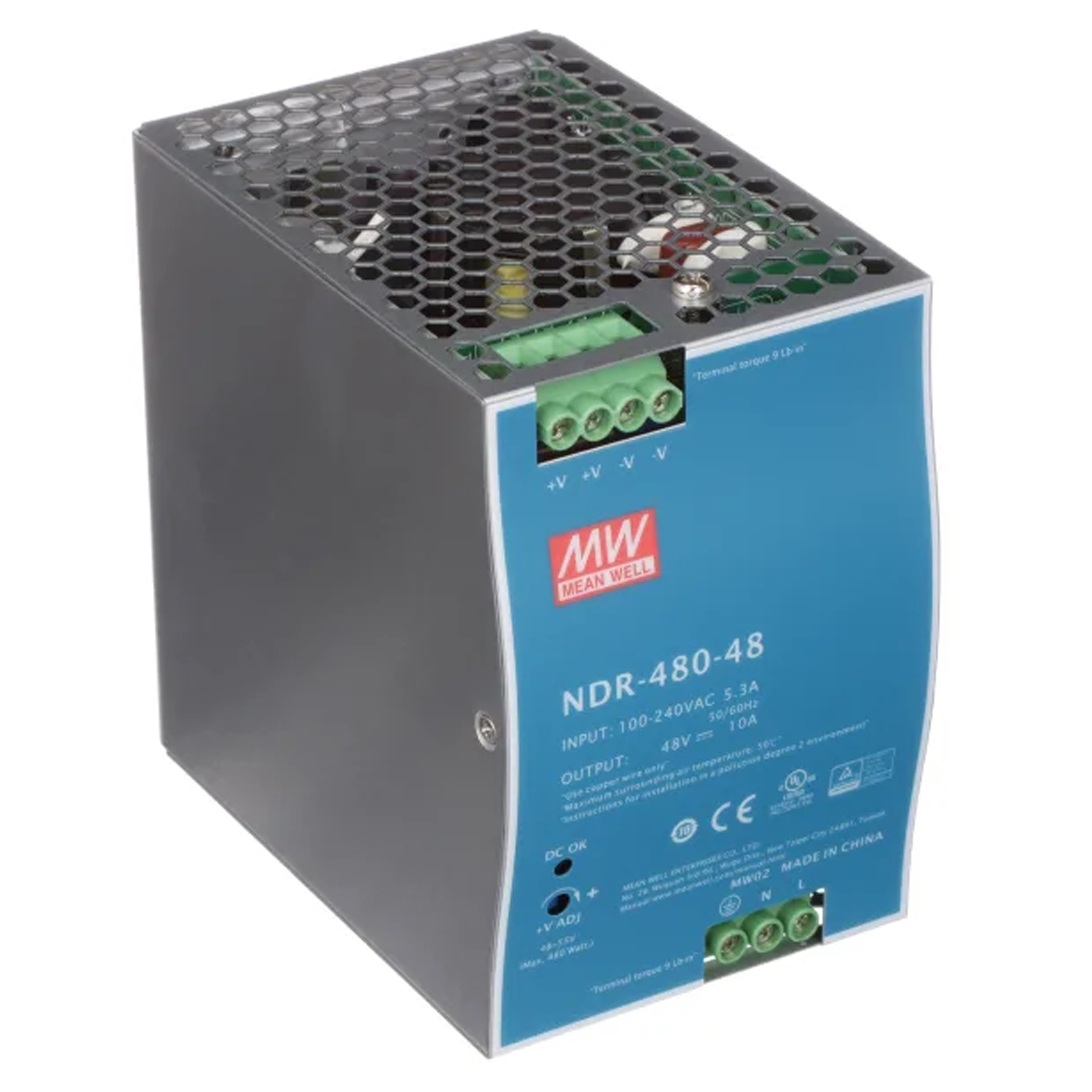

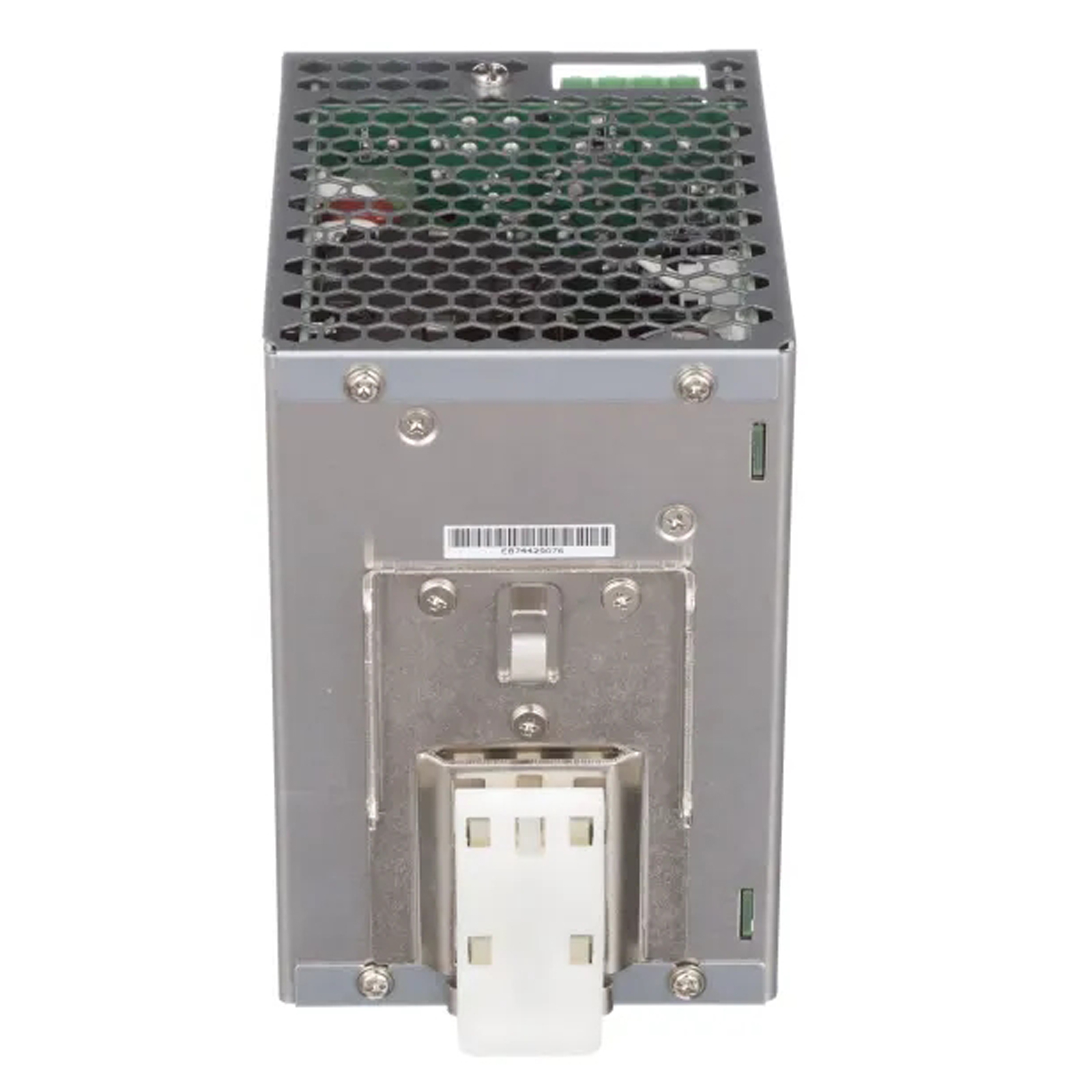

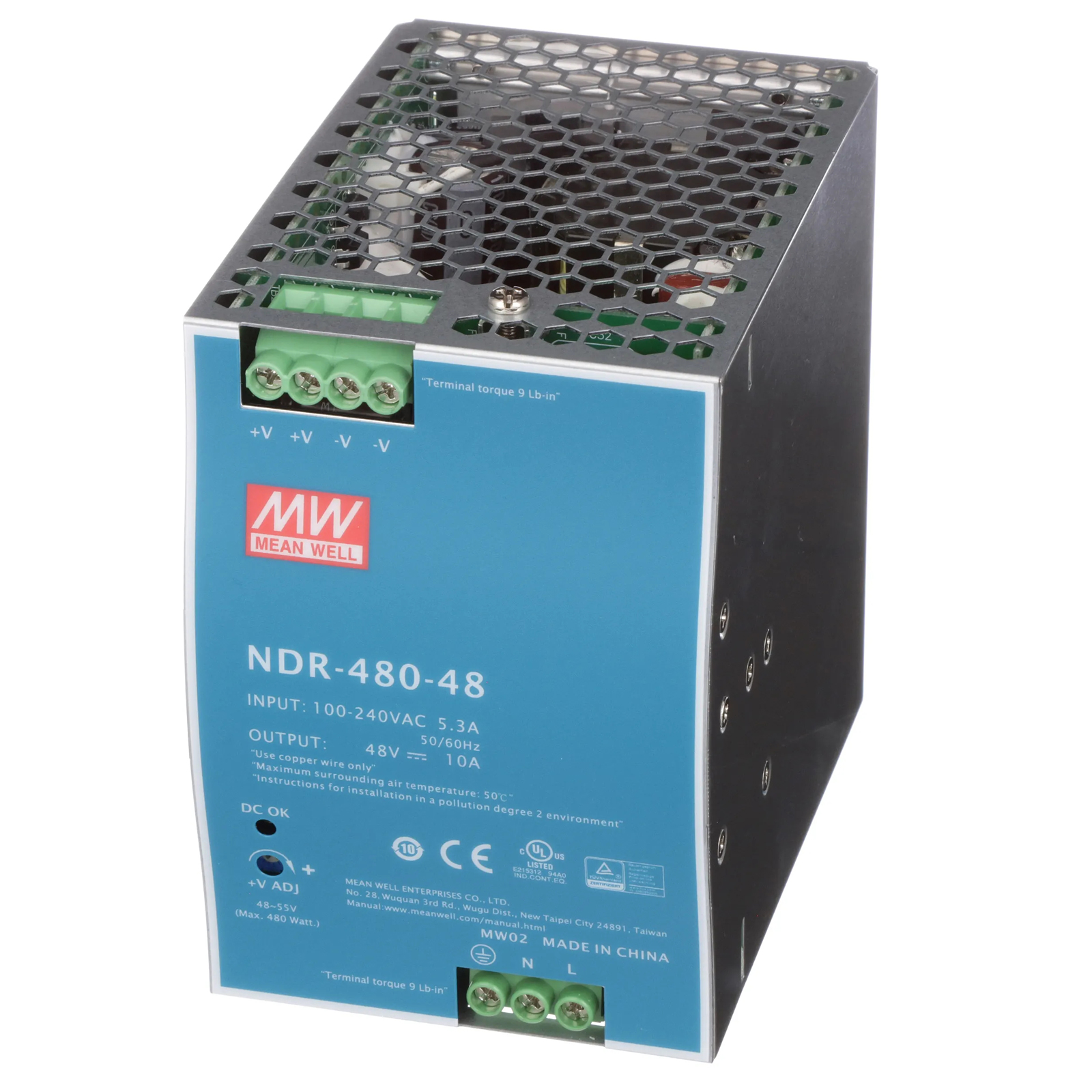

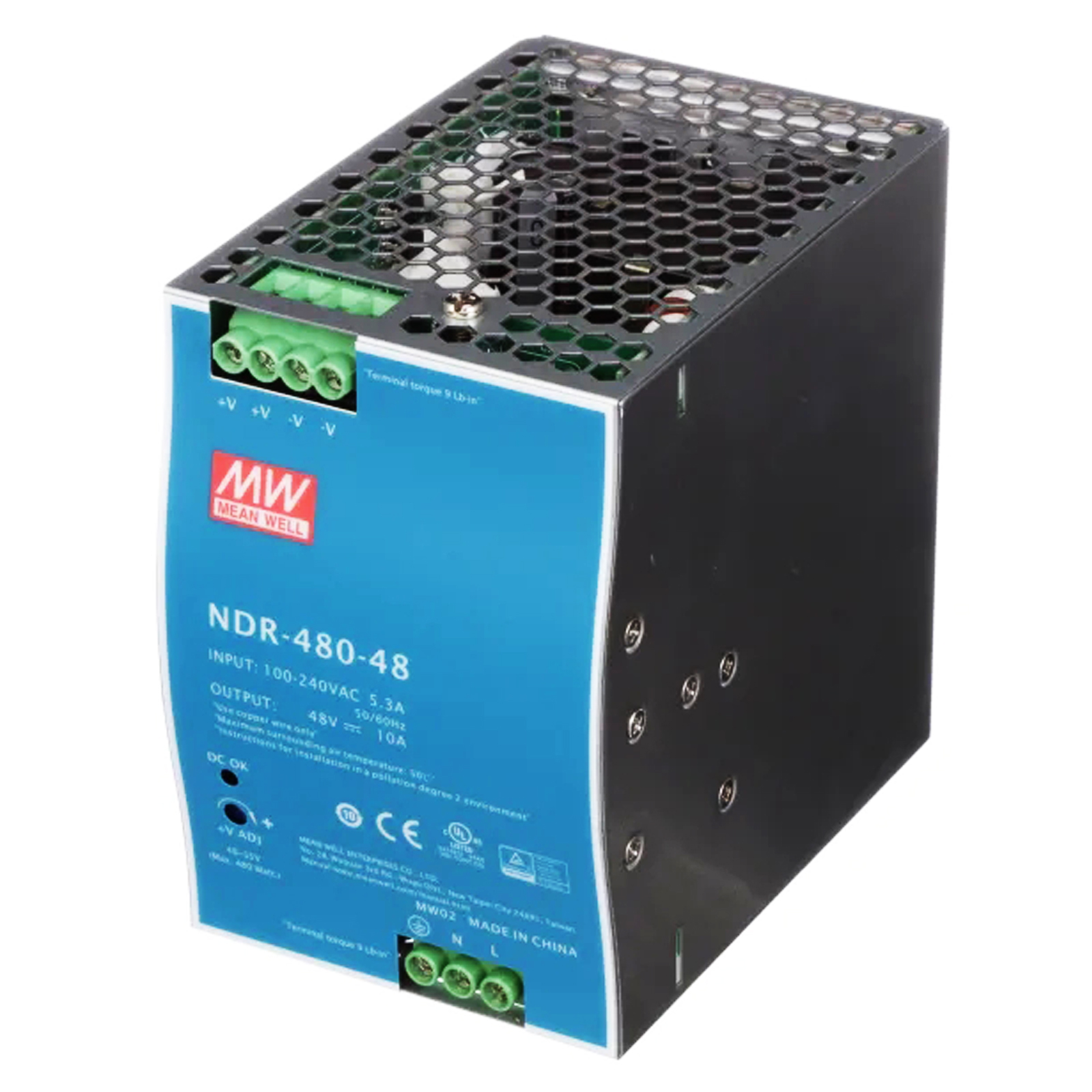

MEAN WELL 480W/48V 10A Industrial DIN RAIL Power Supply NDR-480-48

Model:NDR-480-48

►   Universal AC input full operation

►   Built-in active PFC function

►   Protection features: short circuit, overload, over voltage and over temperature

MEAN WELL 480W/48V 10A Industrial DIN RAIL Power Supply

NDR-480-48

 Features


►   Universal AC input full operation

►   Built-in active PFC function

►   Protection features: short circuit, overload, over voltage and over temperature

►   Cooling by free air convection

►   DIN rail TS-35/7.5 or 15 installation

►   UL 508 (industrial control equipment) approved

►   EN61000-6-2 (EN50082-2) industrial immunity level

►   100% full load burn-in test

►   3 years warranty

Technical Indexes


 MEAN WELL/NDR-480-48

Configuration

Enclosed

Dimensions (W x H x D)

85.5 x 125.2 x 128.5 mm

Weight (kg)

1.5kg

Mounting Type

DIN-Rail Mount

Input Voltage

100-240V AC,50/60Hz, 4.8A

Power Output

480 Watts, 48V, 10A

Primary Type

AC-DC

Series

NDR Series

Type

Industrial

Temperature

Operating:-20~70 degrees C
Storage:-40~85 degrees C

Humidity

Operating: 20 ~ 95%
Storage: 10 ~ 95% (non-condensing)

Installation

DIN rail TS-35/7.5 or 15

Safety & Function

Ul508, TUV EN60950-1 approved (meeting EN60204-1)

Special Features

*3 Year Warranty; 100% Full Load Burn-In Test ; DC OK Active Signal; Short Circuit Protection ; Overload Protection; Over Voltage Protection

  • Download FileName:NDR-480-spec.pdf Size: 1.93MB
Item Description Unit
NDR-480-48 MEAN WELL 480W/48V 10A Industrial DIN-RAIL Power Supply pcs
