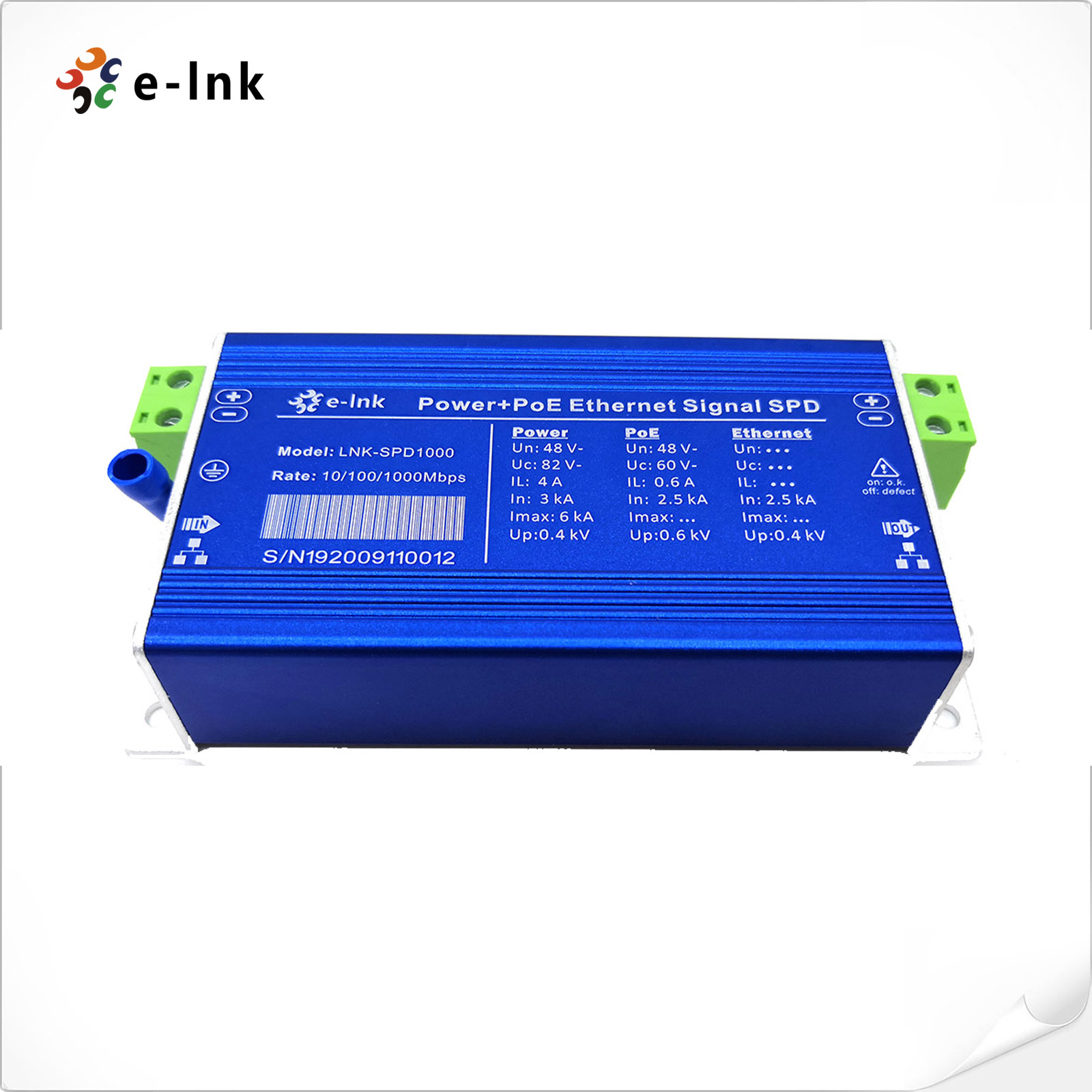

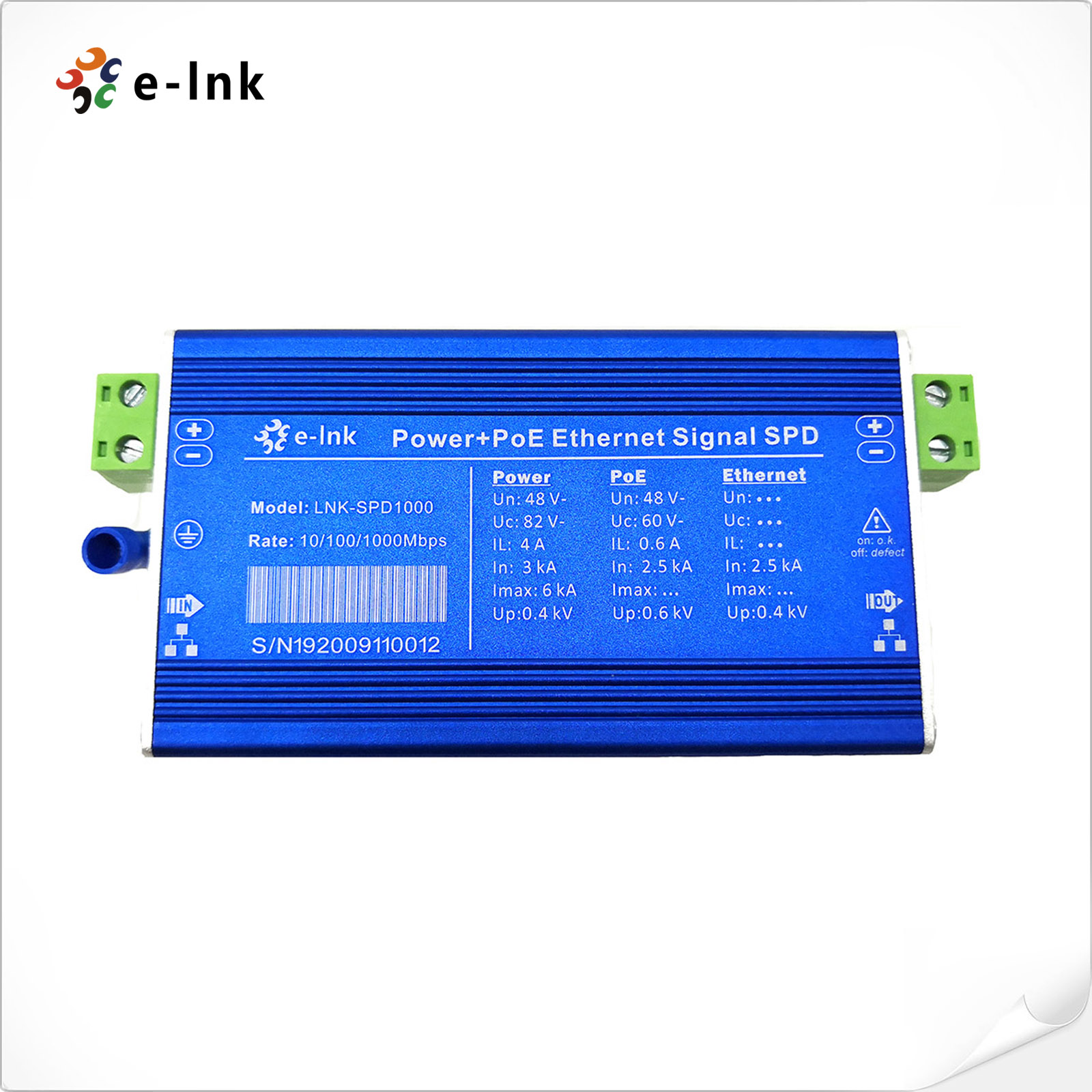

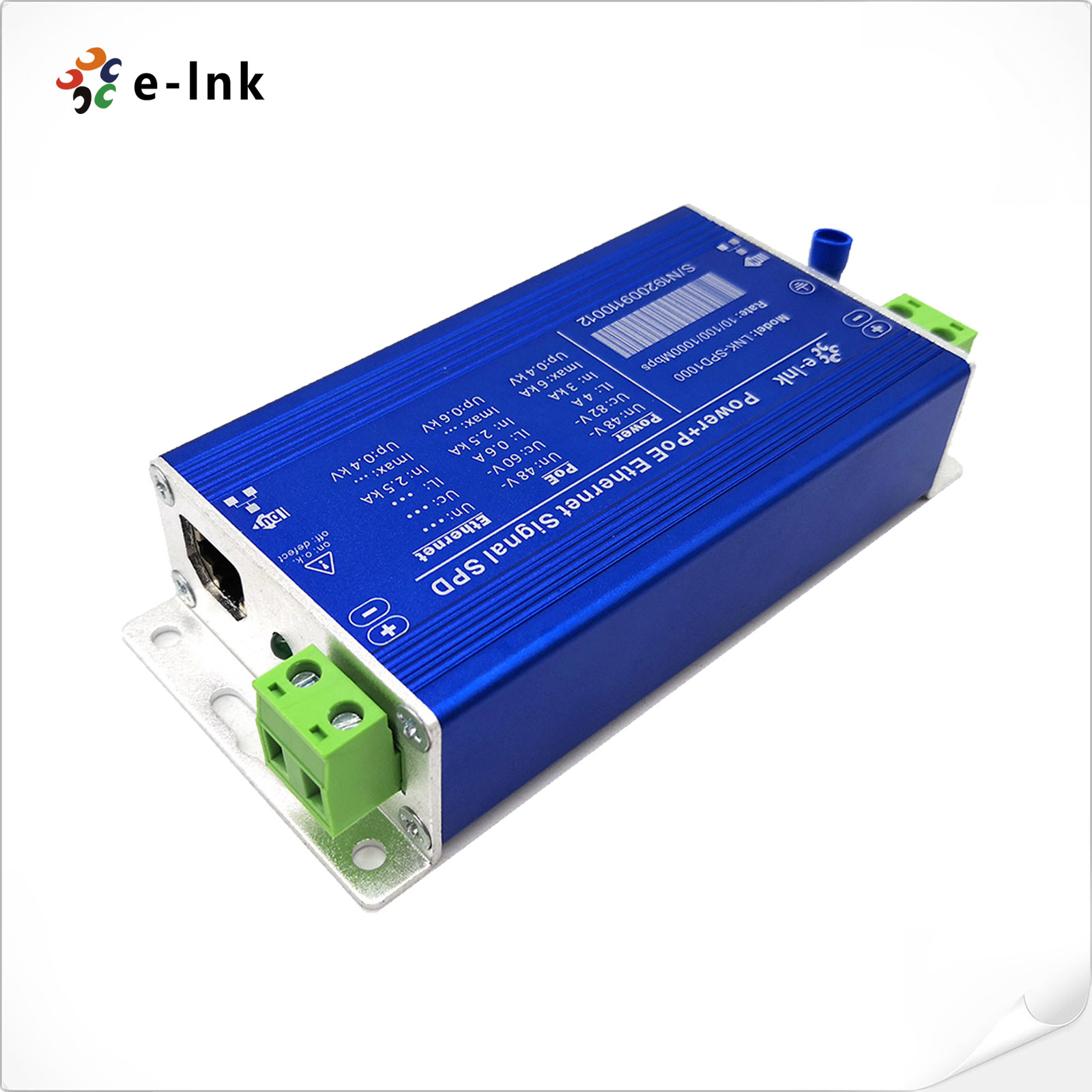

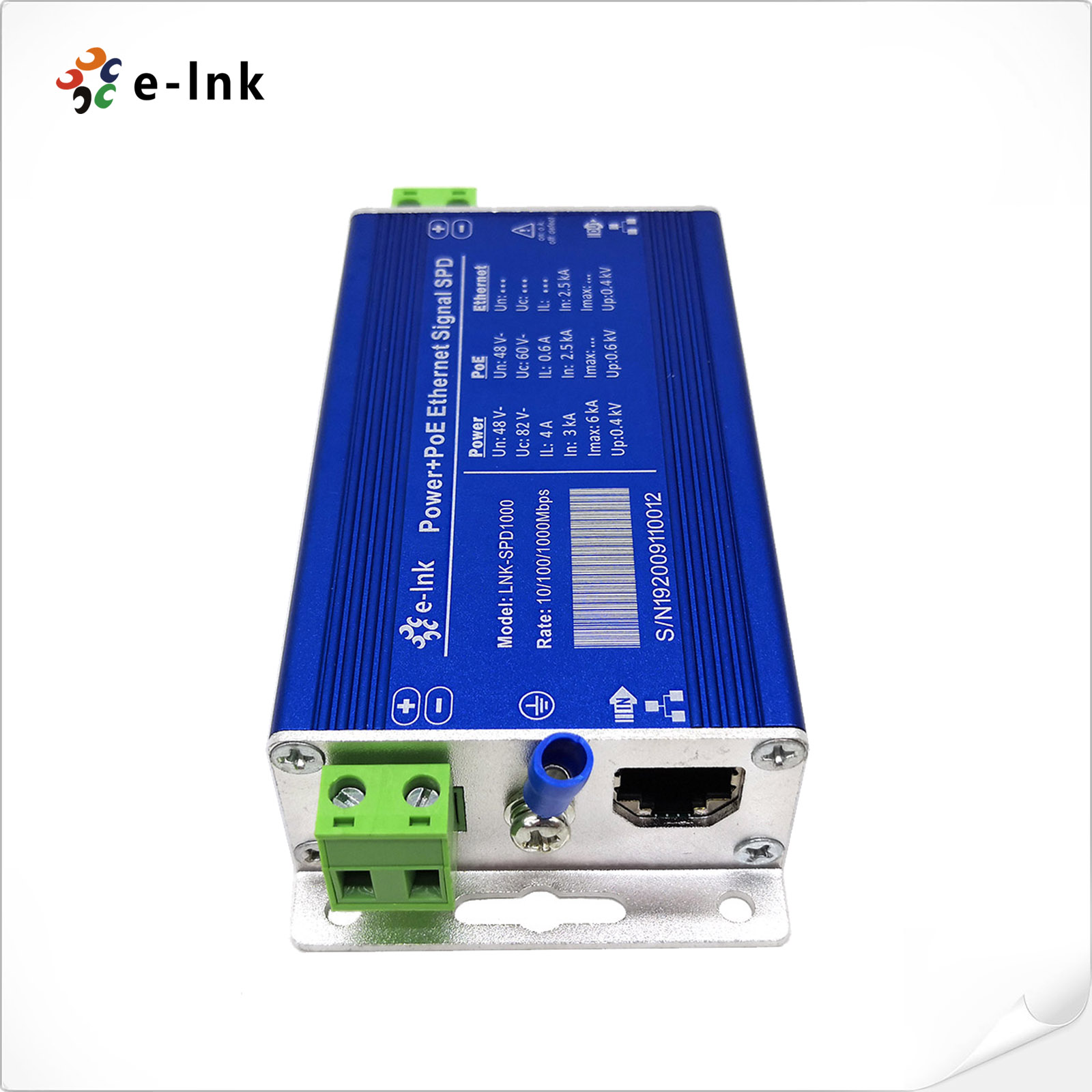

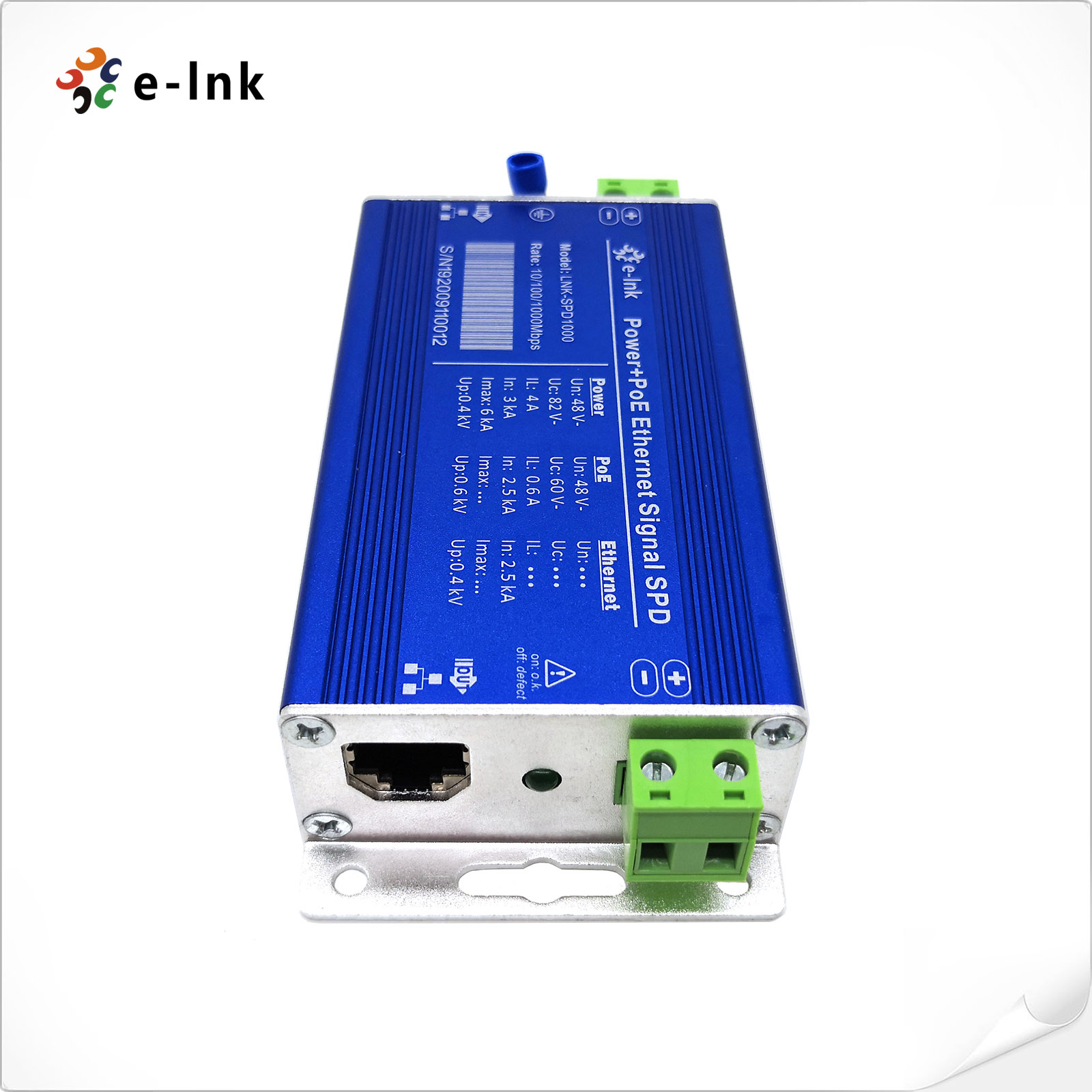

10/100/1000M Gigabit PoE Ethernet & Power Surge Protector
Model:LNK-SPD1000
► POE Ethernet surge protector.
► Adopt power supply + signal POE surge protection integrated design.
Overview
10/100/1000M Gigabit PoE Ethernet & Power Surge Protector
Feature
► POE Ethernet surge protector.
► Suitable for application of wireless AP, network cameras, network switches and other communications equipment supply, network signal line surge protection, integrated design, easy installation.
► Adopt power supply + signal POE surge protection integrated design.
► Use high quality main component with excellent performance.
► Small insertion loss, good transmission rate.
► Low residual voltage, efficient surge protection effect.
► Fast response, stable performance, reliable working.
► Small size, convenient application, maintenance free.
Parameters
|
POE Network section |
Power Supply Section |
|
|
Maximum continuous operating voltage UC |
60V |
82 V |
|
Max Surge Discharge current |
6KA (8/20us) |
|
|
Peak Pulse Current |
100A (10/1000us) |
|
|
Line-line voltage protection level in (UP) |
60 V |
0.4 kV |
|
Line-PE voltage protection level in (UP) |
600 V |
0.4 kV |
|
Line-line voltage protection level 1 kV/μs C3 (UP) |
60 V |
0.15 kV |
|
Line-PE voltage protection level 1 kv/μs C3 (UP) |
600 V |
0.15 kV |
|
Line-line voltage protection level 1.5kV@10/700μs B3 (UP) |
60 V |
0.4 kV |
|
Line-PE voltage protection level6kV@10/700μs B3 (UP) |
600 V |
0.4 kV |
|
Protection Mode |
Differential & Common Mode |
|
|
Insulation Resistance |
>1000 MOhm |
|
|
Shunt Capacitance |
<25 pF |
|
|
Operating Temperature range |
-40 °C ~ + 75 °C |
|
|
Protection class |
IP 20 |
|
|
Mounting method |
Mounting Flange |
|
|
Connector |
RJ45 |
|
|
Even take over the foot. |
1/2, 3/6, 4/5, 7/8 |
|
|
Grounding mode |
Dedicated grounding terminals |
|
|
Grounding Wire |
14 AWG or higher |
|
|
Shell material |
Aluminum alloy |
|
|
IEC Standard |
61000-4-5, 61643-21 |
|
- Download FileName：E-link LNK-SPD1000 Series Surge Protector Datasheet V2.0.pdf Size： 511KB
Order Information
| Item | Description |
| LNK-SPD1000 | 10/100/1000M PoE Ethernet + Power 2 in 1 Surge Protector |
