► RJ45 network surge protector.
► Adopt power supply + Ethernet signal surge protection integrated design.
Overview

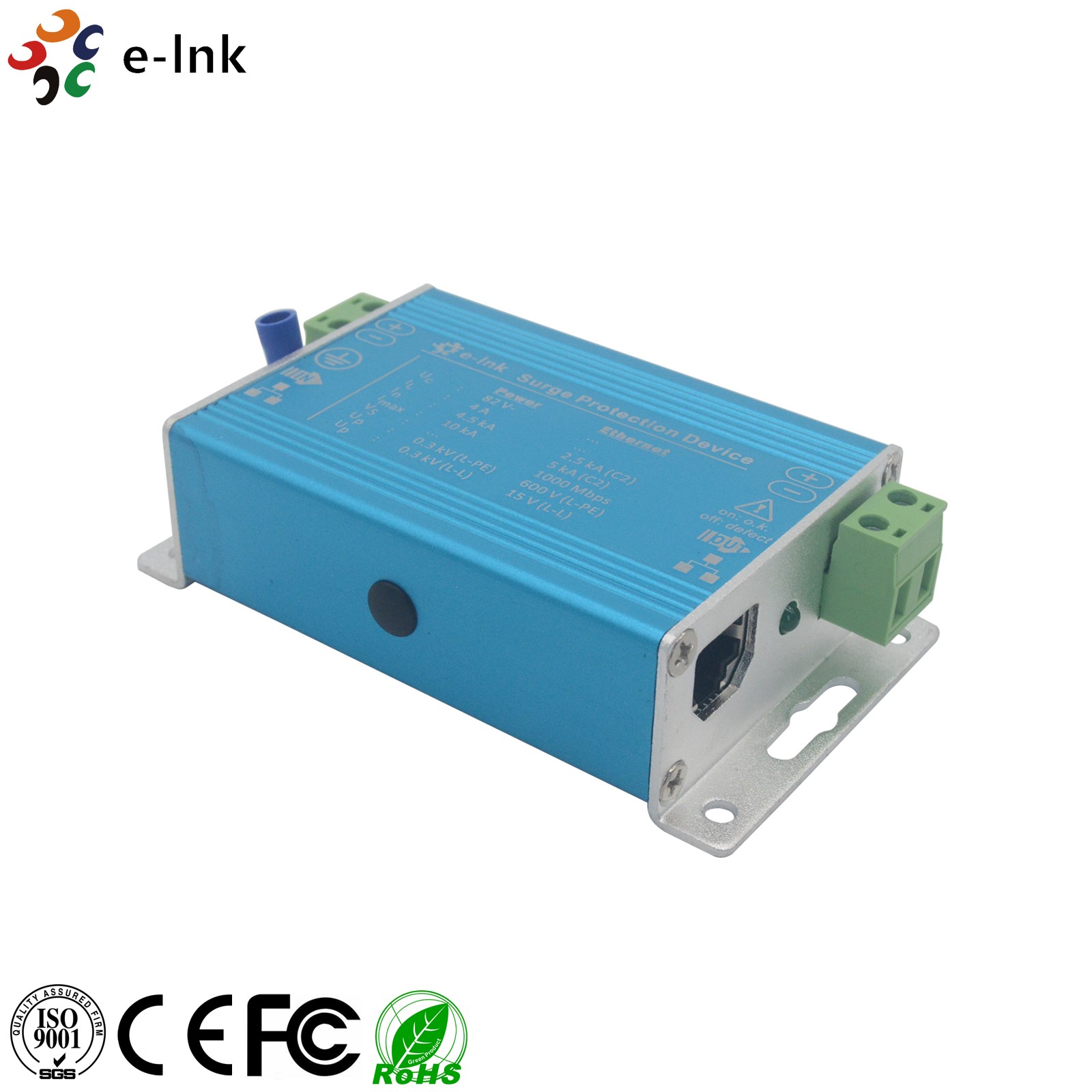

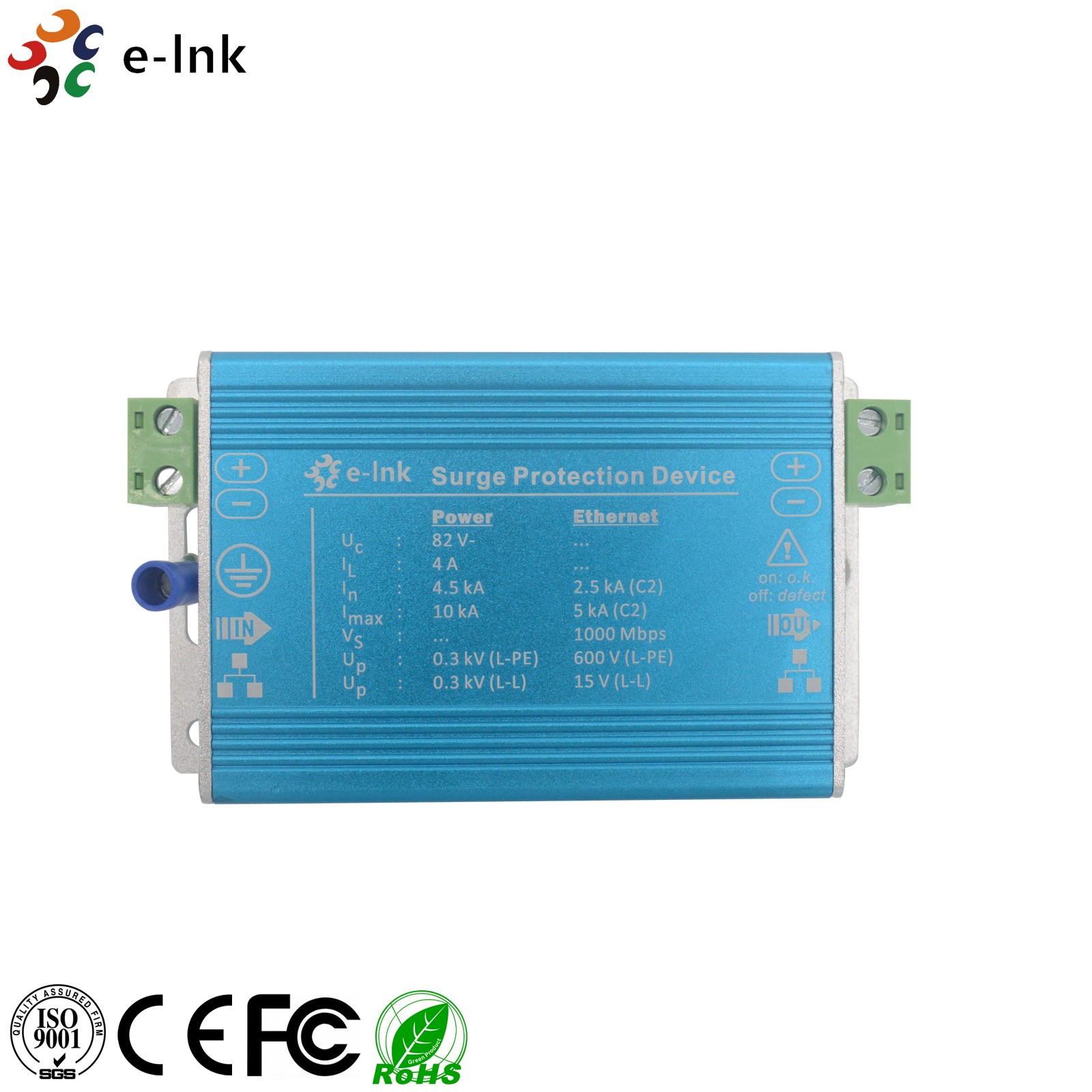

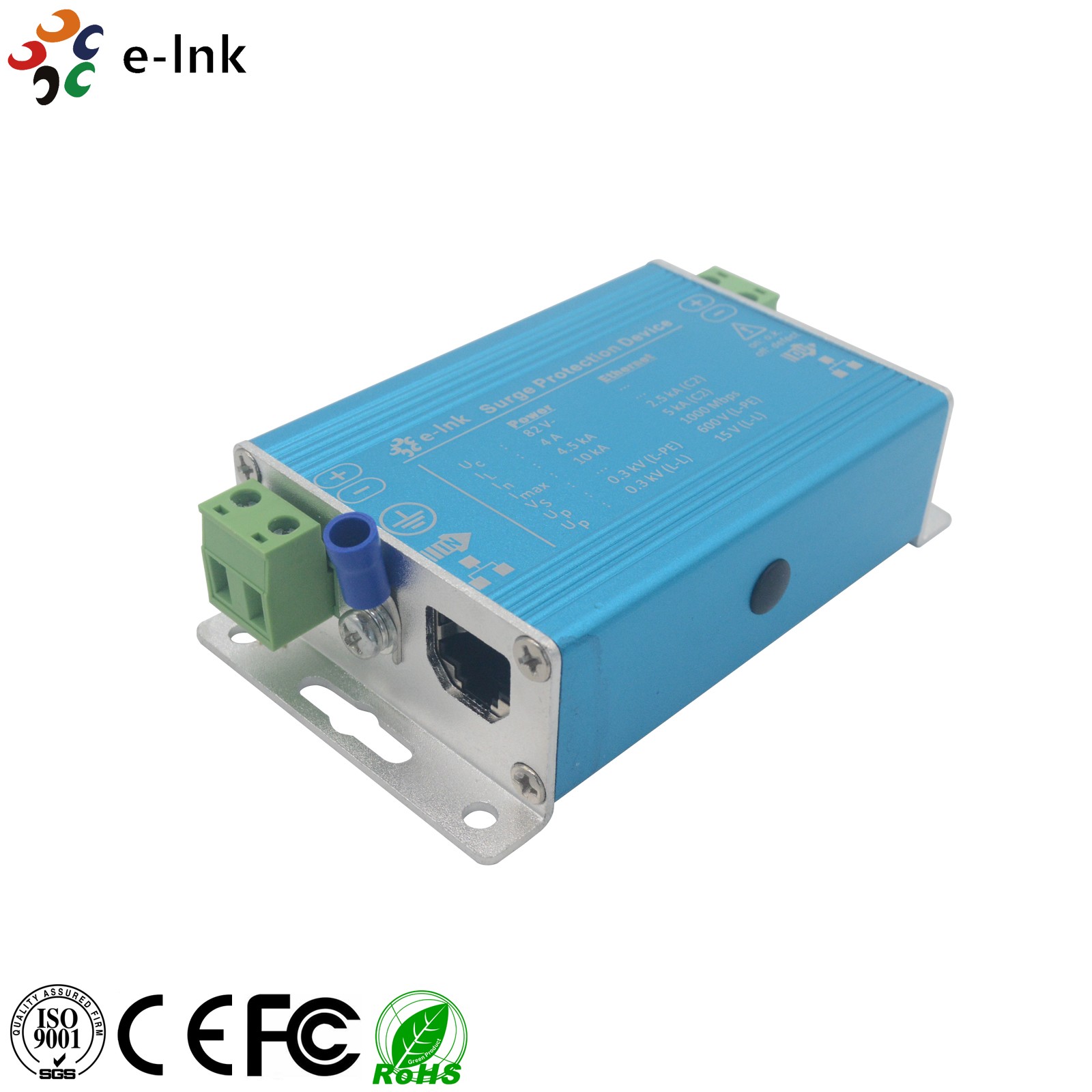

10/100/1000M Gigabit Ethernet & Power Surge Protector
Feature
► RJ45 network surge protector.
► Suitable for application of network cameras, network switches and other communications equipment supply, network signal line surge protection, integrated design, easy installation.
► Adopt power supply + Ethernet signal surge protection integrated design.
► Use high quality main component with excellent performance.
► Small insertion loss, good transmission rate.
► Low residual voltage, efficient surge protection effect.
► Fast response, stable performance, reliable working.
► Small size, convenient application, maintenance free.
Parameters
LNK-SPE1000 |
Network section |
Power Supply Section |
Maximum continuous operating voltage UC |
3.3 V |
85 V- |
Line-line nominal discharge current (8/20μs) (In) |
2.5 That |
5 that |
Line-PE Nominal discharge current (8/20μs) (In) |
2.5 That |
5 that |
Line-line voltage protection level in (UP) |
15 V |
0.4 kV |
Line-PE voltage protection level in (UP) |
600 V |
0.4 kV |
Line-line voltage protection level 1 kV/μs C3 (UP) |
15 V |
0.15 kV |
Line-PE voltage protection level 1 kv/μs C3 (UP) |
600 V |
0.15 kV |
Line-line voltage protection level 1.5kV@10/700μs B3 (UP) |
15 V |
0.4 kV |
Line-PE voltage protection level6kV@10/700μs B3 (UP) |
600 V |
0.4 kV |
Operating Temperature range |
-20 °C ~ + 60 °C |
|
Protection class |
IP 20 |
|
Mounting method |
Mounting Flange |
|
Wiring mode (inbound/outbound) |
RJ45 socket/RJ45socket |
|
Even take over the foot. |
1/2, 3/6, 4/5, 7/8 |
|
Grounding mode |
Dedicated grounding terminals |
|
Grounding Line Range |
1.5~2.5mm2 |
|
Shell material |
Aluminum alloy |
Order Information
Item | Description |
LNK-SPE1000 | 10/100/1000M Ethernet + Power 2 in 1 Surge Protector |
