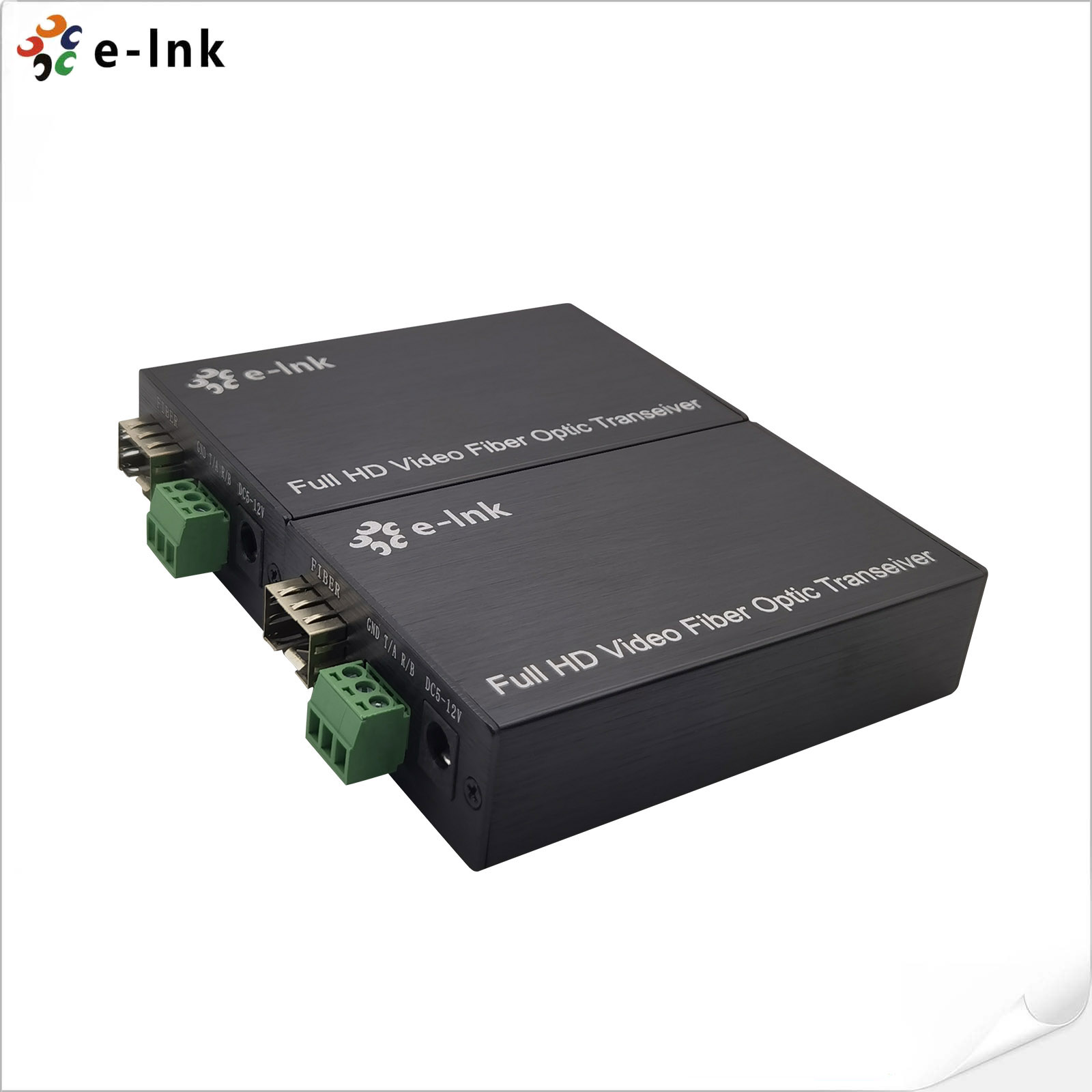

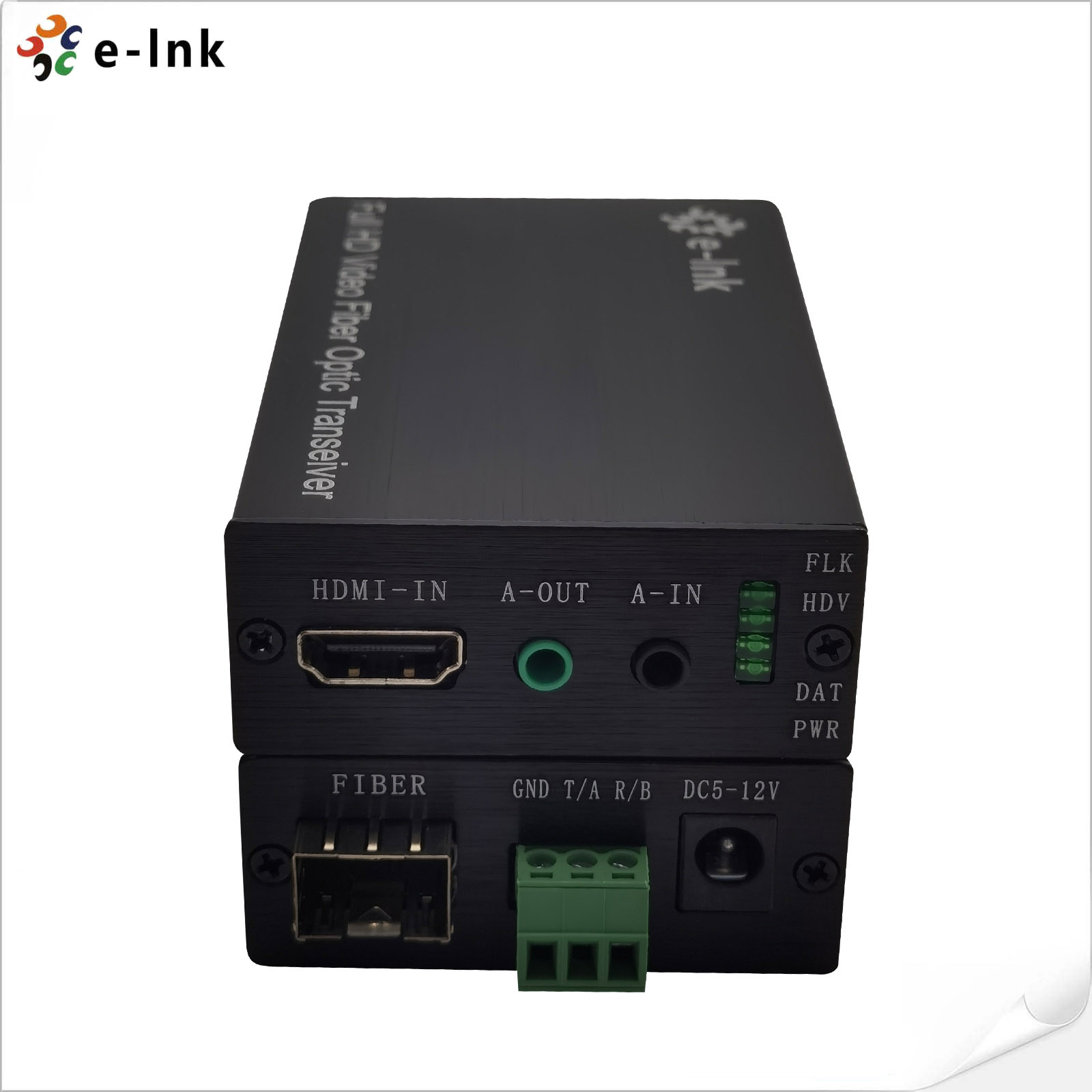

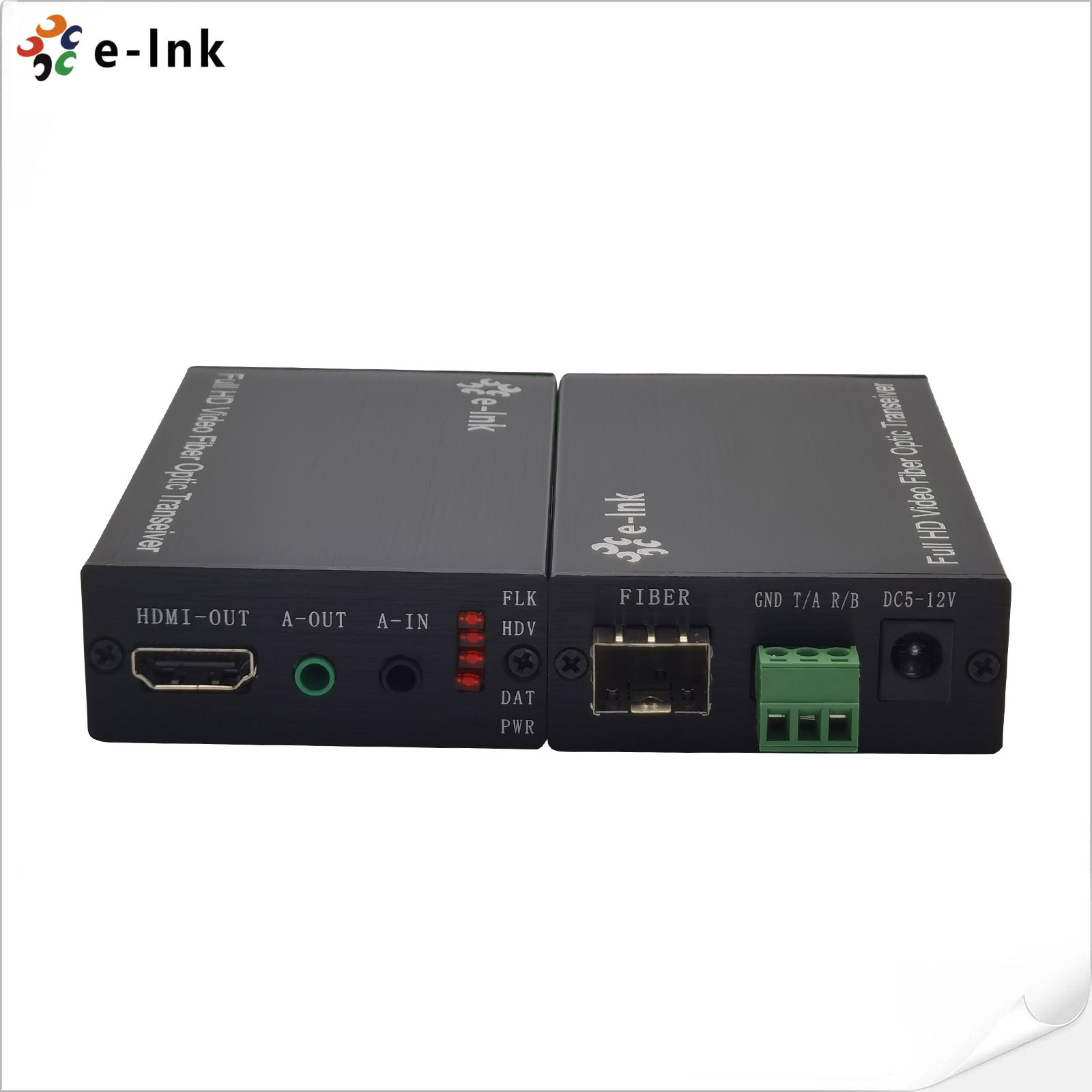

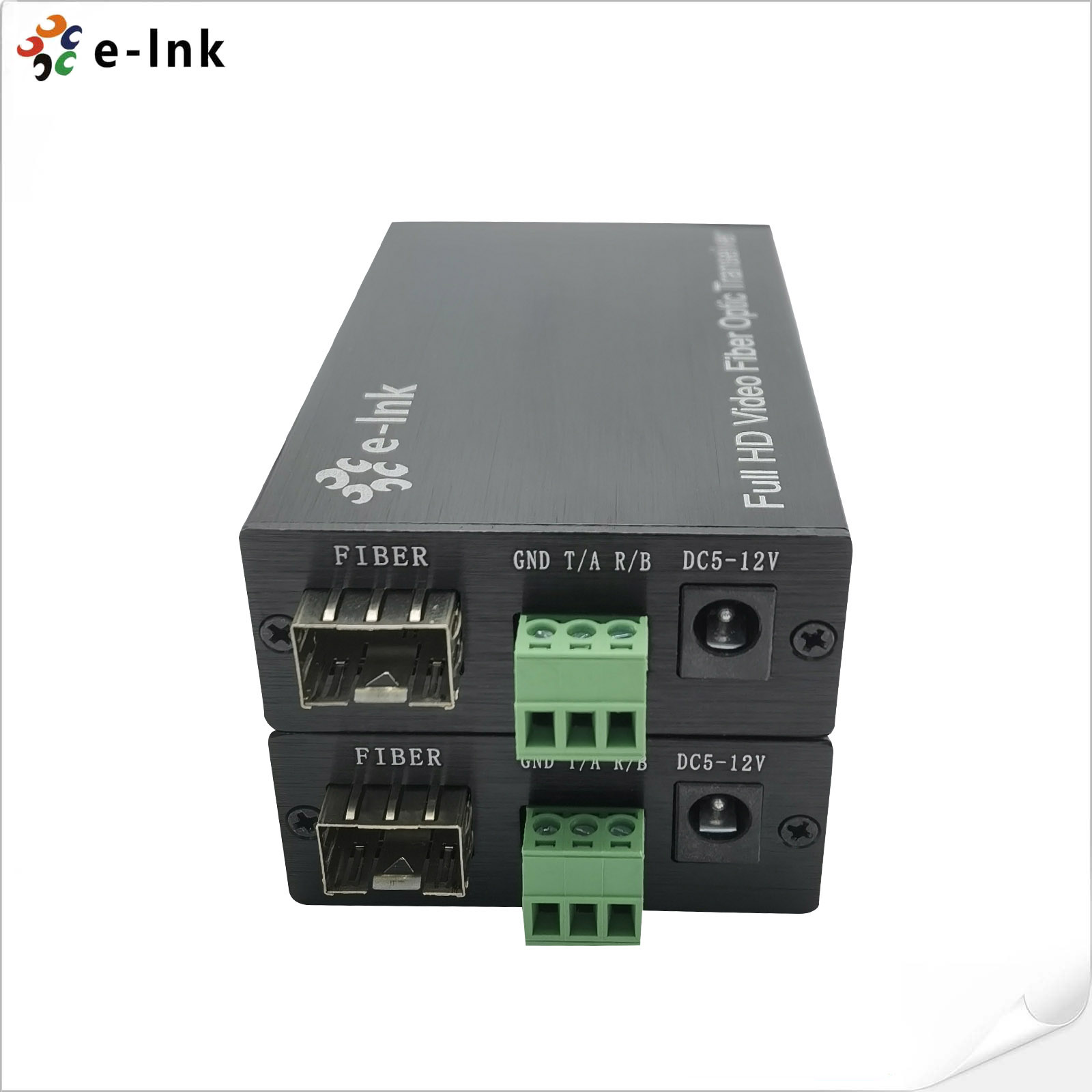

Mini HDMI Video Fiber Optic Extender with Bidirectional Stereo Audio and RS232 Single Mode 20KM

Model:LNK-HF100DA-20

►   Transmits HDMI video signals, RS232 and audio up to 20km over a single fiber cable

►   Support resolution up to1920*1200@60Hz

►   Special support1600*1200 @60HZ

►   Support external bidirectional stereo audio transmission

►   Compliance with HDMI 1.4B3Dand HDCP 1.2 standard

Overview

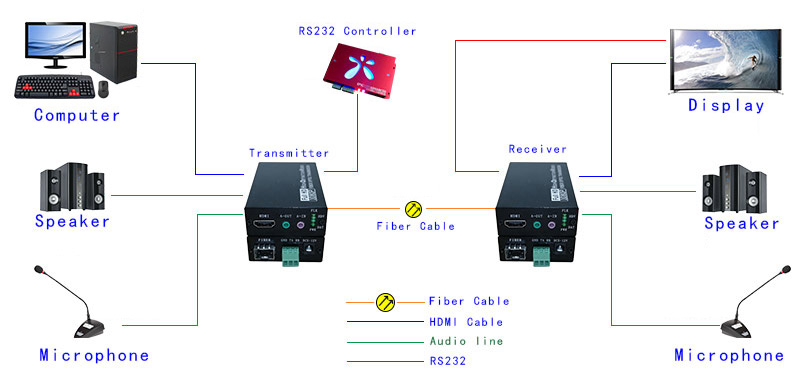

The LNK-HF100DA Series HDMI Fiber optic extender provides extension of HDMI, bidirectional audio and RS232 over one fiber optic cable, it supports HDMI1.4 and MHL2.1 dual mode, it is fully compatible with MHL2.1, HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Feature

►   Transmits HDMI video signals, RS232 and audio up to 20km over a single fiber cable;

►   Support resolution up to1920*1200@60Hz ;

►   Special support1600*1200 @60HZ

►   Support external bidirectional stereo audio transmission;

►   Compliance with HDMI 1.4B3Dand HDCP 1.2 standard;

►   Single-port MHL2.1/HDMI 1.4b receiver

►   High compatibility, can auto-match source and display device;

►   Built-in automatic adjustment system, make the image smooth, clear and stable;

►   Built-in ESD protection system;

►   Simple to install, plug and play;

►   Support EDID

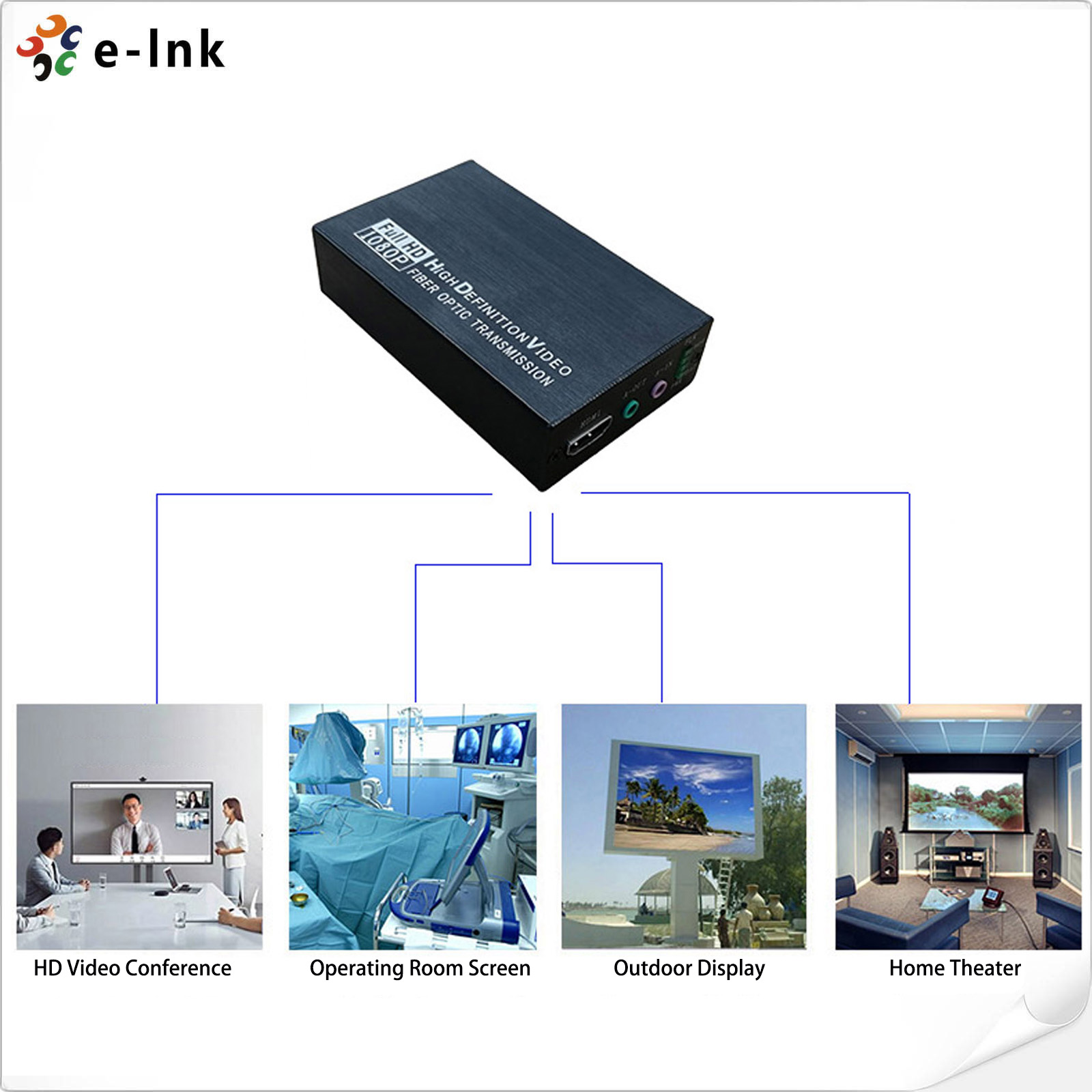

Application


Specifications

Parameter

Description















Video

















Standards

HDMI1.4B 3D; HDCP1.4

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Compliant

1080P@50/59.95/60Hz,( Max 1920*1200@60Hz)1080P@23.98/24/29.97/30Hz,
1080i@50/59.94/60/Hz,

720P@23.98/24/29.97/30Hz,

720P@50/59.94/60Hz

Special support 1600*1200 @60HZ

Connector

Female HDMI type A

Impedance

100Ω

HDMI Cable Range

<5Meter (Resolution up to 1920*1200@60Hz)

Audio

Interface

3.5MM external stereo audio

Transmitter

1Ch Input + 1Ch Ouptut

Receiver

1Ch Input + 1Ch Ouptut

RS232

Interface

3-Pin Terminal Block

Baud Rate

≤115200

Data Bits

8 bits

Optical fiber

Interface

SFP model – LC connector

Fiber type

Single-mode

Wavelength

850nm/1310nm/1550nm

Interface bandwidth

3Gbps

Transmission distance

Transmission@1920*1200@60Hz

Multi-mode fiber: <500M

Single-mode fiber: 20km

IndexOther

Power supply

The power adapter: DC 5~12V

Power dissipation

MAX4W

Temperature

Operating: -20℃~ +70℃

Humidity

Operating: 5% ~ 90%

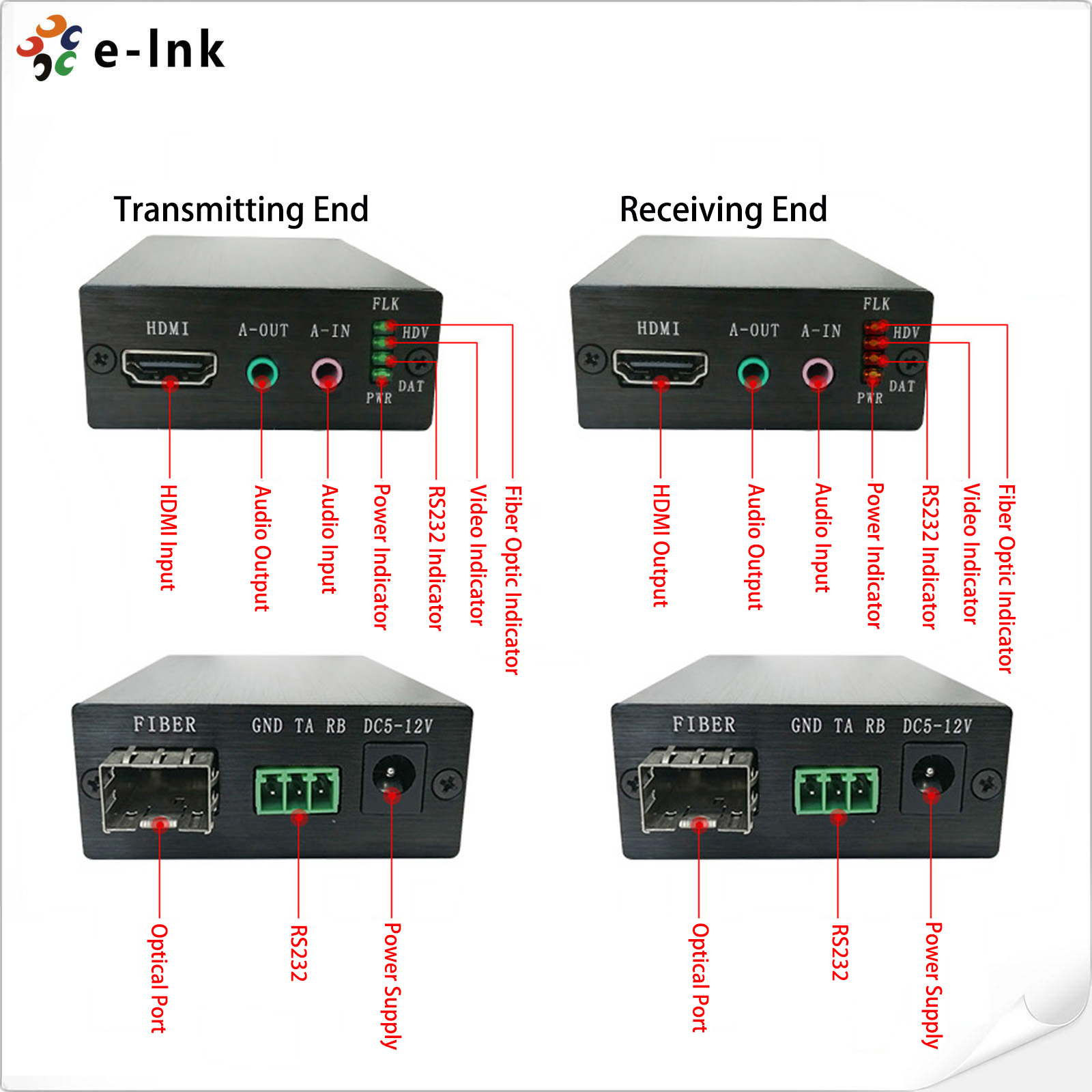

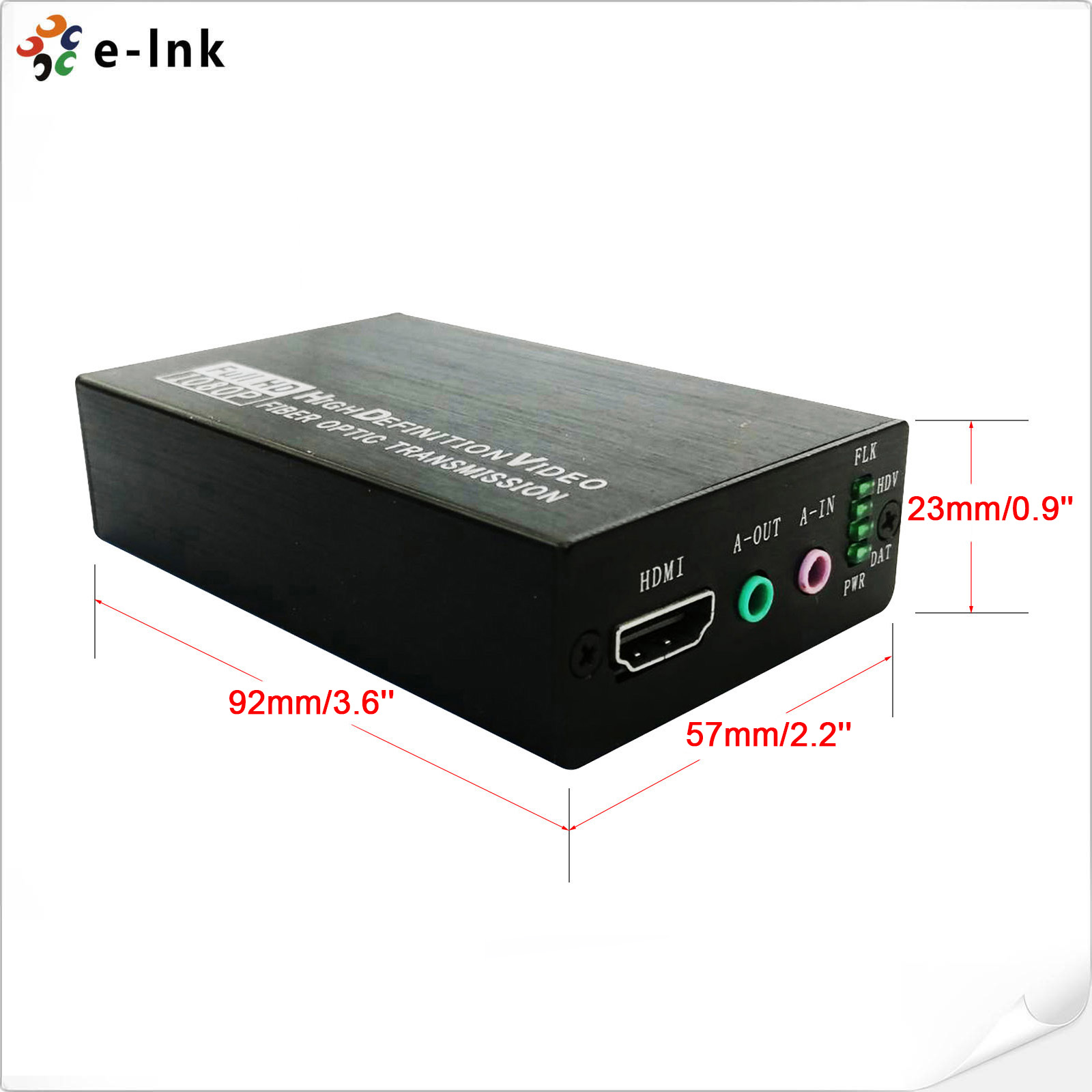

Dimension (LxWxH)

92 x 57 x 23 (mm)

  • Download FileName:E-link LNK-HF100DA HDMI+Bidi Audio+RS232 over Fiber Extender Datasheet V1.0.pdf Size: 697KB

Order Information

Model

Description

LNK-HF100DA

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs

LNK-HF100DA-20

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), single mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
