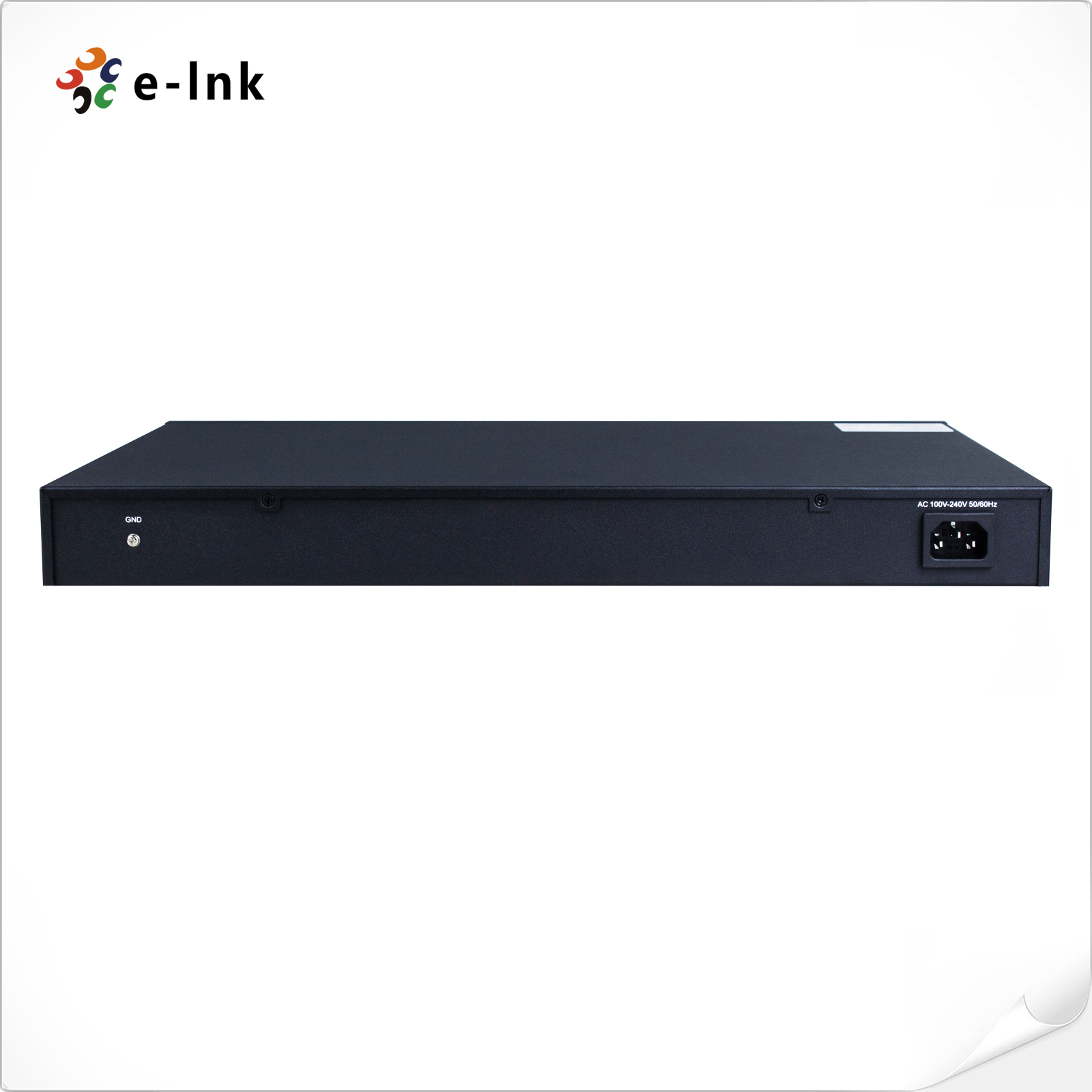

Unmanaged 24-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000 SFP Ethernet Switch
Model:LNK-224GP-SFP
► 24x10/100/1000Base-TX RJ45 ports, 2xGigabit SFP/ 24xPoE
► SFP interface support 100/1000Base-X SFP auto-negotiation
► AI Extend: Extend 250M transmission
Overview
LNK-224GP-SFP is a new generation Unmanaged PoE switch with 24-Port 10/100/1000Base-TX and 2-Port 100/1000 SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.
Feature
► 24x10/100/1000Base-TX RJ45 ports, 2xGigabit SFP/ 24xPoE
► SFP interface support 100/1000Base-X SFP auto-negotiation
► AI Extend: Extend 250M transmission
► AI QoS: Video data first, more fluent transmission
► AI VLAN: Avoid the internet storm and enhance the network ability
► AI PoE: Automatic self-checking, reboot the device while find it fake dead
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
► Support 10K bytes giant frame, compatible with various extension protocol
► 8K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
► Support IPv6 Protocol
► Electric 4KV surge protection
► Complete status indicator, working state at a glance
► 1U rack-mount type
Specifications
|
Physical Port |
|
|
RJ45 port and speed |
24x10/100/1000ase-TX |
|
Fiber port and speed |
2xGigabit SFP |
|
Parameters |
|
|
Ethernet standards |
IEEE802.3 10BASE-T |
|
Packet buffer |
4Mbits |
|
Maximum packet length |
Up to 10k Bytes |
|
MAC address table |
8K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs |
|
Backplane bandwidth: 56Gbps |
|
|
Packet forwarding rate: 47.624Mpps |
|
|
PoE |
|
|
PoE Standard |
24 x IEEE 802.3af /IEEE 802.3at PoE |
|
Power budget |
Max. PoE output power budget 30W |
|
LED Indicator |
|
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
|
Fiber |
Link/Act: connect-always; data exchange-twinkle |
|
Power Information |
|
|
Redundant power input |
AC 100-240V 50/60Hz |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
Full-load<15W (PoE Max 300W) |
|
Physical Property |
|
|
Enclosure |
Metal |
|
Dimensions |
440mm x 395mm x 45mm (L x W x H) |
|
Installation mode |
Rack-mountable |
|
Weight |
3.55kg (With PoE: 3.6kg) |
|
Working Environment |
|
|
Operating Temperature |
0℃~50℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-10℃~70℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Defects Liability Period |
2-year warranty, lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
- Download FileName：E-link LNK-224GP-SFP Unmanaged 24GE + 2SFP PoE Switch Switch Datasheet V1.0.pdf Size： 1.75MB
Order Information
|
Model |
Description |
|
LNK-224GP-SFP |
Unmanaged 24-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000 SFP Ethernet Switch |
